QIST208GSM Cellphone

T208 Mobile Phone USER GUIDE Copyright © 2007 Huawei Technologies Co., Ltd. and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd. in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the property of their respective holders. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com Table of Contents Your Phone ............................................................................... 1 Keys and Functions .................................................................. 2 Screen Icons.............................................................................. 4 Menu Tree................................................................................. 5 Installing the SIM Card and Battery. ........................................ 6 Removing the Battery and SIM Card ....................................... 6 Charging the Battery................................................................. 6 Using the Function Menu ......................................................... 7 Making a Call ........................................................................... 7 Answering a Call ...................................................................... 8 Security ..................................................................................... 8 PIN and PUK ............................................................................ 9 Locking the Keypad.................................................................. 9 Changing the Text Input Modes ............................................. 10 Entering English (eZiEn)........................................................ 10 Entering English (ABC, Abc and abc) ................................... 10 Entering Numbers................................................................... 11 Entering Symbols ................................................................... 11 FM Radio ................................................................................ 11 Warnings and Precautions ...................................................... 12 1 Your Phone 2 Keys and Functions Press... To... z View the phone numbers dialed, received or missed. z Make or answer a call. z Power on or off the phone (by pressing and holding it). z End a call or reject an incoming call. z Return to the standby mode. z Confirm a selection. z Enter Fun &Tools interface in the standby mode. Select the option displayed on the lower left corner of the screen. Select the option displayed on the lower right corner of the screen. Display the Calendar interface (), the Contacts interface ( ), the Alarm clock interface (), the Write message interface ( ). 3 Press... To... － z Enter numbers and characters. z Speed-dial phone numbers in the standby mode (by pressing the 2-9 keys and press to make a call). z Select a submenu item labeled with the corresponding number. z Enter the * symbol. z Enable or disable the Conference profile (by pressing and holding it). z Provide different functions according to the phone features being used. z Enter the # symbol. z Lock the keypad in the standby mode (by pressing and holding it). z Provide different functions according to the phone features being used. 4 Screen Icons Icon Description IconDescription or Network signal strength Voice Message or No network Network search Conference profile Battery power level Mute profile Roaming Outdoor profile Short Message Flashes when the storage is full. Earphone Alarm clock on Missing calls Call forwarding 5 Menu Tree 6 Installing the SIM Card and Battery. Make sure that the angled corner is on the lower right-hand side with the golden metallic contact surface facing downward. Removing the Battery and SIM Card Make sure that your phone is powered off. Charging the Battery 1. Connect the charger to the charger interface at the bottom of your phone. 2. Connect the charger to an AC power socket 3. During the charging, the charging icon is displaying in animation. 4. When the charging icon becomes static, the battery is fully charged. Disconnect the charger from the AC power socket. If the phone is powered off, it will inform you with the message of " Charging completed " displayed on the screen. 5. Disconnect the charger from the phone. 7 Using the Function Menu 1. In the standby mode, press ( Menu ) to display the menu interface. 2. Press to scroll to a menu item. 3. Press ( Select ) to display the menu. 4. Display the submenu in either of the ways: z Press to scroll to a submenu item and press ( Select ) to display the submenu. z Press the number key corresponding to the number of a submenu to display it. 5. Press (Back) to return to the previous menu or quit the function menu. Press to return to the standby mode. Making a Call 1. In the standby mode, enter a phone number. To make an international call, enter the prefix and the phone number as follows: Press and hold "0", and "+" appears. Then enter the number to be dialed, in the format of "country code + region code + phone number". 2. Press to make the phone call. 3. Press to end an active call or stop dialing. 8 Note z When the phone is locked, enter the lock code to unlock the phone first; otherwise, you can make emergency calls or answer calls only. z In the standby mode, press to view all call records. Select a record and press to dial. z Select a contact from the contacts and press to dial. z Select a message in the inbox and press (Option), then select …

Text truncated - open the document above for the full version.

1. Your response to the administrative review stated that the mini-USB is not for data transfer. However please note that the schematic does show the TX/RX lines of the USB are connected to an ASIC so it is assumed that data transfer may be possible. If this device will not send data over these lines, kindly provide an attestation from the applicant. Please note that should the applicant ever update the device to communicate over USB, the device will not be compliant to what was Certified and will require a NEW FCC ID. Reply: The Mini-USB port is for power charging only. Please refer to following photos and Huawei signed a letter for this issue. 2) It is uncertain if the following information was provided: Information regarding both DC voltages AND currents applied into the several elements of the final radio frequency amplifying device for normal operation over the power range (2.1033(c)(8)). Reply: We already update on page 6, section 1.1 of Part22&24 report. 3) There is not a reference to the test methods applied to Part 22/24. Note that most licensed devices follow EIA/TIA 603-C. Methods applied here should follow this standard. Test report must reference appropriate test procedures and follow these methods. Please review/update/correct as necessary. Reply: We already update EIA/TIA603-C on Part22&24 report. 4) It appears that power via the substitution method was performed in an anechoic chamber. However the current version of TIA/EIA 603-C only allows use of an OAT’s or qualified semi-anechoic chamber. Please correct. Reply: We already change the test site to Semi-Anechoic chamber and update the report. 5) Final power values listed on the 731 form should cite the ERP value for Part 22 and EIRP for Part24. Please correct. Reply: The 731 form is updated. 6) For spurious emissions at the antenna terminals (Both +/- 1 MHz and spurious), the test setup should correct for the loss of the coupler. Please review and confirm that this was done. Reply: We already correct for the loss of the coupler. Please refer to the right side Offset on the following graph. 7) Please define the RBW settings used for spurious emissions in the report. Note Part 22 requires 100 kHz minimum and Part 24 requires 1 MHz Minimum. Please confirm this was done. Reply: We already update Part22& 24 report. Please refer to page 40. 8) Radiated spurious emissions and the substitution data was provided. However antenna conducted spurious emissions as required by part 2 do not appear to have been provided. Please provide. Reply: Please refer to page 42~53 on the updated Part22&24 report for test data of conducted spurious emission. 9) Operational Description mentions charge capability for 3 types of battery technology (i.e. NiCd, NiMH, LiIon). Note that for SAR testing the FCC expects each type of battery (capability as well as battery technology) to be tested. Only one type of battery appears to be tested. Please review. Reply: After checking with Huawei, T208 will be packaged with LiIon battery only. So we correct the operation description. 10) Users manual should contain further guidance regarding use of non-metallic accessories and body positioning. Statements such as the following should be added: Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device and the user’s body. Reply: Except earphone, Huawei will not provide other accessories when selling T208. Shall we show following warnings on manual? Please advise me. "For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines." 11) For SAR, the report should define whether the test sample was a production unit or identical prototype. Please correct. Reply: George already discussed with you. It’s a production unit. 12) According to FCC Documents released January 2007 (“SAR Probe Calibration and System Verification Considerations for measurements 150 MHz – 3 GHz”), the target SAR values should be within 10% of the manufacturers calibrated dipole SAR value. This is typically found on the calibration Certificates. Please update tables to also compare with this value. Reply: We already update SAR report. 13) FCC requires that the conducted power for the SAR sample be >= the conducted value of the sample used for EMC. Current values in the SAR report are < than the EMC samples. Please review/correct. Reply: We already update SAR report to comply with Part 22/24 report. 14) SAR plots show clipped scans. The FCC requires these areas to be investigated more closely to ensure proper maximum SAR has been obtained. These may require 2 separate scans or larger scan volumes. Reply: We already update SAR report and re-test for both separate scans. 2/28: Regarding previous comment 14, this comment only showed 2 examples but there were still other clipped peaks that are of concern. See page 48, 56, 60 of Part 1 of SAR. Reply: We will provide updated report next Monday! 15) It is uncertain what body spacing was used for body SAR testing. Photographs and tables should document this appropriately. Reply: We already update SAR report with new photos remarked 1.5 cm. And remark 1.5cm on the Table as well. 16) Calibration Information for 1900 MHz Head could not be located. Please correct Reply: We already update SAR report. 17) Will the manufacturer be providing any body worn accessories with this device (i.e. holster, etc.)? If these contain any metal, then body worn investigation with these accessories must also be performed. Reply: The client only provided earphone and we performed SAR testing with the earphone. Please check photos of Body SAR test. 18) Please define the GPRS or Edge capabilities of this phone. Generally the…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date: February 19, 2008 Federal Communications Commission Authorization and Evaluation Division FCC ID: QIST208 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM list 5 Tune-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhang Xinghai/manager Huawei Technologies Co.,Ltd

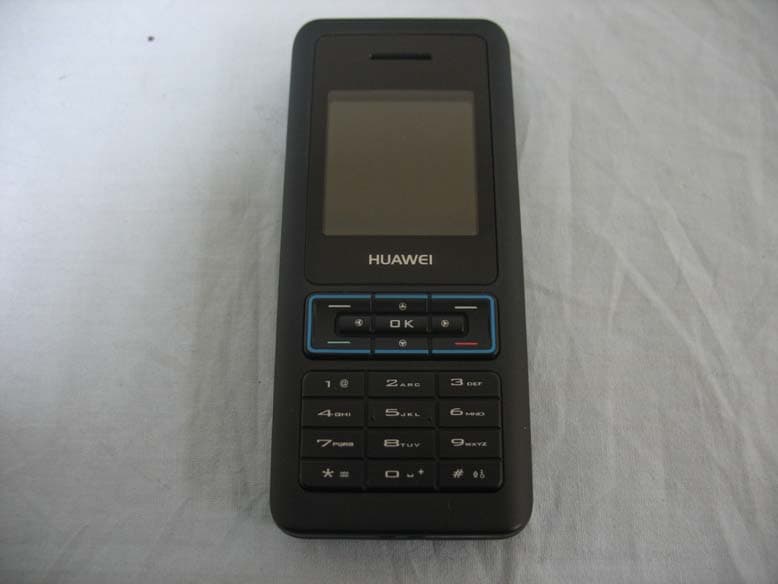

GSM 850/1900 Mobile Phone (M/N: T208) EUT Photograph – External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo

GSM 850/1900 Mobile Phone (M/N: T208) FCC Label Position

GSM 850/1900 Mobile Phone (M/N: T208) ¾ EUT Photograph – internal Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

Report No082022R-HPUSP10V01 Page: 1 of 26 Version:1.0 SAR Test Report Product Name GSM 850/1900 Mobile Phone Model No. T208 Applicant Huawei Technologies Co., Ltd Address Huawei Base BanTian Longgang Shenzhen 518129 P.R.C Date of Receipt 2008/01/29 Issued Date 2008/02/29 Report No. 082022R-HPUSP10V01 Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No082022R-HPUSP10V01 Page: 2 of 26 Version:1.0 Test Report Certification Issued Date: 2008/02/29 Report No.:082022R-HPUSP10V01 Product Name GSM 850/1900 Mobile Phone Applicant Huawei Technologies Co., Ltd Address Huawei Base BanTian Longgang Shenzhen 518129 P.R.C Manufacturer Huawei Technologies Co., Ltd Trade Name Huawei Model No. T208 Applicable Standard FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR 2.1093 Test Result Max. SAR Measurement (1g) GSM 850MHz: 0.131 W/kg PCS 1900MHz: 0.261 W/kg The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By (Engineering Adm. Assistant / Nicole Huang) Tested By (Engineer / Vorana Chen) Approved By (Deputy Manager /Vincent Lin) Report No082022R-HPUSP10V01 Page: 3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.................................................................................5 1.1 EUT Description............................................................................................................5 1.2 Test Environment...........................................................................................................5 2. SAR Measurement System.....................................................................6 2.1 ALSAS-10U System Description..................................................................................6 2.1.1 Applications................................................................................................................6 2.1.2 Area Scans...................................................................................................................6 2.1.3 Zoom Scan (Cube Scan Averaging)...........................................................................7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty.........................................7 2.2 Isotropic E-Field Probe..................................................................................................7 2.2.1 Isotropic E-Field Probe Specification.........................................................................9 2.3 Boundary Detection Unit and Probe Mounting Device.................................................9 2.4 Daq-Paq (Analog to Digital Electronics).....................................................................10 2.5 Axis Articulated Robot................................................................................................10 2.6 ALSAS Universal Workstation....................................................................................11 2.7 Universal Device Positioner.........................................................................................11 2.8 Phantom Types.............................................................................................................11 2.8.1 APREL SAM Phantoms...........................................................................................12 2.8.2 APREL Laboratories Universal Phantom.................................................................12 3. Tissue Simulating Liquid......................................................................13 3.1 The composition of the tissue simulating liquid..........................................................13 3.2 Tissue Calibration Result.............................................................................................13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms.......................................16 4. SAR Measurement Procedure..............................................................17 4.1 SAR System Validation................................................................................................17 4.1.1 Validation Dipoles.....................................................................................................17 4.1.2 Validation Result.......................................................................................................17 4.2 Arrangement Assessment Setup...................................................................................18 4.2.1 Test Positions of Device Relative to Head...............................................................18 4.2.1.1 Definition of the “Cheek” Position........................................................................18 4.2.1.2 Definition of the “Tilted” Position.........................................................................19 4.2.2 Test Positions for body-worn....................................................................................20 4.3 SAR Measurement Procedure......................................................................................20 Report No082022R-HPUSP10V01 Page: 4 of 26 Version:1.0 4.3.1 SAR Measurement Procedure...................................................................................21 5. SAR Exposure Limits.............................................................................22 6. Test Equipment List...............................................................................23 7. Measurement Uncertainty.....................................................................24 8. Test Results.............................................................................................25 8.1 SAR Test Results Summary.........................................................................................25 Appendix.................................................…

Text truncated - open the document above for the full version.

Report No082022R-HPUSP10V01 Page: 27 of 68 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report Report Date : 01-Feb-2008 Measurement Date : 01-Feb-2008 Product Data Device Name : MOBILE PHONE Type : Std Form Cell Phone Model : T208 Frequency : 850.00 MHz Max. Transmit Pwr : 2 W Drift Time : 0 min(s) Length : 102 mm Width : 45 mm Depth : 14 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 322-B Frequency : 835.00 MHz Last Calib. Date : 01-Feb-2008 Temperature : 20.20 °C Ambient Temp. : 21.30 °C Humidity : 63.00 RH% Epsilon : 54.63 F/m Sigma : 0.969 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 20-Aug-2007 Frequency : 835.00 MHz Duty Cycle Factor: 8 Conversion Factor: 6.8 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No082022R-HPUSP10V01 Page: 28 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.036 W/kg Power Drift-Finish: 0.037 W/kg Power Drift (%) : 2.703 DUT Position : Touch Channel : 128 1 gram SAR value : 0.061 W/kg 10 gram SAR value : 0.054 W/kg Area Scan Peak SAR : 0.076 W/kg Zoom Scan Peak SAR : 0.134 W/kg Report No082022R-HPUSP10V01 Page: 29 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 30 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.029 W/kg Power Drift-Finish: 0.028 W/kg Power Drift (%) : -3.571 DUT Position : Touch Channel : 189 1 gram SAR value : 0.067 W/kg 10 gram SAR value : 0.049 W/kg Area Scan Peak SAR : 0.076 W/kg Zoom Scan Peak SAR : 0.114 W/kg Report No082022R-HPUSP10V01 Page: 31 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 32 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.041 W/kg Power Drift-Finish: 0.043 W/kg Power Drift (%) : 4.651 DUT Position : Touch Channel : 251 1 gram SAR value : 0.064 W/kg 10 gram SAR value : 0.049 W/kg Area Scan Peak SAR : 0.076 W/kg Zoom Scan Peak SAR : 0.127 W/kg Report No082022R-HPUSP10V01 Page: 33 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 34 of 68 Version:1.0 ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report-PCS 1900 Report Date : 01-Feb-2008 Measurement Date : 01-Feb-2008 Product Data Device Name : MOBILE PHONE Type : Std Form Cell Phone Model : T208 Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 102 mm Width : 45 mm Depth : 14 mm Antenna Type : Internal Phantom Data Type : SAM-Right Size (mm) : 280 x 280 x 280 Location : Right Tissue Data Type : HEAD Serial No. : 324-H Frequency : 1900.00 MHz Last Calib. Date : 01-Feb-2008 Temperature : 20.20 °C Ambient Temp. : 21.30 °C Humidity : 63.00 RH% Epsilon : 39.80 F/m Sigma : 1.443 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Aug-2007 Frequency : 1900.00 MHz Duty Cycle Factor: 8 Conversion Factor: 5.5 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No082022R-HPUSP10V01 Page: 35 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.073 W/kg Power Drift-Finish: 0.073 W/kg Power Drift (%) : -0.476 DUT Position : Touch Channel : 512 1 gram SAR value : 0.261 W/kg 10 gram SAR value : 0.187 W/kg Area Scan Peak SAR : 0.075 W/kg Zoom Scan Peak SAR : 0.437 W/kg Report No082022R-HPUSP10V01 Page: 36 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 37 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 21.20 °C Ambient Temp. : 22.40 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.098 W/kg Power Drift-Finish: 0.094 W/kg Power Drift (%) : -3.892 DUT Position : Touch Channel : 661 1 gram SAR value : 0.126 W/kg 10 gram SAR value : 0.089 W/kg Area Scan Peak SAR : 0.150 W/kg Zoom Scan Peak SAR : 0.248 W/kg Report No082022R-HPUSP10V01 Page: 38 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 39 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.075 W/kg Power Drift-Finish: 0.074 W/kg Power Drift (%) : -1.069 DUT Position : Touch Channel : 810 1 gram SAR value : 0.164 W/kg 10 gram SAR value : 0.126 W/kg Area Scan Peak SAR : 0.072 W/kg Zoom Scan Peak SAR : 0.122 W/kg Report No082022R-HPUSP10V01 Page: 40 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 41 of 68 Version:1.0 Measurement Data Crest Factor : 8 Tissue Temp. : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.092 W/kg Power Drift-Finish: 0.090 W/kg Power Drift (%) : -2.212 DUT Position : 15° Tilt Channel : 512 1 gram SAR value : 0.086 W/kg 10 gram SAR value : 0.062 W/kg Area Scan Peak SAR : 0.100 W/kg Zoom Scan Peak SAR : 0.177 W/kg Report No082022R-HPUSP10V01 Page: 42 of 68 Version:1.0 Report No082022R-HPUSP10V01 Page: 43 of 68 Version:1.0 Measurement Data Crest Factor : 8 Temperature : 20.20 °C Ambient Temp. : 21.30 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm…

Text truncated - open the document above for the full version.

Appendix D. Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 835MHz Head Calibration 835MHz Body Calibration

Appendix D. Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 1900MHz Head Calibration 1900MHz Body Calibration

Appendix E. Dipole Calibration Data Validation Dipole 835MHz P/N: ALS-D-835-S-2 S/N: QTK-315 Appendix E. Dipole Calibration Data Validation Dipole 1900MHz P/N: ALS-D-1900-S-2 S/N: QTK-318

Test Report Product Name ： GSM 850/1900 Mobile Phone Model No. ： T208 FCC ID : QIST208 Applicant ： HUAWEI TECHNOLOGIES CO., LTD Address ： Huawei Base BanTian Longgang Shenzhen 518129 P.R.C Date of Receipt ： 2008/01/25 Issued Date ： 2008/02/28 Report No. ： 082S018-HP-US-P07V01 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 082S018-HP-US-P07V01 Page: 2 of 63 Test Report Certification Issued Date : 2008/02/28 Report No. : 082S018-HP-US-P07V01 Product Name : GSM 850/1900 Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Huawei Base BanTian Longgang Shenzhen 518129 P.R.C Manufacturer : HUAWEI TECHNOLOGIES CO., LTD Model No. : T208 FCC ID : QIST208 Rated Voltage : AC 120 V / 60 Hz EUT Voltage : DC 3.7V Trade Name : Huawei Applicable Standard : FCC CFR Title 47 Part 2, Part 22H and Part 24E EIA/TIA 603-C Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : ( Any Liu ) Reviewed By : ( Dream Cao ) Approved By : ( Murphy Wang ) Report No： 082S018-HP-US-P07V01 Page: 3 of 63 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : +886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, DGT, CNLA Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 082S018-HP-US-P07V01 Page: 4 of 63 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................................. 6 1.1. EUT Description ....................................................................................................... 6 1.2. Mode of Operation.................................................................................................... 7 1.3. Tested System Details ............................................................................................. 8 1.4. Configuration of Tested System ............................................................................... 9 1.5. EUT Exercise Software .......................................................................................... 10 2. Technical Test........................................................................................................................ 11 2.1. Summary of Test Result ......................................................................................... 11 2.2. Test Environment ................................................................................................... 13 3. Peak Output Power ..................................................…

Text truncated - open the document above for the full version.
