1 HUAWEI TAG-L13 Quick Start Guide 2 Your phone at a glance Before you start, let's take a look at your new phone. Press and hold the power button to turn your phone on or off. To forcibly restart your phone, press and hold the power button until your phone vibrates. 3 Getting started Follow the instructions in the following figures to set up your phone. Do not insert or remove a SIM card while your phone is on. Please exercise caution when using the SIM ejector pin to avoid hurting your fingers or damaging your phone. Store your pin in a safe place out of the reach of children to prevent them from swallowing it or injuring themselves by accident. Insert the SIM card into the correct card slot to ensure that it can be recognized by the phone. 4 Locking and unlocking the screen Press the power button to lock the screen. If your phone is idle for a specified period of time, the screen will automatically lock itself. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Flick up from the bottom of the lock screen to access the quick operation panel for one-touch optimization or to open commonly used applications, such as Calculator. 5 Camera Touch . Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. Swipe left or right to switch between different capture modes. Time-lapse mode lets you record the slow transformation of objects or scenes, such as a blooming flower or the setting sun. 6 Internet connection You can access the Internet over Wi-Fi or a mobile data network. Swipe down from the status bar to open the notification panel. Touch to turn on mobile data. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi and connect to a Wi-Fi network. 7 Backing up data Touch . Touch to open the settings menu. You can set how often you want to back up your data by following the onscreen instructions. Touch and select the data that you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions to complete the backup. 8 Phone manager Touch . You can quickly scan your phone for potential risks with one touch. Follow the onscreen instructions to use one-touch optimization, or manually clean the system storage and manage your applications. Touch the options on the screen to clean your system trash, set the harassment filter, activate power saving mode, manage your applications' notification permissions, and more. 9 Calling and messaging Touch to make a call using the dialer. You can also touch a phone number in your contacts, or a number in a message, email, web page, or other source to place a call. 10 Personal information and data security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information.  Place your device in a safe area to prevent it from unauthorized use.  Set your device screen to lock and create a password or unlock pattern to open it.  Periodically back up personal information kept on your SIM/USIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.  If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them.  If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information.  If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off.  Install or upgrade device security software and regularly scan for viruses.  Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses.  Install security software or patches released by Huawei or third-party application providers.  Some applications require and transmit location information. As a result, a third-party may be able to share your location information. 11  Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. Legal notice Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved. Trademarks and permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. LTE is a trade mark of ETSI. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Third-Party software statement Huawei does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third-party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for 12 services provided by third-party service providers, or the interrup…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date (2015-1-5) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISTAG-L13 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Federal Communications Commission 2015/1/5 7435 Oakland Mills Road Columbia MD 21046 Subjec t: Request for Confidentiality FC C ID: QISTAG-L 13 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2016-5-15: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Statements Date (2016-1-5) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, FCC ID: QISTAG-L13, is shipped with the battery pre-installed and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Charger Charger AE1(HW-050100U01_ Phitek) Label of Charger AE1(HW-050100U01_ Phitek) Charger Charger AE2(HW-050100B01_ Phitek) Label of Charger AE2(HW-050100B01_ Phitek) Charger Charger AE3(HW-050100A01_ Phitek) Label of Charger AE3(HW-050100A01_ Phitek) Charger Charger AE4(HW-050100R01_ Phitek) Label of Charger AE4(HW-050100R01_ Phitek) Charger Charger AE5(HW-050100E01_ Phitek) Label of Charger AE5(HW-050100E01_ Phitek) Charger Charger AE6(HW-050100Z01_ Phitek) Label of Charger AE6(HW-050100Z01_ Phitek) Charger Charger AE7(HW-050100U01_ Huntkey) Label of Charger AE7(HW-050100U01_ Huntkey) Charger Charger AE8(HW-050100B01_ Huntkey) Label of Charger AE8(HW-050100B01_ Huntkey) Charger Charger AE9(HW-050100A01_ Huntkey) Label of Charger AE9(HW-050100A01_ Huntkey) Charger Charger AE10(HW-050100R01_ Huntkey) Label of Charger AE10(HW-050100R01_ Huntkey) Charger Charger AE11(HW-050100I01_ Huntkey) Label of Charger AE11(HW-050100I01_ Huntkey) Charger Charger AE12(HW-050100E01_ Huntkey) Label of Charger AE12(HW-050100E01_ Huntkey) Charger Charger AE13(HW-050100Z01_ Huntkey) Label of Charger AE13(HW-050100Z01_ Huntkey) Charger Charger AE14(HW-050100U01_ BYD) Label of Charger AE14(HW-050100U01_ BYD) Charger Charger AE15(HW-050100B01_ BYD) Label of Charger AE15(HW-050100B01_ BYD) Charger Charger AE16(HW-050100A01_ BYD) Label of Charger AE16(HW-050100A01_ BYD) Charger Charger AE17(HW-050100R01_ BYD) Label of Charger AE17(HW-050100R01_ BYD) Charger Charger AE18(HW-050100I01_ BYD) Label of Charger AE18(HW-050100I01_ BYD) Charger Charger AE19(HW-050100E01_ BYD) Label of Charger AE19(HW-050100E01_ BYD) Charger Charger AE20(HW-050100Z01_ BYD) Label of Charger AE20(HW-050100Z01_ BYD)

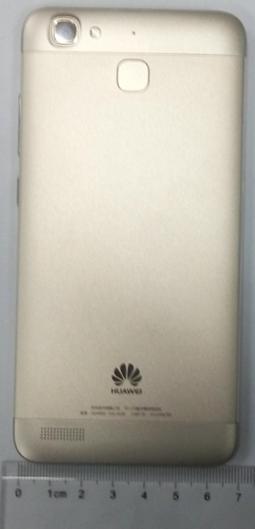

Page1,Total 3 External Photos of HUAWEI TAG-L13 Page2,Total 3 Page3,Total 3

Liao Yusheng Wang Qian Tango-海外单卡定制电池盖 2015-10-21 2015-10-21 拉美单卡2

HUAWEI TAG-L13 SECRET Page1,Total 5 Internal Photos of HUAWEI TAG-L13 HUAWEI TAG-L13 SECRET Page2,Total 5 HUAWEI TAG-L13 SECRET Page3,Total 5 HUAWEI TAG-L13 SECRET Page4,Total 5 HUAWEI TAG-L13 SECRET Page5,Total 5

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I15Z42860-SEM01 For Huawei Technologies Co.,Ltd Smart Phone Model name: HUAWEI TAG-L13 With Hardware Version: Ver.A Software Version: TAG-L13C464B006_A FCC ID: QISTAG-L13 Issued Date: 2016-01-19 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Te l:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email: [email protected], website:www.chinattl.com No. I15Z42860-SEM01 Page 2 of 204 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I15Z42860-SEM01 Re v.0 2016-01-19 Initial creation of test report No. I15Z42860-SEM01 Page 3 of 204 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................ 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY .............................................................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 11 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................. 12 6.2 SAR DEFINITION .......................................................................................................................................... 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 13 8 SYSTEM VERIFICATION ............................................................................................................ 19 8.1 SYSTEM SETUP ............................................................................................................................................. 19 8.2 SYSTEM VERIFICATION ................................................................................................................................. 20 9 MEASUREMENT PROCEDURES .............................................................................................. 21 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 21 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 23 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 24 9.4 SAR MEASUREMENT FOR LT E ..................................................................................................................... 26 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 26 9.6 POWER DRIFT ............................................................................................................................................... 27 10 AREA SCAN BASED 1-G SAR ................................................................................................. 28 10.1 REQUIREMENT OF KDB .............................................................................................................................. 28 10.2 FAST SAR ALGORITHMS .....................................…

Text truncated - open the document above for the full version.

No. I15Z42860-SEM01 Page 151 of 204 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-6000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.242 69.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.452 29.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 Note: There are a little adjustment respectively for 750, 1750, 2600, 5200, 5300 and 5600 based on the recipe of closest frequency in table E.1. No. I15Z42860-SEM01 Page 152 of 204 ©Copyright. All rights reserved by CTTL. ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3617 Head 750MHz Sep. 5, 2015 750 MHz OK 3617 Head 850MHz Sep. 5, 2015 850 MHz OK 3617 Head 900MHz Sep. 6, 2015 900 MHz OK 3617 Head 1450MHz Sep. 6, 2015 1450 MHz OK 3617 Head 1640MHz Sep. 7, 2015 1640 MHz OK 3617 Head 1750MHz Sep. 7, 2015 1750 MHz OK 3617 Head 1810MHz Sep. 8, 2015 1810 MHz OK 3617 Head 1900MHz Sep. 8, 2015 1900 MHz OK 3617 Head 2000MHz Sep. 9, 2015 2000 MHz OK 3617 Head 2100MHz Sep. 9, 2015 2100 MHz OK 3617 Head 2300MHz Sep. 10, 2015 2300 MHz OK 3617 Head 2450MHz Sep. 10, 2015 2450 MHz OK 3617 Head 2600MHz Sep. 11, 2015 2600 MHz OK 3617 Head 3500MHz Sep. 11, 2015 3500 MHz OK 3617 Head 3700MHz Sep. 12, 2015 3700 MHz OK 3617 Head 5200MHz Sep. 12, 2015 5200 MHz OK 3617 Head 5300MHz Sep. 13, 2015 5300 MHz OK 3617 Head 5500MHz Sep. 13, 2015 5500 MHz OK 3617 Head 5600MHz Sep. 14, 2015 5600 MHz OK 3617 Head 5800MHz Sep. 14, 2015 5800 MHz OK 3617 Body 750MHz Sep. 5, 2015 750 MHz OK 3617 Body 850MHz Sep. 5, 2015 850 MHz OK 3617 Body 900MHz Sep. 6, 2015 900 MHz OK 3617 Body 1450MHz Sep. 6, 2015 1450 MHz OK 3617 Body 1640MHz Sep. 7, 2015 1640 MHz OK 3617 Body 1750MHz Sep. 7, 2015 1750 MHz OK 3617 Body 1810MHz Sep. 8, 2015 1810 MHz OK 3617 Body 1900MHz Sep. 8, 2015 1900 MHz OK 3617 Body 2000MHz Sep. 9, 2015 2000 MHz OK 3617 Body 2100MHz Sep. 9, 2015 2100 MHz OK 3617 Body 2300MHz Sep. 10, 2015 2300 MHz OK 3617 Body 2450MHz Sep. 10, 2015 2450 MHz OK 3617 Body 2600MHz Sep. 11, 2015 2600 MHz OK 3617 Body 3500MHz Sep. 11, 2015 3500 MHz OK 3617 Body 3700MHz Sep. 12, 2015 3700 MHz OK 3617 Body 5200MHz Sep. 12, 2015 5200 MHz OK No. I15Z42860-SEM01 Page 153 of 204 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe 3617 Calibration Certificate No. I15Z42860-SEM01 Page 154 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 155 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 156 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 157 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 158 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 159 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 160 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 161 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 162 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 163 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 164 of 204 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 750 MHz Dipole Calibration Certificate No. I15Z42860-SEM01 Page 165 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 166 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 167 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 168 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 169 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 170 of 204 ©Copyright. All rights reserved by CTTL.

No. I15Z42860-SEM01 Page 171 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 172 of 204 ©Copyright. All rights reserved by CTTL. 835 MHz Dipole Calibration Certificate No. I15Z42860-SEM01 Page 173 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 174 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 175 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 176 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 177 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 178 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 179 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 180 of 204 ©Copyright. All rights reserved by CTTL. 1750 MHz Dipole Calibration Certificate No. I15Z42860-SEM01 Page 181 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 182 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 183 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 184 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 185 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 186 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 187 of 204 ©Copyright. All rights reserved by CTTL.

No. I15Z42860-SEM01 Page 188 of 204 ©Copyright. All rights reserved by CTTL. 1900 MHz Dipole Calibration Certificate No. I15Z42860-SEM01 Page 189 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 190 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 191 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 192 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 193 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 194 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 195 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 196 of 204 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate for 2015 No. I15Z42860-SEM01 Page 197 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 198 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 199 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 200 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 201 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 202 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 203 of 204 ©Copyright. All rights reserved by CTTL. No. I15Z42860-SEM01 Page 204 of 204 ©Copyright. All rights reserved by CTTL. ANNEX I Accreditation Certificate

FCC PART 15C TEST REPORT No. I15N01256-WLAN for Huawei Technologies Co.,Ltd Smart Phone Model Name: HUAWEI TAG-L13 With Hardware Version: Ver.A Software Version: TAG-L 13C464B006_A FCC ID: QISTAG-L13 Issued Date: Jan 7 th , 2016 Test Laboratory: FCC 2.948 Listed: No.342690 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Te l:+86(0)10-62304633, Fax:+86(0)10-62304633Email:[email protected], website: www.chinattl.com ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Description Issue Date I15N01256-WLAN R ev.0 1st edition 2016-01-07 ©Copyright. All rights reserved by TMC Beijing。Page 2 of 148 No. I15N01256-WLAN Page 3 of 148 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 9 1.1. T ESTING LOCATION ......................................................................................................................... 9 1.2. T ESTING ENVIRONMENT .................................................................................................................. 9 1.3. P ROJECT DATA ................................................................................................................................. 9 1.4. S IGNATURE ...................................................................................................................................... 9 2. CLIENT INFORMATION ................................................................................................................. 10 2.1. A PPLICANT INFORMATION ............................................................................................................. 10 2.2. M ANUFACTURER INFORMATION .................................................................................................... 10 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 11 3.1. A BOUT EUT ...................................................................................................................................11 3.2. I NTERNAL IDENTIFICATION OF EUT ...............................................................................................11 3.3. I NTERNAL IDENTIFICATION OF AE ..................................................................................................11 4. REFERENCE DOCUMENTS ........................................................................................................... 12 4.1. D OCUMENTS SUPPLIED BY APPLICANT .......................................................................................... 12 4.2. R EFERENCE DOCUMENTS FOR TESTING ......................................................................................... 12 5. TEST RESULTS ................................................................................................................................. 13 5.1. S UMMARY OF TEST RESULTS ......................................................................................................... 13 5.2. S TATEMENTS .................................................................................................................................. 13 5.3. T ERMS USED IN THE RESU LT TA B L E ............................................................................................... 13 5.4. L ABORATORY ENVIRONMENT ........................................................................................................ 14 6. TEST FACILITIES UTILIZED ........................................................................................................ 15 7. MEASUREMENT UNCERTAINTY ................................................................................................ 16 ANNEX A: MEASUREMENT RESULTS FOR RECEIVER ................................................................ 17 A.0 ANTENNA REQUIREMENT .................................................................................................................... 17 A.1 MAXIMUM AVERAGE OUTPUT POWER ............................................................................................. 18 A.2 PEAK POWER SPECTRAL DENSITY ..................................................................…
