QISU1215WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth

Wonderful Communication, Mobile LifeWelcome to U1215 Mobile Phone from Huawei Technologies Co., Ltd. HUAWEI U1215 Mobile PhoneUser Guide U121.book Page 1 Friday, October 19, 2007 10:40 AM Notice Copyright © 2007 Huawei Technologies Co., Ltd.All Rights Reserved 1 No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. 23 Trademarks 4 and HUAWEI are trademarks of Huawei Technologies Co., Ltd. All other trademarks men-tioned in this manual are the properties of their respective holders. 56 Notice 7 The information in this manual is subject to change without notice. Every effort has been made in the prepar ation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this man-ual do not constitute a warranty of any kind, expressed or implied. 8 Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the 9 section “Warnings and Precautions”. Huawei Technologies Co., Ltd.Address:10 Administration Building, Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, P. R. China Postal Code: 518129 Website: http://www.huawei.com U121.book Page 2 Friday, October 19, 2007 10:40 AM 11 Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the 12 section “Warnings and Precautions”. Do not switch on your phone when it is prohibited to use mobile phones or when the phone may cause interfer-ence or danger.Do not use your phone while driving.Follow any rules or regulations in hospitals and health care facilities. Switch off your phone near medical apparatus.Switch off your phone in aircraft. The phone may cause interference to control signals of the aircraft.Switch off your phone near high-preci-sion electronic dev ices. The phone may affect the performance of these devices. Do not attempt to disassemble your phone or its accessories. Only qualified personnel are allowed to service or repair the phone.Do not place your phone or its accesso-ries in containers with strong electro-magnetic field.Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.Do not put your phone in a high-temperature place or use it in a place with flammable gas such as a gas station.Keep your phone and its accessories away from children. Do not allow children to use your phone without guidance.Use only approved batteries and chargers to avoid the risk of explosions. Safety Precautions U121.book Page 3 Friday, October 19, 2007 10:40 AM Observe any laws or regulations on the use of wireless device. Respect others’ privacy and legal rights when using your wireless device.Strictly follow the relevant instructions on 69 of this manual while using the USB cable. Otherwise your phone or PC may be damaged. U121.book Page 4 Friday, October 19, 2007 10:40 AM 1 1 Table of Contents Table of Contents 1Getting to Know Your Phone 1 Packing List ................................................1Your Phone ................................................2 Getting Started 6 Loading the Battery ....................................6Unloading the Battery .................................6Charging the Battery ..................................7Loading/Removing the SIM Card ...............8Loading/Removing a Memory Card............9Powering On/Off .........................................9 Call Service 11 Making or Answering Calls .......................11Operations During a Voice Call ................12Operations During a Video Call ...............13 Text Input 15 T9 Input Method .......................................15Traditional Input Method ..........................16"123" Numeric Input Method ....................16Symbol Input Method ...............................16Input Different Languages ........................17 Contacts 18 Making Calls from the Contacts ...............18Searching for a Contact............................18Other Operations ......................................19Groups......................................................19 Call Log 21 Making Calls from Call Log ...................... 21Other Operations ..................................... 21 Messaging 22 Text Messages......................................... 22Multimedia Messages .............................. 25Email ........................................................ 29Push Inbox ............................................... 33Broadcast Inbox ....................................... 34Voice Mail number ................................... 34Common Phrases .................................... 34 Music 35 My music .................................................. 35Playlist...................................................... 36 Organiser & Tools 37 SIM ToolKit .............................................. 37Alarms ...................................................... 37Calendar .................................................. 37Task ......................................................... 39Memo ...................................................... 39Synchronise ............................................. 39Calculator ................................................. 40Unit converter........................................... 41Currency converter .................................. 41Voice recorder.......................................... 41World Time............................................... 42Stopwatch ................................................ 42Timer ........................................................ 42Service dial number ................................. 42 U121.book Page 1 Friday, October 19, 2007 10:40 AM 2 My Files 43Browser 44 Browser ....................................................44Enter URL.................................................44Bookmar…

Text truncated - open the document above for the full version.

15 4 Text Input You can use the keypad to enter alphanumeric char-acters and symbols. For example, you can add entries to the contacts, write messages or schedule events on the calendar. Note While entering text:• Press to switch between input meth- ods, including "abc", "Abc", "ABC", and numbers. • Press to enable or disable T9 input method. • Press to display the commonly-used symbols list. You can use the scroll keys to select. • Press to delete the letter before the cur- sor. T9 Input Method With the T9 input method, you can easily and quickly enter words with predictive text scheme.• Press each key carrying the desired letter once, and then the predictive text scheme will present the candidate words composed by the letters you have entered in the drop-down menu. • After entering all letters, if there is not the expected one in the drop-down menu, you can select [ Spell ] to enter the desired letter using the traditional input method and then select Insert . The words you inserted will be saved in the predictive text dictio-nary. If the dictionary is full, the new word replaces the oldest one. For example, to enter the word "good" with the T9 input method, follow these steps. 1 Press successively the keys , , , and which "g", "o", "o", and "d" belong to, and the candidate words composed by these letters will be shown in the drop-down menu. 2 Use the up/down scroll key to select "good". Note Press repeatedly and you will see "T9 abc", "T9 Abc" and "T9 ABC" on the upper left corner of the scree n successively. It indi- cates the words to be entered will be in lower case, first letter capitalized or in upper case. U121.book Page 15 Friday, October 19, 2007 10:40 AM Traditional Input Method 16 Traditional Input Method When T9 input method is off, you can use the tradi-tional input method for entering alphabetic charac-ters. Repeatedly press the key that carries the letter to be entered when it appears on the screen.For example, to enter the word "Hello" with the tradi-tional input method, follow these steps. 1 Press that carries "h" repeatedly and all let- ters carried by this ke y will be disp layed succes- sively on the screen. Stop when you see an "h" on the screen. 2 After entering the first letter, you can directly press another key (except ) to enter the next letter. If the next desired letter is on the same key as the current one, wait until the cursor appears to the right of the current letter and then you can enter the next one. 3 Enter "e", "l", "l" and "o" in the same way. Note • Press repeatedly and you will see "abc", "Abc" or "ABC" on the upper left corner of the screen successively. It indi-cates the words to be entered will be in lower case, first letter capitalized or in upper case. • Press and hold number keys to enter numbers. "123" Numeric Input Method With the "123" numeric input method, you can enter corresponding numeric char acters by pressing the character/number keys. For example, to enter "1" with the "123" numeric input method, you can press . Then "1" appears on the screen. Symbol Input Method Your phone provides an independent symbol input method. For example, to enter ":" with the symbol input method, you can just press the scroll keys to select ":" in the symbol list and then press . U121.book Page 16 Friday, October 19, 2007 10:40 AM Input Different Languages 17 Text Input 4 Input Different Languages In a text editing screen, select Options > Input language to set the language for the text. The selected language will be displayed on the upper middle part of the editing screen. U121.book Page 17 Friday, October 19, 2007 10:40 AM 18 5 Contacts Contacts enables you to save and manage such information as phone numbers and addresses of your contacts. You can save such information in your phone or your SIM card. You can also assign fre-quently-used numbers to speed dialing keys for your convenience. Making Calls from the Contacts You can make a voice/video call with a contact selected from the contacts list. 1 In the Contacts screen, press the left/right scroll key to select Phone or SIM . 2 Select a contact and select Options > Call . Then, you can select Voice Call or Video Call to make a call. Alternatively, you can select Edit before call to edit the number before making the call. Searching for a Contact You can find a contact from the contacts list easily and quickly by using this function on both the Phone screen and the SIM screen. 1 In the Contacts screen, press the left/right scroll key to select Phone or SIM . 2 Select Options > Search . 3 Select Options > Search , and then enter the contact name you are searching for. The contact is displayed. Note The search result includes all matched con-tacts from both the phone and SIM memo-ries, regardless of the screen (Phone or SIM) from which you start searching. You can also use quick search in the Phone or SIM screen: 1 In the Contacts screen, press the left/right scroll key to select Phone or SIM . 2 Enter a string (one or more letters or numbers) contained in the contact name you are searching for. Then the contacts whose names contain this string are displayed. U121.book Page 18 Friday, October 19, 2007 10:40 AM Other Operations 19 5 Contacts You can also find a contact by entering the initials of the first name and the last name of the contact. For example, to find a contact named "Alice Green", enter the initials "ag". This contact is displayed in the candidate list. Other Operations In the Contacts screen, press the left/right scroll key to select Phone or SIM .Then select Options for the following options. • Details: To view the details of contact.• Create message: To send a message, MMS or Email to the selected contact. • New: To create a new contact.• Send contact: To send a contact to other devices supporting SMS or Bluetooth. • Copy to SIM/Copy to phone: To Copy one or more contacts from your phone to the SIM card or from your SIM card to the phone. • Speed Dial Number: To assign often-used numb…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU1215 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

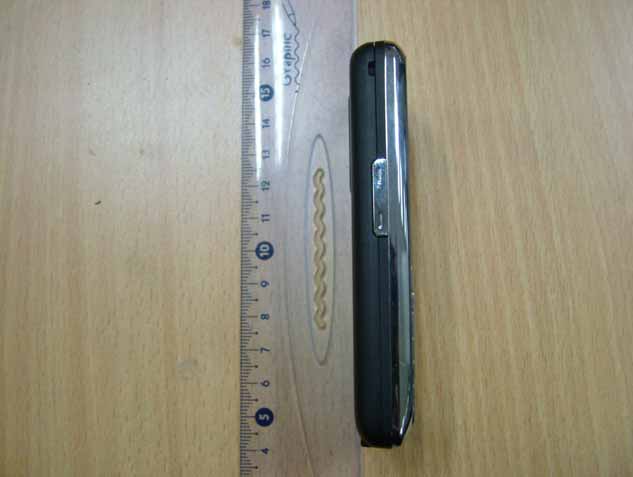

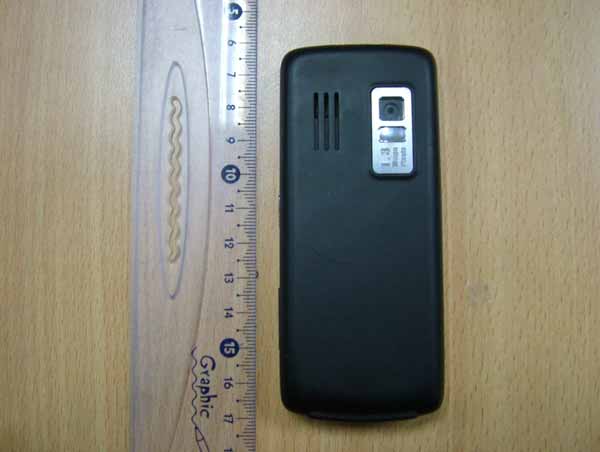

U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page1,Total 5 External Photo of U1215 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page2,Total 5 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page3,Total 5 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page4,Total 5 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page5,Total 5

U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page1, Total 1 ID_label-U1215

U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page1,Total 4 Internal Photo of U1215 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page2,Total 4 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page3,Total 4 U1215 WCDMA/GPRS/GSM/EDGE Mobile Phone SECRET Page4,Total 4

Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total33 Report No: SYBH(R) 038102007EB-4 FCC ID: QISU1215 FCC TEST REPORT OF HUAWEI WCDMA/GPRS/GSM/EDGE Mobile Phone With Bluetooth for 47CFR part15 subpart C M/N: U1215 Oct. 31, 2007 Reliability Laboratory of Huawei Technologies Co., Ltd. All Right Reserved Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total33 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Committee for Laboratories (CNAL), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C1758, R1672, and T153. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total33 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC 47CFR part 15 subpart C Test of HUAWEI WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth M/N: U1215 Report No: SYBH(R) 038102007EB-4 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; CONCLUSION There are 9 items need to be tested, 9 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2007.10.31 Date Name signature Technical Responsibility For Area of Testing 2007.10.31 Date Name signature Test Lab Engineer 2007.10.31 Date Name signature Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page4, Total33 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description.................................................................................................................................. 6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 11 6 Transmitter Measurements..................................................................................................................... 12 6.1 20DB BANDWIDTH MEASUREMENT........................................................................................................ 12 6.2 CARRIER FREQUENCY SEPARATION MEASUREMENT............................................................................... 14 6.3 NUMBER OF HOPPING CHANNEL............................................................................................................ 16 6.4 TIME OF OCCUPANCY........................................................................................................................... 18 6.5 PEAK OUTPUT POWER.......................................................................................................................... 20 6.6 BAND EDGE SPURIOUS EMISSION.......................................................................................................... 22 6.7 CONDUCTED RF SPURIOUS.................................................................................................................. 24 6.8 RADIATED SPURIOUS EMISSION & SPURIOUS IN RESTRICTED BAND......................................................... 26 6.9 CONDUCTED EMISSION AT POWER PORT.............................................................................................. 30 7 System Measurement Uncertainty.....…

Text truncated - open the document above for the full version.

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix A 20dB bandwidth measurement According to FCC Part 15.247 a (1) FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total4 Channel 0 (2402MHz) A 1 PK MAXH Att 15 dB * * RBW 30 kHz VBW 300 kHz SWT 10 msRef 10 dBm Center 2.402 GHzSpan 2 MHz200 kHz/ TDF -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.31 dBm 2.401804487 GHz OBW878.205128205 kHz T1 Temp 1 [T1 OBW] -20.53 dBm 2.401538462 GHz T2 Temp 2 [T1 OBW] -21.64 dBm 2.402416667 GHz FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total4 Channel 40 (2442MHz) A 1 PK MAXH Att 15 dBRef 10 dBm TDF Center 2.442 GHzSpan 2 MHz200 kHz/ * * RBW 30 kHz VBW 300 kHz SWT 10 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000 1 Marker 1 [T1 ] -41.42 dBm 2.441000000 GHz OBW875.000000000 kHz T1 Temp 1 [T1 OBW] -20.44 dBm 2.441538462 GHz T2 Temp 2 [T1 OBW] -21.16 dBm 2.442413462 GHz FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page4, Total4 Channel 78 (2480MHz) A MAXH Ref 10 dBm TDF Center 2.48 GHzSpan 2 MHz200 kHz/ 1 PK Att 15 dB * * RBW 30 kHz VBW 300 kHz SWT 10 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.17 dBm 2.479794872 GHz OBW875.000000000 kHz T1 Temp 1 [T1 OBW] -20.45 dBm 2.479538462 GHz T2 Temp 2 [T1 OBW] -21.47 dBm 2.480413462 GHz

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix B Carrier frequency separation measurement According to FCC Part 15.247 a (1) FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 Centred at Channel 39 A MAXH Ref 10 dBm TDF Center 2.44 GHzSpan 5 MHz500 kHz/ SWT 2.5 msAtt 35 dB * * 1 PK RBW 100 kHz VBW 100 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.56 dBm 2.440000000 GHz 2 Delta 2 [T1 ] -0.15 dB -1.001602564 MHz 3 Delta 3 [T1 ] -0.46 dB 1.001602564 MHz

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix C Number of hopping channel According to FCC Part 15.247 a (1) FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 Total hopping channels = 79 A MAXH Ref 10 dBm TDF Center 2.44 GHzSpan 100 MHz10 MHz/ SWT 10 msAtt 35 dB * * 1 PK RBW 100 kHz VBW 100 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total3 Appendix D Time of occupancy According to FCC Part 15.247 a (1) FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total3 A burst (One time slot) Ref 10 dBmAtt 35 dB MAXH A TDF RBW 1 MHz * VBW 1 MHz TRG Center 2.441 GHz400 μs/ SWT 4 ms 1 SA -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 2000 of 2000 1 Marker 1 [T1 ] -39.53 dBm -16.538462 μs 2 Delta 2 [T1 ] -0.61 dB 2.961538 ms POWER [T1] RMS -1.79 dBm TRG -4.5 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total3 A period (Less than 106.7 burst) A TDF RBW 1 MHz VBW 3 MHz SWT 31.6 sRef 20 dBmAtt 45 dB Center 2.441 GHz3.16 s/ 1 PK MAXH SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix E Peak output power According to FCC Part 15.247 b (1) FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total4 Channel 0 (2402MHz) Ref 20 dBmAtt 45 dB 1 PK MAXH A TDF Center 2.402 GHzSpan 2 MHz200 kHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.96 dBm 2.402134615 GHz FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total4 Channel 40 (2442MHz) Ref 20 dBmAtt 45 dB 1 PK MAXH A TDF Center 2.442 GHzSpan 2 MHz200 kHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.53 dBm 2.442144231 GHz FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page4, Total4 Channel 78 (2480MHz) Ref 20 dBmAtt 45 dB 1 PK MAXH A TDF Center 2.48 GHzSpan 2 MHz200 kHz/ * RBW 1 MHz VBW 3 MHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -1.04 dBm 2.480118590 GHz

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total9 Appendix F Band edge spurious emission According to FCC Part 15.247 d FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total9 Low edge (Channel 0, no hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF SGL Center 2.4 GHzSpan 10 MHz1 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 10 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.20 dBm 2.402147436 GHz 2 Delta 2 [T1 ] -34.25 dB -6.298076923 MHz F1 D1 -1.2 dBm D2 -21.2 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total9 Low edge (with hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF Center 2.4 GHzSpan 20 MHz2 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 10 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -2.01 dBm 2.405032051 GHz 2 Delta 2 [T1 ] -33.11 dB -5.705128205 MHz F1 D2 -22.01 dBm D1 -2.01 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page4, Total9 High edge (Channel 78, no hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF Center 2.4835 GHzSpan 10 MHz1 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 10 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -0.84 dBm 2.480118590 GHz 2 Delta 2 [T1 ] -32.32 dB 4.262820513 MHz F1 D1 -0.84 dBm D2 -20.84 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page5, Total9 High edge (with hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF SGL Center 2.4835 GHzSpan 20 MHz2 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 10 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -0.96 dBm 2.474782051 GHz 2 Delta 2 [T1 ] -33.34 dB 16.794871795 MHz F1 D1 -0.96 dBm D2 -20.96 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page6, Total9 Restrict band 2310MHz to 2390MHz (channel 0, no hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF 10 MHz/Start 2.31 GHzStop 2.41 GHz * * RBW 100 kHz VBW 300 kHz SWT 10 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.15 dBm 2.402307692 GHz 2 Delta 2 [T1 ] -33.03 dB -34.294871795 MHz F1 D1 -1.15 dBm D2 -21.15 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page7, Total9 Restrict band 2310MHz to 2390MHz (with hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF 10 MHz/Start 2.31 GHzStop 2.41 GHz * * RBW 100 kHz VBW 300 kHz SWT 10 ms * SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -1.67 dBm 2.405192308 GHz 2 Delta 2 [T1 ] -33.40 dB -57.532051282 MHz F1 D1 -1.67 dBm D2 -21.67 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page8, Total9 Restrict band 2483.5MHz to 2500MHz (channel 78, no hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF 3 MHz/Center 2.485 GHzSpan 30 MHz * * RBW 100 kHz VBW 300 kHz SWT 15 ms * SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -0.80 dBm 2.480144231 GHz 2 Delta 2 [T1 ] -33.08 dB 4.278846154 MHz F1 D1 -0.8 dBm D2 -20.8 dBm Restrict band 2483.5MHz to 2500MHz FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page9, Total9 (channel 78, with hopping) Ref 20 dBmAtt 45 dB * 1 PK MAXH A TDF 3 MHz/Center 2.485 GHzSpan 30 MHz * * RBW 100 kHz VBW 300 kHz SWT 15 ms * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 2000 of 2000 1 Marker 1 [T1 ] -0.78 dBm 2.471105769 GHz 2 Delta 2 [T1 ] -33.23 dB 17.115384615 MHz F1 D1 -0.78 dBm D2 -20.78 dBm

FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page1, Total13 Appendix G Conducted RF spurious According to FCC Part 15.247 d FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page2, Total13 Channel 0 A TDF 1 PK MAXH Ref 10 dBmAtt 35 dB 14.1 kHz/Start 9 kHzStop 150 kHz * RBW 1 kHz SWT 145 ms * VBW 3 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -66.56 dBm 150.000000000 kHz 2 Delta 2 [T1 ] 5.83 dB -83.605769231 kHz D1 -0.55 dBm D2 -20.55 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page3, Total13 A TDF 1 PK MAXH Ref 10 dBmAtt 35 dB 2.985 MHz/Start 150 kHzStop 30 MHz * RBW 10 kHz SWT 300 ms * VBW 30 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -63.77 dBm 30.000000000 MHz 2 Delta 2 [T1 ] 7.43 dB -29.850000000 MHz D1 -0.55 dBm D2 -20.55 dBm FCC ID: QISU1215 Report No: SYBH(R) 038102007EB-4 Confidential Information of Huawei. No Distribution without Permission Page4, Total13 A TDF 1 PK MAXH Ref 10 dBmAtt 35 dB 97 MHz/Start 30 MHzStop 1 GHz * RBW 100 kHz SWT 100 ms * VBW 300 kHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -47.37 dBm 1.000000000 GHz 2 Delta 2 [T1 ] 2.43 d…
