QISU1280-5WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth

Wonderful Communication, Mobile Life. HUAWEI U1280-5 Mobile Phone User Guide Copyright © 2009 Huawei Technologies Co.,Ltd. All Rights Reserved No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permission ,HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLI- CABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLO- GIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Safety Precautions Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed infor- mation, refer to the section “Warnings and Precautions”. Do not switch on your phone when it is prohibited to use mobile phones or when the phone may cause interference or danger. Switch off your phone near high-precision electronic devices. The phone may affect the performance of these devices. Do not use your phone while driving. Do not attempt to disassemble your phone or its accessories. Only qualified personnel are allowed to service or repair the phone. Follow any rules or regulations in hospitals and health care facilities. Switch off your phone near medical apparatus. Do not place your phone or its accessories in containers with strong electromagnetic field. Switch off your phone in aircraft. The phone may cause interference to control signals of the aircraft. Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them. Do not put your phone in a high- temperature place or use it in a place with flammable gas such as a gas station. Observe any laws or regulations on the use of wireless device. Respect others’ privacy and legal rights when using your wireless device. Keep your phone and its accessories away from children. Do not allow children to use your phone without guidance. Strictly follow the relevant instructions of this manual while using the USB cable. Otherwise your phone or PC may be damaged. Use only approved batteries and chargers to avoid the risk of explosions. 1.Introduction Packing List . . . . . . . . . . 1 Your Phone . . . . . . . . . . 2 Security . . . . . . . . . . . . 10 Text Input . . . . . . . . . . 11 2.Customized Settings Phone Settings . . . . . . 13 Display Settings . . . . . 13 Network Settings . . . . . 14 3.Call Function Managing Contacts . . . 15 Viewing the Call Records . . . . . . . . . . . . . . . . . . . 16 Making or Ending a Call . . . . . . . . . . . . . . . . . . . 16 Answering or Rejecting a Call . . . . . . . . . . . . . . . 17 4.Message Function Message . . . . . . . . . . . 18 Email . . . . . . . . . . . . . . 19 5.Connection Function Connectivity Settings . . 20 USB . . . . . . . . . . . . . . . 20 Bluetooth ® . . . . . . . . . . 22 6.Entertainment Function Music . . . . . . . . . . . . . . 26 FM Radio . . . . . . . . . . 26 Camera . . . . . . . . . . . . 27 Browser . . . . . . . . . . . . 28 7.Business Function Calendar Management 29 File Management . . . . 30 8.Warnings and Precautions Electronic Device . . . . 31 Medical Device . . . . . . 31 Potentially Explosive Atmospheres . . . . . . . . 31 Traffic Security . . . . . . 32 Operating Environment 33 Preventing Hearing Damage . . . . . . . . . . . 34 Safety of Children . . . . 34 Accessories . . . . . . . . 34 Battery and Charger . . 34 Clearing and Maintenance . . . . . . . . . . . . . . . . . . . 35 Emergency Call . . . . . 36 Certification Information (SAR) . . . . . . . . . . . . . 37 FCC Statement . . . . . . 38 Disposal and Recycling Information . . . . . . . . . 38 Reduction of Hazardous Contents Substances . . . . . . . . . 39 EU regulatory conformance . . . . . . . . 39 1 1. Introduction Your Phone can operate in virtually all countries, automatically switching between WCDMA 850/1900 and GSM/GPRS 850/1800/1900 networks. NOTE: The services supported by your phone should be also supported by the network from where you use the phone. For details, contact your service provider. Packing List Your phone package box contains the following: 1.One mobile phone 2.One travel charger 3.One Li-ion…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU1280-5 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

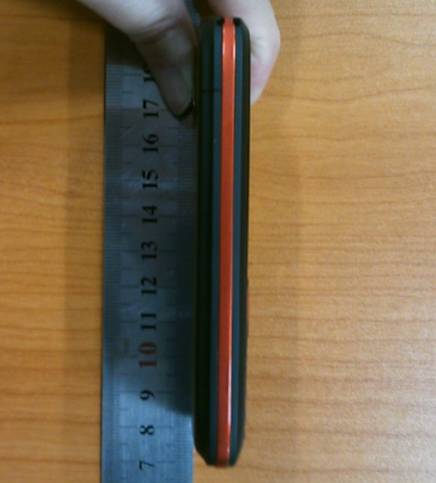

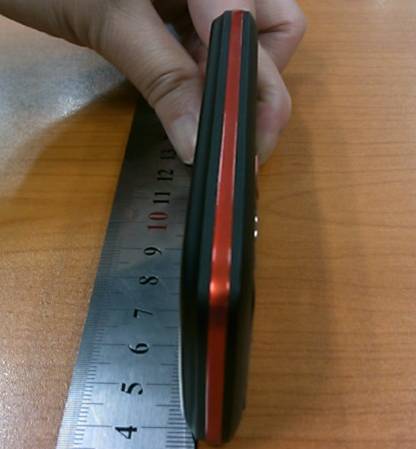

HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET External Photos of HUAWEI U1280-5/U1280-5 Page1,Total 5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2,Total 5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3,Total 5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page4,Total 5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page5,Total 5

HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1, Total 2 ID Label HUAWEI U1280-5/U1280-5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2, Total 2

HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1, Total 3 Label Location HUAWEI U1280-5/U1280-5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2, Total 3 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3, Total 3

HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1,Total 7 Internal Photos of HUAWEI U1280-5/U1280-5 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2,Total 7 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3,Total 7 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page4,Total 7 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page5,Total 7 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page6,Total 7 HUAWEI U1280-5/U1280-5 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page7,Total 7

Report No.: RZA2009-1691 TESTING No. L2264 OET 65 TEST REPORT Product Name WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model HUAWEI U1280-5/U1280-5 FCC ID QISU1280-5 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model HUAWEI U1280-5/U1280-5 FCC ID QISU1280-5 Report No. RZA2009-1691 Client HUAWEI Technologies Co., Ltd. Manufacturer HUAWEI Technologies Co., Ltd. Reference Standard(s) ANSI/IEEE Std C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-1: Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear. (frequency range of 300 MHz to 3 GHz). IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR) for wireless communication devices used in close proximity to the human body. ( frequency rang of 30MHz to 6GHz ) Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: December 14 th , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Wang Lu TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 3of 197 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the test report .........................................................................................................5 1.2. Testing laboratory .................................................................................................................5 1.3. Applicant Information ............................................................................................................6 1.4. Manufacturer Information ......................................................................................................6 1.5. Information of EUT................................................................................................................7 1.6. Test Date ..............................................................................................................................8 2. Operational Conditions during Test .............................................................................................. 9 2.1. General description of test procedures.................................................................................9 2.2. GSM Test Configuration ........................................................................................................9 2.3. WCDMA Test Configuration ..................................................................................................9 2.3.1. Output power Verification ..............................................................................................9 2.3.2. Head SAR Measurements .............................................................................................9 2.3.3. Body SAR Measurements ...........................................................................................10 3. SAR Measurements System Configuration ................................................................................ 11 3.1. SAR Measurement Set-up .................................................................................................. 11 3.2. DASY4 E-field Probe System .............................................................................................12 3.2.1. EX3DV4 Probe Specification .......................................................................................12 3.2.2. E-field Probe Calibration ..............................................................................................13 3.3. Other Test Equipment.........................................................................................................13 3.3.1. Device Holder for Transmitters....................................................................................13 3.3.2. Phantom ......................................................................................................................14 3.4. Scanning procedure............................................................................................................14 3.5. Data Storage and Evaluation ..............................................................................................16 3.5.1. Data Storage................................................................................................................16 3.5.2. Data Evaluation by SEMCAD ......................................................................................16 3.6. System check......................................................................................................................19 3.7. Equivalent Tissues ........................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 101of 197 GSM 1900 Towards Ground with Earphone High Date/Time: 12/13/2009 3:01:08 PM Communication System: PCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1910 MHz; σ = 1.53 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(7.62, 7.62, 7.62); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.275 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.43 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.440 W/kg SAR(1 g) = 0.250 mW/g; SAR(10 g) = 0.137 mW/g Maximum value of SAR (measured) = 0.277 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.43 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.342 W/kg SAR(1 g) = 0.220 mW/g; SAR(10 g) = 0.138 mW/g Maximum value of SAR (measured) = 0.236 mW/g Figure 71 Body with Earphone, Towards Ground, GSM 1900 Channel 810 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 102of 197 Figure 72 Z-Scan at power reference point (Body with Earphone, Towards Ground, GSM 1900 Channel 810) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 103of 197 GSM 1900+GPRS(2Up) Towards Ground High Date/Time: 12/13/2009 5:52:43 PM Communication System: PCS 1900+GPRS(2Up); Frequency: 1909.8 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1910 MHz; σ = 1.53 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(7.62, 7.62, 7.62); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.342 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.536 W/kg SAR(1 g) = 0.310 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.339 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.296 mW/g; SAR(10 g) = 0.184 mW/g Maximum value of SAR (measured) = 0.319 mW/g Figure 73 Body, Towards Ground, GSM 1900 GPRS(2up) Channel 810 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 104of 197 Figure 74 Z-Scan at power reference point (Body, Towards Ground, GSM 1900 GPRS(2up) Channel 810) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 105of 197 GSM 1900+GPRS(2Up) Towards Ground Middle Date/Time: 12/13/2009 4:53:13 PM Communication System: PCS 1900+GPRS(2Up); Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(7.62, 7.62, 7.62); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.404 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.091 dB Peak SAR (extrapolated) = 0.572 W/kg SAR(1 g) = 0.344 mW/g; SAR(10 g) = 0.197 mW/g Maximum value of SAR (measured) = 0.373 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.091 dB Peak SAR (extrapolated) = 0.529 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.216 mW/g Maximum value of SAR (measured) = 0.367 mW/g Figure 75 Body, Towards Ground, GSM 1900 GPRS(2up) Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 106of 197 Figure 76 Z-Scan at power reference point (Body, Towards Ground, GSM 1900 GPRS(2up) Channel 661) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 107of 197 GSM 1900+GPRS(2Up) Towards Ground Low Date/Time: 12/13/2009 5:23:15 PM Communication System: PCS 1900+GPRS(2Up); Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.5 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(7.62, 7.62, 7.62); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM000 T01 ; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.512 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 0.562 W/kg SAR(1 g) = 0.371 mW/g; SAR(10 g) = 0.234 mW/g Maximum value of SAR (measured) = 0.395 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = -0.022 dB Peak S…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 151of 197 WCDMA Band V Towards Ground High Date/Time: 12/12/2009 10:31:14 AM Communication System: WCDMA Band V; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.985 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.622 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.77 V/m; Power Drift = 0.065 dB Peak SAR (extrapolated) = 0.764 W/kg SAR(1 g) = 0.577 mW/g; SAR(10 g) = 0.410 mW/g Maximum value of SAR (measured) = 0.612 mW/g Figure 121 Body, Towards Ground, WCDMA Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 152of 197 Figure 122 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V Channel 4233) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 153of 197 WCDMA Band V Towards Ground Middle Date/Time: 12/12/2009 10:11:50 AM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.756 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = -0.081 dB Peak SAR (extrapolated) = 0.914 W/kg SAR(1 g) = 0.696 mW/g; SAR(10 g) = 0.495 mW/g Maximum value of SAR (measured) = 0.737 mW/g Figure 123 Body, Towards Ground, WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 154of 197 Figure 124 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V Channel 4183) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 155of 197 WCDMA Band V Towards Ground Low Date/Time: 12/12/2009 10:48:59 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.962 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.744 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 0.921 W/kg SAR(1 g) = 0.694 mW/g; SAR(10 g) = 0.492 mW/g Maximum value of SAR (measured) = 0.737 mW/g Figure 125 Body, Towards Ground, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 156of 197 Figure 126 Z-Scan at power reference point (Body, Towards Ground, WCDMA Band V Channel 4132) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 157of 197 WCDMA Band V Towards Phantom Middle Date/Time: 12/12/2009 11:08:46 AM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Phantom Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.590 mW/g Towards Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.9 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 0.731 W/kg SAR(1 g) = 0.554 mW/g; SAR(10 g) = 0.395 mW/g Maximum value of SAR (measured) = 0.588 mW/g Figure 127 Body, Towards Phantom, WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 158of 197 Figure 128 Z-Scan at power reference point (Body, Towards Phantom, WCDMA Band V Channel 4183) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 159of 197 WCDMA Band V Towards Ground with Earphone Middle Date/Time: 12/12/2009 11:29:37 AM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.976 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3677; ConvF(9.11, 9.11, 9.11); Calibrated: 9/23/2009 Electronics: DAE4 Sn905; Calibrated: 6/24/2009 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.478 …

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 195of 197 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 196of 197 Picture 11: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 12: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA2009-1691 Page 197of 197 Picture 13: Body with earphone, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm

Zur optimalen Anzeige dieses PDF-Portfolios sollte es in Acrobat oder Adobe Reader ab Version 9 geöffnet werden. Adobe Reader jetzt herunterladen

FCC Test Report Product Name: WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model Number: HUAWEI U1280-5/U1280-5 Report No: SYBHZ(R)E043112009EB-2 FCC ID: QISU1280-5 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of HUAWEI U1280-5/U1280-5 FCC ID: QISU1280-5 Security Level: Public Report No: SYBHZ(R)E043112009EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total33 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 5. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is R2364, C2583, and T256. 6. The test report is invalid if not marked with "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of HUAWEI U1280-5/U1280-5 FCC ID: QISU1280-5 Security Level: Public REPORT ON FCC Test of WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth M/N: HUAWEI U1280-5/U1280-5 Report No: SYBHZ(R)E043112009EB-2 FCC ID: QISU1280-5 REGULATION FCC CFR47 Par…

Text truncated - open the document above for the full version.
