QISU2801-5UMTS/GPRS/GSM/EDGE Mobile Phone with BT

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modi f y, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Safety Precautions Please read the safety precautions carefully to ensure the correct use of your mobile phone. Do not crash, throw, or puncture your mobile phone. Avoid the falling, squeezing, and bending of your mobile phone. Do not use your mobile phone in a moist environment, such as the bathroom. Prevent your mobile phone from being soaked or washed in liquid. Do not switch on your mobile phone when it is prohibited to use phones or when the phone may cause interference or danger. Do not use your mobile phone while driving. Follow any rules or regulations in hospitals and health care facilities. Switch off your mobile phone near medical apparatus. Switch off your mobile phone in aircraft. The phone may cause interference to control equipment of the aircraft. Switch off your mobile phone near high-precision electronic devices. The phone may affect the performance of these devices. Do not attempt to disassemble your mobile phone or its accessories. Only qualified personnel are allowed to service or repair the phone. Do not place your mobile phone or its accessories in containers with a strong electromagnetic field. Do not place magnetic storage media near your mobile phone. Radiation from the phone may erase the information stored on them. Do not put your mobile phone in a high-temperature place or use it in a place with flammable gas such as a gas station. Keep your mobile phone and its accessories away from children. Do not allow children to use your mobile phone without guidance. Use only approved batteries and chargers to avoid the risk of explosions. Observe any laws or regulations on the use of wireless devices. Respect others' privacy and legal rights when using your wireless device. Strictly follow the relevant instructions of this manual while using the USB cable. Otherwise your mobile phone or PC may be damaged. i Contents 1 Getting Started ................................................................ 1 SIM/USIM Card and Battery ............................................... 1 microSD Card .................................................................... 1 Charging the Battery ......................................................... 2 Your Phone ....................................................................... 3 Keys and Functions ............................................................ 4 Screen Icons ...................................................................... 6 Power Saving Mode........................................................... 8 2 Voice Services .................................................................. 9 Making a Call .................................................................... 9 Answering a Call ............................................................. 10 Options During a Call....................................................... 10 3 Te x t I n put ...................................................................... 10 Entering English............................................................... 11 Entering Digits ................................................................. 12 Entering Symbols ............................................................. 12 4 Messaging ..................................................................... 12 5 Contacts ......................................................................... 13 Creating a Contact .......................................................... 13 Searching for a Contact ................................................... 13 6 Multimedia .................................................................... 13 Camera ........................................................................... 13 Sound Recorder ........…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU2801-5 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

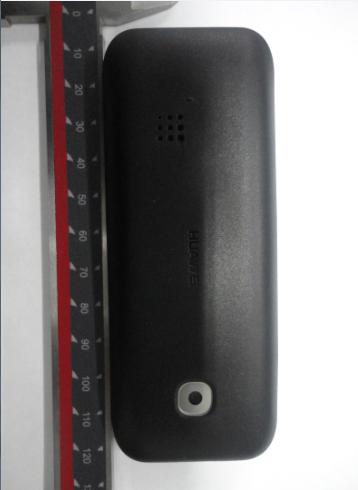

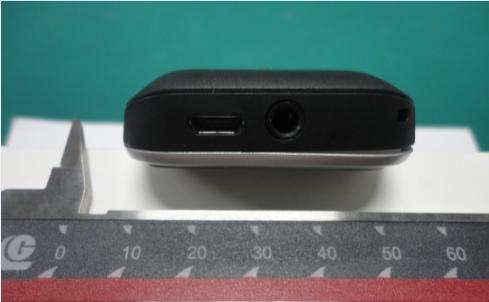

U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page1, Total3 External Photos of U2801-5 U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page2, Total3 U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page3, Total3

U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page1, Total1 U2801-5 Label & Label Location：

U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page1, Total3 Internal Photos of U2801-5 U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page2, Total3 U2801-5 UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 03/07/2012 Page3, Total3

Report No.:SYBH(Z-SAR)026022012-2 FCC ID: QISU2801-5 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body Date/Time: 2/29/2012 9:55:31 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 41.368; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.571 mW/g Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.798 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.8140 SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.710 mW/g 0 dB = 2.710mW/g = 8.66 dB mW/g Date/Time: 2/27/2012 23:58:41 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.99 mho/m; ε r = 53.721; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.782 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.126 V/m; Power Drift = 0.0082 dB Peak SAR (extrapolated) = 3.9190 SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.71 mW/g Maximum value of SAR (measured) = 2.805 mW/g 0 dB = 2.810mW/g = 8.97 dB mW/g Date/Time: 2/29/2012 21:02:06 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.411 mho/m; ε r = 38.453; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.69, 7.69, 7.69); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.206 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.856 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 18.9350 SAR(1 g) = 9.94 mW/g; SAR(10 g) = 5.08 mW/g Maximum value of SAR (measured) = 11.106 mW/g 0 dB = 11.110mW/g = 20.91 dB mW/g Date/Time: 2/28/2012 21:33:09 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.528 mho/m; ε r = 52.406; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.003 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.611 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 19.6430 SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.25 mW/g Maximum value of SAR (measured) = 11.658 mW/g 0 dB = 11.660mW/g = 21.33 dB mW/g

Report No.:SYBH(Z-SAR)026022012-2 FCC ID:QISU2801-5 Appendix B. SAR Measurement Plots Table of contents GSM850 MHz Head GSM850 MHz Body GSM1900 MHz Head GSM1900 MHz Body WCDMA850 MHz Head WCDMA850 MHz Body WCDMA1900 MHz Head WCDMA1900 MHz Body Date/Time: 2/29/2012 16:23:51 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 128CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.904 mho/m; ε r = 41.545; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.958 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.992 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.2720 SAR(1 g) = 0.957 mW/g; SAR(10 g) = 0.679 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.009 mW/g 0 dB = 1.010mW/g = 0.09 dB mW/g Date/Time: 2/29/2012 15:58:43 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 190CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.912 mho/m; ε r = 41.328; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.223 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.543 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.6010 SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.851 mW/g Maximum value of SAR (measured) = 1.284 mW/g 0 dB = 1.280mW/g = 2.14 dB mW/g Date/Time: 2/29/2012 16:49:23 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 251CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 848.8 MHz Medium parameters used: f = 849 MHz; σ = 0.929 mho/m; ε r = 41.14; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.078 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.275 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.4100 SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.753 mW/g Maximum value of SAR (measured) = 1.138 mW/g 0 dB = 1.140mW/g = 1.14 dB mW/g Date/Time: 2/29/2012 17:26:53 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 190CH Left hand tilt 15 degree DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.912 mho/m; ε r = 41.328; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.775 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.641 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.0190 SAR(1 g) = 0.752 mW/g; SAR(10 g) = 0.531 mW/g Maximum value of SAR (measured) = 0.795 mW/g 0 dB = 0.790mW/g = -2.05 dB mW/g Date/Time: 2/29/2012 19:00:34 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 128CH Right hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.904 mho/m; ε r = 41.545; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.909 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.361 V/m; Power Drift = -0.00011 dB Peak SAR (extrapolated) = 1.2130 SAR(1 g) = 0.909 mW/g; SAR(10 g) = 0.641 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.969 mW/g 0 dB = 0.970mW/g = -0.26 dB mW/g Date/Time: 2/29/2012 18:00:55 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM850 190CH Right hand…

Text truncated - open the document above for the full version.

Date/Time: 2/29/2012 0:22:46 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM1900 EGPRS 2TS 661CH Towards Ground 15mm DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.507 mho/m; ε r = 52.545; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.487 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.147 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.7420 SAR(1 g) = 0.467 mW/g; SAR(10 g) = 0.303 mW/g Maximum value of SAR (measured) = 0.495 mW/g 0 dB = 0.490mW/g = -6.20 dB mW/g Date/Time: 2/29/2012 0:51:47 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM1900 661CH Towards Ground 15mm with Headset DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.507 mho/m; ε r = 52.545; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.300 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.235 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.4500 SAR(1 g) = 0.285 mW/g; SAR(10 g) = 0.185 mW/g Maximum value of SAR (measured) = 0.304 mW/g 0 dB = 0.300mW/g = -10.46 dB mW/g Date/Time: 2/29/2012 1:39:40 Test Laboratory: HUAWEI SAR Lab U2801-5 GSM1900 GPRS 2TS 661CH Towards Ground 15mm with GAGB508XC18C1974 DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.507 mho/m; ε r = 52.545; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.488 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.456 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.7400 SAR(1 g) = 0.469 mW/g; SAR(10 g) = 0.304 mW/g Maximum value of SAR (measured) = 0.496 mW/g 0 dB = 0.500mW/g = -6.02 dB mW/g Date/Time: 2/29/2012 11:26:00 Test Laboratory: HUAWEI SAR Lab U2801-5 WCDMA850 4132CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 826.4 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.907 mho/m; ε r = 41.518; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.890 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.966 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.1680 SAR(1 g) = 0.880 mW/g; SAR(10 g) = 0.625 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.937 mW/g 0 dB = 0.940mW/g = -0.54 dB mW/g Date/Time: 2/29/2012 10:58:51 Test Laboratory: HUAWEI SAR Lab U2801-5 WCDMA850 4182CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 836.4 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.914 mho/m; ε r = 41.307; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.001 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.593 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.2910 SAR(1 g) = 0.980 mW/g; SAR(10 g) = 0.696 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.041 mW/g 0 dB = 1.040mW/g = 0.34 dB mW/g Date/Time: 2/29/2012 11:51:36 Test Laboratory: HUAWEI SAR Lab U2801-5 WCDMA850 4233CH Left hand touch cheek DUT: U2801-5; Type: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 846.6 MHz Medium parameters used: f = 847 MHz; σ = 0.9…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR)026022012-2 FCC ID:QISU2801-5 Appendix C. Calibration Certificate Table of contends Calibration report “D835-SN4d126 Calibration report “D1900-SN5d143” Calibration report “DAE4-SN852” Calibration report “Probe EX3DV4-SN3736”

Report No.:SYBH(Z-SAR)026022012-2 FCC ID:QISU2801-5 Appendix D. Photo documentation Table of contens Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Left Head Touched Photo 5: Left Head Tilt 15 degree Photo 6: Right Head Touched Photo 7: Right Head Tilt 15 degree Photo 8: Towords Phantom (15mm) Photo 9: Towords Ground (15mm) Photo 10: Towords Ground with Headset (15mm) NA NA Liquid depth Photo 11:HSL835MHz depth (15.2cm) Photo 12:MSL835depth (15.1cm) Photo 13:HSL1900MHz depth (15.0cm) Photo 14:MSL1900MHz depth (15.1cm)

FCC RF Test Report Product Name: UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model Number: U2801-5 Report No: SYBH(Z-RF)010032012-2001 FCC ID:QISU2801-5 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of U2801-5 FCC ID: QISU2801-5 Report No: SYBH(Z-RF)010032012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total16 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of U2801-5 FCC ID: QISU2801-5 Report No: SYBH(Z-RF)010032012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total16 Applicant: Huawei Technologies Co., Ltd. Address: Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Date of Receipt Test Item: Mar.01, 2012 Start Date of Test: Mar.01, 2012 End Date of Test: Mar.07, 2012 Test Result: Pass Approved By Senior Engineer Mar.08, 2012 Dai Linjun Date Name Signature Reviewed By Mar.08, 2012 Cousy Xu Date Name Signature Operator Mar.08, 2012 Huang Qiuliang Date Name Signature FCC Test Report of U2801-5 FCC ID: QISU2801-5 Report No: SYBH(Z-RF)010032012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total16 Contents 1 General Information ...................................................................................................................................5 1.1 APPLIED STANDARD ...............................................................................................................................5 1.2 TEST LOCATION .....................................................................................................................................5 1.3 TEST ENVIRONMENT CONDITION .............................................................................................................5 2 Summary .....................................................................................................................................................6 3 Product Description ...................................................................................................................................7 3.1 PRODUCTION INFORMATION ....................................................................................................................7 3.2 TEST DESCRIPTION ................................................................................................................................8 4 General Test Conditions / Configurations ................................................................................................9 4.1 RF CHANNELS UNDER TEST ....................................................................................................................9 4.2 TEST MODES .........................................................................................................................................9 4.3 TEST ENVIRONMENTS .............................................................................................................................9 4.4 TEST SETUPS .......................................................................................................................................10 4.5 TEST CONDITIONS ................................................................................................................................12 5 Main Test Instruments .............................................................................................................................14 6 Test Results .................................…

Text truncated - open the document above for the full version.
