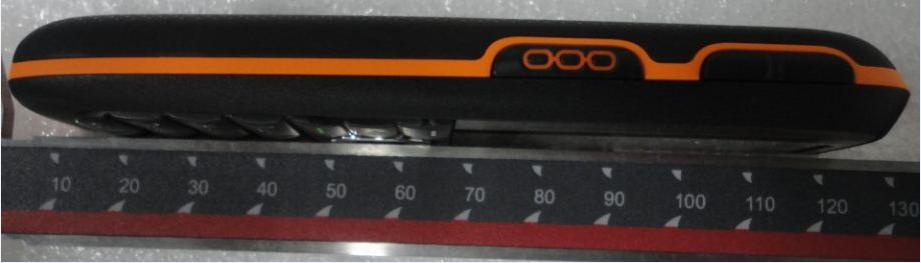

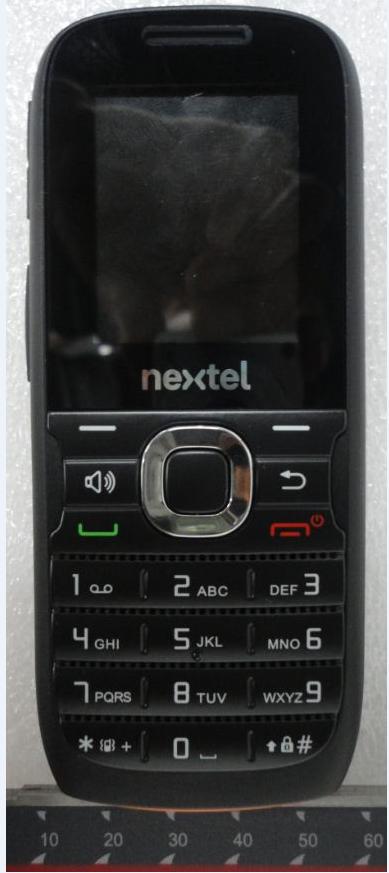

U2900 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 4/19/2012 Page1, Total3 External Photos of U2900 U2900 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 4/19/2012 Page2, Total3 U2900 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 4/19/2012 Page3, Total3

Report No.: SYBH(Z-SAR)024042012-2 FCC ID:QISU2900 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D 835-EX-H ead SystemPerformanceCheck-D 835-EX-B ody SystemPerformanceCheck-D 1800-EX-H ead SystemPerformanceCheck-D 1800-EX-B ody SystemPerformanceCheck-D1 900-EX-H ead SystemPerformanceCheck-D1 900-EX-B ody Date/Time: 4/9/2012 22:30:36 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.886 mho/m; ε r = 42.399; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.593 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.201 V/m; Power Drift = 0.0052 dB Peak SAR (extrapolated) = 3.7100 SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.643 mW/g 0 dB = 2.640mW/g = 8.43 dB mW/g Date/Time: 4/11/2012 9:37:00 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.992 mho/m; ε r = 53.719; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.560 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 44.203 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.8410 SAR(1 g) = 2.57 mW/g; SAR(10 g) = 1.69 mW/g Maximum value of SAR (measured) = 2.768 mW/g 0 dB = 2.770mW/g = 8.85 dB mW/g Date/Time: 4/11/2012 16:20:54 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.44 mho/m; ε r = 41.034; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.62, 7.62, 7.62); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.689 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 77.731 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 17.7000 SAR(1 g) = 9.19 mW/g; SAR(10 g) = 4.69 mW/g Maximum value of SAR (measured) = 10.221 mW/g 0 dB = 10.220mW/g = 20.19 dB mW/g Date/Time: 4/11/2012 22:43:48 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.561 mho/m; ε r = 53.254; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.19, 7.19, 7.19); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.526 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.074 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 17.5690 SAR(1 g) = 9.58 mW/g; SAR(10 g) = 5 mW/g Maximum value of SAR (measured) = 10.739 mW/g 0 dB = 10.740mW/g = 20.62 dB mW/g Date/Time: 4/10/2012 9:53:45 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.443 mho/m; ε r = 38.781; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(7.26, 7.26, 7.26); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.817 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.671 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 16.7570 SAR(1 g) = 9.06 mW/g; SAR(10 g) = 4.7 mW/g Maximum value of SAR (measured) = 10.235 mW/g 0 dB = 10.230mW/g = 20.20 dB mW/g Date/Time: 4/10/2012 15:58:40 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.542 mho/m; ε r = 53.088; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configur…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024042012-2 FCC ID:QISU2900 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Head GSM 850 MHz Body GSM 1900 MHz Head GSM 1900 MHz Body WCDMA 1700 MHz Head WCDMA 1700 MHz Body WCDMA 1900 MHz Head WCDMA 1900 MHz Head Date/Time: 4/10/2012 0:20:33 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 128CH Left hand touch cheek DUT: U2900; Type: UMTS Mobile Phone With Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.878 mho/m; ε r = 42.494; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.759 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.519 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.9840 SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.534 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.792 mW/g 0 dB = 0.790mW/g = -2.05 dB mW/g Date/Time: 4/9/2012 23:55:11 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 190CH Left hand touch cheek DUT: U2900; Type: UMTS Mobile Phone With Bluetooth;Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.918 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.345 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.1570 SAR(1 g) = 0.881 mW/g; SAR(10 g) = 0.634 mW/g Maximum value of SAR (measured) = 0.937 mW/g 0 dB = 0.940mW/g = -0.54 dB mW/g Date/Time: 4/10/2012 0:44:43 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 251CH Left hand touch cheek DUT: U2900; Type: UMTS Mobile Phone With Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 848.8 MHz Medium parameters used: f = 849 MHz; σ = 0.897 mho/m; ε r = 42.273; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.020 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.825 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.3380 SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.725 mW/g Maximum value of SAR (measured) = 1.082 mW/g 0 dB = 1.080mW/g = 0.67 dB mW/g Date/Time: 4/10/2012 1:35:16 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 190CH Left hand tilt 15 degree DUT: U2900; Type: UMTS Mobile Phone With Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.891 mho/m; ε r = 42.368; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.568 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.516 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.7520 SAR(1 g) = 0.552 mW/g; SAR(10 g) = 0.396 mW/g Maximum value of SAR (measured) = 0.586 mW/g 0 dB = 0.590mW/g = -4.58 dB mW/g Date/Time: 4/10/2012 2:55:47 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 128CH Right hand touch cheek DUT: U2900; Type: UMTS Mobile Phone With Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.878 mho/m; ε r = 42.494; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3578; ConvF(8.33, 8.33, 8.33); Calibrated: 6/21/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.697 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.489 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.9170 SAR(1 g) = 0.694 mW/g; SAR(10 g) = 0.495 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.748 mW/g 0 dB = 0.750mW/g = -2.50 dB mW/g Date/Time: 4/10/2012 2:05:02 Test Laboratory: HUAWEI SAR Lab U2900 GSM850 190CH Right hand touch cheek DUT: U2900; Type: UMTS Mobile Phone With Bluetooth;Serial: SAR2 Communication Syst…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024042012-2 FCC ID:QISU2900 Appendix D. Photo documentation Table of contens Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY 5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Left Hand Touched Photo 5: Left Hand Tilted 15° Photo 6: Right Hand Touched Photo 7: Right Hand Tilted 15° Photo 8: Towords Phantom (15mm) Photo 9: Towords Ground (15mm) Photo 10: Towords Ground with Headset (15mm) NA NA Liquid depth Photo 11: HSL835MHz depth (15.2cm) Photo 12: MSL835depth (15.00cm) Photo 13: HSL1800MHz depth (15cm) Photo 14: MSL1800MHz depth (15.2cm) Photo 15: HSL1900MHz depth (15.2cm) Photo 16: MSL1900MHz depth (15.1cm)

FCC RF Test Report Product Name: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Model Number: U2900 Report No: SYBH(Z-RF)007042012-2001 FCC ID:QISU2900 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of U2900 FCC ID: QISU2900 Report No: SYBH(Z-RF)007042012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total16 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of U2900 FCC ID: QISU2900 Report No: SYBH(Z-RF)007042012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total16 Applicant: Huawei Technologies Co., Ltd. Address: Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Date of Receipt Test Item: Apr.14, 2012 Start Date of Test: Apr.15, 2012 End Date of Test: Apr.28, 2012 Test Result: Pass Approved By Senior Engineer May,06, 2012 Dai Linjun Date Name Signature Reviewed By May,06, 2012 Cousy Xu Date Name Signature Operator May,06, 2012 Huang Qiuliang Date Name Signature FCC Test Report of U2900 FCC ID: QISU2900 Report No: SYBH(Z-RF)007042012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total16 Contents 1 General Information .................................................................................................................................. 5 1.1 APPLIED STANDARD ............................................................................................................................... 5 1.2 TEST LOCATION ..................................................................................................................................... 5 1.3 TEST ENVIRONMENT CONDITION ............................................................................................................ 5 2 Summary .................................................................................................................................................... 6 3 Product Description .................................................................................................................................. 7 3.1 PRODUCTION INFORMATION ................................................................................................................... 7 3.2 TEST DESCRIPTION................................................................................................................................ 8 4 General Test Conditions / Configurations ................................................................................................ 9 4.1 RF CHANNELS UNDER TEST ................................................................................................................... 9 4.2 TEST MODES ......................................................................................................................................... 9 4.3 TEST ENVIRONMENTS ............................................................................................................................ 9 4.4 TEST SETUPS ...................................................................................................................................... 10 4.5 TEST CONDITIONS ............................................................................................................................... 12 5 Main Test Instruments ............................................................................................................................. 14 6 Test Results ............................................................................................................................................. 15 7 Measurement Uncertainty ....................................................................................................................... 16 FCC Test Report of U2900 FCC ID: QISU2900 Report No: SYBH(Z-RF)007042012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total16 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2:2010, Subpart J 47 CFR FCC Part 22:2010, Subpart H ANSI/TIA 603C 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China 1.3 Test Environment Condition Ambient Temperature: 20 – 25 °C Ambient Relative Humidity: 45 – 55 % Atmospheric Pressure: 101 kPa FCC Test Report of U2900 FCC ID: QISU2900 Report No: SYBH(Z-RF)007042012-2001 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total16 2 Summary Table 1 Summary of results Cellular Band Test Case FCC Part No. Requirements Result Transmitter Outp…
