QISU3220UMTS/GPRS/GSM Mobile Phone with BT

U3220 USER GUIDE UMTS 1 1 Copyright Copyright Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and re trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. 2 Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL 3 DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. 4 2 Getting Started Your Phone at a Glance 1Speaker key2Confirm key 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 5 Keys and Functions 3Right soft key4Clear key 5End/Power key6Microphone 7Camera key8Numeric key 9Talk/Send key10Music key 11Left soft key12Navigation keys 13Screen14 Earpiece 15Headset jack16Torch 17Volume Control keys18Direct Connect key 19 Charger Interface/Data Cable Connector 20Camera Send key • Make or answer a call. • Access call logs in standby mode. 6 End key • Power on or power off the phone by pressing and holding it. • End or reject a call. • Return to the standby mode. • Turn on or off the phone backlight. Left soft key Select the option displayed in the lower left corner of the screen. Right soft key Select the option displayed in the lower right corner of the screen. Clear key Delete a character in editing mode or delete a selected item in an application. Music key Access the Music player in standby mode. * key ?Switch between the current mode and the Meeting mode by pressing and holding it. # key Switch between text input methods when editing text. 7 0 key ... 9 key • Enter numbers, letters, and symbols. • Call the voicemail in standby mode by pressing and holding the 1 key. • Speed-dial phone numbers in standby mode by pressing and holding the desired key 2–9 after a phone numbers are assigned to the number key. Confirm key Confirm a selection. Navigation key • Switch between shortcuts when the standby screen is set to Functional mode. • Access the corresponding functions in standby mode when the standby screen is set to Concise mode. Direct connect key • Make or answer a Direct Connect call. • Access DC call logs in standby mode. Camera key • Take a photo after the camera is launched. • Turn on the Torch (by pressing it). 8 Inserting the UIM Card and the Battery 12 34 9 Inserting the microSD Card Charging the Battery Before charging the battery with the travel charger, ensure that the battery is installed in your phone. Do not use a damaged battery or charger. 1. Connect the charger to a power outlet. 2. Connect the charger to the charger connector of the phone. The phone begins charging. When the battery icon changes to fully charged, it indicates that your phone is fully charged. 3. When the phone is fully charged, disconnect the charger from the phone and then from the power outlet. 10 Status Icons Signal strengthRoaming 2G network available3G network available Receiving and sending data on a 2G network Receiving and sending data on a 3G network Call in progress No memory for messages New text message received New multimedia message received microSD card inserted New voicemail message received Alarm clock enabledBluetooth on Bluetooth headset connected Data receiving via Bluetooth Data sending via Bluetooth Battery level 11 Battery charging Music player playing in the background Ringing mode activated Ring and vibration mode activated Silence mode activated No network available for DC calls Network available for DC calls DC call in progress Member adding to a DC call DC group call in progress 12 3 Text Entry Entering English Smart English Input Method 1. Based on the sequence of the word, press the key labeled with the desired letter once. Then the phone predicts the commonly used words according to the numeric sequence of key presses. 2. Select the desired word, and press Confirm key or 0 key to enter the word. 3. Press 1 key to enter a full stop or another commonly used punctuation. Press * key to display the symbol list. Then you can select and enter a symbol. Note: The indicator of the current input method is displayed in the upper right corner of the screen. You can p…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU3220 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2011-03-08 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISU3220 Product Name: UMTS/GPRS/GSM Mobile Phone with Bluetooth Product Model: HUAWEI U3220 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

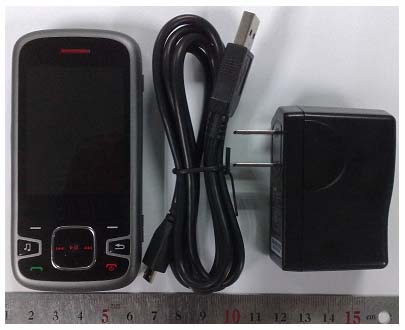

HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page1,Total 4 External Photos of HUAWEI U3220 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page2,Total 4 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page3,Total 4 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page4,Total 4

HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page1, Total 3 Label Location HUAWEI U3220 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page2, Total 3

HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page1,Total 4 Internal Photos of HUAWEI U3220 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page2,Total 4 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page3,Total 4 HUAWEI U3220 Mobile Phone with Bluetooth SECRET Page4,Total 4

Report No.: RZA1011-1835SAR01R2 TESTING No. L2264 OET 65 TEST REPORT Product Name UMTS Handset Mobile Phone Model HUAWEI U3220 FCC ID QISU3220 Client Huawei Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name UMTS Handset Mobile Phone Model HUAWEI U3220 FCC ID QISU3220 Report No. RZA1011-1835SAR01R2 Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radio frequency Emissions. RSS-102 Issue 4 March 2010:Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: March 1 st , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Liu Jun TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 3 of 193 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values and Conducted Power of each tested band ........................... 8 1.7. Test Date .............................................................................................................................. 9 2. Operational Conditions during Test ............................................................................................ 10 2.1. General Description of Test Procedures............................................................................. 10 2.2. GSM Test Configuration ...................................................................................................... 10 2.3. WCDMA Test Configuration ................................................................................................ 12 2.3.1. Output Power Verification ............................................................................................ 12 2.3.2. Head SAR Measurements ........................................................................................... 12 2.3.3. Body SAR Measurements ........................................................................................... 12 2.4. Test Positions...................................................................................................................... 12 2.4.1. Against Phantom Head ................................................................................................ 12 2.4.2. Body Worn Configuration............................................................................................. 12 3. SAR Measurements System Configuration ................................................................................ 13 3.1. SAR Measurement Set-up .................................................................................................. 13 3.2. DASY4 E-field Probe System ............................................................................................. 14 3.2.1. EX3DV4 Probe Specification ....................................................................................... 14 3.2.2. E-field Probe Calibration .............................................................................................. 15 3.3. Other Test Equipment .........................................................................................................15 3.3.1. Device Holder for Transmitters .................................................................................... 15 3.3.2. Phantom...................................................................................................................... 16 3.4. Scanning Procedure........................................................................................................... 16 3.5. Data Storage and Evaluation .............................................................................................. 18 3.5.1. Data Storage................................................................................................................ 18 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 18 3.6. System Check..................................................................................................................... 21 3.7. Equivalent Tissues ..............................................................................................................22 4. Laboratory E…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 124 of 193 WCDMA Band IV Towards Ground High Open Date/Time: 11/23/2010 6:53:57 PM Communication System: WCDMA Band IV; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1753 MHz; σ = 1.47 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C DASY4 Configuration: Probe: EX3DV4 - SN3661; ConvF(7.93, 7.93, 7.93); Calibrated: 12/30/2009 Electronics: DAE4 Sn679; Calibrated: 6/18/2010 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.268 mW/g Towards Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.79 V/m; Power Drift = -0.090 dB Peak SAR (extrapolated) = 0.393 W/kg SAR(1 g) = 0.251 mW/g; SAR(10 g) = 0.162 mW/g Maximum value of SAR (measured) = 0.264 mW/g Figure 78 Body, Towards Ground, WCDMA Band IV Open Channel 1513 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 125 of 193 WCDMA Band IV Towards Ground Middle Open Date/Time: 11/23/2010 6:33:31 PM Communication System: WCDMA Band IV; Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.45 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C DASY4 Configuration: Probe: EX3DV4 - SN3661; ConvF(7.93, 7.93, 7.93); Calibrated: 12/30/2009 Electronics: DAE4 Sn679; Calibrated: 6/18/2010 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.272 mW/g Towards Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.72 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 0.379 W/kg SAR(1 g) = 0.237 mW/g; SAR(10 g) = 0.153 mW/g Maximum value of SAR (measured) = 0.252 mW/g Figure 79 Body, Towards Ground, WCDMA Band IV Open Channel 1413 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 126 of 193 WCDMA Band IV Towards Ground Low Open Date/Time: 11/23/2010 7:00:18 PM Communication System: WCDMA Band IV; Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.44 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C DASY4 Configuration: Probe: EX3DV4 - SN3661; ConvF(7.93, 7.93, 7.93); Calibrated: 12/30/2009 Electronics: DAE4 Sn679; Calibrated: 6/18/2010 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.382 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.23 V/m; Power Drift = -0.078 dB Peak SAR (extrapolated) = 0.529 W/kg SAR(1 g) = 0.344 mW/g; SAR(10 g) = 0.224 mW/g Maximum value of SAR (measured) = 0.365 mW/g TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 127 of 193 Figure 80 Body, Towards Ground, WCDMA Band IV Open Channel 1312 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 128 of 193 WCDMA Band IV Towards Phantom Middle Open Date/Time: 11/23/2010 8:30:50 PM Communication System: WCDMA Band IV; Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.45 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C DASY4 Configuration: Probe: EX3DV4 - SN3661; ConvF(7.93, 7.93, 7.93); Calibrated: 12/30/2009 Electronics: DAE4 Sn679; Calibrated: 6/18/2010 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Phantom Middle /Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.231 mW/g Towards Phantom Middle /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.14 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.314 W/kg SAR(1 g) = 0.212 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.226 mW/g Figure 81 Body, Towards Phantom, WCDMA Band IV Open Channel 1413 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 129 of 193 WCDMA Band IV with Earphone Towards Ground Low Open Date/Time: 11/23/2010 9:29:29 PM Communication System: WCDMA Band IV; Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.44 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liqiud Temperature: 21.5°C DASY4 Configuration: Probe: EX3DV4 - SN3661; ConvF(7.93, 7.93, 7.93); Calibrated: 12/30/2009 Electronics: DAE4 Sn679; Calibrated: 6/18/2010 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Low/Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.305 mW/g Towards Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.75 V/m; Power Drift = -0.090 dB Peak SAR (extrapolated) = 0.444 W/kg SAR(1 g) = 0.284 mW/g; SAR(10 g) = 0.182 mW/g Maximum value of SAR (measured) = 0.302 mW/g Figure 82 Body with Earphone, Towards Ground, WCDMA Band IV Open Channel 1312 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 130 of 193 ANNEX D: Probe Calibration Certificate(SN:3661) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 131 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Rep…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 163 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 164 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 165 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 166 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 167 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 168 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 169 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 170 of 193 ANNEX H: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 171 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 172 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 173 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 174 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 175 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 176 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 177 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 178 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 179 of 193 ANNEX I: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 180 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 181 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 182 of 193 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1011-1835SAR01R2 Page 183 of 193

FCC RF Test Report Product Name: HSPA+/HSUPA/HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model Number: HUAWEI U3220 Report No: SYBH(Z-RF)013022011-2001 FCC ID: QISU3220 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC RF Test Report of U3220 FCC ID: QISU3220 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total32 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC RF Test Report of U3220 FCC ID: QISU3220 Notice 2 Modification Information: Modification Information 1 2 3 4 5 6 Modification Information 7 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total32 FCC RF Test Report of U3220 FCC ID: QISU3220 REPORT ON RF TEST OF HSPA+/HSUPA/HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth M/N: HUAWEI U3220 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22 : Subpart H; START OF TEST Nov.15, 2010 END OF TEST Nov. 20, 2010 Final Judgement: Pass Approved By 2011-02-24 Chenxiaohong Date Name Signature Reviewed By 2011-02-24 Xuguangyi Date Name Signature Operator 2011-02-24 Wangyue Date Name Signature Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total32 FCC RF Test Report of U3220 FCC ID: QISU3220 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total32 REPORT BODY CONTENT 1 Summary.................................................................................................................................................... 6 2 Product Description.................................................................................................................................. 7 2.1 PRODUCTION INFORMATION................................................................................................................... 7 2.2 MODIFICATION INFORMATION.................................................................................................................. 7 3 Test Site Description................................................................................................................................. 8 3.1 TESTING PERIOD................................................................................................................................... 8 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 8 4 Product Description.................................................................................................................................. 9 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 9 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 11 5 Main Test Instruments............................................................................................................................. 12 6 Transmitter Measurements..................................................................................................................... 13 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (ERP)......................................................................... 13 6.2 CONDUCTED POWER OF TRANSMITTER................................................................................................. 16 6.3 MODULATION CHARACTERISTICS.......................................................................................................... 18 6.4 OCCUPIED BANDWIDTH........................................................................................................................ 20 6.5 BAND EDGES COMPLIANCE.................................................................................................................. 22 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL........................................................................................ 24 6.7 FREQUENCY STABILITY........................................................................................................................ 27 7 System Measurement Uncertainty......................................................................................................... 31 8 Appendices.............................................................................................................................................. 32 FCC RF Test Report of U3220 FCC ID: QISU3220 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Hua…

Text truncated - open the document above for the full version.

FCC RF Test Report of U3220 FCC ID: QISU3220 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Permission Page1, Total3 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC RF Test Report of U3220 FCC ID: QISU3220 Report No: SYBH(Z-RF)013022011-2001 Confidential Information of Huawei. No Distribution without Permission Page2, Total3 Channel 192（TM1…

Text truncated - open the document above for the full version.
