QISU5705WCDMA/GPRS/GSM/EDGE Mobile Phone with BT

Wonderful Communication, Mobile LifeWelcome to U 5705 Mobile Phone fr om Huawei Technologies Co., Ltd. HUAWEI U 5705 Mobile Phone User Guide U535.book Page 1 Monday, December 11, 2006 4:26 PM Notice Copyright © 2007 Huawei Technologies Co., Ltd.All Rights Reserved 1 No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. 23 Trademarks 4 and HUAWEI are trademarks of Huawei Technologies Co., Ltd. All other trademarks men-tioned in this manual are the properties of their respective holders. 56 Notice 7 The information in this manual is subject to change without notice. Every effort has been made in the prepar ation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this man-ual do not constitute a warranty of any kind, expressed or implied. 8 Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the 9 section “Warnings and Precautions”. Huawei Technologies Co., Ltd.Address:10 Administration Building, Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, P. R. China Postal Code: 518129 Website: http://www.huawei.com U5700.book Page 2 Tuesday, September 4, 2007 11:48 AM 11 Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the 12 section “Warnings and Precautions”. Do not switch on your phone when it is prohibited to use mobile phones or when the phone may cause interfer-ence or danger.Do not use your phone while driving.Follow any rules or regulations in hospitals and health care facilities. Switch off your phone near medical apparatus.Switch off your phone in aircraft. The phone may cause interference to control signals of the aircraft.Switch off your phone near high-preci-sion electronic dev ices. The phone may affect the performance of these devices. Do not attempt to disassemble your phone or its accessories. Only qualified personnel are allowed to service or repair the phone.Do not place your phone or its accesso-ries in containers with strong electro-magnetic field.Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.Do not put your phone in a high-temperature place or use it in a place with flammable gas such as a gas station.Keep your phone and its accessories away from children. Do not allow children to use your phone without guidance.Use only approved batteries and chargers to avoid the risk of explosions. Safety Precautions U5700.book Page 3 Tuesday, September 4, 2007 11:48 AM 1 Observe any laws or regulations on the use of wireless device. Respect others’ privacy and legal rights when using your wireless device.Strictly follow the relevant instructions on 57 of this manual while using the USB cable. Otherwise your phone or PC may be damaged. U5700.book Page 4 Tuesday, September 4, 2007 11:48 AM 1 Getting to Know Your Phone 1 Packing List ................................................1Your Phone ................................................2 Getting Started 6 Loading the SIM Card ................................6Unloading the SIM Card .............................7Charging the Battery ..................................7Loading/Removing a Memory Card............8Powering On/Off .........................................9 Call Service 11 Making or Answering Calls .......................11Operations During a Voice Call ...............12 Operations During a Video Call ...............13 Calls .........................................................14 Text Input 15 T9 ® Input Method ....................................15 Traditional Input Method ..........................15"123" Numeric Input Method ....................16Symbol Input Method ...............................16Input Different Languages ........................16 Contacts 17 Making Calls from the Contacts ...............17Searching for a Contact............................17Viewing Contacts in Phone/SIM ...............17Other Operations ......................................17Groups......................................................18 Messaging 20 Messages................................................. 20Email ........................................................ 22Broadcast Inbox ....................................... 25Templates ................................................ 25 Music 26 Music Library............................................ 26Playlists .................................................... 27 Organiser & Tools 28 Alarms ...................................................... 28Calendar .................................................. 28Task ......................................................... 29Memo ....................................................... 30Synchronise ............................................. 30Calculator ................................................. 31Unit Converter .......................................... 31Currency Converter.................................. 32Voice Recorder ........................................ 32World Time............................................... 33Stopwatch ................................................ 33Timer ........................................................ 33Service Dial Number ................................ 33 My Files 34Browser 35 Open homepage ...................................... 35Open new page........................................ 35Bookmarks ............................................... 35Saved pages ............................................ 35History ...................................................... 36 Table of Contents U5700.book Page 1 Tuesday, September 4, 2007 11:48 AM 2 Resume ....................................................36Settings ....................................................…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU5705 to be kept confidential: 1. Schematic diagram & PCB layout. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

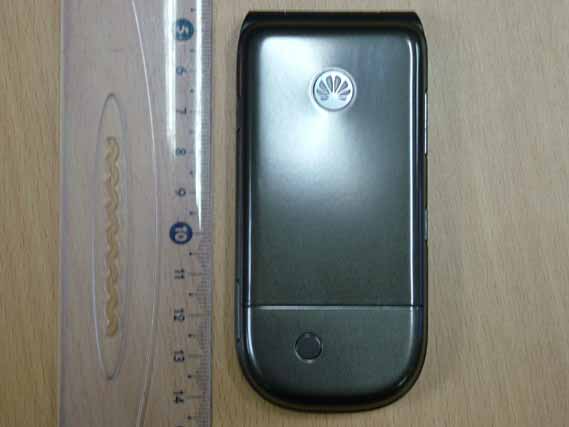

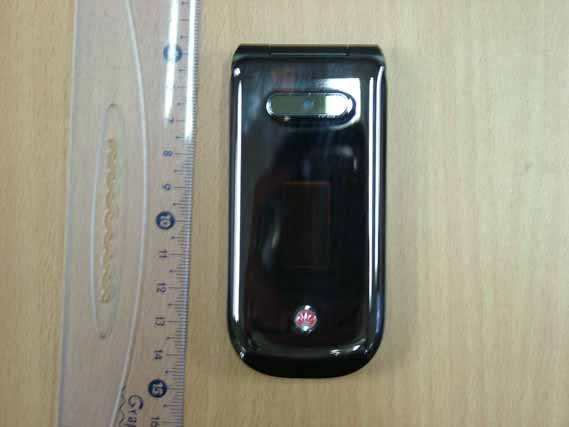

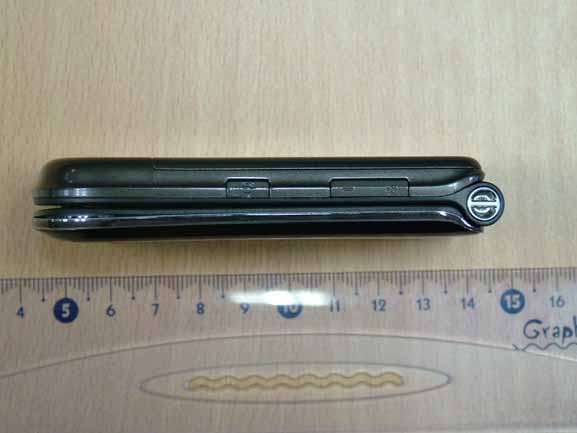

U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1,Total 7 External Photo of U5705 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2,Total 7 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3,Total 7 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page4,Total 7 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page5,Total 7 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page6,Total 7 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page7,Total 7

U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1,Total 1 Label Info of U5705 Label Location of U5705:

U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page1,Total 11 Internal Photo of U5705 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page4,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page5,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page6,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page7,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page8,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page9,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page10,Total 11 U5705 WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page11,Total 11

FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix A 20dB bandwidth measurement According to FCC Part 15.247 a (1) FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total4 Channel 0 (2402MHz) A TDF 1 PK MAXH Ref 20 dBm Center 2.402 GHzSpan 2 MHz200 kHz/ Att 25 dB * RBW 30 kHz VBW 100 kHz SWT 10 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -3.74 dBm 2.401804487 GHz OBW878.205128205 kHz T1 Temp 1 [T1 OBW] -23.26 dBm 2.401541667 GHz T2 Temp 2 [T1 OBW] -23.96 dBm 2.402419872 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page3, Total4 Channel 40 (2442MHz) A TDF 1 PK MAXH Ref 20 dBm 200 kHz/Center 2.442 GHzSpan 2 MHz Att 25 dB * RBW 30 kHz VBW 100 kHz SWT 10 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -3.57 dBm 2.441794872 GHz OBW875.000000000 kHz T1 Temp 1 [T1 OBW] -22.96 dBm 2.441541667 GHz T2 Temp 2 [T1 OBW] -23.62 dBm 2.442416667 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page4, Total4 Channel 78 (2480MHz) A TDF 1 PK MAXH Ref 20 dBm 200 kHz/Center 2.48 GHzSpan 2 MHz Att 25 dB * RBW 30 kHz VBW 100 kHz SWT 10 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -2.46 dBm 2.479791667 GHz OBW875.000000000 kHz T1 Temp 1 [T1 OBW] -21.56 dBm 2.479538462 GHz T2 Temp 2 [T1 OBW] -22.18 dBm 2.480413462 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix B Carrier frequency separation measurement According to FCC Part 15.247 a (1) FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 Centred at Channel 39 A TDF MAXH Ref 20 dBm 500 kHz/Center 2.44 GHzSpan 5 MHz SWT 2.5 msAtt 45 dB * * * 1 PK RBW 100 kHz VBW 100 kHz * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 5000 of 5000 1 Marker 1 [T1 ] -4.31 dBm 2.439975962 GHz 2 Delta 2 [T1 ] 0.05 dB 1.009615385 MHz 3 Delta 3 [T1 ] 0.04 dB -1.001602564 MHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix C Number of hopping channel According to FCC Part 15.247 a (1) FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 Total hopping channels = 79 A TDF Ref 20 dBmAtt 45 dB MAXH 1 PK 10 MHz/Center 2.44 GHzSpan 100 MHz * RBW 100 kHz SWT 10 ms * VBW 300 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total3 Appendix D Time of occupancy According to FCC Part 15.247 a (1) FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total3 A burst (One time slot) * A TDF RBW 1 MHz VBW 1 MHz CLRWR Ref 22.9 dBmAtt 50 dB TRG Center 2.442 GHz400 μs/ SWT 4 ms 1 AP -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -18.14 dBm -2.934231 ms 2 Delta 2 [T1 ] 14.32 dB 1.365385 ms 3 Delta 3 [T1 ] -14.32 dB 2.961538 ms TRG -5.481 dBm FCC ID: QISV720 Report No: SYBH (R) 82072007EB-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total3 A period (Total 63 burst) Ref 20 dBmAtt 45 dB * 1 AP CLRWR A TDF RBW 1 MHz VBW 3 MHz Center 2.441 GHz3.16 s/ SWT 31.6 s SGL -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix E Peak output power According to FCC Part 15.247 b (1) FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total4 Channel 0 (2402MHz) Ref 20 dBmAtt 45 dB A TDF Center 2.402 GHzSpan 2 MHz200 kHz/ * * RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -2.90 dBm 2.402099359 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page3, Total4 Channel 40 (2442MHz) Ref 20 dBmAtt 45 dB A TDF 1 PK MAXH Center 2.442 GHzSpan 2 MHz200 kHz/ * * RBW 1 MHz VBW 3 MHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -2.42 dBm 2.442102564 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page4, Total4 Channel 78 (2480MHz) Ref 20 dBmAtt 45 dB A TDF 1 PK MAXH Center 2.48 GHzSpan 2 MHz200 kHz/ * * RBW 1 MHz VBW 3 MHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -1.20 dBm 2.480134615 GHz FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total9 Appendix F Band edge spurious emission According to FCC Part 15.247 d FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total9 Low edge (Channel 0, no hopping) 1 PK MAXH A TDF * * RBW 100 kHz VBW 100 kHz SWT 5 msAtt 35 dBRef 9 dBm Center 2.4 GHzSpan 10 MHz1 MHz/ -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -3.51 dBm 2.402147436 GHz D1 -3.51 dBm D2 -23.51 dBm FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page3, Total9 Low edge (with hopping) 1 PK MAXH A TDF Att 35 dB * Ref 9 dBm 2 MHz/Center 2.4 GHzSpan 20 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms * -90 -80 -70 -60 -50 -40 -30 -20 -10 0 SWP 2000 of 2000 1 Marker 1 [T1 ] -3.57 dBm 2.402147436 GHz D1 -3.51 dBm D2 -23.51 dBm FCC ID: QISU5705 Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Pe…

Text truncated - open the document above for the full version.

Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total33 Report No: SYBH(R) 181082007EB-3 FCC ID: QISU5705 FCC TEST REPORT OF HUAWEI WCDMA/GPRS/GSM Mobile Phone for 47CFR part15 subpart C M/N: U5705 Sep. 21, 2007 Reliability Laboratory of Huawei Technologies Co., Ltd. All Right Reserved Notice Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total33 1. The laboratory has obtained the accreditation of China National Accreditation Committee for Laboratories (CNAL), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C1758, R1672, and T153. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page3, Total33 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC 47CFR part 15 subpart C Test of HUAWEI WCDMA/GPRS/GSM/EDGE Mobile Phone with Bluetooth M/N: U5705 Report No: SYBH(R)181082007EB-3 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; CONCLUSION There are 9 items need to be tested, 9 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2007.09.21 Date Name signature Technical Responsibility For Area of Testing 2007.09.21 Date Name signature Test Lab Engineer 2007.09.21 Date Name signature Report No: SYBH(R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page4, Total33 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description.................................................................................................................................. 6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 11 6 Transmitter Measurements..................................................................................................................... 12 6.1 20DB BANDWIDTH MEASUREMENT........................................................................................................ 12 6.2 CARRIER FREQUENCY SEPARATION MEASUREMENT............................................................................... 14 6.3 NUMBER OF HOPPING CHANNEL............................................................................................................ 16 6.4 TIME OF OCCUPANCY........................................................................................................................... 18 6.5 PEAK OUTPUT POWER.......................................................................................................................... 20 6.6 BAND EDGE SPURIOUS EMISSION.......................................................................................................... 22 6.7 CONDUCTED RF SPURIOUS.................................................................................................................. 24 6.8 RADIATED SPURIOUS EMISSION & SPURIOUS IN RESTRICTED BAND......................................................... 26 6.9 CONDUCTED EMISSION AT POWER PORT.............................................................................................. 30 7 System Measurement Uncertainty..............................…

Text truncated - open the document above for the full version.

FCC ID: QISU5705 Report No: SYBH (R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Appendix J Photos of Test Setup FCC ID: QISU5705 Report No: SYBH (R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 1 Radiated Spurious Emissions Radiated Spurious Emission (below 2GHz) FCC ID: QISU5705 Report No: SYBH (R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Radiated Spurious Emission (2GHz to18GHz) FCC ID: QISU5705 Report No: SYBH (R)181082007EB-3 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 Radiated Spurious Emission (above 18GHz) FCC ID: QISU5705 Report No: SYBH (R)181082007EB-4 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions for AC Ports
