QISU6020HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth

U6020 USER GUIDE Contents 1 Copyright ........................................................................... 1 2 Safety Precaution ............................................................... 3 3 Getting to Know Your Phone ............................................. 5 USIM Card and Battery ..............................................................5 microSD Card ............................................................................6 Charging the Battery .................................................................6 Your Phone ...............................................................................7 Keys and Functions ...................................................................8 Status Icons ............................................................................11 4 Getting Started ................................................................ 14 Powering On and Off ..............................................................14 Keypad Lock ...........................................................................14 Phone Lock .............................................................................14 PIN and PUK ...........................................................................15 Power Saving Mode ................................................................15 5 Call Functions................................................................... 15 Making a Call..........................................................................15 Answering a Call .....................................................................16 6 Te x t I n put ........................................................................ 17 Entering a Word .....................................................................17 Entering a Number or a Symbol ...............................................17 7 Messaging ....................................................................... 18 Creating and Sending a Message .............................................18 Voicemail ................................................................................18 8 Contacts ........................................................................... 19 Adding a Contact ....................................................................19 Searching for a Contact...........................................................19 9 Direct Connect (DC) and DC Group ................................... 19 Making a DC Call ....................................................................19 Alert .......................................................................................21 DC Group ...............................................................................22 Sending an Interrupt Request ..................................................24 Converting a DC Call to a Voice Call ........................................24 Concurrency ...........................................................................24 Other Operations ....................................................................26 10 Multimedia .................................................................... 28 Camera ...................................................................................28 Music Player ...........................................................................28 Video Player ...........................................................................29 Recorder .................................................................................30 FM Radio ................................................................................30 11 Browser ......................................................................... 32 Setting the Connection Profile .................................................32 Accessing a Webpage .............................................................32 12 USB ................................................................................ 32 Installing PC Suite ...................................................................33 USB-based Internet Access ......................................................33 USB disk .................................................................................34 13 Bluetooth ....................................................................... 34 Using a Bluetooth Headset ......................................................34 Transferring Data ....................................................................35 14 Troubleshooting ............................................................. 35 15 Warnings and Precautions ............................................. 36 1 1 Copyright Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks and trade names arethose of their respective owners. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local 2 network ope…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Letter of Agency 2012-08-20 To whom it may concern: I, an officer of Huawei Technologies Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Tommy Leung / Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under FCC Part 15, Part 22, Part 24 and Part27 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian Longgang, Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch Fax : NULL From: Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755- 28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU6020 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Declaration Manufacturer/Application：Huawei Technologies Co., Ltd. FCC ID:QISU6020 I declare that the shielded USB cable used in the test will be marketed with the EUT. Yours sincerely, Product Manager：Ding Xincun Email：[email protected] Tel：029-68659578 Huawei Technologies Co., Ltd.

Huawei Technologies Co., Ltd. Label Location Justification FCC ID: QISU6020 To whom it may concern, Request is hereby submitted by Huawei Technologies Co.,Ltd to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for U6020 will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches:  Marketing the device without the battery installed, or  Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

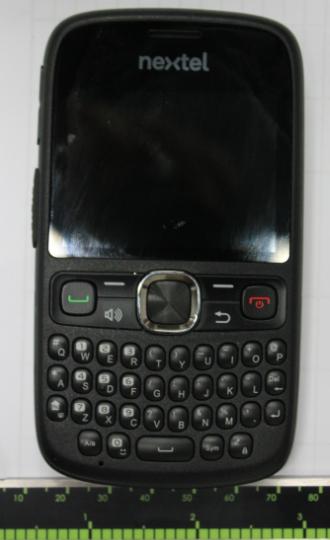

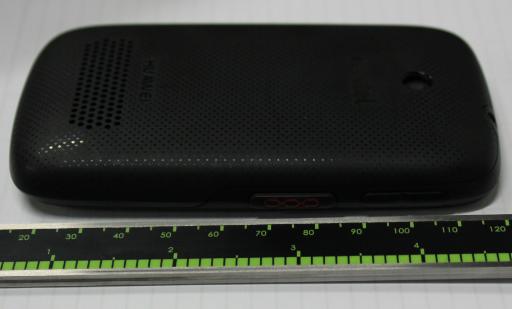

U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/15/2012 Page1, Total4 External Photos of U6020 U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/15/2012 Page2, Total4 U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/15/2012 Page3, Total4 U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/15/2012 Page4, Total4

U6020 HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth SECRET 2012-08-15 Page1, Total1 U6020 Label & Label Location：

U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/14/2012 Page1, Total3 Internal Photos of U6020 U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/14/2012 Page2, Total3 U6020 HSDPA/HSUPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET 8/14/2012 Page3, Total3

Report No.:SYBH(Z-SAR)004082012-2 FCC ID:QISU6020 Appendix B. SAR Measurement Plots Table of contents GSM 850MHz Head GSM 850MHz Body GSM 1900MHz Head GSM 1900MHz Body WCDMA 1700MHz Head WCDMA 1700MHz Body WCDMA 1900MHz Head WCDMA 1900MHz Body Date/Time: 8/9/2012 20:59:41 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 190CH Left hand touch cheek DUT: U6020; Type: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8 Medium parameters used: f = 837 MHz; σ = 0.885 mho/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.6 (6824) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.474 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.147 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.583 mW/g SAR(1 g) = 0.458 mW/g; SAR(10 g) = 0.335 mW/g Maximum value of SAR (measured) = 0.485 W/kg 0 dB = 0.474 W/kg = -6.48 dB W/kg Date/Time: 8/9/2012 21:24:33 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 190CH Left hand tilt 15 degree DUT: U6020; Type: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8 Medium parameters used: f = 837 MHz; σ = 0.885 mho/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.6 (6824) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.241 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.064 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.289 mW/g SAR(1 g) = 0.233 mW/g; SAR(10 g) = 0.176 mW/g Maximum value of SAR (measured) = 0.245 W/kg 0 dB = 0.241 W/kg = -12.35 dB W/kg Date/Time: 8/9/2012 21:53:04 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 190CH Right hand touch cheek DUT: U6020; Type: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8 Medium parameters used: f = 837 MHz; σ = 0.885 mho/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.6 (6824) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.493 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.256 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.629 mW/g SAR(1 g) = 0.469 mW/g; SAR(10 g) = 0.335 mW/g Maximum value of SAR (measured) = 0.500 W/kg 0 dB = 0.500 W/kg = -6.02 dB W/kg Date/Time: 8/9/2012 22:21:05 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 190CH Right hand tilt 15 degree DUT: U6020; Type: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8 Medium parameters used: f = 837 MHz; σ = 0.885 mho/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.6 (6824) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.309 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.331 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.380 mW/g SAR(1 g) = 0.300 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.318 W/kg 0 dB = 0.309 W/kg = -10.21 dB W/kg Date/Time: 8/9/2012 23:04:30 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 190CH Right hand touch cheek with battery 2# DUT: U6020; Type: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz; Duty Cycle: 1:8 Medium parameters used: f = 837 MHz; σ = 0.885 mho/m; ε r = 40.182; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.6 (6824) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.484 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.249 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.611 mW/g SAR(1 g) = 0.456 mW/g; SAR(10 g) = 0.328 mW/g Maximum value of SAR (measured) = 0.489 W/kg 0 dB = 0.484 W/kg = -6.31 dB W/kg Date/Time: 8/7/2012 21:34:35 Test Laboratory: HUAWEI SAR Lab U6020 GSM850 GPRS 1TS 190CH Towards Phantom 15mm DUT: U602…

Text truncated - open the document above for the full version.

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-08-13 2012-08-13 2012-08-13 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. U6020 QISU6020 SYBH(Z-SAR)004082012-2 HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth Report No.:SYBH(Z-SAR)004082012-2 FCC ID:QISU6020 2012-08-13 Page 2 of 36 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 7 1.5 Testing laboratory ....................................................................................................................................................... 7 1.6 Applicant and Manufacturer ...................................................................................................................................... 7 1.7 Application details ...................................................................................................................................................... 7 1.8 Ambient Condition ..................................................................................................................................................... 7 2 SAR Measurement System ............................................................................................................................................. 8 2.1 SAR Measurement Set-up ....................................................................................................................................... 8 2.2 Test environment ........................................................................................................................................................ 9 2.3 Data Acquisition Electronics description ................................................................................................................ 9 2.4 Probe description ..................................................................................................................................................... 10 2.5 Phantom description ................................................................................................................................................ 11 2.6 Device holder description ........................................................................................................................................ 11 2.7 Test Equipment List ................................................................................................................................................. 12 3 SAR Measurement Procedure ...................................................................................................................................... 13 3.1 Scanning procedure ................................................................................................................................................. 13 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 14 3.3 Data Storage and Evaluation .................................................................................................................................. 15 4 System Verification Procedure ........................................................................................................................................ 17 4.1 Tissue Verification .................................................................................................................................................... 17 4.2 System Check ........................................................................................................................................................... 19 4.3 Validation Procedure................................................................................................................................................ 20 5 Measurement Uncertainty Evaluation .......................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 21 5.2 Measurement uncertainty evaluation for system validation .........................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR)004082012-2 FCC ID:QISU6020 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body Date/Time: 8/9/2012 15:16:53 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.895 mho/m; ε r = 40.112; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.01, 9.01, 9.01); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.396 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 3.634 mW/g SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.62 mW/g 0 dB = 2.62 mW/g = 8.37 dB mW/g Date/Time: 8/7/2012 21:04:05 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.983 mho/m; ε r = 55.045; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(8.98, 8.98, 8.98); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.73 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.910 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.877 mW/g SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.71 mW/g Maximum value of SAR (measured) = 2.82 mW/g 0 dB = 2.82 mW/g = 9.00 dB mW/g Date/Time: 8/8/2012 9:31:27 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.456 mho/m; ε r = 40.112; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.94, 7.94, 7.94); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.5 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 72.431 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 17.861 mW/g SAR(1 g) = 9.57 mW/g; SAR(10 g) = 5.02 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.0 mW/g = 20.83 dB mW/g Date/Time: 8/9/2012 20:24:08 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.53 mho/m; ε r = 51.31; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.43, 7.43, 7.43); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.3 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.295 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 17.851 mW/g SAR(1 g) = 9.8 mW/g; SAR(10 g) = 5.13 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 10.3 mW/g = 20.26 dB mW/g Date/Time: 8/7/2012 11:39:53 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.449 mho/m; ε r = 39.753; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.67, 7.67, 7.67); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.663 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 18.933 mW/g SAR(1 g) = 9.91 mW/g; SAR(10 g) = 5.07 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 10.2 mW/g = 20.17 dB mW/g Date/Time: 8/8/2012 21:01:14 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.552 mho/m; ε r = 53.469; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configurati…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1800V2 SN: 2d184 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1800 Head TST Target Value Measured Value Difference Impedance transformed to feed point 49.7Ω-2.3jΩ 51.59Ω-2.16jΩ R=1.89Ω, X=0.14Ω Return Loss - 32.8dB -33.02dB -2.20% Dipole1800 Body TST Target Value Measured Value Difference Impedance transformed to feed point 45.3Ω-2.3jΩ 46.30Ω-2.57jΩ R=1.0Ω, X=-0.47Ω Return Loss - 25.2dB -25.64dB -1.75% Measured Date 2011-03-08 2012-03-07 --- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

FCC RF Test Report Product Name: HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth Model Number: U6020 Report No: SYBH(Z-RF)022062012-2004 FCC ID: QISU6020 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of U6020 FCC ID: QISU6020 Security Level: Public Report No: SYBH(Z-RF)022062012-2004 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total34 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The…
