QISU8655-1HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with BT

Huawei Technologies Co.,Ltd

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 08, 2012
Application Purpose: Original Equipment
Date of Application: Mar 08, 2012
Equipment Note: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with BT
Frequency Range: 2412.00000000 - 2462.00000000
Company: Huawei Technologies Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Welcome to HUAWEI Quick Start Guide HUAWEI U8655-1 Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third- party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. What is in Your Box For more information about how to use your phone, please read the user guide. You can find the user guide by visiting the Web site: http:/ /www.huaweidevice.com/worldwide . • Mobile phone •Charger • USB cable •Battery • Headset • microSD card (Optional) • Quick Start Guide Phone at a Glance Installing the SIM Card There are two steps to install the SIM card: 1. Remove the battery cover. 2. Insert the SIM card. Camera Headset jack Microphone Volume Keys micro USB charging port Loudspeaker 1 2 (Optional) Installing the microSD Card Your mobile phone is already equipped with a large-volume built-in embedded MultiMediaCard (eMMC). If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 12 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Power-On Setup When you turn on your phone for the first time, You can follow the onscreen instructions to complete the setup, or skip the setup and do it at another time. After setting your phone’s language and date and time, and setting up your account, you can learn more about your phone’s operations on the Learn more screen. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, or changing the wallpaper. To return to the Home screen from any of its extensions, press . Drag TouchTouch & holdDouble touch RotateFlick When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Select action menu is displayed. 2. Select an item to add it to the Home screen. 10:23 Flick your finger left or right across the Home screen. Touch to view thumbnails of the Home screen and its extensions. Touch a thumbnail to open the screen. 10:23 10:23 10:23 Moving a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands in size and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the desired position on the screen, and then release it. Removing a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. When the item and the trash can turn red, the item is ready to be removed. 3. Release the item to remove it from the Home screen. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1. Open the notification bar. 2. Touch at the top of the screen to switch data services on or off. Importing Contacts from a SIM Card 1. In the contact list, touch > Manage contacts. 2. Touch Copy from SIM card. 3. Wait for the SIM card contents to be loaded. Select the contacts you want to import or touch Select All to select all contacts. 4. Touch Copy. …

Text truncated - open the document above for the full version.

Cover Letter(s)

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU8655-1 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Cover Letter(s)

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-02-28 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISU8655-1 Product Name: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; Product Model: HUAWEI U8655-1,U8655-1 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely ,

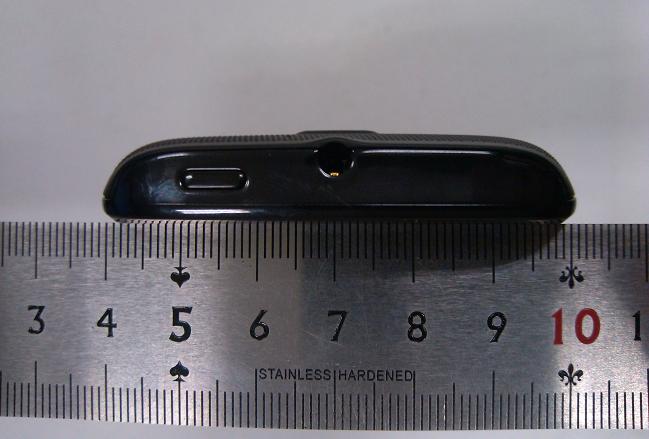

External Photos

ID Label/Location Info

Internal Photos

HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page1,Total 9 Internal Photos of HUAWEI U8655-1, U8655-1 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page2,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page3,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page4,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page5,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page6,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page7,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page8,Total 9 HUAWEI U8655-1,U8655-1 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; StarTrail II; webphones Android™ by sfr STARTRAIL II; HUAWEI Ascend Y 200; Ascend Y 200; SECRET Page9,Total 9

RF Exposure Info

Report No.:SYBH (Z-SAR)003022012-2 FCC ID:QISU8655-1 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 2/7/2012 9:37:50 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 42.371; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.465 mW/g Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.947 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 3.8670 SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.752 mW/g 0 dB = 2.750mW/g = 8.79 dB mW/g Date/Time: 2/6/2012 19:53:29 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.991 mho/m; ε r = 56.525; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.763 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.895 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.9050 SAR(1 g) = 2.6 mW/g; SAR(10 g) = 1.7 mW/g Maximum value of SAR (measured) = 2.801 mW/g 0 dB = 2.800mW/g = 8.94 dB mW/g Date/Time: 2/8/2012 0:33:47 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.457 mho/m; ε r = 38.315; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.69, 7.69, 7.69); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.492 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.287 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 19.2830 SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.3 mW/g Maximum value of SAR (measured) = 11.505 mW/g 0 dB = 11.510mW/g = 21.22 dB mW/g Date/Time: 2/7/2012 14:52:00 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.543 mho/m; ε r = 52.991; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.830 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.826 V/m; Power Drift = 0.0059 dB Peak SAR (extrapolated) = 18.8530 SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.21 mW/g Maximum value of SAR (measured) = 11.363 mW/g 0 dB = 11.360mW/g = 21.11 dB mW/g Date/Time: 2/10/2012 22:17:32 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.864 mho/m; ε r = 38.726; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(6.86, 6.86, 6.86); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.311 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.745 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 29.4840 SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.22 mW/g Maximum value of SAR (measured) = 15.484 mW/g 0 dB = 15.480mW/g = 23.80 dB mW/g Date/Time: 2/16/2012 23:51:57 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 2.002 mho/m; ε r = 51.221; ρ = 1000 kg/m 3 Phantom section: Flat Section DAS…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.:SYBH (Z-SAR)003022012-2 FCC ID:QISU8655-1 Appendix B. SAR Measurement Plots Table of contents GSM 850MHz Head GSM 850MHz Body GSM 1900MHz Head GSM 1900MHz Body WiFi 802.11b Head WiFi 802.11b Body Date/Time: 2/7/2012 10:09:54 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM850 190CH Left hand touch cheek DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.564; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.168 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.529 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.2030 SAR(1 g) = 0.165 mW/g; SAR(10 g) = 0.126 mW/g Maximum value of SAR (measured) = 0.174 mW/g 0 dB = 0.170mW/g = -15.39 dB mW/g Date/Time: 2/7/2012 10:36:27 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM850 190CH Left hand tilt 15 degree DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.564; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.158 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.456 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.1960 SAR(1 g) = 0.156 mW/g; SAR(10 g) = 0.118 mW/g Maximum value of SAR (measured) = 0.164 mW/g 0 dB = 0.160mW/g = -15.92 dB mW/g Date/Time: 2/7/2012 11:07:31 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM850 190CH Right hand touch cheek DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.564; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.243 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.218 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.2920 SAR(1 g) = 0.230 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.242 mW/g 0 dB = 0.240mW/g = -12.40 dB mW/g Date/Time: 2/7/2012 11:10:28 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM850 190CH Right hand tilt 15 degree DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.564; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.151 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.505 V/m; Power Drift = 0.002 dB Peak SAR (extrapolated) = 0.1890 SAR(1 g) = 0.148 mW/g; SAR(10 g) = 0.112 mW/g Maximum value of SAR (measured) = 0.156 mW/g 0 dB = 0.160mW/g = -15.92 dB mW/g Date/Time: 2/7/2012 11:43:15 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM850 190CH Right hand touch cheek with The battery GAGB916XC37L1127(1250mAh) DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.922 mho/m; ε r = 42.564; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.200 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.478 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.2500 SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.144 mW/g Maximum value of SAR (measured) = 0.203 mW/g…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 2/7/2012 15:37:46 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM1900 GPRS 1TS 661CH Towards Phantom 10 mm DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.521 mho/m; ε r = 53.13; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.429 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.127 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.6540 SAR(1 g) = 0.413 mW/g; SAR(10 g) = 0.254 mW/g Maximum value of SAR (measured) = 0.452 mW/g 0 dB = 0.450mW/g = -6.94 dB mW/g Date/Time: 2/7/2012 16:05:33 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM1900 GPRS 2TS 661CH Towards Phantom 10 mm DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.521 mho/m; ε r = 53.13; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.805 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.919 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.2080 SAR(1 g) = 0.766 mW/g; SAR(10 g) = 0.472 mW/g Maximum value of SAR (measured) = 0.835 mW/g 0 dB = 0.830mW/g = -1.62 dB mW/g Date/Time: 2/7/2012 18:18:31 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM1900 GPRS 2TS 810CH Towards Ground 10 mm DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1909.8 MHz Medium parameters used: f = 1910 MHz; σ = 1.554 mho/m; ε r = 52.97; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.121 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.807 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.6990 SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.630 mW/g Maximum value of SAR (measured) = 1.151 mW/g 0 dB = 1.150mW/g = 1.21 dB mW/g Date/Time: 2/7/2012 17:51:18 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM1900 GPRS 2TS 661CH Towards Ground 10 mm DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.521 mho/m; ε r = 53.13; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.071 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.192 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.6850 SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.627 mW/g Maximum value of SAR (measured) = 1.119 mW/g 0 dB = 1.120mW/g = 0.98 dB mW/g Date/Time: 2/7/2012 18:44:53 Test Laboratory: HUAWEI SAR Lab U8655-1 GSM1900 GPRS 2TS 512CH Towards Ground 10 mm DUT: U8655-1; Type: HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; webphones Android" by sfr STARTRAIL II; HUAWEI ASCEND Y200; ASCEND Y200; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 1850.2 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.488 mho/m; ε r = 53.206; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium p…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Zhang Xinghai

[email protected]+86-755-2897-0299Fax: +86-755-8965-0226

Test Firm

Huawei Technologies Co., LTDZhou Fengyum

[email protected]86-755-28782917Fax: 86-755-89650226

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	203.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 10 mm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, wireless router and simultaneous transmission use conditions are 0.13 W/kg, 0.13 W/kg, 0.13 W/kg, and 1.38 W/kg, respectively
