QISU8666E-1HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with BT

Welcome to HUAWEI Quick Start Guide HUAWEI Ascend Y 201 Pro Phone at a Glance All the pictures in this guide are for your reference only. Your phone’s actual display features may be different to those described here, depending on its software version. 1Earpiece2Menu key 3Home key4Back key 5Speaker6 Volume control keys 7Camera8Headset jack 9 Power key 10 Charging/Data interface 1 10 2 3 4 7 8 9 6 5 Key Functions at Your Fingertips Installing the SIM Card There are two steps to install the SIM card: 1. Remove the battery cover. 2. Insert the SIM card. • Press and hold to power on your mobile phone. • When your mobile phone is powered on, press and hold the button to display the options menu from where you can power the mobile phone off or perform some shortcut operations. • Press to lock the screen when your mobile phone is active. • Touch to return to the previous screen or exit the application you are running. • Touch to hide the keyboard. Touch to open the menu on an active screen. • Touch to return to the Home screen. • Touch and hold to display recently used applications. 1 Removing a SIM Card 1. Pull out the card holder. 2. Carefully remove the SIM card. (Optional) Installing the microSD Card Your mobile phone is already equipped with a large-volume built-in embedded MultiMediaCard (eMMC). If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. 1 2 1 Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. a b Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. Drag TouchTouch & holdDouble touch RotateFlick Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, or changing the wallpaper. To return to the Home screen from any of its extensions, press . When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. On the Home screen, touch to display the application list. 2. Press and hold an application icon, and then drag the icon to a blank area on the Home screen. Removing an Icon from the Home Screen 1. Touch and hold an item on the Home screen that you want to remove until your mobile phone vibrates. 2. Without lifting your finger, drag the item to the cross sign . Wait until the item and the turn red. 3. Release the item. Flick your finger left or right across the Home screen. 10:23 Importing Contacts from a SIM Card 1. In the contacts list, touch > Manage contacts. 2. Touch Copy from SIM card. 3. Wait for the SIM card contents to be loaded. Touch one contact to import that contact individually to your mobile phone, or touch SELECT ALL to import all contacts to your mobile phone. 4. Touch COPY. 5. If you have more than one account on your phone, touch the account into which you want to import the contacts. Adding a Contact 1. In the contact list, touch . 2. From the screen displayed, create a contact in your mobile phone, SIM card or your account. Add a new account if you do not have one. 3. Enter the contact's name, and then add detailed information such as phone numbers and address. 4. Touch DONE to save the contact information. Making a Call with the Phone Application 1. On the Home screen, touch > Phone. If the dialer is not displayed, touch . 2. Enter the phone number. 3. Touch to initiate the call. Creating and Sending a Multimedia Message You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, for example, sing "Happy Birthday" and send it to a friend, or send a slideshow of photographs of a special event. The possibilities are enormous. 1. Touch > Messaging, then . 2. Enter a phone number in the To field, or touch to select a contact from People. 3. Touch the composition text box to start composing your message. 4. When you are ready to send the message, touch . 10:23 Connecting Internet Get online using your phone’s Wi-Fi to save your money. Turning On Wi-Fi 1. Touch > Settings. 2. Under WIRELESS & NETWORKS, touch the button next to Wi-Fi. Basic Operations Touch > Browser to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will preferably select a Wi-Fi network for Internet access. Touch on the upper section of the screen, and all web pages currently open are displayed. You can: • Touch one page to enlarge it. • Touch the cross sign (X) to close that page. • Touch (+) to open a new browser window. Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. You can touch to enter the web page address by voice. 3. As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete ente…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU8666E-1 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-08-15 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISU8666E-1 Product Name: HUAWEI Ascend Y 201 Pro; Skyline mini;HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

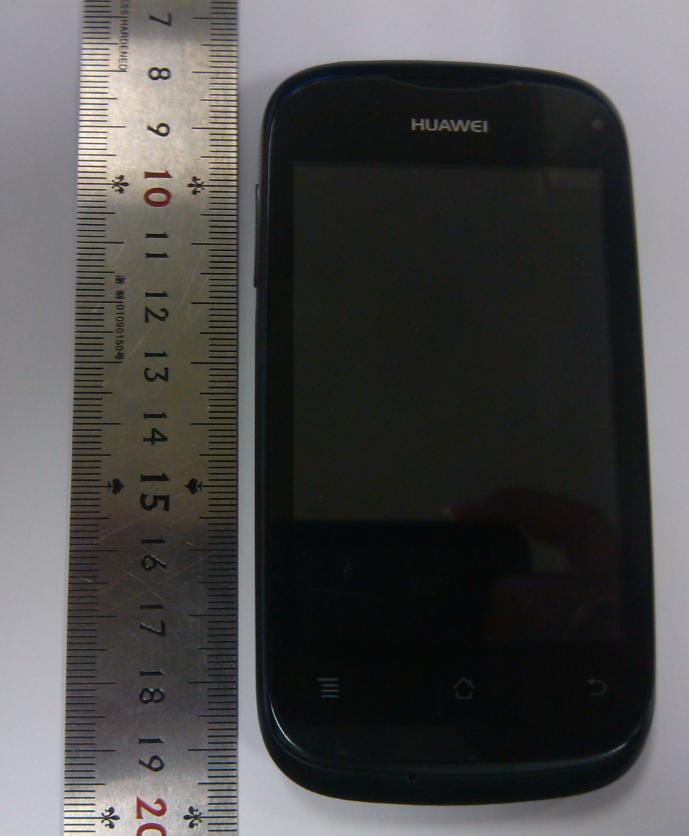

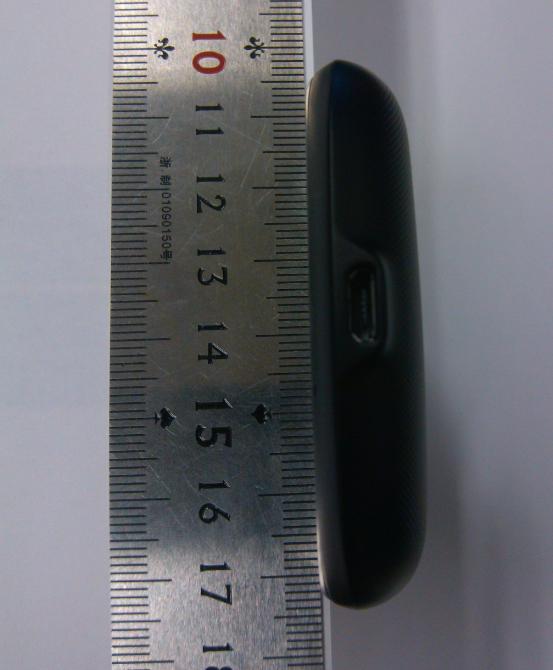

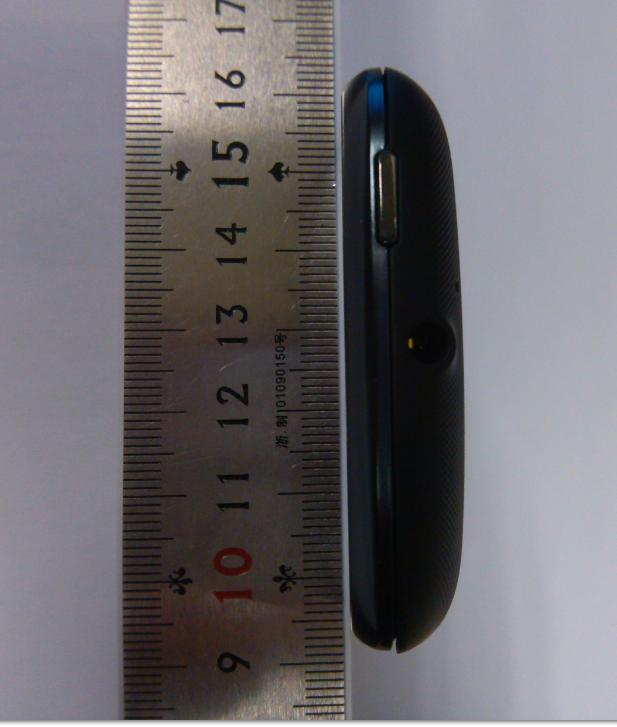

HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page1,Total 7 External Photos of HUAWEI U8666E-1, U8666E-1 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page2,Total 7 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page3,Total 7 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page4,Total 7 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page5,Total 7 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page6,Total 7 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page7,Total 7

HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page1, Total 4 Label&Label Location HUAWEI U8666E-1, U8666E-1 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page2, Total 4

HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page1,Total 11 Internal Photos of HUAWEI U8666E-1, U8666E-1 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page2,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page3,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page4,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page5,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page6,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page7,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page8,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page9,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page10,Total 11 HUAWEI U8666E-1,U8666E-1 HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; SECRET Page11,Total 11

Report No.:SYBH (Z-SAR) 026072012-2 FCC ID:QISU8666E-1 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Head GSM 850 MHz Body GSM 1900 MHz Head GSM 1900 MHz Body WiFi(802.11b) 2450 MHz Head WiFi(802.11b) 2450 MHz Body Date/Time: 7/27/2012 23:16:47 Test Laboratory: HUAWEI SAR Lab U8666E-1 GSM850 190CH Left hand touch cheek with battery SN-WHCC115691008469 DUT: U8666E-1; Type: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 42.128; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0694 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.516 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.082 mW/g SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.0698 mW/g 0 dB = 0.0694 mW/g = -23.17 dB mW/g Date/Time: 7/27/2012 23:46:18 Test Laboratory: HUAWEI SAR Lab U8666E-1 GSM850 190CH Left hand tilt 15 degree with battery SN-WHCC115691008469 DUT: U8666E-1; Type: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 42.128; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0669 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.013 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.077 mW/g SAR(1 g) = 0.063 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.0665 mW/g 0 dB = 0.0669 mW/g = -23.50 dB mW/g Date/Time: 7/28/2012 0:14:17 Test Laboratory: HUAWEI SAR Lab U8666E-1 GSM850 190CH Right hand touch cheek with battery SN-WHCC115691008469 DUT: U8666E-1; Type: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 42.128; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0846 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.629 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.102 mW/g SAR(1 g) = 0.083 mW/g; SAR(10 g) = 0.062 mW/g Maximum value of SAR (measured) = 0.0868 mW/g 0 dB = 0.0868 mW/g = -21.23 dB mW/g Date/Time: 7/28/2012 0:39:36 Test Laboratory: HUAWEI SAR Lab U8666E-1 GSM850 190CH Right hand tilt 15 degree with battery SN-WHCC115691008469 DUT: U8666E-1; Type: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 42.128; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0704 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.168 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.089 mW/g SAR(1 g) = 0.071 mW/g; SAR(10 g) = 0.054 mW/g Maximum value of SAR (measured) = 0.0742 mW/g 0 dB = 0.0704 mW/g = -23.05 dB mW/g Date/Time: 7/28/2012 21:11:35 Test Laboratory: HUAWEI SAR Lab U8666E-1 GSM850 190CH Right hand touch cheek with battery SN-MHCBB066I4437430 DUT: U8666E-1; Type: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.93 mho/m; ε r = 42.128; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0876 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.237 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.101 mW/g SAR(1 g) = 0.081 mW/g; SAR(10 g) = 0.062 mW/g Maximum value of SA…

Text truncated - open the document above for the full version.

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name: _____________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-08-01 2012-08-01 2012-08-01 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI U8666E-1,U8666E-1 QISU8666E-1 SYBH(Z-SAR) 026072012-2 HUAWEI Ascend Y 201 Pro; Skyline mini;HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Report No.:SYBH (Z-SAR) 026072012-2 FFCC ID:QISU8666E-1 2012-08-01 Page 2 of 33 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 5 1.3 EUT Description ......................................................................................................................................................... 6 1.3.1 General Description ........................................................................................................................................... 7 1.4 Test specification(s) .................................................................................................................................................. 8 1.5 Testing laboratory ....................................................................................................................................................... 8 1.6 Applicant and Manufacturer ...................................................................................................................................... 8 1.7 Application details ...................................................................................................................................................... 8 1.8 Ambient Condition ..................................................................................................................................................... 8 2 SAR Measurement System ............................................................................................................................................. 9 2.1 SAR Measurement Set-up ....................................................................................................................................... 9 2.2 Test environment ...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description .............................................................................................................. 10 2.4 Probe description ..................................................................................................................................................... 11 2.5 Phantom description ................................................................................................................................................ 12 2.6 Device holder description ........................................................................................................................................ 12 2.7 Test Equipment List ................................................................................................................................................. 13 3 SAR Measurement Procedure ....................................................................................................................................... 14 3.1 Scanning procedure ................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 15 3.3 Data Storage and Evaluation .................................................................................................................................. 16 4 System Verification Procedure ........................................................................................................................................ 18 4.1 Tissue Verification .................................................................................................................................................... 18 4.2 System Check ........................................................................................................................................................... 20 4.3 Validation Procedure................................................................................................................................................ 21 5 Measurement Uncertainty Evaluation .......................................................................................................................... 22 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 22 5.2 Measurement uncertainty evaluation for system validatio…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR) 026072012-2 FCC ID:QISU8666E-1 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 7/27/2012 20:30:41 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.931 mho/m; ε r = 42.204; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.64 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.589 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.590 mW/g SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.60 mW/g 0 dB = 2.64 mW/g = 8.42 dB mW/g Date/Time: 7/29/2012 15:42:44 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.971 mho/m; ε r = 53.085; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.50 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.928 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.661 mW/g SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.70 mW/g 0 dB = 2.50 mW/g = 7.95 dB mW/g Date/Time: 7/26/2012 22:10:29 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.441 mho/m; ε r = 39.334; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(8.33, 8.33, 8.33); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.41 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.520 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 17.879 mW/g SAR(1 g) = 9.51 mW/g; SAR(10 g) = 4.86 mW/g Maximum value of SAR (measured) = 10.5 mW/g 0 dB = 9.41 mW/g = 19.47 dB mW/g Date/Time: 7/28/2012 22:40:43 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.567 mho/m; ε r = 52.065; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(7.89, 7.89, 7.89); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.5 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.200 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 20.395 mW/g SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.33 mW/g Maximum value of SAR (measured) = 11.9 mW/g 0 dB = 11.5 mW/g = 21.20 dB mW/g Date/Time: 7/27/2012 8:22:11 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.814 mho/m; ε r = 39.638; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(7.48, 7.48, 7.48); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.6 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.591 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 29.520 mW/g SAR(1 g) = 13 mW/g; SAR(10 g) = 5.82 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 12.6 mW/g = 22.03 dB mW/g Date/Time: 7/30/2012 17:31:00 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.963 mho/m; ε r = 52.78; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY …

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: HUAWEI Ascend Y 201 Pro; Skyline mini; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model Number: HUAWEI U8666E-1,U8666E-1 Report No: SYBH(Z…

Text truncated - open the document above for the full version.
