QISU8815-51HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with 802.11b/g/n and Bluetooth

Welcome to HUAWEI Quick Start Guide HUAWEI U8815-51 Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third- party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. What is in Your Box For more information about how to use your phone, please read the user guide. You can find the user guide by visiting the Web site: http://www.huaweidevice.com/worldwide . • Mobile phone •Charger • USB cable •Battery • Headset (Optional) • microSD card (Optional) • Quick Start Guide Phone at a Glance Installing the SIM Card There are two steps to install the SIM card: 1. Remove the battery cover. 2. Insert the SIM card. (Optional) Installing the microSD Card Your mobile phone is already equipped with a large-volume built-in embedded MultiMediaCard (eMMC). If you want to expand your phone memory, you can also insert a microSD card. Earphone Loudspeaker Camera Flashlight Headset jack Microphone Microphone Volume Keys micro USB charging port 1 2 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 12 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Powering On Your Mobile Phone Press . The first time you power on your phone, you will be asked to sign in to your account and set up your mobile phone. If personal identification number (PIN) protection is enabled on your mobile phone, you must enter your PIN before using the mobile phone. Power-On Setup When you turn on your phone for the first time, You can follow the onscreen instructions to complete the setup, or skip the setup and do it at another time. After setting your phone’s language and date and time, and setting up your account, you can learn more about your phone’s operations on the Learn more screen. Turning On Fast Boot 1. Touch > Settings > Applications. Drag TouchTouch & holdDouble touch RotateFlick 2. Select the Fast boot check box. Do not turn on Fast boot while on an airplane. Powering Off Your Mobile Phone 1. Press and hold to open the Phone options menu. 2. Touch Power off. If Fast boot is enabled, the phone will enter the deep sleep mode. If Fast boot is disabled, touch OK to shut down the phone. Locking the Screen • When your phone is on, press to lock the screen. When the screen is locked, you can still receive messages and calls. • If your phone is idle for a while, the screen will lock automatically. Unlocking the Screen 1. Press to wake up the screen. 2. Drag the lock icon from left to right to unlock the screen. 10:23 Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, or changing the wallpaper. To return to the Home screen from any of its extensions, press . When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Select action menu is displayed. 2. Select an item to add it to the Home screen. 10:23 Flick your finger left or right across the Home screen. Touch to view thumbnails of the Home screen and its extensions. Touch a thumbnail to open the screen. 10:23 Moving a Home Screen Item 1. Touc…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Date (15/02/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Louis Lin Phone: +86-755-88286998 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISU8815-51 Sincerely, Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Jiangsu TÜV Product Service Ltd. – Shenzhen Branch Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU8815-51 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

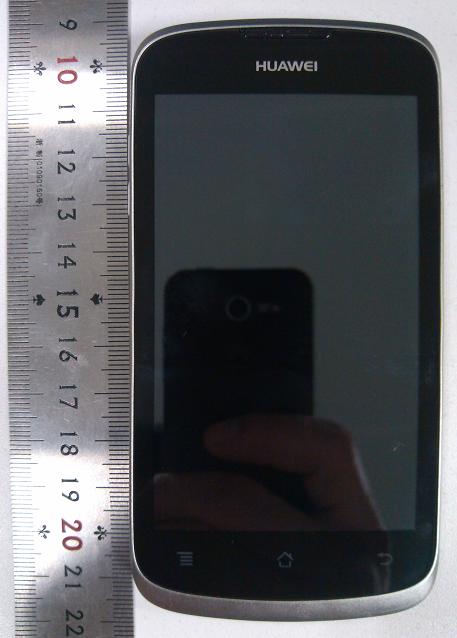

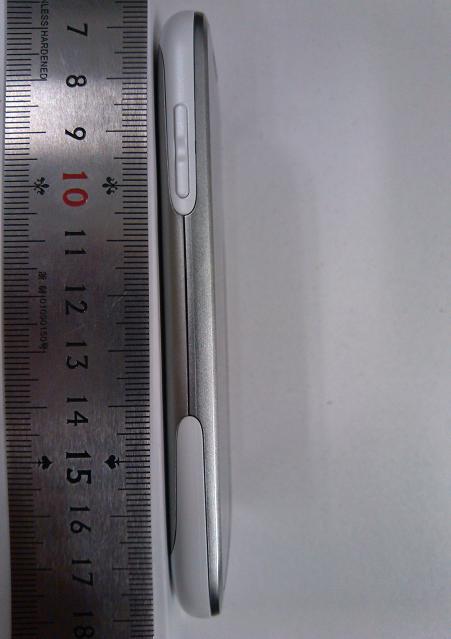

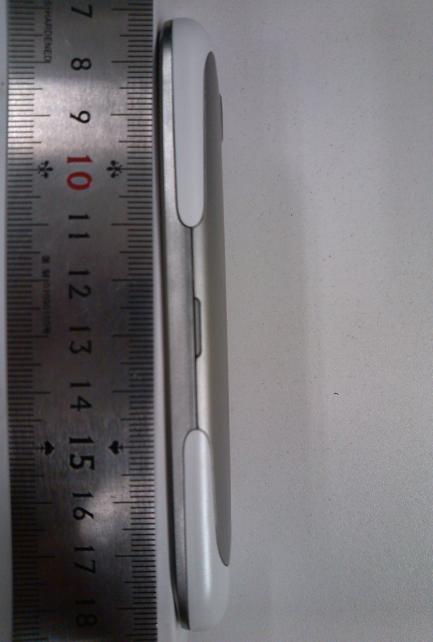

HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page1,Total 7 External Photos of HUAWEI U8815-51, U8815-51 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page2,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page3,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page4,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page5,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page6,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page7,Total 7

HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page1, Total 2 ID Label ofHUAWEI U8815-51, U8815-51 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page2, Total 2 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page3, Total 2

HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page1, Total 3 Label Location HUAWEI U8815-51, U8815-51 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page2, Total 3 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page3, Total 3

HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page1,Total 7 Internal Photos of HUAWEI U8815-51, U8815-51 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page2,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page3,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page4,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page5,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page6,Total 7 HUAWEI U8815-51, U8815-51 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 SECRET Page7,Total 7

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Manager) CHECKED PREPARED BY DATE 2012-02-14 2012-02-14 2012-02-14 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI U8815-51,U8815-51 QISU8815-51 SYBH(Z-SAR)020012012-2 HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend G 300; Ascend G 300 Report No.: SYBH (Z-SAR) 020012012-2 FCC ID:QISU8815-51 2012-02-14 Page 2 of 37 Table of Contents 1 General Information ..................................................................................................................................................... 4 1.1 Statement of Compliance .................................................................................................................................... 4 1.2 RF exposure limits ............................................................................................................................................... 5 1.3 EUT Description ................................................................................................................................................... 6 1.4 Battery Information ............................................................................................................................................. 7 1.4.1 General Description ..................................................................................................................................... 7 1.5 Test specification(s) ........................................................................................................................................... 8 1.6 Testing laboratory ................................................................................................................................................ 8 1.7 Applicant and Manufacturer ................................................................................................................................ 8 1.8 Application details ................................................................................................................................................ 8 1.9 Ambient Condition .............................................................................................................................................. 8 2 SAR Measurement System ....................................................................................................................................... 9 2.1 SAR Measurement Set-up ................................................................................................................................. 9 2.2 Test environment ............................................................................................................................................... 10 2.3 Data Acquisition Electronics description ......................................................................................................... 10 2.4 Probe description ............................................................................................................................................... 11 2.5 Phantom description .......................................................................................................................................... 12 2.6 Device holder description .................................................................................................................................. 12 2.7 Test Equipment List ........................................................................................................................................... 13 3 SAR Measurement Procedure ................................................................................................................................ 14 3.1 Scanning procedure .......................................................................................................................................... 14 3.2 Spatial Peak SAR Evaluation ........................................................................................................................... 15 3.3 Data Storage and Evaluation ............................................................................................................................ 16 4 System Verification Procedure .................................................................................................................................. 18 4.1 Tissue Verification ............................................................................................................................................. 18 4.2 System Check .................................................................................................................................................... 20 4.3 Validation Procedure ......................................................................................................................................... 20 5 Measurement Uncertainty Evaluation .................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test .......................................................................................... 21 5.2 Measurement uncertainty evaluation for system validation...................................................…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 020012012-2 FCC ID:QISU8815-51 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 1/18/2012 21:05:06 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.905 mho/m; ε r = 42.699; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.761 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.322 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.8410 SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.747 mW/g 0 dB = 2.750mW/g = 8.79 dB mW/g Date/Time: 1/20/2012 9:53:38 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.97 mho/m; ε r = 55.894; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.734 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.851 V/m; Power Drift = 0.0035 dB Peak SAR (extrapolated) = 3.7910 SAR(1 g) = 2.54 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.746 mW/g 0 dB = 2.750mW/g = 8.79 dB mW/g Date/Time: 1/24/2012 9:52:37 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.415 mho/m; ε r = 40.599; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.69, 7.69, 7.69); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.461 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.032 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.3760 SAR(1 g) = 9.63 mW/g; SAR(10 g) = 4.94 mW/g Maximum value of SAR (measured) = 10.777 mW/g 0 dB = 10.780mW/g = 20.65 dB mW/g Date/Time: 1/19/2012 9:06:28 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.582 mho/m; ε r = 53.17; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 11.050 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.331 V/m; Power Drift = -0.0015 dB Peak SAR (extrapolated) = 19.1650 SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.25 mW/g Maximum value of SAR (measured) = 11.528 mW/g 0 dB = 11.530mW/g = 21.24 dB mW/g Date/Time: 1/24/2012 17:30:45 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.824 mho/m; ε r = 40.027; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(6.86, 6.86, 6.86); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.778 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.853 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 28.1180 SAR(1 g) = 13 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.787 mW/g 0 dB = 14.790mW/g = 23.40 dB mW/g Date/Time: 1/25/2012 13:49:37 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 2.002 mho/m; ε r = 51.221; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Co…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 020012012-2 FCC ID:QISU8815-51 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Head GSM 850 MHz Body GSM 1900 MHz Head GSM 1900 MHz Body WCDMA 850 MHz Head WCDMA 850 MHz Body WCDMA 1900 MHz Head WCDMA 1900 MHz Body WiFi 802.11b Head WiFi 802.11b Body Date/Time: 1/18/2012 22:30:43 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Left hand touch cheek DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.450 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.138 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.5790 SAR(1 g) = 0.433 mW/g; SAR(10 g) = 0.320 mW/g Maximum value of SAR (measured) = 0.457 mW/g 0 dB = 0.460mW/g = -6.74 dB mW/g Date/Time: 1/18/2012 22:57:28 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Left hand tilt 15 degree DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.292 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.657 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.3600 SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.215 mW/g Maximum value of SAR (measured) = 0.297 mW/g 0 dB = 0.300mW/g = -10.46 dB mW/g Date/Time: 1/18/2012 23:27:16 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Right hand touch cheek DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.457 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.679 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.5410 SAR(1 g) = 0.437 mW/g; SAR(10 g) = 0.332 mW/g Maximum value of SAR (measured) = 0.459 mW/g 0 dB = 0.460mW/g = -6.74 dB mW/g Date/Time: 1/18/2012 23:53:09 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Right hand tilt 15 degree DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.299 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.341 V/m; Power Drift = -0.00074 dB Peak SAR (extrapolated) = 0.3750 SAR(1 g) = 0.297 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.312 mW/g 0 dB = 0.310mW/g = -10.17 dB mW/g Date/Time: 1/19/2012 4:27:40 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Right hand touch cheek-GAGBB07XC4567141 DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.475 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.933 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.5620 SAR(1 g) = 0.451 mW/g; SAR(10 g) = 0.342 mW/g Maximum value of SAR (measured) = 0.473 mW/g 0 dB = 0.470mW/g = -6.56 dB mW/g Date/Time: 1/19/2012 4:50:57 Test Laboratory: HUAWEI SAR Lab U8815-51 GSM850 190CH Right hand touch cheek-BAABC12C98021635 DUT: U8815-51; Type: Mobile Phone; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.902 mho/m; ε r = 42.642; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surf…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 020012012-2 FCC ID:QISU8815-51 Appendix C. Calibration Certificate Table of contends Calibration report “DAE4-SN1236” Calibration report “Probe EX3DV4-SN3736” Calibration report “D835- SN4d126” Calibration report “D1900- SN5d1 43” Calibration report “D2450-SN860”

Report No:SYBH (Z-SAR) 020012012-2 FCC ID:QISU8815-51 Appendix D. Photo documentation Table of contens Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Left Head Touched Photo 5: Left Hand Tilted 15° Photo 6: Right Head Touched Photo 7: Right Hand Tilted 15° Photo 8: Towords Phantom (10mm) Photo 9: Towords Ground (10mm) Photo 10:Left edge (10mm) Photo 11:Right edge (10mm) Photo 12:Bottom edge (10mm) Photo 13:Top edge (10mm) Photo 14:Towords ground with Headset (10mm) NA NA Liquid depth Photo 15:HSL835MHz depth (15.2cm) Photo 16:MSL835 depth (15.1cm) Photo 17:HSL1900MHz depth (15.2cm…

Text truncated - open the document above for the full version.
