Welcome to HUAWEI Quick Start Guide HUAWEI Ascend G 500D Phone at a Glance All the pictures in this guide are for your reference only. Your phone’s actual display features may be different to those described here, depending on its software version. If you apply protective film on the phone, please use the protective film with good transmittance. Installing the SIM/USIM Card There are three steps to install the SIM card: 1. Remove the battery cover. 2. Remove the battery. 3. Insert the SIM/USIM card. power key Earpiece Sensors Volume Front camera Back Menu Home Camera Headset jack Loud speaker Flash LED Micro USB Secondary microphone Microphone 1 2 3 1 WCDMA 2 GSM USIM SIM 1 WCDMA 2 GSM (Optional) Installing the microSD Card Your mobile phone is already equipped with a large-volume built-in embedded MultiMediaCard (eMMC). If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Remove the battery. 3. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. 12 3 1 WCDMA 2 GSM 1 WCDMA 2 GSM a b Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Status Indicator Green: Fully charged (when connected to charger). Red: Charging in progress (when connected to charger). Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. To return to the Home screen from any of its extensions, press . Touch & hold TouchDouble touch RotateFlick Drag 10:23 10:23 21 21 Flick your finger left or right across the Home screen. Touch to view thumbnails of the Home screen and its extensions. Touch a thumbnail to open the screen. PM PM When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Add to home screen menu is displayed. You can also touch > Add on the Home screen to display the Add to home screen menu. 2. Select an item to add it to the Home screen. Removing a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. When the item and the trash can turn red, the item is ready to be removed. 3. Release the item to remove it from the Home screen. 10:23 21 PM 10:23 21 PM Importing Contacts from a SIM/ USIM Card 1. In the contact list, touch > More > Import/Export. 2. Select the SIM/USIM card,and then touch Next. 3. Select the item which you want to copy contacts to in the displayed menu,and then touch Next. 4. Select the contacts you want to import or touch Select All to select all contacts. 5. Touch Copy. 6. Touch OK to import the contact. Adding a Contact 1. In the contact list, touch > New contact. 2. If you have more than one item with contacts, touch the item which you want to add contacts to in the displayed menu. 3. Enter the contact's name, and then add detailed information such as phone number and address. 4. When you are finished, touch Save to save the contact information. Making a Call with the Dialer Application Your phone supports dual-card dual-standby mode, but the two SIM cards cannot be used simultaneously. When you are making a call with one SIM card, the other SIM card becomes unavailable, that is, no incoming calls can be received and the data services cannot be used. On the home screen, touch to open the Phone. Your mobile phone supports the Smart Dial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result. Creating and Sending a Multimedia Message On the home screen, touch to open the Messaging. You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, sing 'Happy Birthday' and send it to friend, or send a slideshow of photographs of a special event. The possibilities are endless. 1. Touch > Messaging > Compose new message. 2. Enter a phone number in the To field, or touch to select a contact from Contacts or Groups. 3. Touch the composition text box to start entering your message. If you want to enter a smiley, touch , and then touch Insert smiley . 4. Touch to display the options panel. • Touch Add subject to add the message subject. Your mobile phone is now in multimedia message mode. • Touch Attach to add a picture, music, or video file. • Touch Insert quick text to replay quickly when you are busy. • Touch More to insert contacts or view all threads. 5. When the message is ready to be sent, touch Send. Connecting Internet Get online using your phone’s WLAN to save your money. Turning On WLAN 1. Touch > Settings. 2. Touch Wireless & networks, and then select the WLAN check box to turn on WLAN. Opening the Browser Touch…

Text truncated - open the document above for the full version.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China City:  SHENZHEN . Country:China . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Type designation: HUAWEIU8832D-5, U8832D-5 on our behalf. Date: 2012-07-11 City: SHENZHEN Name: Zhang Xinghai (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-07-13 Federal Communications Commission Authorization and Evaluation Divis ion FCC ID: QISU8832D-5 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-07-04 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISU8832D-5 ATTESTATION FCC ID: QISU8832D-5 Product: HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model: HUAWEIU8832D-5, U8832D-5 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

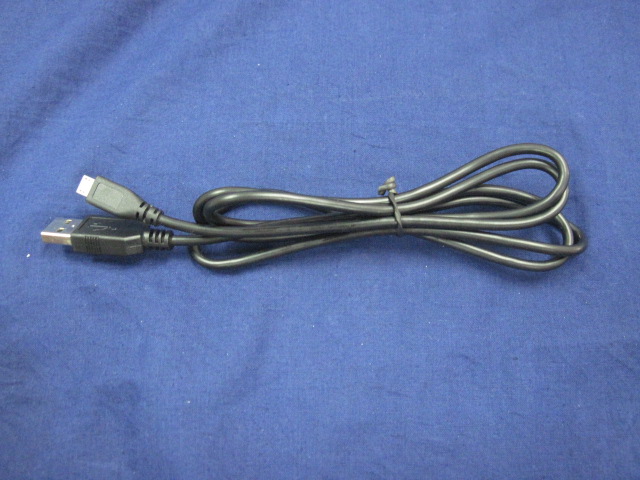

1. EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 126S044R-RF-US-P06V02 Page: 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 126S044R-RF-US-P06V02 Page: 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 126S044R-RF-US-P06V02 Page: 4 of 6 (7) EUT Photo (Adapter #1) (8) EUT Photo (Adapter #1) Report No.: 126S044R-RF-US-P06V02 Page: 5 of 6 (9) EUT Photo (Adapter #2) (10) EUT Photo (Adapter #2) Report No.: 126S044R-RF-US-P06V02 Page: 6 of 6 (11) EUT Photo (12) EUT Photo

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (Battery #1) (14) EUT Photo (Battery #1) (15) EUT Photo (Battery #2) (16) EUT Photo (Battery #2) (17) EUT Photo (Battery #3) (18) EUT Photo (Battery #3)

Report No.: 126S044R-HP-US-P03V01 Page: 1 of 171 SAR Test Report Product Name : HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model No. : HUAWEIU8832D-5, U8832D-5 FCC ID : QISU8832D-5 Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Date of Receipt : 15/06/2012 Date of Test : 02/07/2012~05/07/2012 Issued Date : 11/07/2012 Report No. : 126S044R-HP-US-P03V01 Report Version : V 1.2 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 126S044R-HP-US-P03V01 Page: 2 of 171 Test Report Certification Issued Date: 11/07/2012 Report No.: 126S044R-HP-US-P03V01 Product Name : HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Manufacturer : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Model No. : HUAWEIU8832D-5, U8832D-5 FCC ID : QISU8832D-5 Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.668 W/kg Body: 1.08 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 126S044R-HP-US-P03V01 Page: 3 of 171 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3 rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 126S044R-HP-US-P03V01 Page: 4 of 171 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................6 1.1. EUT Description ..................................................................................................6 1.2. Test Procedure ....................................................................................................6 1.3. Test Environment.................................................................................................9 2. SAR Measurement System ....................................................................................10 2.1. DASY5 System Description...............................................................................10 2.1.1. Applications ................................................................................................... 11 2.1.2. Area Scans .................................................................................................... 11 2.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 11 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 11 2.2. DASY5 E-Field Probe........................................................................................12 2.2.1. Isotropic E-Field Probe Specification .............................................................12 2.3. Boundary Detection Unit and Probe Mounting Device ......................................13 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................13 2.5. Robot.................................................................................................................14 2.6. Light Beam Unit .................................................................................................14 2.7. Device Holder ....................................................................................................15 2.8. SAM Twin Phantom...........................................................................................15 3. Tissue Simulating Liquid .......................................................................................16 3.1. The composition of the tissue simulating liquid .................................................16 3.2. Tissue Calibration Result...................................................................................17 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .............................18 4. SAR Measurement Procedure ...............................................................................19 4.1. SAR System Validation..........................................…

Text truncated - open the document above for the full version.

Report No.: 126S044R-HP-US-P03V01 Page: 132 of 171 Appendix D. Probe Calibration Data Report No.: 126S044R-HP-US-P03V01 Page: 133 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 134 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 135 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 136 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 137 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 138 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 139 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 140 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 141 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 142 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 143 of 171 Appendix E. Dipole Calibration Data Report No.: 126S044R-HP-US-P03V01 Page: 144 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 145 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 146 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 147 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 148 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 149 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 150 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 151 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 152 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 153 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 154 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 155 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 156 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 157 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 158 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 159 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 160 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 161 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 162 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 163 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 164 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 165 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 166 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 167 of 171 Appendix F. DAE Calibration Data Report No.: 126S044R-HP-US-P03V01 Page: 168 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 169 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 170 of 171 Report No.: 126S044R-HP-US-P03V01 Page: 171 of 171

FCC Part15.247 Test Report Product Name : HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Model No. : HUAWEIU8832D-5, U8832D-5 FCC ID : QISU8832D-5 Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Date of Receipt : 15/06/2012 Test Date : 15/06/2012~05/07/2012 Issued Date : 11/07/2012 Report No. : 126S044R-RF-US-P06V02 Report Version : V1.1 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 126S044R-RF-US-P06V02 Page: 2 of 101 Test Report Certification Issued Date : 11/07/2012 Report No. : 126S044R-RF-US-P06V02 Product Name : HUAWEI Ascend G 500D; Ascend G 500D; Panama; PANAMA; HSDPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Manufacturer : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Model No. : HUAWEIU8832D-5, U8832D-5 FCC ID : QISU8832D-5 EUT Voltage : DC 3.7V Trade Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012; ANSI C63.4: 2009; ANSI C63.10: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Manager: Marlin Chen) Report No.: 126S044R-RF-US-P06V02 Page: 3 of 101 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 126S044R-RF-US-P06V02 Page: 4 of 101 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation ...................................................................................................10 1.3. Tested System Details.............................................................................................. 11 1.4. Configuration of Tested System ...............................................................................12 1.5. EUT Exercise Software ............................................................................................13 2. Technical Test ..............................................................................................................14 2.1. Summary of Test Result ...........................................................................................14 2.2. Test Environment.....................................................................................................15 3. Conducted Emission ....................................................................................................16 3.1. Test Equipment ........................................................................................................16 3.2. Test Setup ................................................................................................................16 3.3. Limit..........................................................................................................................17 3.4. Test Procedure.........................................................................................................17 3.5. Uncertainty ...............................................................................................................17 3.6. Test Result...............................................................................................................18 4. Radiated Emission.......................................................................................................20 4.1. Test Equipment ........................................................................................................20 4.2. Test Setup ................................................................................................................21 4.3. Limit......................................…

Text truncated - open the document above for the full version.

Part15 B-Test Photograph Test Mode: Mode 1 Description: Front View of Conducted Emission Test Setup Description: Side View of Conducted Emission Test Setup Test Mode: Mode 1 Part15 C-Test Setup Photograph Description: Conducted Emission Test Setup Description : Radiated Emission Test Setup for Below 30MHz Description : Radiated Emission Test Setup for Below 1GHz Description : Radiated Emission Test Setup for 1~18GHz Description : Radiated Emission Test Setup for Above 18GHz SAR-Test Setup Photographs Test Setup Photographs Left-Cheek Touch Left-Tilt 15° Right-Cheek Touch Right-Tilt 15° Body SAR Back 10mm Body SAR Front 10mm Body SAR Back 10mm with Headset Body SAR Front 10mm with Headset Body SAR Bottom 10mm for GSM Body SAR Right Side 10mm for GSM Body SAR Left Side 10mm for GSM Body SAR Left Side 10mm for WLAN Body SAR Top 10mm for WLAN Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 - 2003 Part22&24-Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test
