QISU9000HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with BT

USER'S MANUAL HUAWEI U9000/U9000 Table of Contents i &KDSWHU*HWWLQJ6WDUWHG  <RXU'HYLFH Front ........................................................................................................................ 1 Back ......................................................................................................................... 1 Top........................................................................................................................... 2 Down ....................................................................................................................... 2 Side .......................................................................................................................... 2 $FFHVVRULHV ,QVWDOOLQJ6,0&DUG%DWWHU\DQG0HPRU\&DUG SIM card .................................................................................................................. 3 Battery ..................................................................................................................... 4 Memory card ........................................................................................................... 5 &KDUJLQJ%DWWHU\ 8VLQJ+HDGVHW  7XUQLQJWKH'HYLFH2QRU2II 8QORFNLQJWKH6FUHHQ &KDSWHU7KH%DVLFV  +RPH6FUHHQ  Status Bar Icons ....................................................................................................... 8 Shortcut Menu ....................................................................................................... 11 Using Widgets ....................................................................................................... 12 Application Drawer ............................................................................................... 12 Extended Home Screen ......................................................................................... 13 Setting Wallpaper .................................................................................................. 13 $GMXVWLQJWKH9ROXPH  &RQWDFWV Adding a Contact ................................................................................................... 15 Searching for Contacts .......................................................................................... 15 Importing Contacts ................................................................................................ 16 Backing Up Contacts ............................................................................................. 16 Favorite Contacts................................................................................................... 17 &KDSWHU8VLQJWKH3KRQH  0DNLQJD&DOO  $QVZHULQJDFDOO &KDSWHU(QWHULQJ,QIRUPDWLRQ  2Q6FUHHQ.H\ERDUG Using the On-Screen Keyboard ............................................................................. 20 Setting the Input Method ....................................................................................... 21 Changing Input Method......................................................................................... 21 &RQILJXULQJ'HYLFH.H\ERDUG6HWWLQJV &KDSWHU(PDLO 0HVVDJLQJ  7H[W0HVVDJH Creating and Sending a Text Message .................................................................. 22 Receiving and Managing Messages ...................................................................... 23 Table of Contents ii 0XOWLPHGLD0HVVDJH  Creating and Sending an MMS Message .............................................................. 25 9RLFH0HVVDJH (PDLO$FFRXQWV  Setting Up an Internet Email Account................................................................... 27 Opening Email....................................................................................................... 27 8VLQJ(PDLO Composing and Sending an Email ........................................................................ 28 Receiving Emails...........................…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU9000 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

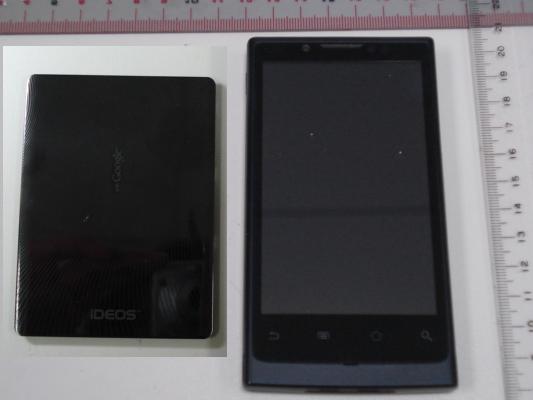

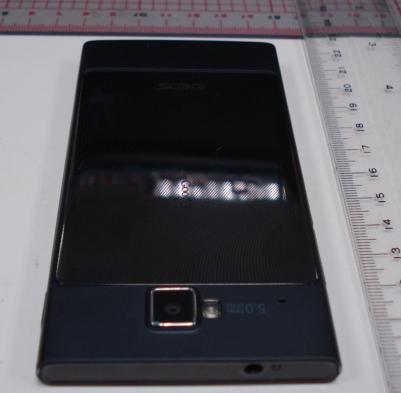

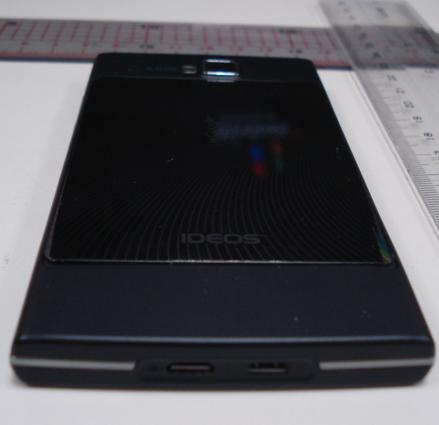

HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page1,Total 4 External Photos of HUAWEI U9000/U9000 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page2,Total 4 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page3,Total 4 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page4,Total 4

HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page1, Total 4 Label Location HUAWEI U9000/U9000 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page2, Total 4 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page3, Total 4 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page4, Total 4 HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page5, Total 4

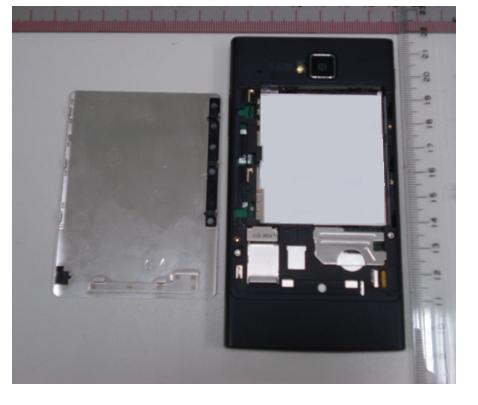

HUAWEI U9000/U9000 HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 SECRET Page1,Total 8 Internal Photos of HUAWEI U9000/U9000 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page2,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page3,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page4,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page5,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page6,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page7,Total 8 HUAWEI U8800H/U8800H HSPA+/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth HUAWEI U8800/U8800 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth SECRET Page8,Total 8

Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 1 of 199 Accredited testing laboratory CNAS Registration number: L0310 Report On SAR Test of HUAWEI IDEOS X6; HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; IDEOS X6 M/N: HUAWEI U9000/U9000 Test report no. : SYBH(Z-SAR)023122010-2 Type identification : HUAWEI U9000/U9000 FCC ID : QISU9000 IC : 6369A-U9000 Test specification : IEEE 1528-2003 : ANSI C95.1-1999 : RSS-102 issue 4 (2010) : OET Bulletin 65 Supplement C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 2 of 199 Table of Contents 1 General Information ............................................................................................................................................................ 3 1.1 Notes ............................................................................................................................................................................ 3 1.1.1 Statement of Compliance ................................................................................................................................. 3 1.2 Testing laboratory ....................................................................................................................................................... 4 1.3 Applicant and Manufacturer ...................................................................................................................................... 4 1.4 Application details ...................................................................................................................................................... 4 1.5 Test item ...................................................................................................................................................................... 5 1.5.1 EUT Description ................................................................................................................................................. 6 1.6 Test specification(s) ................................................................................................................................................... 6 1.6.1 RF exposure limits ............................................................................................................................................. 7 1.7 Operating conditions during test .............................................................................................................................. 8 1.7.1 General description of test procedures ........................................................................................................... 8 1.7.2 GSM/GPRS/EGPRS/DTM Test Configurations ............................................................................................ 8 1.7.3 WCDMA/HSPDA/HSUPA Test Configurations.............................................................................................. 9 2 Technical test ..................................................................................................................................................................... 12 2.1 Summary of test results ........................................................................................................................................... 12 2.2 Test environment ...................................................................................................................................................... 12 2.3 Measurement and test set-up ................................................................................................................................. 12 2.4 Measurement system .............................................................................................................................................. 13 2.4.1 System Description .......................................................................................................................................... 13 2.4.2 Test environment ............................................................................................................................................. 14 2.4.3 Probe description ............................................................................................................................................. 14 2.4.4 Phantom description ........................................................................................................................................ 15 2.4.5 Device holder description ............................................................................................................................... 15 2.4.6 Scanning procedure......................................................................................................................................... 16 2.4.7 Spatial Peak SAR Evaluation ......................................................................................................................... 17 2.4.8 Data Storage and Evaluation ......................................................................................................................... 18 2.4.9 Test equipment utilized ................................................................................................................................... 20 2.4.10 Tissue simulating liquids: dielectric properties ............................................................................................ 21 2.4.11 Tissue simulating liquids: parameters ........................................................................................................... 22 2.4.12 Measurement uncertainty evaluation for SAR test ...................................................................................... 23 2.4.13 Measurement uncertainty evaluation for system validation ....................................................................... 24 2.4.14 System check ............................................................…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 121 of 199 Date/Time: 2010-12-17 16:39:29 P1528_OET65_EN62209- RightHandSide touched –WCDMA1900 Low DUT: HUAWEI U9000/U9000 Communication System: HW-UMTS-FDD; Frequency: 1852.4 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.33 mho/m; εr = 38.9; ρ = 1000 kg/m3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: l Probe: EX3DV4 - SN3736; ConvF(7.61, 7.76, 8.09); Calibrated: 2010-11-16 l Sensor-Surface: 4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn851; Calibrated: 2010-6-30 l Phantom: SAM1; Type: SAM; Serial: TP-1475 l Measurement SW: DASY5, V5.2 Build 157; Postprocessing SW: SEMCAD X, V14.2 Build 2Version 14.2.2 (1685) (Deployment Build) U9000/Head/Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.728 mW/g U9000/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.36 V/m; Power Drift = -0.138 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.680 mW/g; SAR(10 g) = 0.428 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.741 mW/g Additional information: position or distance of DUT to SAM (if not standard head positions) : ambient temperature: 22.2°C; liquid temperature: 21.7°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 122 of 199 Annex 2.6 WCDMA 1900 MHz Body Date/Time: 2010-12-15 12:23:56 P1528_OET65_EN62209- towards phantom- WCDMA1900 Middle DUT: HUAWEI U9000/U9000 Communication System: HW-UMTS-FDD; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; εr = 53.7; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: l Probe: EX3DV4 - SN3736; ConvF(6.81, 6.96, 7.3); Calibrated: 2010-11-16 l Sensor-Surface: 4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn851; Calibrated: 2010-6-30 l Phantom: SAM1; Type: SAM; Serial: TP-1475 l Measurement SW: DASY5, V5.2 Build 157; Postprocessing SW: SEMCAD X, V14.2 Build 2Version 14.2.2 (1685) (Deployment Build) U9000/Body/Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.350 mW/g U9000/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.04 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.499 W/kg SAR(1 g) = 0.330 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.359 mW/g U9000/Body/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.04 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.386 W/kg SAR(1 g) = 0.276 mW/g; SAR(10 g) = 0.182 mW/g Maximum value of SAR (measured) = 0.298 mW/g Additional information: position or distance of DUT to SAM (if not standard head positions) :15 mm ambient temperature: 22.3°C; liquid temperature: 21.6°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 123 of 199 Date/Time: 2010-12-15 14:40:42 P1528_OET65_EN62209- towards ground- WCDMA1900 Middle DUT: HUAWEI U9000/U9000 Communication System: HW-UMTS-FDD; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; εr = 53.7; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: l Probe: EX3DV4 - SN3736; ConvF(6.81, 6.96, 7.3); Calibrated: 2010-11-16 l Sensor-Surface: 4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn851; Calibrated: 2010-6-30 l Phantom: SAM1; Type: SAM; Serial: TP-1475 l Measurement SW: DASY5, V5.2 Build 157; Postprocessing SW: SEMCAD X, V14.2 Build 2Version 14.2.2 (1685) (Deployment Build) U9000/Body/Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.518 mW/g U9000/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.97 V/m; Power Drift = 0.00989 dB Peak SAR (extrapolated) = 0.764 W/kg SAR(1 g) = 0.485 mW/g; SAR(10 g) = 0.293 mW/g Maximum value of SAR (measured) = 0.534 mW/g Additional information: position or distance of DUT to SAM (if not standard head positions) :15 mm ambient temperature: 22.3°C; liquid temperature: 21.6°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 124 of 199 Date/Time: 2010-12-15 16:00:57 P1528_OET65_EN62209- towards ground- WCDMA1900 High DUT: HUAWEI U9000/U9000 Communication System: HW-UMTS-FDD; Frequency: 1907.6 MHz Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.58 mho/m; εr = 53.6; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: l Probe: EX3DV4 - SN3736; ConvF(6.81, 6.96, 7.3); Calibrated: 2010-11-16 l Sensor-Surface: 4mm (Mechanical Surface Detection) l Electronics: DAE4 Sn851; Calibrated: 2010-6-30 l Phantom: SAM1; Type: SAM; Serial: TP-1475 l Measurement SW: DASY5, V5.2 Build 157; Postprocessing SW: SEMCAD X, V14.2 Build 2Version 14.2.2 (1685) (Deployment Build) U9000/Body/Area Scan (11x17x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.628 mW/g U9000/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.64 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 0.981 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.351 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.643 mW/g Additional information: position or distance of DUT to SAM (if not standard head positions) :15 mm ambient temperature: 22.3°C; liquid temperature: 21.6°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 125 of 199 Date/Time: 2010-12-15 18:04:40 P1528_OET…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 171 of 199 Towards ground- GSM850 EGPRS 4TS Channel 190 Towards ground- GSM850 EGPRS 1TS Channel 251 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 172 of 199 Towards ground- GSM850 EGPRS 1TS Channel 128 Towards ground- GSM850 with Headset Channel 251 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 173 of 199 Towards ground- GSM850 with Bluetooth Headset Channel 251 Towards phantom- GSM850 Channel 190 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 174 of 199 Towards ground- GSM850 Channel 190 Towards ground- GSM850 Channel 251 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 175 of 199 Towards ground- GSM850 Channel 128 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 176 of 199 WCDMA1900 Head: HUAWEI U9000/U9000 LeftHandSide touched – WCDMA1900 Channel 9400 LeftHandSide tilted 15° - WCDMA1900 Channel 9400 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 177 of 199 RightHandSide touched – WCDMA1900 Channel 9400 RightHandSide tilted 15° - WCDMA1900 Channel 9400 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 178 of 199 RightHandSide touched – WCDMA1900 Channel 9538 RightHandSide touched – WCDMA1900 Channel 9262 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 179 of 199 WCDMA1900 Body HUAWEI U9000/U9000 Towards phantom- WCDMA1900 Channel 9400 Towards ground- WCDMA1900 Channel 9400 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 180 of 199 Towards ground- WCDMA1900 Channel 9538 Towards ground- WCDMA1900 Channel 9262 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 181 of 199 Towards ground- WCDMA1900 Channel 9262 with HSDPA Towards ground- WCDMA1900 Channel 9262 with Headset Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 182 of 199 Towards ground- WCDMA1900 Channel 9262 with Bluetooth Headset Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 183 of 199 WCDMA1700 Head: HUAWEI U9000/U9000 LeftHandSide touched – WCDMA1700 Channel 1413 LeftHandSide tilted 15° - WCDMA1700 Channel 1413 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 184 of 199 RightHandSide touched – WCDMA1700 Channel 1413 RightHandSide tilted 15° - WCDMA1700 Channel 1413 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 185 of 199 RightHandSide touched – WCDMA1700 Channel 1513 RightHandSide touched – WCDMA1700 Channel 1312 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 186 of 199 WCDMA1700 Body HUAWEI U9000/U9000 Towards phantom- WCDMA1700 Channel 1413 Towards ground- WCDMA1700 Channel 1413 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 187 of 199 Towards ground- WCDMA1700 Channel 1513 Towards ground- WCDMA1700 Channel 1312 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 188 of 199 Towards ground- WCDMA1700 Channel 1413 with HSDPA Towards ground- WCDMA1700 Channel 1413 with Headset Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 189 of 199 Towards ground- WCDMA1700 Channel 1413 with Bluetooth Headset Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 190 of 199 Annex 3 WiFi Measurement Result WiFi Measurement Result are described in the additional document: Appendix to test report no. RZA1101-0049 Annex 4 Calibration parameters Calibration parameters are described in the additional document: Appendix to test report no. SYBH(Z-SAR) 023122010-2 Calibration data, Phantom certificate and detail information of the DASY5 System Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)023122010-2 As of 2011-01-13 Page 191 of 199 Annex 5 Photo documentation Annex 5.1 Test Facility Photo 1: Measurement System DASY5 Photo 2: Measurement System DASY5

Huawei Technologies Co.,Ltd. Huawei Base, Bantian, Longgang District, Shenzhen, P.R.China Phone: +86-755-28785278 SAR-Laboratory Fax: +86-755-36834474 . Page 1 of 43 Accredited testing laboratory CNAS Registration number: L0310 Appendix to test report no. SYBH(Z-SAR) 023122010-2 Calibration data, Phantom certificate and detail information of the DASY5 System Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 2 of 43 Table of Content 1 Calibration report “Probe EX3DV4”..................................................................................................................................... 3 2 Calibration report “1900 MHz System validation dipole” .................................................................................................. 12 3 Calibration report “1800 MHz System validation dipole” .................................................................................................. 19 4 Calibration report “835 MHz System validation dipole” .................................................................................................... 26 5 Calibration certificate of Data Acquisition Unit (DAE) ...................................................................................................... 33 6 Application Note System Performance Check .................................................................................................................... 38 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 3 of 43 1 Calibration report “Probe EX3DV4” Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 4 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 5 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 6 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 7 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 8 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 9 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 10 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 11 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 12 of 43 2 Calibration report “1900 MHz System validation dipole” Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 13 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 14 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 15 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 16 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 17 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 18 of 43 Huawei Technologies Co.,Ltd. Calibration Data and Phantom Information to test report no.: SYBH(Z-SAR)023122010-2 As of 2010-12-28 Page 19 of 43 3 Calibration report “1800 MHz System validation dipole” Huawei Technologi…

Text truncated - open the document above for the full version.
