QISU9202L-3HUAWEI U9202L-3, U9202L-3 is a mobile phone with GSM & EDGE & UMTS & LTE, Bluetooth & WLAN.

Installing USIM card, Battery and microSD Card Getting to Know Your Phone Figures in this guide are provided for your reference only. Depending on the software version, your phone's user interface may be different from the user interface shown in the figures. Charging Your PhonePowering Your Phone On or Off Using the Touchscreen Notification Panel Home ScreenLocking and Unlocking the Screen Making and Receiving CallsContacts Customizing the Home Screen From the Home screen, you can touch to do the following: • Change the wallpaper. • Change the theme. • Enable or disable the 3D Home theme. • Manage applications. • Go to Settings . • Touch and hold a blank area on the Home screen to quickly change the wallpaper. • Drag a n application icon onto another application icon to create a folder. Power off your phone before installation. 1 2 Removing battery coverInstalling USIM card 3 Installing *micro SD card 4 Installing battery a 5 Installing battery cover *micro SD card is optional b Do not install or remove a USIM card or a microSD card when your phone is powered on. When charging your phone while it is powered on, the battery is fully charged when the battery icon changes to . Use the charger provided with your phone. If the phone has not been used for a long time or if the battery charge is fully depleted, the phone may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the phone. Battery status indicator Powering Your Phone On Press and hold the key to power on your phone. If this is the first time you have powered on the phone, configure its initial settings. If your SIM card is PIN-protected, enter the personal identification number (PIN) to use the phone. Powering Your Phone Off Press and hold the key to display the options menu, and touch Power off to power your phone off. If your phone malfunctions or cannot be properly powered off, press and hold the Power key for at least 10 seconds to forcibly power off your phone. To uch: Touch the screen to select an option or start an application. To uch and hold: Touch and hold the screen or text being edited to display the available options menu. Slide: Quickly drag your finger across the screen vertically or horizontally. Drag : To uch and hold an item, and then drag it to the desired location on the screen. For example, on the Home screen, you can move an icon by dragging it to another location or remove an icon by dragging it to the trash can. Making a call From the Home screen, touch > Phone to access the dialer to make a call. Receiving a Call When there is an incoming call, you can perform the following: • Answer t he call: Drag the icon to the right to answer the call. • Reject the call: Drag the icon to the left to reject the call. • Reject the call with a text message: Drag the icon up to reject the call and send a predefined message to the caller. 1Status indicator7Noise reduction microphone 2 Secondary camera8Camera 3 Headset jack9Speaker 4 Earpiece10Flash unit 5 Charger jack/USB port11Power key 6 Microphone12Volume keys • Press and hold to power on your phone. • Press and hold to display the options menu from where y ou can power off the phone and perform some shortcut operations. • Press to lock the screen when your phone is active. • Press and hold for 10 or more seconds to forcibly power off the phone. • To uch to return to the previous screen. • To uch to exit the current application. • To uch to return to the Home screen. • Touch to display the current screen's options menu (some screens have no menu). 4 5 2 1 6 7 8 3 9 10 11 12 13 14 Status indicator Steady green: The phone is charging and the battery level is high or full. Steady yellow: The phone is charging and the battery level is higher than 10%. Steady red: The phone is charging and the battery level is low. Blinking red: The battery level is low and the phone needs to be charged. Opening the Notification Panel Drag the status bar from the top of the screen downwards to open the notification panel, where you can do the following: • Quickly start an application. • Slide your finger left or right on a notification to delete it. • To uch X to delete all notifications. • To uch to display the Settings screen. Closing the Notification Panel Drag the tab at the bottom of the notification panel upwards. This section uses the default theme as example. Status bar Displays notification and status icons. Drag downwards to open the notification panel. Display area Your phone's major display area. Touch to open the application list. Shortcuts Before dragging an icon on the Home screen, touch and hold the icon until your phone vibrates. Then you can drag the icon to another location or the trash can. Viewing Other Home Screen Panels To switch between different Home screen panels, slide your finger left or right across the screen. Locking the Screen • If the phone is active, press the key to lock the screen. • If the phone is idle for a specified period of time, the phone automatically locks its screen. Unlocking the Screen If the screen is off, press the key to turn it on. If you drag the central lock icon to the lock icon on the right side of the screen, the Home screen is displayed. If you drag the central lock icon up, down, or left until it reaches the icon in that direction, you can quickly access the application corresponding to that icon. From the Home screen, touch > People to access the contacts screen. Importing Contacts from the USIM Card 1. From the contacts screen, touch > Manage contacts. 2. To uch Copy from SIM card . 3. Select the contacts you want to import, or touch SELECT ALL to import all the contacts. 4. To uch COPY . 5. Select the account to which you want to import the contacts. Creating a Contact From the contacts screen, touch, select an account, then edit and save the contact information. Text Input Messaging and Email Getting ConnectedMultimedia Security GuardInstalling Application…

Text truncated - open the document above for the full version.

Safety Information Welcome to HUAWEI 1 Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information. • Place your device in a safe area to prevent it from unauthorized use. • Set your device screen to lock and create a password or unlock pattern to open it. • Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device. • If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them. • If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information. • If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off. • Install or upgrade device security software and regularly scan for viruses. 2 • Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. • Install security software or patches released by Huawei or third-party application providers. • Some applications require and transmit location information. As a result, a third-party may be able to share your location information. • Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services. • If you have concerns about the security of your personal information and data, please contact [email protected]. Legal Notice Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. 3 Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. Android is a trademark of Google Inc. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not match exactly the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. Third-Party Software Statement Huawei Technologies Co., Ltd. does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei Technologies Co., Ltd. will not provide any warranty of any kind for these third-party software and applications. Neither will Huawei Technologies Co., Ltd. 4 provide support to customers who use these third-party software and applications, nor be responsible or liable for the functions of these third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time. Huawei Technologies Co., Ltd. does not guarantee that any content or service would be maintained for any period during its availability. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei Technologies Co., Ltd. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei Technologies Co., Ltd. shall not compensate or be liable for services provided by third-party service providers, or the interruption or termination of third-party contents or services. Huawei Technologies Co., Ltd. shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works, such as texts, images, videos, or software. Customers shall bear the risk for any and all effects, including incompatibility between the software and this product, which result from installing software or uploading or downloading the third-party works. This product uses the open-source Android™ platform. Huawei Technologies Co., Ltd. has made necessary changes to the platform. Therefore, this product may not support all the functions that are supported by the standard Android platform or may be incompatible with third-party software. Huawei Technologies Co., Ltd. shall not be liable for any of such situation. 5 DISCLAIMER OF WARRANTIES THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Statement Date (19/09/2012) BABT Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, HUAWEI Technologies Co., Ltd. Administration Building, Headquarters Shenzhen 518129 China Declare that our product: Product Type: LTE/HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth Model No.: HUAWEI U9202L-3, U9202L-3 FCC ID: QISU9202L-3 IC: 6369A-U9202L3 Has a battery, but the battery will not be placed on the battery compartment when delivery, and relevant label is visible to the user as they purchase the products and install the battery. Yours sincerely, Company Officer: Zhang Xinghai Telephone Number: 86-0755-28970299 Email: [email protected]

Huawei Technologies Co., Ltd. Date (9/21/2012) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian Longgang, Shenzhen 518129, P.R China Hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No.4001 Fuqiang Road, Futian District, Shenzhen 518048 P.R. China Louis Lin Phone:+86-755-88286998 e-mail:[email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988,U.S.C.862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID:QISU9202L-3 Sincerely, Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2012-09-18 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISU9202L-3 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2012-12-18: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Declaration of Product Identity Date (19/09/2012) BABT Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, HUAWEI Technologies Co., Ltd. Administration Building, Headquarters Shenzhen 518129 China Declare that our products: Product Type: LTE/HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth Model No.: HUAWEI U9202L-3, U9202L-3 FCC ID: QISU9202L-3 IC: 6369A-U9202L3 Both two models were identical, only difference is the model name. And two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the two models (HUAWEI U9202L-3 and U9202L-3) on electrical and mechanical construction. Yours sincerely, Company Officer: Zhang Xinghai Telephone Number: 86-0755-28970299 Email: [email protected]

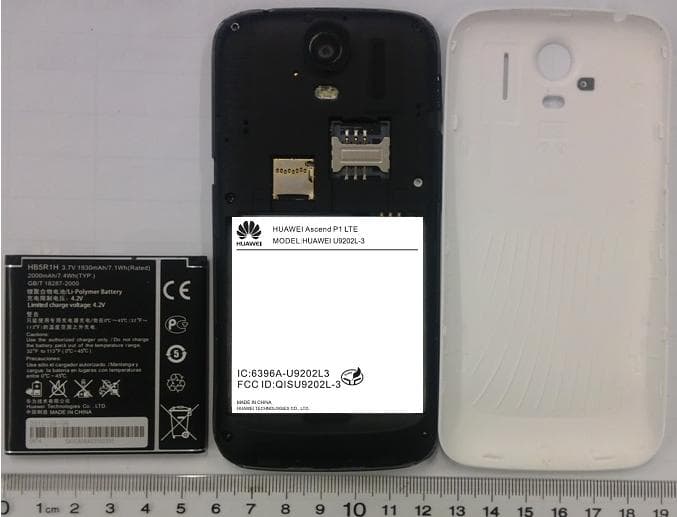

HUAWEI U9202L-3, U9202L-3 SECRET Page1,Total 6 External Photos of HUAWEI U9202L-3, U9202L-3 HUAWEI U9202L-3, U9202L-3 SECRET Page2,Total 6 HUAWEI U9202L-3, U9202L-3 SECRET Page3,Total 6 HUAWEI U9202L-3, U9202L-3 SECRET Page4,Total 6 HUAWEI U9202L-3, U9202L-3 SECRET Page5,Total 6 HUAWEI U9202L-3, U9202L-3 SECRET Page6,Total 6

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC&IC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ IC :_______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-09-28 2012-09-28 2012-09-28 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI U9202L-3, U9202L-3 QISU9202L-3 SYBH(Z-SAR)024092012-2 LTE/HSPA+/HSUPA/HSDPA/U MTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth 6369A-U9202L3 Report No.: SYBH(Z-SAR)024092012-2 IC: 6369A-U9202L3 FCC ID: QISU9202L-3 2012-09-28 Page 2 of 59 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 5 1.3 EUT Description ......................................................................................................................................................... 6 1.3.1 General Description ........................................................................................................................................... 7 1.3.2 LTE information Summary ................................................................................................................................ 8 1.4 Test specification(s) .................................................................................................................................................. 9 1.5 Testing laboratory ....................................................................................................................................................... 9 1.6 Applicant and Manufacturer ...................................................................................................................................... 9 1.7 Application details ...................................................................................................................................................... 9 1.8 Ambient Condition ................................................................................................................................................... 10 2 SAR Measurement System ........................................................................................................................................... 10 2.1 SAR Measurement Set-up ..................................................................................................................................... 10 2.2 Test environment ...................................................................................................................................................... 11 2.3 Data Acquisition Electronics description .............................................................................................................. 11 2.4 Probe description ..................................................................................................................................................... 12 2.5 Phantom description ................................................................................................................................................ 13 2.6 Device holder description ........................................................................................................................................ 13 2.7 Test Equipment List ................................................................................................................................................. 14 3 SAR Measurement Procedure ...................................................................................................................................... 15 3.1 Scanning procedure ................................................................................................................................................. 15 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 16 3.3 Data Storage and Evaluation .................................................................................................................................. 17 4 System Verification Procedure ........................................................................................................................................ 19 4.1 Tissue Verification .................................................................................................................................................... 19 4.2 System Check ........................................................................................................................................................... 21 4.3 Validation Procedure................................................................................................................................................ 22 5 Measurement Uncertainty Evaluation .......................................................................................................................... 23 5.1 Meas…

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024092012-2 IC:6369A-U9202L3 FCC ID:QISU9202L-3 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D750-EX-Head SystemPerformanceCheck-D750-EX-Body SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Body SystemPerformanceCheck-D2450-EX-Body Date/Time: 9/14/2012 21:42:30 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D750-EX-Head DUT: Dipole 750 MHz D750V3; Type: D750V3; Serial: D750V3 - SN:1044 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.905 mho/m; ε r = 40.581; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.41, 9.41, 9.41); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lMeasurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.08 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.787 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.129 mW/g SAR(1 g) = 2.09 mW/g; SAR(10 g) = 1.38 mW/g Maximum value of SAR (measured) = 2.26 W/kg 0 dB = 2.26 W/kg = 7.08 dB W/kg Date/Time: 9/8/2012 9:01:34 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D750-EX-Body DUT: Dipole 750 MHz D750V3; Type: D750V3; Serial: D750V3 - SN:1044 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.995 mho/m; ε r = 54.985; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.2, 9.2, 9.2); Calibrated: 4/26/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lMeasurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Configuration/d=15,pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.04 W/kg Configuration/d=15,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.245 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.145 mW/g SAR(1 g) = 2.16 mW/g; SAR(10 g) = 1.45 mW/g Maximum value of SAR (measured) = 2.33 W/kg 0 dB = 2.04 W/kg = 6.21 dB W/kg Date/Time: 8/11/2012 2:50:44 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; ε r = 41.17; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.62 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.589 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.734 mW/g SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.70 mW/g 0 dB = 2.62 mW/g = 8.37 dB mW/g Date/Time: 8/11/2012 21:00:31 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.97 mho/m; ε r = 52.864; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.64, 9.64, 9.64); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 1; Type: SAM; Serial: TP-1475 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.68 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.086 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.627 mW/g SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.65 mW/g 0 dB = 2.68 mW/g = 8.58 dB mW/g Date/Time: 9/11/2012 0:52:26 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.448 mho/m; ε r = 39.81; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: lProbe: EX3DV4 - SN3744; ConvF(8, 8, 8); Calibrated: 7/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn851; Calibrated: 7/25/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lMeasurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 9.43 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 80.605 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 18.443 mW/g SAR(1 g) = 9.37 mW/g; SAR(10 g) = 4.77 mW/g Maximum value of SAR (measured) = 10.5 W/kg 0 dB = 10.5 W/kg …

Text truncated - open the document above for the full version.

Report No.: SYBH(Z-SAR)024092012-2 IC:6369A-U9202L3 FCC ID:QISU9202L-3 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Head GSM 850 MHz Body GSM 1900 MHz Head GSM 1900 MHz Body UMTS Band V Head UMTS Band V Body UMTS Band IV Head UMTS Band IV Body UMTS Band II Head UMTS Band II Body LTE Band IV Head LTE Band IV Body LTE Band XVII Head LTE Band XVII Body WiFi 2450MHz Head WiFi 2450MHz Body Date/Time: 8/11/2012 3:29:55 Test Laboratory: HUAWEI SAR Lab U9202L-3 GSM850 190CH Left hand touch cheek DUT: U9202L-3; Type: LTE/HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR1 Communication System: HW-GSM/GPRS/EDGE 1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.928 mho/m; ε r = 41.212; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3661; ConvF(9.46, 9.46, 9.46); Calibrated: 1/27/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn679; Calibrated: 12/23/2011 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.6(6824) Configuration/Head/Area S…

Text truncated - open the document above for the full version.
