QISU9500HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with BT

i Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Keys and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing a SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installing and Removing a microSD Card . . . . . . . . . . . . . . . 4 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Powering Your Phone On or Off . . . . . . . . . . . . . . . . . . . . . . . 8 Configuring Your Phone for the First Time . . . . . . . . . . . . . . . 8 Switching to Silent Mode or Airplane Mode Quickly . . . . . . 10 Using the Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Locking and Unlocking the Screen . . . . . . . . . . . . . . . . . . . . 12 Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Managing the Notification Panel . . . . . . . . . . . . . . . . . . . . . . 18 Accessing Applications and Widgets . . . . . . . . . . . . . . . . . . 19 Managing Shortcuts and Widgets . . . . . . . . . . . . . . . . . . . . . 20 Managing Folders on the Home Screen . . . . . . . . . . . . . . . . 20 Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering or Rejecting a Call . . . . . . . . . . . . . . . . . . . . . . . . . 24 Operations During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Making a Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Switching Between Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Recording a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Supplementary Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using the Voicemail Service . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Importing Contacts from a SIM Card . . . . . . . . . . . . . . . . . . . 29 Creating a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Communicating with a Contact Quickly . . . . . . . . . . . . . . . . . 30 Adding a Contact to Your Favorites . . . . . . . . . . . . . . . . . . . . 30 Searching for a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Editing a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Deleting a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 ii Managing Contact Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Joining Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Sending a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Backing Up Your Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Text Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Using the Onscreen Keyboard . . . . . . . . . . . . . . . . . . . . . . . 34 Switching Between Text Input Methods . . . . . . . . . . . . . . . . 34 Huawei Input Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Using the Android Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 36 Editing Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using the Landscape Keyboard . . . . . . . . . . . . . . . . . . . . . . 37 Selecting an Input Method . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Sending a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Replying to a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Searching for a Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Customizing Message Settings . . . . . . . . . . . . . . . . . . . . . . . 40 Setting the Message Ringtone . . . . . . . . . . . . . . . . . . . . . . . . 40 Using Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Data Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Turning On Mobile Data Services . . . . . . . . . . . . . . . . . . . . . . 43 Using Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Sharing Your Phone's Data Connection . . . . . . . . . . . . . . . . 45 Controlling Data Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 DLNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Email/Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Managing Applications . . . . . . . . . . . . . . . . . . . . . . . . . 56 Using Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Hispace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Installing an Application from a microSD Card . . . . . . . . . . . 59 Viewing and Uninstalling Applications . . . . . . . . . . . . . . . . . . 59 Security Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 iii Browsing a Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Managing …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISU9500 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-05-07 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISU9500 Product Name: Ascend D1; HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth Product Model: HUAWEI U9500, U9500, HUAWEI U9500-1, U9500-1, HUAWEI U9500-51, U9500-51 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 ,

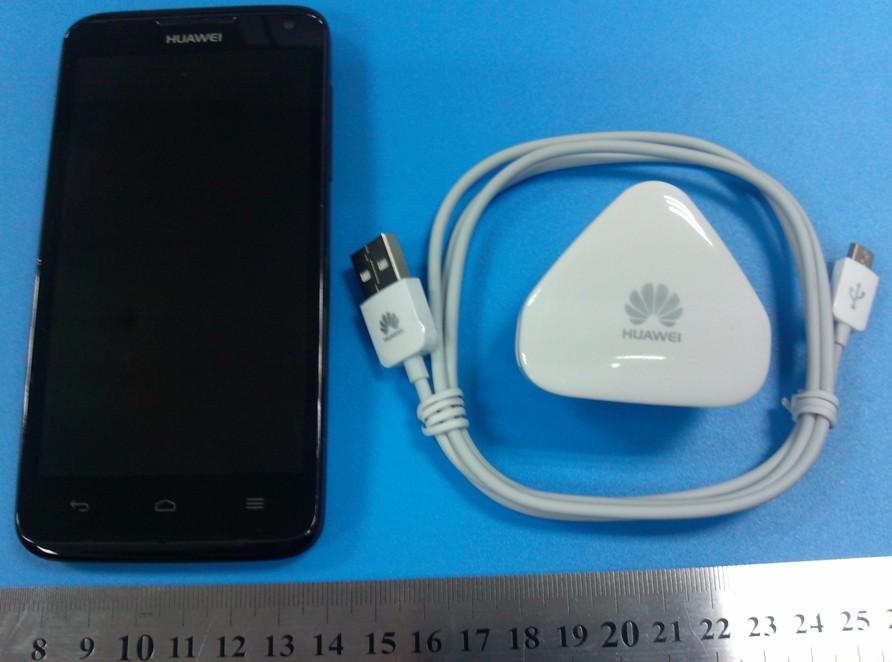

Document Title SECRET Page1,Total 8 External Photos of HUAWEI U9500, U9500, HUAWEI U9500-1, U9500-1, HUAWEI U9500-51, U9500-51 Document Title SECRET Page2,Total 8 Document Title SECRET Page3,Total 8 Document Title SECRET Page4,Total 8 Document Title SECRET Page5,Total 8 Document Title SECRET Page6,Total 8 Document Title SECRET Page7,Total 8 Document Title SECRET Page8,Total 8

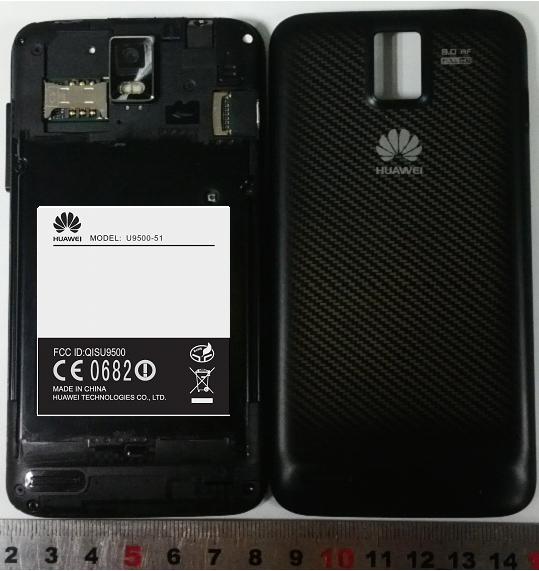

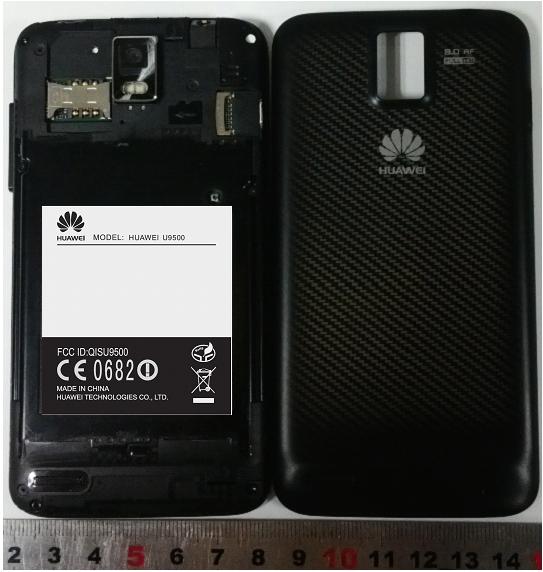

Document Title SECRET Page1, Total 6 Label Location HUAWEI HUAWEI U9500, U9500, HUAWEI U9500-1, U9500-1, HUAWEI U9500-51, U9500-51 Document Title SECRET Page2, Total 6 Document Title SECRET Page3, Total 6 Document Title SECRET Page4, Total 6 Document Title SECRET Page5, Total 6 Document Title SECRET Page6, Total 6

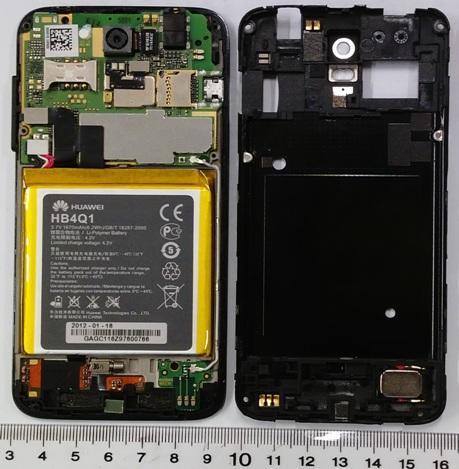

Document Title SECRET Page1,Total 4 Internal Photos of HUAWEI U9500, U9500, HUAWEI U9500-1, U9500-1, HUAWEI U9500-51, U9500-51 Document Title SECRET Page2,Total 4 Document Title SECRET Page3,Total 4 Document Title SECRET Page4,Total 4

Re port No.:SYBH(Z-SAR)012042012-2FCC ID: QISU9500 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 3/6/2012 10:53:46 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.918 mho/m; ε r = 41.133; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.569 mW/g Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.191 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.7250 SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.656 mW/g 0 dB = 2.660mW/g = 8.50 dB mW/g Date/Time: 3/7/2012 20:37:30 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.99 mho/m; ε r = 53.721; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.742 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.445 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.9010 SAR(1 g) = 2.59 mW/g; SAR(10 g) = 1.69 mW/g Maximum value of SAR (measured) = 2.796 mW/g 0 dB = 2.800mW/g = 8.94 dB mW/g Date/Time: 3/8/2012 23:02:44 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.446 mho/m; ε r = 39.76; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.98, 7.98, 7.98); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.606 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.684 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 17.9290 SAR(1 g) = 9.43 mW/g; SAR(10 g) = 4.85 mW/g Maximum value of SAR (measured) = 10.499 mW/g 0 dB = 10.500mW/g = 20.42 dB mW/g Date/Time: 3/8/2012 15:23:32 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.519 mho/m; ε r = 52.591; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.49, 7.49, 7.49); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.563 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 80.419 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 17.7330 SAR(1 g) = 9.76 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 10.906 mW/g 0 dB = 10.910mW/g = 20.76 dB mW/g Date/Time: 3/9/2012 10:04:01 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.411 mho/m; ε r = 38.799; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.69, 7.69, 7.69); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.143 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.614 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 18.7980 SAR(1 g) = 10 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.195 mW/g 0 dB = 11.190mW/g = 20.98 dB mW/g Date/Time: 3/6/2012 20:43:35 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.528 mho/…

Text truncated - open the document above for the full version.

Re port No.:SYBH(Z-SAR)012042012-2FCC ID:QISU9500 Appendix B. SAR Measurement Plots Table of contents GSM850 MHz Head GSM850 MHz Body GSM1900 MHz Head GSM1900 MHz Body WCDMA850 MHz Head WCDMA850 MHz Body WCDMA1700 MHz Head WCDMA1700 MHz Body WCDMA1900 MHz Head WCDMA1900 MHz Body WiFi2450 MHz Head WiFi2450 MHz Body Date/Time: 3/6/2012 14:10:19 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 190CH Left hand touch cheek DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.913 mho/m; ε r = 41.093; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.270 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.708 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.3370 SAR(1 g) = 0.270 mW/g; SAR(10 g) = 0.204 mW/g Maximum value of SAR (measured) = 0.287 mW/g 0 dB = 0.290mW/g = -10.75 dB mW/g Date/Time: 3/6/2012 14:45:48 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 190CH Left hand tilt 15 degree DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.913 mho/m; ε r = 41.093; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.185 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.345 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.2300 SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.139 mW/g Maximum value of SAR (measured) = 0.192 mW/g 0 dB = 0.190mW/g = -14.42 dB mW/g Date/Time: 3/6/2012 12:19:12 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 190CH Right hand touch cheek DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.913 mho/m; ε r = 41.093; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(8.72, 8.72, 8.72); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.332 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.411 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.4080 SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.251 mW/g Maximum value of SAR (measured) = 0.345 mW/g 0 dB = 0.340mW/g = -9.37 dB mW/g Date/Time: 3/6/2012 13:05:07 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 190CH Right hand tilt 15 degree DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.913 mho/m; ε r = 41.093; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.04, 9.04, 9.04); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.212 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.677 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.2620 SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (measured) = 0.218 mW/g 0 dB = 0.220mW/g = -13.15 dB mW/g Date/Time: 3/7/2012 21:42:16 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 GPRS 1TS 190CH Towards Phantom 10mm DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.989 mho/m; ε r = 53.725; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.425 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.362 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.5120 SAR(1 g) = 0.407 mW/g; SAR(10 g) = 0.310 mW/g Maximum value of SAR (measured) = 0.427 mW/g 0 dB = 0.430mW/g = -7.33 dB mW/g Date/Time: 3/7/2012 22:09:06 Test Laboratory: HUAWEI SAR Lab U9500 GSM850 GPRS 2TS 190CH Towards Phantom 10mm DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication Sys…

Text truncated - open the document above for the full version.

Date/Time: 3/8/2012 14:09:16 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA850 4182CH Towards Ground 10mm with Handset DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 836.4 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.988 mho/m; ε r = 53.702; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.580 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.123 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.7680 SAR(1 g) = 0.560 mW/g; SAR(10 g) = 0.404 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.593 mW/g 0 dB = 0.590mW/g = -4.58 dB mW/g Date/Time: 3/9/2012 2:04:42 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA1700 1413CH Left hand touch cheek DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 1732.6 MHz Medium parameters used: f = 1733 MHz; σ = 1.376 mho/m; ε r = 40.091; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.98, 7.98, 7.98); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.521 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.147 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.7920 SAR(1 g) = 0.497 mW/g; SAR(10 g) = 0.312 mW/g Maximum value of SAR (measured) = 0.532 mW/g 0 dB = 0.530mW/g = -5.51 dB mW/g Date/Time: 3/9/2012 2:30:26 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA1700 1413CH Left hand tilt 15 degree DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 1732.6 MHz Medium parameters used: f = 1733 MHz; σ = 1.376 mho/m; ε r = 40.091; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.98, 7.98, 7.98); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.188 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.124 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.3070 SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.112 mW/g Maximum value of SAR (measured) = 0.195 mW/g 0 dB = 0.200mW/g = -13.98 dB mW/g Date/Time: 3/9/2012 2:58:15 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA1700 1413CH Right hand touch cheek DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 1732.6 MHz Medium parameters used: f = 1733 MHz; σ = 1.376 mho/m; ε r = 40.091; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.98, 7.98, 7.98); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.490 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.461 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.7320 SAR(1 g) = 0.471 mW/g; SAR(10 g) = 0.295 mW/g Maximum value of SAR (measured) = 0.503 mW/g 0 dB = 0.500mW/g = -6.02 dB mW/g Date/Time: 3/9/2012 3:24:10 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA1700 1413CH Right hand tilt 15 degree DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 1732.6 MHz Medium parameters used: f = 1733 MHz; σ = 1.376 mho/m; ε r = 40.091; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.98, 7.98, 7.98); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Head/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.132 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.255 V/m; Power Drift = 0.0089 dB Peak SAR (extrapolated) = 0.2750 SAR(1 g) = 0.155 mW/g; SAR(10 g) = 0.083 mW/g Maximum value of SAR (measured) = 0.177 mW/g 0 dB = 0.180mW/g = -14.89 dB mW/g Date/Time: 3/8/2012 16:14:40 Test Laboratory: HUAWEI SAR Lab U9500 WCDMA1700 1413CH Towards Phantom 10mm DUT: U9500; Type: HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE Mobile Phone with Bluetooth; Serial: SAR2 Communication System: HW-UMTS-FDD(WCDMA); Frequency: 1732.6 MHz Medium parameters used: f = 1733 MHz; σ = 1.457 mho/m; ε r = 52.91; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY C…

Text truncated - open the document above for the full version.

Re port No.:SYBH(Z-SAR)012042012-2FCC ID:QISU9500 Appendix C. Calibration Certificate Table of contends Calibration report “DAE4-SN852” Calibration report “Probe EX3DV4-SN3736” Calibration report “D835-SN4d126 Calibration report “D1800-SN2d184 Calibration report “D1900-SN5d143” Calibration report “D2450-SN860” Dipole Self- Validation Report Justification of the extended calibration of Dipole D1800V2 SN: 2d184 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1800 Head TST Target Value Measured Value Difference Impedance transformed to feed point 49.7Ω-2.3jΩ 51.59Ω-2.16jΩ R=1.89Ω, X=0.14Ω Return Loss -32.8dB -33.02dB -0.67% Dipole1800 Body TST Target Value Measured Value Difference Impedance transformed to feed point 45.3Ω-2.3jΩ 46.30Ω-2.57jΩ R=1.0Ω, X=-0.47Ω Return Loss -25.2dB -25.64dB -1.75% Measured Date 2011-03-08 2012-03-07 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name :_______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-05-07 2012-05-07 2012-05-07 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from t…
