QISV810WCDMA/GPRS/GSM Mobile Phone

Make the most of now. Vodafone 810 Mobile Phone User Guide Notice Copyright ¤ 2007 Huawei Technologies Co. Ltd.All Rights Reserved 1 Your Vodafone 810 is made exclusively for Vodafone by Huawei Technologies. 2 No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co. Ltd. 3 Trademarks 4 VODAFONE, the Vodafone logos, Vodafone Radio DJ are trade marks of the Vodafone Group. Other product and company names men-tioned herein may be trade marks of their respective owners. 5 Notice 6 The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this man-ual do not constitute a warranty of any kind, expressed or implied. 7 Read the safety precautions carefully to ensure that you use wireless device in a correct and safe manner. For details, see the section "Warn-ings and Precautions". Huawei Technologies Co. Ltd.Branch Address: 8 Huawei Technologies Deutschland GmbH,  Am Seestern 24, Dusseldorf, Germany 9 Postal Code: 40547 Head Office Address: 10 Administration Building, Huawei Technologies Co. Ltd., Bantian, Longgang District, 11 Shenzhen, P. R. China 12 Postal Code: 518129 Website: http://www.huawei.com 13 Read the Safety Information section ofthis user guide on page 57. Do not use hand-held while driving.For body-worn operation maintain a separation of 1.5 cm.Small parts may cause a choking hazard.This device may produce a loud sound.Keep away from pacemakers and other personal medical devices.Switch off when instructed in hospitals and medical facilities.Switch off when instructed in aircrafts and airports. Do not use while re-fuelling.This device may produce a bright or flashing light.Do not dispose of in a fire.Avoid contact with magnetic media.Avoid Extreme TemperaturesAvoid contact with liquid, keep dry.Do not try and disassemble.Do not rely on this device for emergency communications. Safety Precautions 1415 Specific Absorption Rate (SAR) 16 Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organisation ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. 17 The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 0. 736 W/kg*. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this user guide**. 18 As SAR is measured utilising the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network. 19 * The tests are carried out in accordance with IEC standard PT62209-1. 20 ** Please see page 57 about body worn operation. 21 Please read the safety precautions carefully to ensure the correct and safe use of your wireless device. For detailed information, refer to the 22 section “Warnings and Precautions”. 2324 Switch off in explosive environments.Only use approved accessories. . 1 1 Table of Contents Table of Contents 1Getting to Know Your Phone 1 Packing List ....................................... .........1 Your Phone ......................................... .......2 Getting Started 6 Loading the SIM Card ............................... .6 Unloading the SIM Card ............................. 7 Charging the Battery ............................... ...7 Loading/Removing a Memory Card............8Powering On/Off .................................... .....9 Call Service 11 Making or Answering Calls .......................11Operations During a Voice  Call ...............12 Operations During a Video  Call ...............13 Text Input 15 T9 £ Input Method ....................................15 Traditional Input Method .......................... 15 "123" Numeric Input Method ....................16Symbol Input Method ...............................1 6 Input Different Languages ........................16 Contacts 17 Making Calls from the Contacts ...............17Searching for a Contact............................1 7 Viewing Contacts in Phone/SIM ...............17Other Operations ................................... ...17 Groups............................................. .........18 Calls 20 Making Calls from Calls ........................... 2 0 Other Operations ................................... .. 20 Messaging 21 Messages........................................... ...... 21 Email .............................................. .......... 23 Broadcast Inbox .................................... ... 26 Templates .......................................... ...... 27 Music 28 Music Library...................................... ...... 28 Playlists ........................................... ......... 29 Vodafone Radio DJ .................................. 29 Music Store ........................................ ...... 29 My Wishlist ........................................ ....... 29 Organiser & Tools 30 Alarms ............................................. ......... 30 Calendar ........................................... ....... 30 Task ............................................... .......... 31 Memo ............................................... ........ 32 Synchronise .......................................... ... 32 Calculator ......................................... ........ 33 Unit Converter ..................................... ..... 33 Currency Converter................................. . 34 Voice Recorde…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: EMCC Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISV810 to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

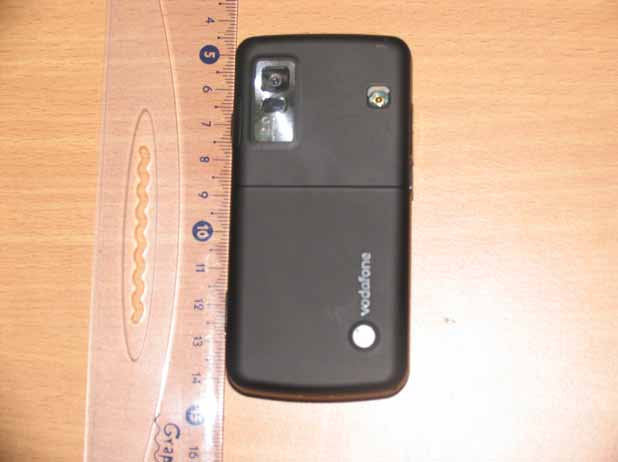

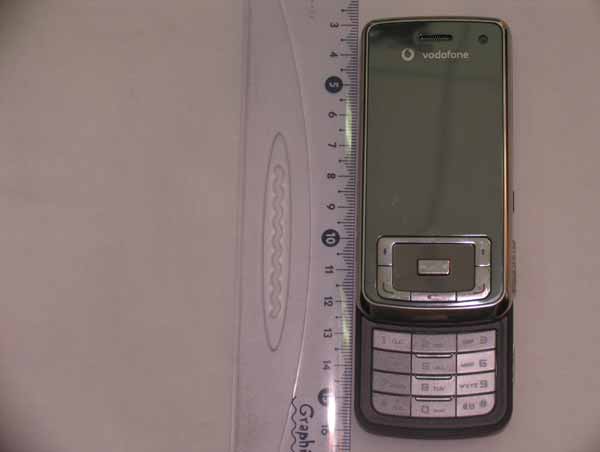

V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page1,Total 8 External Photo of V810/Vodafone 810/U7200 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page2,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page3,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page4,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page5,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page6,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page7,Total 8 V810/Vodafone 810/U7200 WDMA/GPRS/GSM Mobile Phone SECRET Page8,Total 8

V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone Secret 2007-8-11 Page 1, Totall 1

V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page1, Total 1 Label Location_V810/Vodafone 810/U7200

V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page1,Total 7 Internal Photo of V810/Vodafone 810/U7200 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page2,Total 7 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page3,Total 7 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page4,Total 7 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page5,Total 7 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page6,Total 7 V810/Vodafone 810/U7200 WCDMA/GPRS/GSM Mobile Phone SECRET Page7,Total 7

No.2007EEE02104Page 2 of 119 Notes 1. . The test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 2. Copies of the test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 3. The test report shall be invalid if there are no signatures of the testing person, reviewing person and approving person on it. 4. The test report shall be invalid if it is altered. 5. Any demurral about the test shall be put forward to the testing organization within 15 days after the receiving of the test report. 6. This test report standalone dose not constitute or imply by its own an approval of the product by any Certification Authorities or Competent Bodies. 7. This report is only valid if complete, and test report shall not be reproduced except in full, without written approval of the laboratory. 8. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Telecommunication Metrology Center of MII and the Accreditation Bodies, if it applies. Address:No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China (Telecommunication Metrology Center of MII) Post code: 100083 Telephone: +86 10 62302041Fax:+86 10 62304793 Web site: http://www.emcite.com E-mail: [email protected] No.2007EEE02104Page 3 of 119 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ................................................................................................................................5 2 GENERAL CONDITIONS ...................................................................................................................................................5 3 DESCRIPTION OF EUT ......................................................................................................................................................5 3.1 A DDRESSINGINFORMATION RELATED TO EUT........................................................................................................................ 5 3.2 C ONSTITUENTS OF EUT ......................................................................................................................................................... 6 3.3 G ENERAL DESCRIPTION.......................................................................................................................................................... 7 4 OPERATIONAL CONDITIONS DURING TEST ..............................................................................................................7 4.1 S CHEMATIC TEST CONFIGURATION......................................................................................................................................... 7 4.2 SAR M EASUREMENT SET-UP.................................................................................................................................................. 7 4.3 D ASY4E-FIELDPROBESYSTEM............................................................................................................................................. 8 4.4 E- FIELDPROBECALIBRATION................................................................................................................................................. 9 4.5 O THERTEST EQUIPMENT..................................................................................................................................................... 10 4.6 E QUIVALENT TISSUES........................................................................................................................................................... 10 4.7 S YSTEMSPECIFICATIONS...................................................................................................................................................... 11 5 CHARACTERISTICS OF THE TEST ..............................................................................................................................11 5.1 A PPLICABLELIMIT REGULATIONS......................................................................................................................................... 11 5.2 A PPLICABLEMEASUREMENT STANDARDS............................................................................................................................. 11 6 LABORATORY ENVIRONMENT ....................................................................................................................................12 7 CONDUCTED OUTPUT POWER MEASUREMENT ....................................................................................................12 7.1 S UMMARY............................................................................................................................................................................ 12 7.2 C ONDUCTEDPOWER............................................................................................................................................................ 12 8 TEST RESULTS...................................................................................................................................................................13 8.1 D IELECTRICPERFORMANCE................................................................................................................................................. 13 8.2 S YSTEMVALIDATION............................................................................................................................................................ 13 8.3 S UMMARY OF MEASUREMENT RESULTS (PCS1900MHZ) ..................................................................................................... 14 8.4 S UMMARY OF MEASUREMENT RESULTS (WITH BLUETOOTH FUNCTION) ................................................................................ 16 8.5 C ONCLUSION..............................................................................................................................................…

Text truncated - open the document above for the full version.

No.2007EEE02104Page 61 of 119 Fig. 34 Z-Scan at power reference point (PCS 1900MHz CH661) No.2007EEE02104Page 62 of 119 1900 Left Tilt Low-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; ı = 1.32 mho/m; İ r = 39.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.139 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.91 V/m; Power Drift = 0.195 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.115 mW/g; SAR(10 g) = 0.066 mW/g Maximum value of SAR (measured) = 0.121 mW/g   0 dB = 0.121mW/g Fig. 35Left Hand Tilt 15°PCS 1900MHz CH512 No.2007EEE02104Page 63 of 119 Fig. 36 Z-Scan at power reference point (PCS 1900MHz CH512) No.2007EEE02104Page 64 of 119 1900 Right Cheek High-slide up Date/Time: 2007-8-16 9:53:26 Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; ı = 1.38 mho/m; İ r = 39.3; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek High/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.211 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.04 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.326 W/kg SAR(1 g) = 0.198 mW/g; SAR(10 g) = 0.117 mW/g Maximum value of SAR (measured) = 0.212 mW/g   0 dB = 0.212mW/g Fig. 37 Right Hand Touch Cheek PCS 1900MHz CH810 No.2007EEE02104Page 65 of 119 Fig. 38 Z-Scan at power reference point (PCS 1900MHz CH810) No.2007EEE02104Page 66 of 119 1900 Right Cheek Middle-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; ı = 1.35 mho/m; İ r = 39.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Middle/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.199 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.47 V/m; Power Drift = 0.123 dB Peak SAR (extrapolated) = 0.264 W/kg SAR(1 g) = 0.174 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (measured) = 0.183 mW/g   0 dB = 0.183mW/g Fig.39 Right Hand Touch Cheek PCS 1900MHz CH661 No.2007EEE02104Page 67 of 119 Fig. 40 Z-Scan at power reference point (PCS 1900MHz CH661) No.2007EEE02104Page 68 of 119 1900 Right Cheek Low-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; ı = 1.32 mho/m; İ r = 39.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Cheek Low/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.208 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.46 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.189 mW/g; SAR(10 g) = 0.113 mW/g Maximum value of SAR (measured) = 0.200 mW/g   0 dB = 0.200mW/g Fig. 41 Right Hand Touch Cheek PCS 1900MHz CH512 No.2007EEE02104Page 69 of 119 Fig. 42 Z-Scan at power reference point (PCS 1900MHz CH512) No.2007EEE02104Page 70 of 119 1900 Right Tilt High-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; ı = 1.38 mho/m; İ r = 39.3; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt High/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.200 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.01 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 0.285 W/kg SAR(1 g) = 0.152 mW/g; SAR(10 g) = 0.080 mW/g Maximum value of SAR (measured) = 0.153 mW/g   0 dB = 0.153mW/g Fig. 43 Right Hand Tilt 15°PCS 1900MHz CH810 No.2007EEE02104Page 71 of 119 Fig. 44 Z-Scan at power reference point (PCS 1900MHz CH810) No.2007EEE02104Page 72 of 119 1900 Right Tilt Middle-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; ı = 1.35 mho/m; İ r = 39.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Middle/Area Scan (51x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.178 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.21 V/m; Power Drift = 0.056 dB Peak SAR (extrapolated) = 0.245 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.147 mW/g   0 dB = 0.147mW/g Fig. 45 Right Hand Tilt 15°PCS 1900MHz CH661 No.2007EEE02104Page 73 of 119 Fig. 46 Z-Scan at power reference point (PCS 1900MHz CH661) No.2007EEE02104Page 74 of 119 1900 Right Tilt Low-slide up Electronics: DAE3 Sn536 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; ı = 1.32 mho/m; İ r = 39.4; ȡ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: GSM 1900MHz new Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ET3DV6 - SN1736 ConvF(5.4, 5.4, 5.4) Tilt Low/Area Scan (51x101x1): Measurement grid: dx=10mm, d…

Text truncated - open the document above for the full version.

FCC TEST REPORT OF Huawei WCDMA/GPRS/GSM Mobile Phone M/N: V810/Vodafone 810/U7200 JUL，21, 2007 Reliability Laboratory of Huawei Technologies Co., Ltd. All Right Reserved Report No: SYBH(R) 11052007EB-1 FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total40 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Committee for Laboratories (CNAL), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C1758, R1672, and T153. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total40 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC Test of Huawei WCDMA/GPRS/GSM Mobile Phone M/N: V810/Vodafone 810/U7200 Report No: SYBH(R) 11052007EB-1 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 24: Subpart E; FCC CFR47 Part 15: Subpart B; CONCLUSION There are 10 items need to be tested, 10 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2007.07.21 Guo Xiaoqi Date Name signature Technical Responsibility For Area of Testing 2007.07.19 Zhang Xinghai Date Name signature Test Lab Engineer 2007.07.19 HuJun Date Name signature Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total40 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description................................................................................................................................6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 SET UP DESCRIPTION............................................................................................................................ 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 11 6 Transmitter Measurements..................................................................................................................... 12 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (EIRP)........................................................................ 12 6.2 CONDUCTED POWER OF TRANSMITTER................................................................................................. 15 6.3 MODULATION CHARACTERISTICS.......................................................................................................... 17 6.4 OCCUPIED BANDWIDTH........................................................................................................................ 19 6.5 BAND EDGES COMPLIANCE.................................................................................................................. 21 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL........................................................................................ 23 6.7 RADIATED SPURIOUS EMISSION........................................................................................................... 25 6.8 FREQUENCY STABILITY........................................................................................................................ 29 7 EMC Test.................................................................................................................................................. 35 7.1 CONDUCTED EMISSION AT POWER PORT....................................................................................…

Text truncated - open the document above for the full version.

FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Appendix H Photos of Test Setup FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 1 Radiated Emissions Radiated Disturbance 2 Radiated Spurious Emissions FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Radiated Spurious Emission (below 2GHz) FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 Radiated Spurious Emission (2GHz to18GHz) FCC ID: QISV810 Report No: SYBH (R)11052007EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 Radiated Spurious Emission (above 18GHz) 3 Conducted Emissions Conducted Emissions for AC Ports
