QISW5101Mobile Wi-Fi

1 Thank you for choosing the LTE Mobile WiFi Smart. The LTE Mobile WiFi Smart allows you to access a wireless network at high speeds. Note: This guide briefly describes the appearance of the LTE Mobile WiFi Smart and the procedures for using the LTE Mobile WiFi Smart. For details about how to set the management parameters, see help information on the web management page. 2 Connection S cenarios Scenario 1: One-device Internet access using computer Scenario 2: Multi-device Internet access using Wi-Fi (connected to a computer) 3 Scenario 3: Multi-device Internet access using Wi-Fi (connected to the power adapter) 4 Getting to Know Your LTE Mobile WiFi Smart The following figure shows the LTE Mobile WiFi Smart. It is provided only for your reference. The actual product may be different. 1 5 6 2 3 4 5  US B connector It connects the LTE Mobile WiFi Smart to a computer.  Wi-Fi indicator It indicates the status of a Wi-Fi network.  Steady green: A Wi-Fi connection is set up.  Off: The Wi-Fi function is turned off or fails, or the LTE Mobile WiFi Smart has been removed.  S M S indicator It indicates the status of an SMS.  Steady green: There are unread messages in your inbox.  Blinking green once every 2s: The message storage is full.  Off: The LTE Mobile WiFi Smart is powered off, there are no unread messages, or the message storage is not full. 6  2G/3G/LT E indicator It indicates the LTE Mobile WiFi Smart's status.  Blinking green twice every 2s: The LTE Mobile WiFi Smart is powered on.  Blinking green once every 0.2s: The software of the LTE Mobile WiFi Smart is being upgraded.  Blinking green once every 2s: The LTE Mobile WiFi Smart is registered with a 2G network.  Steady green: The LTE Mobile WiFi Smart is connected to a 2G network .  Blinking blue once every 2s: The LTE Mobile WiFi Smart is registered with a 3G network.  Steady blue: The LTE Mobile WiFi Smart is connected to a 3G network.  Blinking cyan once every 2s: The LTE Mobile WiFi Smart is registered with a 3G+ network.  Steady cyan: The USB Stick is connected to a 3G+ network  Blinking Purple once every 2s: The USB Stick is registered with a LTE network.  Steady Purple: The USB Stick is connected to a LTE network.  Off: The LTE Mobile WiFi Smart is removed.  m icroS D card slot It holds a microSD card. 7  S IM card slot It holds a Subscriber Identity Module (SIM) card. Getting Started Installing the S IM Card 1. Slide the cover off. 2. Insert the SIM card into the card slot. 3. Slide the cover back onto the LTE Mobile WiFi Smart until it snaps into place. 8 Inserting the microS D Card Insert the microSD card into the USB Stick, as shown in the following figure. Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot. 9  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted.  Do not use any SIM card that is not standard or is incompatible with the LTE Mobile WiFi Smart. Otherwise, the card as well as your LTE Mobile WiFi Smart may get damaged and the data stored on the card may be corrupted. Using the P ow er Adapter Connect the LTE Mobile WiFi Smart to the power adapter's USB port, and connect the power adapter to a power outlet. 10 Note:  Please only use the correct in-car power adapter (HWCC02) or power adapter provided for your region – HW-050100x4W, where “x” will be one of U, E, B, A, or J, depending on your region. For details about a specific charger, contact your network operator.  The power adapter is an optional accessory. If it is not included in the product package, purchase one separately. 11 Using Your LTE Mobile WiFi Smart The procedure for installing the management program depends on your computer's operating system. The following sections are based on Windows XP. Connecting to a N etw ork 1. Connect the LTE Mobile WiFi Smart to one of your computer's USB ports. 12 2. Complete the installation as prompted. When the installation is complete, the LTE Mobile WiFi Smart's web management page is displayed. 3. A dial-up connection is set up and you are connected to the network. Note:  If the installation wizard does not run automatically, find the SetupWi-Fi.exe file in the driver path, and double-click the file to run it.  The default user name and password of the web management page are admin.  If your SIM card's personal identification number (PIN) verification function is enabled, log in to the web management page, and enter and save the PIN.  If you are not using the default Profile, log in to the web Mobile Broadband->Connection page, and configure and save the Profile settings.  When using the LTE Mobile WiFi Smart to access a network, do not use other devices to access the network, because doing so may cause conflicts.  A maximum of ten WiFi devices can connect to the LTE Mobile WiFi Smart to access the Internet.  If you are not connected to the network, access http://192.168.0.1 to check the device status. 13  If you cannot access http://192.168.0.1, disconnect other network connections, such as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the LTE Mobile WiFi Smart, or restart the computer. Disconnecting from a Netw ork Remove the LTE Mobile WiFi Smart from your computer. Note:  By default, the LTE Mobile WiFi Smart automatically disconnects from the network if no data is transferred within 10 minutes.  If you do not need to connect to the network, it is recommended that you remove the LTE Mobile WiFi Smart from your computer to reduce data traffic. 14 S etting Up a Wi-F i Connection 1. Ensure that the LTE Mobile WiFi Smart's Wi-Fi function is available. 2. To set up a computer …

Text truncated - open the document above for the full version.

Safety Information Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are -10 °C to +40 °C. Ideal storage temperatures are -20 °C to +70 °C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications for a while …

Text truncated - open the document above for the full version.

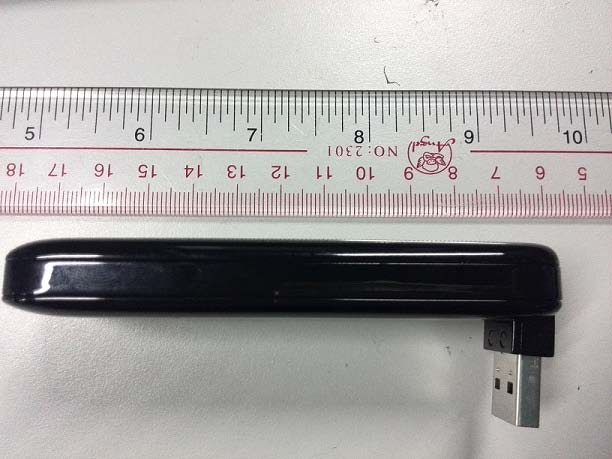

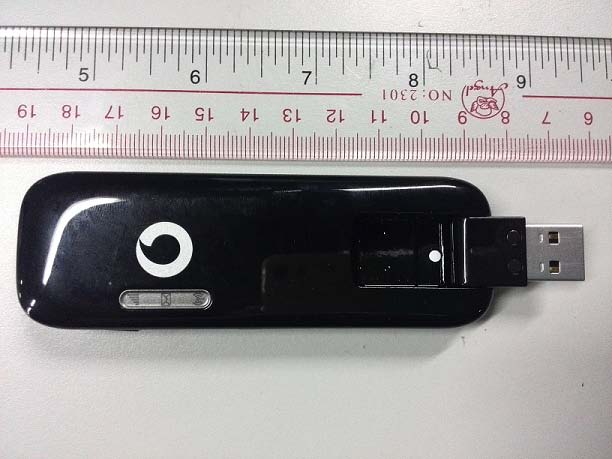

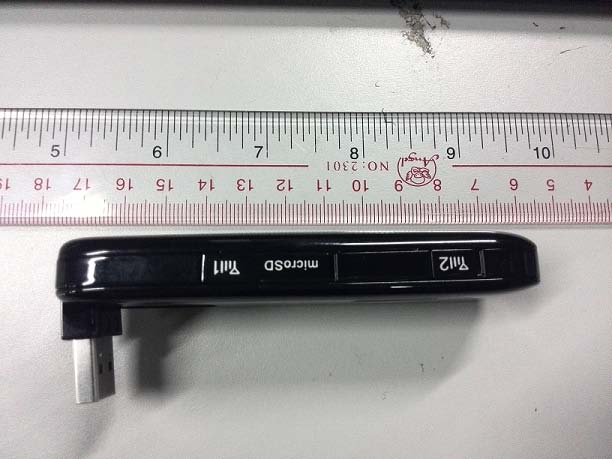

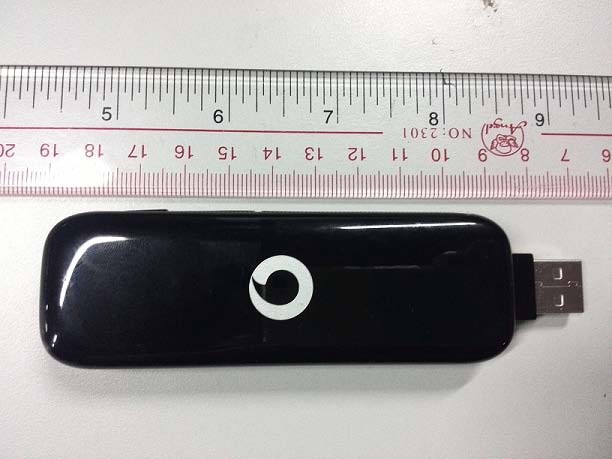

W5101 SECRET Page1,Total 4 External Photos of W5101 W5101 SECRET Page2,Total 4 W5101 SECRET Page3,Total 4 W5101 SECRET Page4,Total 4

W5101 SECRET Page1, Total 1 ID Label Location_ W5101

Huawei Technologies Co.,Ltd. Date: January 3, 2014 Statement We, Huawei Technologies Co., Ltd., states that our device, FCC ID: QISW5101, Its cover can be removed during package and the FCC ID is readily visible when users open the product box. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

W5101 SECRET Page1, Total3 Internal Photos of W5101 W5101 SECRET Page2, Total3 W5101 SECRET Page3, Total3

SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Jan. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : QISW 5101 FCC SAR Test Report Report No. : FA3D0421 FCC SAR Test Report APPLICANT : Huawei Technologies Co., Ltd EQUIPMENT : Mobile Wi-Fi BRAND NAME : Vodafone MODEL NAME : W5101 FCC ID : QISW5101 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Dec. 10, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Jan. 14, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : QISW 5101 FCC SAR Test Report Report No. : FA3D0421 Table of Contents 1. Statement of Compliance ....................................................................................................................................... 4 2. Administration Data ................................................................................................................................................ 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant .......................................................................................................................................................... 5 2.3 Manufacturer.................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................ 6 3.1 Description of Equipment Under Test (EUT) ...................................................................................................... 6 3.2 Maximum RF output power among production units .......................................................................................... 7 3.3 Applied Standard .............................................................................................................................................. 9 3.4 Device Category and SAR Limits ...................................................................................................................... 9 3.5 Test Conditions ................................................................................................................................................ 9 4. Specific Absorption Rate (SAR) ........................................................................................................................... 10 4.1 Introduction .................................................................................................................................................... 10 4.2 SAR Definition ............................................................................................................................................... 10 5. SAR Measurement System ................................................................................................................................... 11 5.1 E-Field Probe ................................................................................................................................................. 12 5.2 Data Acquisition Electronics (DAE) ................................................................................................................. 12 5.3 Robot ............................................................................................................................................................ 12 5.4 Measurement Server ...................................................................................................................................... 13 5.5 Phantom ........................................................................................................................................................ 13 5.6 Device Holder ................................................................................................................................................ 15 5.7 Data Storage and Evaluation .......................................................................................................................... 16 5.8 Test Equipment List ........................................................................................................................................ 18 6. Tissue Simulating Liquids .................................................................................................................................... 19 7. System Verification Procedures ........................................................................................................................... 22 7.1 Purpose of System Performance check .......................................................................................................... 22 7.2 System Setup ................................................................................................................................................ 22 7.3 SAR System Verification Results ...............................................................................................…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: Mobile Wi-Fi Model Number: W5101 Report No: SYBH(Z-RF)008122013-2001 FCC ID：QISW5101 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of W5101 Report No: SYBH(Z-RF)008122013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 23 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of W5101 Report No: SYBH(Z-RF)008122013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 23 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2013-12-16 Start Date of Test: 2013-12-16 End Date of Test: 2013-12-21 Test Result: Pass Approved by Senior Engineer: 2013-12-23 Dai Linjun Date Name Signature Prepared by: 2013-12-23 Zhu Mingjing Date Name Signature RF Test Report of W5101 Report No: SYBH(Z-RF)008122013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 23 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of W5101 Report No: SYBH(Z-RF)008122013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 23 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 2.3 BRS&EBS Band (2500-2570 MHz) ............................................................................................................ 9 3 Description of the Equipment under Test (EUT) ................................................................................................... 10 3.1 General Description ................................................................................................................................. 10 3.2 EUT Identity ............................................................................................................................................. 10 3.3 Technical Specification ............................................................................................................................ 11 4 General Test Conditions / Configurations ............................................................................................................. 12 4.1 Test Modes .............................................................................................................................................. 12 4.2 Test Environment ..................................................................................................................................... 12 4.3 Test Frequency ........................................................................................................................................ 13 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 15 4.5 Test Setups .............................................................................................................................................. 18 4.6 Test Conditions ........................................................................................................................................ 20 5 Main Test Instruments .......................................................................................................................................... 22 6 Measurement Uncertainty..................................................................................................................................... 23 RF Test Report of W5101 Report No: SYBH(Z-RF)008122013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 23 1 General Information 1.1 Applied Standard Applie…

Text truncated - open the document above for the full version.

RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total6 Photos of Test Setup RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total6 For GSM&WCDMA&LTE 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total6 Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total6 For WLAN 2 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total6 Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) RF Test Report of W5101 Security Level: Public Report No: SYBH(Z-RF)008122013 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total6 3 Conducted Emissions Conducted Emissions for AC Ports END
