QISWS319300Mbps Wireless Router

Quick Start WS319 300Mbps Wireless Router 2 Building a network connection with computer 1 Connecting Devices   SSID: XXXX WLAN Key: 1. Click in the lower right corner of your desktop. 2. From the wireless network list, select the WLAN provided by the WS319. Click Connect. 3. In the displayed dialog box, enter the WLAN password and click OK. 4. In the wireless network list, check the WLAN connection status. If the status is Connected, the computer is wirelessly connected to the WS319. 1. Click in the lower right corner of your desktop, choose Open Network and Sharing Center. 2. Choose Change adapter settings. Right-click Local Area Connection and choose Properties. Procedure on Computers Running Windows 7. Procedure on Computers Running Windows 7 3. Double-click Internet Protocol Version 4 (TCP/ IPv4). 4. Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK. Mode II Wireless connection ModeI Wired connection If the wireless device (laptop, tablet, or mobile phone) has been WPS-capable, you can use the WPS-capable to establish a wireless connection between them. For more help，visit http://consumer.huawei.com/en/ to obtain the WS319 user guide. Please ensure that your computer has installed and enabled the wireless network adapter. View SSID and WLAN key Setting the Computer IP Address Wireless Connection Setup Procedure on Computers Running Windows XP. Procedure on Computers Running Windows XP. 1. Click in the lower right corner of your desktop. 2. In the displayed dialog box, click Properties. 3. Double-click Internet Protocol (TCP/IP). 4. Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK. 1. Click in the lower right corner of your desktop. 2. From the wireless network list, select the WLAN provided by the WS319. Click Connect. 3. In the displayed dialog box, enter the WLAN password and click Connect. 4. In the wireless network list, check the WLAN connection status. If the status is Connected, the computer is wirelessly connected to the WS319. Connect the cables as shown in the figure above, and plug the power adapter into the wall-mounted power outlet to power on the WS319. After the WS319 is powered on, the WS319 power indicator turns on. The following table lists how the indicators behave when the WS319 is operating correctly. If the indicators do not behave as expected, ensure that everything is plugged in correctly. Indicator Working PowerSteady on InternetSteady on WLANSteady on WPSSteady off LAN Steady on ( A LAN port is connected to a computer or other Ethernet device through a network cable.) Connect your devices in the sequence indicated in the following figure. Before configuring the router, you need to build the network connection between this device and the router. Wired connection applies to the computers without wireless network adapter. Wireless connection applies to the devices supporting wireless Internet access, such as smart phone and tablet. Wireless connection 16:30 15:30 16:30 For More Help Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline and email address in your country or region. Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Wired connection WS319 LAN1LAN2LAN3LAN4WAN PowerWPS/Reset 3 1 2 Desktop computer Laptop computer Pad Smart Phone Power cable Network cable Network cable 3 Quick Setup 6 Safety Information ScenarioConnection Type The account name and password are provided by your Internet Service Provider (ISP). Connect with user account No parameter is provided by your ISP. The IP address is automatically assigned by the ISP. Connect without user account The account name and password are provided by your ISP, and you want to set up a dial-up connection on one computer only. Connect with another modem 4 FAQs 5 Appendix (Indicators and Buttons) IndicatorExpected State Power • Steady off (WS319 is powered off.) • Steady on (WS319 is powered on.) Internet • Steady on (The WS319 is connected to the Internet.) • Steady off (The WS319 WAN port is not connected to any device. ） WLAN • Steady on ( WLAN is enabled. ) • Steady off (WLAN is disabled. ) WPS • Steady on (WS319 is connected to a wireless client, such as a computer with a wireless network adapter, over the WLAN using the Wi-Fi Protected Setup (WPS) function.The WPS indicator is steady on for 300 seconds.) • Blinking (WS319 is attempting to connect to a wireless client over the WLAN using the WPS function. The WPS indicator blinks for 120 seconds or less.) • Steady off (WPS is disabled) LAN • Steady on ( A LAN port is connected to a computer or other Ethernet device through a network cable. ) • Steady off ( No LAN port is connected to a computer or other Ethernet device. ) WPS/ Reset • When the WS319 is powered on, Press to start Wi-Fi protected setup (WPS) negotiation. • When the WS319 is powered on, Press it (more than 6 seconds). The WS319 will restore to its default settings. you log in to the WS319. Select a network connection type, set the Internet connection parameters, and click Next. 4. Click Next, set WLAN parameters. 3. The setup wizard will automatically be displayed the first time 1. Open a browser. In the address box, enter http://mediarouter.home. Press Enter. 2. Enter the login password (admin by default). Click Login. Q: What Can I Do If I Cannot Open the Web Management Page? A: Perform the following steps: 1. Check that the cables are securely connected to the WS319 and that the LAN port's indicator is on. 2. Open Internet Explorer. Choose Tools > Internet Options > Connections > LAN settings , and ensure that all check boxes are deselected. If the problem persists, restore the WS319 to its defa…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Jan 14, 2014 To whom it may concern: We the undersigned, hereby authorize EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by EMCCert DR.RAŠEK GmbH and Neutron Engineering, Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, Signature: Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd January 14, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd would like the following documents regarding this submission for FCC ID: QISWS319 to be kept confidential. 1. Schematic 2. Block diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: Zhang Xinghai Title: EMC Laboratory Manager

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment 300Mbps Wireless Router Model Name WS319 Brand Name HUAWEI Applicant Huawei Technologies Co.,Ltd. Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, 518129 Shenzhen, P.R.C Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 Report(s) NEI-FCCE-1-1401C069 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

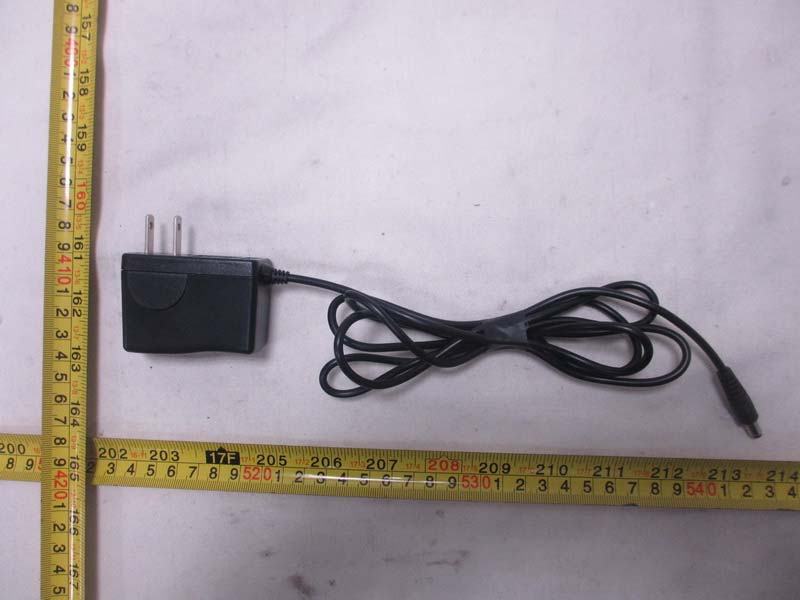

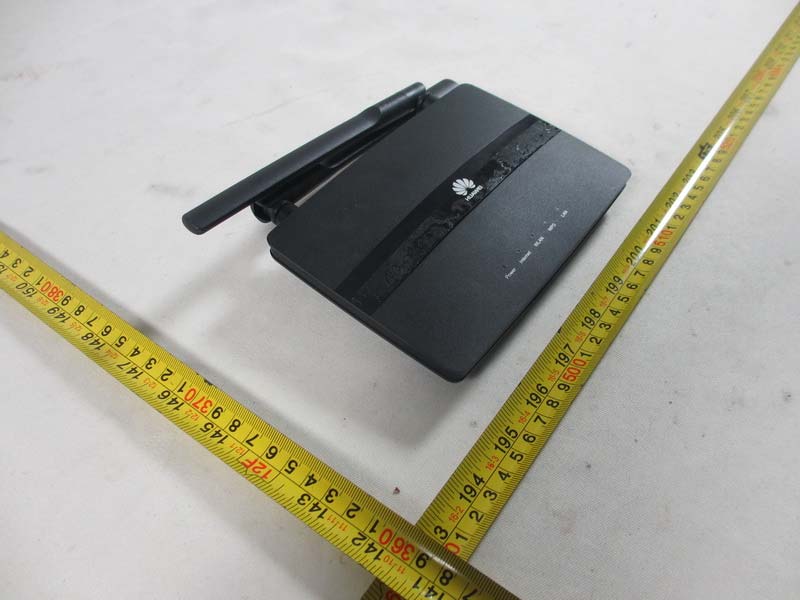

Neutron Engineering Inc. Project No.: 1401C069 Page 2 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 3 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 4 of 10 Adapter S/N: HKACA2896845 Neutron Engineering Inc. Project No.: 1401C069 Page 5 of 10 Adapter S/N: XQHD52300858

HUAWEI TECHNOLOGIES CO.,LTD. WS319铭牌 PET哑白 36.50mm 60.50mm C角：4mm 3 X R角：1mm ODEHOORFDWLRQ

Neutron Engineering Inc. Project No.: 1401C069 Page 6 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 7 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 8 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 9 of 10 Neutron Engineering Inc. Project No.: 1401C069 Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: QISWS319 Project No. : 1401C069 Equipment : 300Mbps Wireless Router Model : WS319 Applicant : Huawei Technologies Co.,Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, 518129 Shenzhen, P.R.C According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Field Antenna: Ant. Manufacturer Model Name Antenna TypeConnector Gain (dBi) 1 DONGGUAN SENLING INDUSTRIAL CO.,LTD SLA-200200180 Dipole N/A 5 2 DONGGUAN SENLING INDUSTRIAL CO.,LTD SLA-200200070 Dipole N/A 5 Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R), all transmit signals are completely uncorrelated, then, Direction gain = G ANT , that is Directional gain=5. Operating Mode TX Mode 1TX 2TX 802.11b V (ANT 1 or ANT 2)- 802.11g V (ANT 1 or ANT 2)- 802.11n(20MHz) - V (ANT 1 & ANT 2) 802.11n(40MHz) - V (ANT 1 & ANT 2) Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Wireless Router Model Name WS319 Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 16.81 47.9733 0.030196071 Complies 5 3.1623 16.82 48.0839 0.030265681 Complies 5 3.1623 16.81 47.9733 0.030196071 Complies EUT： 300Mbps Wireless Router Model Name WS319 Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 24.12 258.2260 0.162536301 Complies 5 3.1623 24.32 270.3958 0.170196401 Complies 5 3.1623 24.41 276.0578 0.173760221 Complies Neutron Engineering Inc. EUT： 300Mbps Wireless Router Model Name WS319 Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11– ANT 0 + ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 25.86 385.4784 0.014486061 Complies 5 3.1623 25.93 391.7419 0.015701831 Complies 5 3.1623 26.17 413.9997 0.014960651 Complies EUT： 300Mbps Wireless Router Model Name WS319 Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09– ANT 0 + ANT 1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 22.81 190.9853 0.120212701 Complies 5 3.1623 22.85 192.7525 0.121325021 Complies 5 3.1623 22.86 193.1968 0.121604701 Complies Note: the calculation distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 1 of 136 FCC Radio Test Report FCC ID: QISWS319 This report concerns (check one): Original Grant Class II Change Issued Date : Jan. 22, 2014 Project No. : 1401C069 Equipment : 300Mbps Wireless Router Model Name : WS319 Applicant : Huawei Technologies Co.,Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, 518129 Shenzhen, P.R.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 13, 2014 Date of Test: Jan. 13, 2014 ~ Jan. 21, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 2 of 136 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 3 of 136 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 68 5.1 APPLIED PROCEDURES 68 5.1.1 TEST PROCEDURE 68 5.1.2 DEVIATION FROM STANDARD 68 5.1.3 TEST SETUP 68 5.1.4 EUT OPERATION CONDITIONS 68 5.1.5 EUT TEST CONDITIONS 68 5.1.6 TEST RESULTS 69 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 4 of 136 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 81 6.1 APPLIED PROCEDURES / LIMIT 81 6.1.1 TEST PROCEDURE 81 6.1.2 DEVIATION FROM STANDARD 81 6.1.3 TEST SETUP 81 6.1.4 EUT OPERATION CONDITIONS 81 6.1.5 EUT TEST CONDITIONS 81 6.1.6 TEST RESULTS 82 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 85 7.1 APPLIED PROCEDURES / LIMIT 85 7.1.1 TEST PROCEDURE 85 7.1.2 DEVIATION FROM STANDARD 85 7.1.3 TEST SETUP 85 7.1.4 EUT OPERATION CONDITIONS 85 7.1.5 EUT TEST CONDITIONS 85 7.1.6 TEST RESULTS 86 8 . POWER SPECTRAL DENSITY TEST 116 8.1 APPLIED PROCEDURES / LIMIT 116 8.1.1 TEST PROCEDURE 116 8.1.2 DEVIATION FROM STANDARD 116 8.1.3 TEST SETUP 116 8.1.4 EUT OPERATION CONDITIONS 116 8.1.5 EUT TEST CONDITIONS 116 8.1.6 TEST RESULTS 117 9 . MEASUREMENT INSTRUMENTS LIST 131 10 . EUT TEST PHOTO 133 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 5 of 136 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1401C069 Original Issue. Jan. 22, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 6 of 136 1. CERTIFICATION Equipment : 300Mbps Wireless Router Brand Name : HUAWEI Model Name : WS319 Applicant : Huawei Technologies Co.,Ltd. Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, 518129 Shenzhen, P.R.C Factory : Shenzhen Allwins Technology Corporation Baoan Branch Address : Block A&M,Shasi Hi-Tech Park,Shajing Street,Shenzhen Date of Test : Jan. 13, 2014 ~ Jan. 21, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1401C069) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 7 of 136 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Te…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 133 of 136 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 134 of 136 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 135 of 136 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1401C069 Page 136 of 136 Radiated Measurement Photos Above 1000MHz
