QISWS3221) 300Mbps Mini Wireless Router; 2) 300Mbps Wireless Range Extender

Quick Start Guide WS322 300Mbps Mini Wireless Router Huawei Technologies Co., Ltd. 12 Hardware SpecificationsWorking Modes Item Status Description Status indicator OffThe WS322 is powered off or faulty. Blinking Blinking red: the WS322 is powering on. Blinking blue: the WS322 is connecting to the network. Steady on Steady red: the WS322 is working properly but is not connected to any network. Steady blue: the WS322 is connected to the network. Signal strength indicator OffThe WS322 is not connected to any network. BlinkingThe WS322 is changing its working mode. Steady on The WS322 is connected to a network. The lightened indicator bars indicates the network signal strength. Three bars mean the network signals are strong, while one bar means the network signals are weak. WPS button / Quickly sets up a wireless connection or changes WS322's working mode. Reset button / Restores the WS322 to its factory settings. When the WS322 is powered on, use a sharp object to push and hold this button for 1 second or more to restore the WS322 to its default settings. 3 Setting the Computer's IP Address Procedure on Computers Running Windows 7 1. Choose Start > Control Panel > Network and Internet > Network and Sharing Center. 2. Choose Change adapter settings > Local Area Connection. Right-click Local Area Connection, and choose Properties. Procedure on Computers Running Windows XP 1. Choose Start > Control Panel > Network and Internet Connections. 2. Choose Network Connections > Local Area Connection. Right-click Local Area Connection,and choose Properties. WiFi Router Mode That Helps You Establish a Private Access PointWiFi Repeater Mode That Expands the WLAN CoverageWiFi Client Mode That Provides Internet Access for Devices Without the WLAN Function 3. Double-click Internet Protocol (TCP/IP). 4. Click Use the following IP address and Use the following DNS server addresses. Set IP address to 192.168.33.x (any integer ranging from 2 to 252), Subnet mask to 255.255.255.0, and Preferred DNS server to 192.168.33.1, and click OK. Procedure on Computers Running Windows 7 4 Setting Up a Wireless Connection 1. Choose Start > Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings. Right-click Local Area Connection, and choose Connect/Disconnect. 2. From the wireless network list, choose the WS322's SSID, and click Connect. 3. Enter the key, and click OK.4. After the key is verified, Connected is displayed on the right of the network icon, indicating that the WS322 and computer are wirelessly connected. Procedure on Computers Running Windows XP 1. Choose Start > Control Panel > Network and Internet Connections > Network Connections. Right-click Wireless Network Connection, and choose View Available Wireless Networks. 2. From the wireless network list, choose the WS322's SSID, and click Connect. 3. Enter the key and click OK. 4. After the key is verified, Connected is displayed on the right of the network icon, indicating that a wireless connection has been set up between the computer and WS322. For the WS322's default SSID and key, see the label on its casing. Signal strength indicator Reset button In this mode, the WS322 is connected to the Internet through its Ethernet port and works as a WiFi access point in a home, providing Internet access for wireless clients, such as phones and computers. To set up a wireless connection, press and hold the WS322's WPS button more than 1 second and less than 2 seconds, and press the wireless client's WPS button within 2 minutes. When the connection is set up, the WS322's status indicator turns from blinking to steady on. To change WS322 into WiFi Router mode, press and hold the WS322's WPS button more than 4 second and less than 6 seconds. Then release the WPS button when you see a signal strength indicator blinking. The WS322 will restart and change into WiFi Router mode. In this mode, the WS322 is wirelessly connected to the Internet, providing Internet access for wireless clients, such as phones and computers. This mode is used to expand the existing access point or router's signal coverage. To set up a wireless connection, press and hold the WS322's WPS button more than 1 second and less than 2 seconds, and press the access point device's WPS button within 2 minutes. When the connection is set up, the WS322's status indicator turns from blinking to steady on. To change WS322 into WiFi Repeater mode, press and hold the WS322's WPS button more than 6 second and less than 8 seconds. Then release the WPS button when you see two signal strength indicators blinking. The WS322 will restart and change into WiFi Repeater mode. In this mode, the WS322 is connected to a client, such as set-top box (STB) or computer, through its Ethernet port, providing the client with wireless access to a wireless access point or router. To set up a wireless connection, press and hold the WS322's WPS button more than 1 second and less than 2 seconds, and press the access point device's WPS button within 2 minutes. When the connection is set up, the WS322's status indicator turns from blinking to steady on. To change WS322 into WiFi Client mode, press and hold the WS322's WPS button more than 8 second and less than 10 seconds. Then release the WPS button when you see three signal strength indicators blinking. The WS322 will restart and change into WiFi Client mode. Figures in this guide are provided for your reference only. The actual product may vary. Status indicator WPS button 3. Double-click Internet Protocol Version 4 (TCP/IPv4). 4. Click Use the following IP address and Use the following DNS server addresses. Set IP address to 192.168.33.x (any integer ranging from 2 to 252), Subnet mask to 255.255.255.0, and Preferred DNS server to 192.168.33.1. Then click OK. Procedure on Computers Running Windows 7 Issue: 96721726 _01 3. Set the wireless parameters for the mode you selected. 3.1 WiFi Router Mode 3.1.2 Click Next. 3.1.1 Click WiFi Router. 3.1.3 Select…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Jan 03, 2013 To whom it may concern: We the undersigned, hereby authorize EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd Sincerely, Signature: Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd Jan 03, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd would like the following documents regarding this submission for FCC ID: QISWS322 to be kept confidential. 1. Schematic 2. Block diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd Attestation Letter To whom it may concern: We, the undersigned, Name: Huawei Technologies Co.,Ltd Address: Bantian, Longgang District, Shenzhen Declare that: Product description: 1)300Mbps Mini Wireless Router; 2)300M bps Wireless Range Extender Model: WS322 Brand Name: HUAWEI Hereby the DoC procedure will be carried out prior to marketing the product in the USA. on our behalf. Date: 2013-01-03 Name: Zhang Xinghai Function: EMC Laboratory Manager Signature:

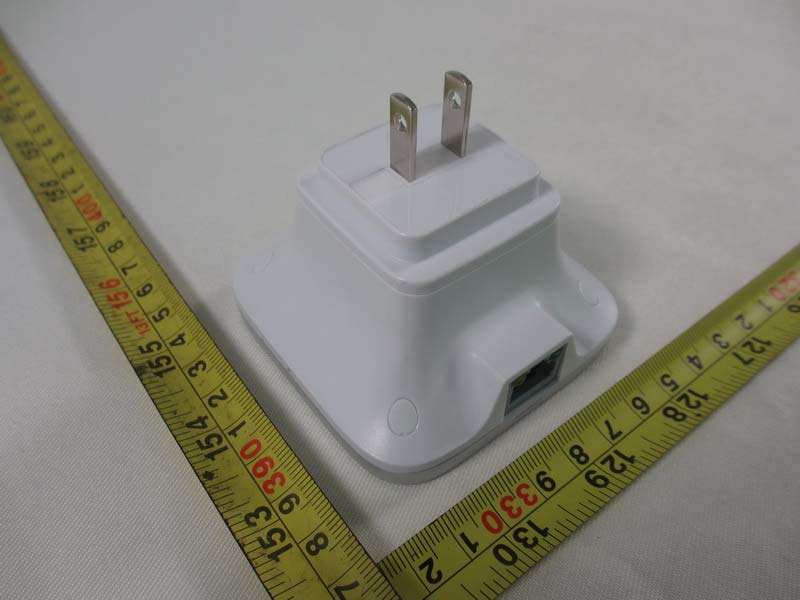

Neutron Engineering Inc. Project No.: 1212C061 Page 2 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 3 of 12

2013-01-17 2013-01-17 2013-01-17 2013-01-17 GEYAHUI YANGYINGZHI ZHONGGANG Pantone Black C 物料底纸必须满足打印要求 红色框中内容由产线打印 0.2 PET哑白 7 . 0 m m 2xR5 6xR0.5 5 . 0 m m 4.0 mm 3 . 0 m m 3 . 0 m m 32.4 mm 1 8 . 0 m m 8 . 5 m m 7 . 4 m m 16.2 mm A LUOXUANYU FCC ID:QISWS322 5 . 0 m m WS322 DKBA8.807.6584 96651027 WS322产品铭牌标签_美规 D K B A 8 . 8 0 7 . 6 5 8 4 GEYAHUI YANGYINGZHI ZHONGGANG WS322 Pantone Black C 物料底纸必须满足打印要求 红色框中内容由产线打印 WS322产品铭牌标签_美规 0.2 PET哑白 7 . 0 m m 2xR5 6xR0.5 5 . 0 m m 4.0 mm 3 . 0 m m 3 . 0 m m 32.4 mm 1 8 . 0 m m 8 . 5 m m 7 . 4 m m 16.2 mm A 2013-01-17 2013-01-17 2013-01-17 2013-01-17 LUOXUANYU DKBA8.807.6663 96651201 D K B A 8 . 8 0 7 . 6 6 6 3 5 . 0 m m FCC ID:QISWS322

Neutron Engineering Inc. Project No.: 1212C061 Page 4 of 12 Transformer: Ktec Neutron Engineering Inc. Project No.: 1212C061 Page 5 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 6 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 7 of 12 Transformer :MOSO Neutron Engineering Inc. Project No.: 1212C061 Page 8 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 9 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 10 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 11 of 12 Neutron Engineering Inc. Project No.: 1212C061 Page 12 of 12

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: QISWS322 Project No. : 1212C061 Equipment : 1) 300Mbps Mini Wireless Router; 2) 300Mbps Wireless Rang Extender Model Name : WS322 Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District ,Shenzhen 518129, P.R.China According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Manufacturer Model Name Antenna TypeConnector Gain (dBi) Note 0 HUAWEI 101003WS322A Integral Antenna N/A 0.94 TX/RX 1 HUAWEI 111003WS322A Integral Antenna N/A 1.0 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT0 or ANT1) - 802.11g V (ANT0 or ANT1) - 802.11n(20MHz) - V (ANT0 & ANT1) 802.11n(40MHz) - V (ANT0 & ANT1) Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.20 83.1764 0.033802621 Complies 19.12 81.6582 0.033185651 Complies 20.17 103.9920 0.042262031 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 20.18 104.2317 0.042359461 Complies 23.58 228.0342 0.092672391 Complies 20.69 117.2195 0.047637651 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.66 92.4698 0.037579451 Complies 24.10 257.0396 0.104460081 Complies 20.10 102.3293 0.041586311 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 18.11 64.7143 0.026299671 Complies 21.88 154.1700 0.062654231 Complies 18.97 78.8860 0.032059031 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 – ANT0+ ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 21.96 157.0363 0.063819061 Complies 26.14 411.1497 0.167089971 Complies 22.58 181.1340 0.073612301 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.34 54.2001 0.022026751 Complies 24.26 266.6859 0.108380311 Complies 17.44 55.4626 0.022539821 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.92 31.0456 0.012616831 Complies 22.42 174.5822 0.070949671 Complies 15.43 34.9140 0.014188951 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 1+ANT 2 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.31 85.3100 0.034669721 Complies 26.45 441.5704 0.179452851 Complies 19.45 88.1049 0.035805551 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 1 of 154 FCC Radio Test Report FCC ID: QISWS322 This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 03, 2012 Project No. : 1212C061 Equipment : 1) 300Mbps Mini Wireless Router; 2) 300Mbps Wireless Rang Extender Model Name : WS322 Applicant : Huawei Technologies Co., Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co., Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District ,Shenzhen 518129, P.R.China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Dec. 11, 2012 Date of Test: Dec. 11, 2012 ~ Jan. 02, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 2 of 154 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 3 of 154 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 21 4.2.1 RADIATED EMISSION LIMITS 21 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 22 4.2.3 TEST PROCEDURE 23 4.2.4 DEVIATION FROM TEST STANDARD 23 4.2.5 TEST SETUP 24 4.2.6 EUT OPERATING CONDITIONS 25 4.2.7 TEST RESULTS (9K~ 30MHZ) 26 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 27 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 40 5 . BANDWIDTH TEST 88 5.1 APPLIED PROCEDURES / LIMIT 88 5.1.1 MEASUREMENT INSTRUMENTS LIST 88 5.1.2 TEST PROCEDURE 88 5.1.3 DEVIATION FROM STANDARD 88 5.1.4 TEST SETUP 88 5.1.5 EUT OPERATION CONDITIONS 88 5.1.6 TEST RESULTS 89 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 4 of 154 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 101 6.1 APPLIED PROCEDURES / LIMIT 101 6.1.1 MEASUREMENT INSTRUMENTS LIST 101 6.1.2 TEST PROCEDURE 101 6.1.3 DEVIATION FROM STANDARD 101 6.1.4 TEST SETUP 101 6.1.5 EUT OPERATION CONDITIONS 101 6.1.6 TEST RESULTS 102 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 105 7.1 APPLIED PROCEDURES / LIMIT 105 7.1.1 MEASUREMENT INSTRUMENTS LIST 105 7.1.2 TEST PROCEDURE 105 7.1.3 DEVIATION FROM STANDARD 105 7.1.4 TEST SETUP 105 7.1.5 EUT OPERATION CONDITIONS 105 7.1.6 TEST RESULTS 106 8 . POWER SPECTRAL DENSITY TEST 136 8.1 APPLIED PROCEDURES / LIMIT 136 8.1.1 MEASUREMENT INSTRUMENTS LIST 136 8.1.2 TEST PROCEDURE 136 8.1.3 DEVIATION FROM STANDARD 136 8.1.4 TEST SETUP 136 8.1.5 EUT OPERATION CONDITIONS 136 8.1.6 TEST RESULTS 137 9 . EUT TEST PHOTO 151 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 5 of 154 1. CERTIFICATION Equipment : 1) 300Mbps Mini Wireless Router; 2) 300Mbps Wireless Rang Extender Brand Name : HUAWEI Model Name : WS322 Applicant : Huawei Technologies Co., Ltd. Date of Test : Dec. 11, 2012 ~ Jan. 02, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1212C061) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 6 of 154 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.209/15.205 Radiated Spurious Emission PASS 15.247(e) Power Spectral Density PASS 15.203 Antenn…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 81 of 154 TX CH06 (Above 1000 MHz, Vertical) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 82 of 154 EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE 2437MHz Ant./CF PeakAVPeakAVPeakAV (MHz)H/V(dBuV) (dBuV) CF(dB) (dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 2450.00H75.3659.5632.21107.5791.77X/F 48 73 .8 5H4 5. 7432 . 096. 3 95 2. 1 338 . 487 4.0 054 .00X /H Freq.Ant.Pol. Note ReadingAct.Limit Remark ： (1) All readings are Peak unless otherwise stated QP in column of 『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform 。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency 。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis ： “X” - denotes Laid on Table ；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 83 of 154 TX CH06 (Above 1000 MHz, Horizontal) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 84 of 154 EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE 2452MHz Freq.Ant.Pol.Ant./CF PeakAVPeakAVPeakAV (M Hz)H /V(d Bu V) ( dB uV )CF(d B)(d Bu V/ m ) ( dB uV / m) (dB u V/ m) (d Bu V /m ) 2469.00V68.1551.8632.19100.3484.05X/F 2 48 3.5 0V3 3.0 715 .6532 .176 5.244 7.8 27 4.0 054 .0 0X /E 4904.10V44.2130.256.5150.7236.7674.0054.00X/H Note ReadingAct.Li mit Remark ： (1) All readings are Peak unless otherwise stated QP in column of 『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform 。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency 。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis ： “X” - denotes Laid on Table ；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 85 of 154 TX CH09 (Above 1000 MHz, Vertical) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 86 of 154 EUT： 300Mbps Mini Wireless Router Model Name ： WS322 Temperature： 25 °C Relative Humidity： 51 % Pressure： 1010 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE 2452MHz Freq.Ant.Pol.Ant./CF PeakAVPeakAVPeakAV (M Hz)H /V(d Bu V) ( dB uV )CF(d B)(d Bu V/ m ) ( dB uV / m) (dB u V/ m) (d Bu V /m ) 2438.50H69.5753.6332.23101.8085.86X/F 2 48 3.5 0H3 4.6 116 .4432 .176 6.784 8.6 17 4.0 054 .0 0X /E 4904.03H44.8230.956.5151.3337.4674.0054.00X/H Note ReadingAct.Li mit Remark ： (1) All readings are Peak unless otherwise stated QP in column of 『Note』. Peak denotes that the Peak reading compliance with the QP Limits and then QP Mode measurement didn‘t perform 。 (2) Measuring frequency range from 30MHz to 1000MHz or the 10th harmonic of highest fundamental frequency 。“F” denotes fundamental frequency; “H” denotes spurious frequency. “E” denotes band edge frequency. (This judgment method includes the Band Edge Requirement.) (3) Radiated emissions measured in frequency range above 1000MHz were made with an instrument using Peak detector mode and AV detector mode of the emission 。 (4) Data of measurement within this frequency range shown “ * ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (5) A preamp and high pass filter were used for this test in order to provide sufficient measurement sensitivity. (6) EUT Orthogonal Axis ： “X” - denotes Laid on Table ；”Y” - denotes Vertical Stand；”Z” - denotes Side Stand (7) During the measurements above 1 GHz it is taken care of that the EUT is always within the 3 dB cone of radiation BW of the used antenna Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 87 of 154 TX CH09 (Above 1000 MHz, Horizontal) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 88 of 154 5. BANDWIDTH TEST 5.1 Applied procedures / limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 5.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No.Serial No.Last Calibration Next Cal…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 152 of 155 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 153 of 155 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 154 of 155 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C061 Page 155 of 155 Radiated Measurement Photos Above 1000MHz
