QISWS3231) 300Mbps Mini Wireless Router; 2) 300Mbps Wireless Range Extender

WS323 300Mbps Mini Wireless Router High-speed Ethernet access 300 Mbit/s wireless connection Dual bands 2.4 GHz and 5 GHz Multiple modes Wi-Fi router, Wi-Fi repeater, and Wi-Fi client Intelligent detection Intelligent detection of wireless signals Set-top box (STB)WS323 Gateway LaptopWS323Gateway Modem WS323Laptop Wi-Fi router mode Wi-Fi repeater mode Wi-Fi client mode The WS323 300Mbps Mini Wireless Router (WS323 for short) supports Wi-Fi 802.11a/b/g/n with wireless transmission rates up to 300 Mbit/s, provides 2.4 GHz and 5 GHz frequency bands for more stable wireless signals, and adopts the 2x2 multiple-input and multiple-output (MIMO) antenna system for wider signal coverage. Product Introduction The WS323 supports three working modes: · Wi-Fi router: The WS323 works as a Wi-Fi access point in a home or office. · Wi-Fi repeater: The WS323 strengthens existing wireless signals to increase the indoor coverage range. · Wi-Fi client: The WS323 works as a wireless network adapter. Power socket Wi-Fi protected setup (WPS) button: establishes a wireless connection quickly. Gigabit network port: connects the WS323 to a network cable. WW HWHWHWHWHW HVH VHVH H HVH 5H5HV5HV HVHV 5H5H5555 WS323 300Mbps Mini Wireless Router WS323 300Mbps Mini Wireless Router Features Product specifications Unibody design and delicate appearance Uses an integrated power supply and built-in antennas to present a compact, neat, and attractive appearance. Three working modes, with a wide array of functions Supports three working modes: Wi-Fi router (configure WAN and firewall settings), Wi-Fi repeater, and Wi-Fi client. You can easily switch between the three modes for different application scenarios. gWi-Fi router mode: helps you establish a private wireless access point. In this mode, the WS323 connects to the Internet using the Ethernet port to work as a hotspot, and allows clients, such as mobile phones or computers to access the wireless network. gWi-Fi repeater mode: increases the coverage of wireless signals. In this mode, the WS323 wirelessly connects to the Internet and provides wireless access for clients, such as mobile phones or computers. You can use this mode to increase the signal coverage of a Wi-Fi hotspot or router. gWi-Fi client mode: allows a wired device to provide wireless Internet access. In this mode, the WS323 connects to clients such as STBs or computers through the network port, allowing them to connect to the Wi-Fi hotspot or router. High-speed Ethernet access and excellent performance Uses MIMO technology, 2Tx2R built-in antennas, and high power RF to provide strong signal strength and wireless connection rates up to 300 Mbit/s. Intelligent detection of wireless signals In Wi-Fi client and Wi-Fi repeater modes, the WS323 automatically detects Wi-Fi signals of the connected access point, and displays the signal strength using the LED indicator. This helps you select a proper position for installing the WS323. WPS button supporting press-to-connect, easy and secure The WPS button lets you to establish a secure wireless connection quickly. Intuitive web management page Supports configuration on the intuitive web management page. Hardware specifications g2.4 GHz and 5 GHz Wi-Fi frequency bands, supporting 802.11a/b/g/n with wireless transmission rates up to 300 Mbit/s gTwo built-in omnidirectional antennas gOne 10/100/1000 Mbit/s autonegotiation LAN/WAN Ethernet port (with an indicator), supporting medium dependent interface (MDI) and MDI crossover (MDIX)autonegotiation gOne power plug Wireless functions gService set identifier (SSID) configuration gSSID hiding gChannels: channel 1 to 13 or automatic channel selection gFrequency bands: 20 MHz, 40 MHz, or automatic selection gWi-Fi modes: 802.11b, 802.11g, 802.11b/g/n, or 802.11a/n gWi-Fi security: encryption using advanced encryption standard (AES), temporary key integrity protocol(TKIP), and 64/128-bit wired equivalent privacy (WEP), certification using Wi-Fi protected access-pre-shared key (WPA-PSK), WPA2-PSK, or WPA-PSK+WPA2-PSK, and wireless MAC address filtering gWPS gWorking modes: Wi-Fi router, Wi-Fi repeater, and Wi-Fi client gAutomatic signal detection and signal strength display in Wi-Fi client and Wi-Fi repeater modes Maintenance and management gLocal device configuration, management, and upgrade on the web management page gRemote device management using the TR069 gSwitch between Wi-Fi router, Wi-Fi repeater, and Wi-Fi client modes on the web management page Power supply specifications ·Product power supply: 100–240 V, AC ·Product power consumption: < 5 W Physical specifications Power plug Dimensions Weight China and United States About 91 g United Kingdom About 100 g Europe About 95 g Australia About 92 g Environmental specifications gOperating temperature: 0°C to 40°C (32°F to 104°F) gOperating humidity: 5% to 95% RH (non-condensing) 73mm×73mm×46.5mm 73mm×73mm×47.5mm 73mm×73mm×58.5mm 73mm×73mm×49.5mm Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. This document is for reference only and does not constitute any form of commitment on Huawei's part. Address: Administration Building, Huawei Industrial Base, Bantian, Longgang District, Shenzhen Postal code: 518129 Website: http://www.huawei.com Email: [email protected] Version: 203234_01

Warnings and Precautions To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device" refers to the device and its accessories. Basic Requirements > During storage, transportation, and operation of the device, keep it dry and prevent it from colliding with other objects. > Do not dismantle the device. In case of any fault, contact an authorized service center for assistance or repair. > Without authorization, no organization or individual can change the mechanical, safety, or performance design of the device. > When using the device, observe all applicable laws and regulations and respect the legal rights of other people. Environmental Requirements for Using the Device > Before connecting and disconnecting cables, stop using the device, and then disconnect it from the power supply. Ensure that your hands are dry during operation. > Keep the device far from sources of heat and fire, such as a heater or a candle. > Keep the device far from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or a refrigerator. > Place the device on a stable surface. > Place the device in a cool and well-ventilated indoor area. Do not expose the device to direct sunlight. > Use the device in an area with a temperature ranging from 0°C to 40°C. > Do not place any object (such as a candle or a water container) on the device. If any foreign object or liquid enters the device, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. > During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. Precautions for Using Wireless Devices > When using the device, ensure that the antenna of the device is at least 20 cm away from all persons. > When using the device, ensure that the antenna of the device is at least 20 cm away from all persons. When using the handset of the device, however, you can use it close to your body. > The radio waves generated by the device may interfere with the operation of electronic medical devices. If you are using any electrical medical device, contact its manufacturer for the restrictions on the use of the device. > Do not take the device into operating rooms, intensive care units (ICUs), or coronary care units (CCUs). Areas with Inflammables and Explosives > Do not use the device where inflammables or explosives are stored, for example, in a gas station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition, follow the instructions indicated in text or symbols. > Do not store or transport the device in the same box as inflammable liquids, gases, or explosives. Accessory Requirements > Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the performance of the device may get 1 affected, the warranty for the device or the laws and regulations related to telecommunications terminals may become null and void, or an injury may occur. > Do not use the power adapter if its cable is damaged. Otherwise, electric shocks or fires may occur. > Ensure that the power adapter meets the specifications indicated on the device nameplate. > For pluggable device, the socket-outlet shall be installed near the device and shall be easily accessible. Safety of Children Keep the device and its accessories out of the reach of children. Otherwise, they may damage the device and its accessories by mistake, or they may swallow the small components of the device, causing suffocation or other dangerous situations. Maintenance > If the device is not used for a long time, power it off, and then remove all the cables connected to it. > If any exception occurs, for example, if the device emits any smoke or unusual sound or smell, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center. > If the device screen is broken by colliding with hard objects, do not touch or try to remove the broken part. In this case, stop using the device immediately, and then contact an authorized service center in time. Disposal and Recycling Information This symbol (or without a solid bar) on the device, and/or on its packaging, and on its batteries where included, indicates that the device including its electrical accessories (e.g. headset, adapter, cable) and the batteries should not be disposed of as normal household garbage. These items should not be disposed as unsorted municipal waste and should be handed over to a certified collection point for recycling or proper disposal at the end of their life. For more detailed information about the recycling of the device or batteries, please contact your local city office, the household waste disposal service, or the retail store where you purchased it/them. Disposal of the device and batteries if included is subject to WEEE Directive Recast (Directive 2012/19/EU) and Battery Directive (Directive 2006/66/ EC). The purpose for separating WEEE and batteries from other waste is to minimize the potential environmental impacts on human health of any hazardous substances that may be present. Reduction of Hazardous Substances This device is compliant with the REACH Regulation [Regulation (EC) No 1907/2006] and RoHS Directive Recast (Directive 2011/65/EU). Batteries where included are compliant with Battery Directive (Directive 2006/66/ EC). For more information about the REACH and RoHS compliance of the device, please visit the Web site www.huaweidevice.com/certification. You are recommended to visit the Web site regularly for up-to-date information. EU Regulatory Conformance This device should be installed and operated with a minimum distance of 20 cm between the antenna and all persons. Български: С настоящето Huawei Technologies Co., Ltd.…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Jan 03, 2013 To whom it may concern: We the undersigned, hereby authorize EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd Sincerely, Signature: Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd January 3, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd would like the following documents regarding this submission for FCC ID: QISWS323 to be kept confidential. 1. Schematic 2. Block diagram 3. Operational description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co.,Ltd Attestation Letter To whom it may concern: We, the undersigned, Name: Huawei Technologies Co.,Ltd Address: Bantian, Longgang District, Shenzhen Declare that: Product description: 1)300Mbps Mini Wireless Router;2)300Mbps Wireless Range Extender Model: WS323 Brand Name: HUAWEI Hereby the DoC procedure will be carried out prior to marketing the product in the USA. on our behalf. Date: 2013-1-3 Name: Zhang Xinghai Function: EMC Laboratory Manager Signature:

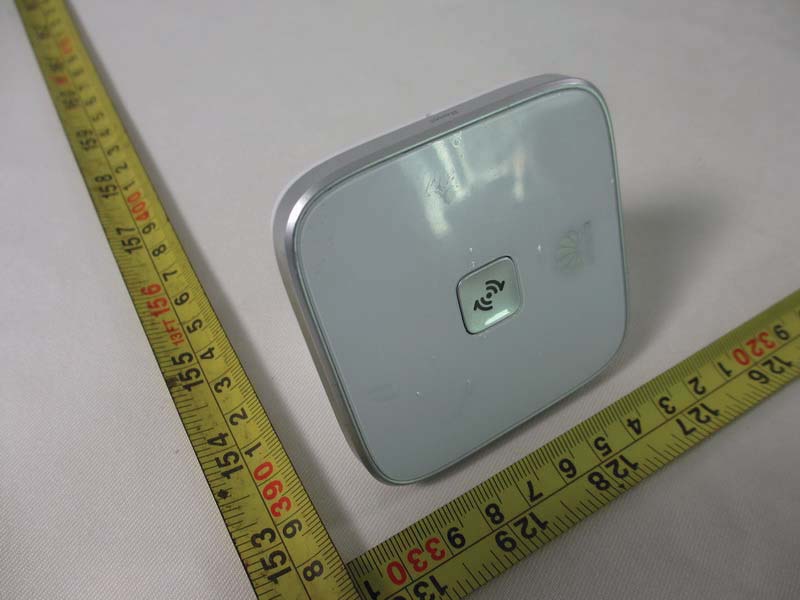

Neutron Engineering Inc. Project No.: 1212C062 Page 2 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 3 of 11

2013-01-17 2013-01-17 2013-01-17 2013-01-17 GEYAHUI YANGYINGZHI ZHONGGANG WS323 Pantone Black C 物料底纸必须满足打印要求 红色框中内容由产线打印 DKBA8.807.6589 96651029 WS323产品铭牌标签_美规 D K B A 8 . 8 0 7 . 6 5 8 9 0.2 PET哑白 7 . 0 m m 2xR5 6xR0.5 5 . 0 m m 4.0 mm 3 . 0 m m 3 . 0 m m 32.4 mm 1 8 . 0 m m 8 . 5 m m 7 . 4 m m 16.2 mm A LUOXUANYU FCC ID:QISWS323 5 . 0 m m GEYAHUI YANGYINGZHI ZHONGGANG WS323 Pantone Black C 物料底纸必须满足打印要求 红色框中内容由产线打印 WS323产品铭牌标签_美规 0.2 PET哑白 7 . 0 m m 2xR5 6xR0.5 5 . 0 m m 4.0 mm 3 . 0 m m 3 . 0 m m 32.4 mm 1 8 . 0 m m 8 . 5 m m 7 . 4 m m 16.2 mm A LUOXUANYU DKBA8.807.6667 96651202 D K B A 8 . 8 0 7 . 6 6 6 7 2013-01-17 2013-01-17 2013-01-17 2013-01-17 5 . 0 m m FCC ID:QISWS323

Neutron Engineering Inc. Project No.: 1212C062 Page 4 of 11 Transformer: Ktec Neutron Engineering Inc. Project No.: 1212C062 Page 5 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 6 of 11 Transformer :MOSO Neutron Engineering Inc. Project No.: 1212C062 Page 7 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 8 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 9 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 10 of 11 Neutron Engineering Inc. Project No.: 1212C062 Page 11 of 11

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: QISWS323 Project No. : 1212C062 Equipment : 1)300Mbps Mini Wireless Router; 2)300Mbps Wireless Range Extender Model Name : WS323 Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Huawei Base, Bantian, Lon ggang District ,Shenzhen 518129, P.R.China According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 0 HUAWEI 101003WS322A Integral Antenna N/A 0.94 2.4G 1 HUAWEI 101003WS322A Integral Antenna N/A 1.0 2.4G Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Operating Mode TX Mode 1TX 2TX 802.11b V (ANT0 or ANT1) - 802.11g V (ANT0 or ANT1) - 802.11n(20MHz) - V (ANT0 & ANT1) 802.11n(40MHz) - V (ANT0 & ANT1) Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 18.11 64.7143 0.026299671 Complies 21.88 154.1700 0.062654231 Complies 18.97 78.8860 0.032059031 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 20.18 104.2317 0.042359461 Complies 23.58 228.0342 0.092672391 Complies 20.69 117.2195 0.047637651 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.66 92.4698 0.037579451 Complies 24.10 257.0396 0.104460081 Complies 20.10 102.3293 0.041586311 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 18.11 64.7143 0.026299671 Complies 21.88 154.1700 0.062654231 Complies 18.97 78.8860 0.032059031 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 – ANT0+ ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 21.96 157.0363 0.063819061 Complies 26.14 411.1497 0.167089971 Complies 22.58 181.1340 0.073612301 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.34 54.2001 0.022026751 Complies 24.26 266.6859 0.108380311 Complies 17.44 55.4626 0.022539821 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 14.92 31.0456 0.012616831 Complies 22.42 174.5822 0.070949671 Complies 15.43 34.9140 0.014188951 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 - ANT 0+ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.31 85.3100 0.034669721 Complies 26.45 441.5704 0.179452851 Complies 19.45 88.1049 0.035805551 Complies

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: QISWS323 Project No. : 1212C062 Equipment : 1)300Mbps Mini Wireless Router; 2)300Mbps Wireless Range Extender Model Name : WS323 Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Huawei Base, Bantian, Lon ggang District ,Shenzhen 518129, P.R.China According: : FCC Guidelines for Human Exposure IEEE C92.76 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 0 HUAWEI 101003WS322A Integral Antenna N/A 1.0 5G 1 HUAWEI 111003WS322A Integral Antenna N/A 1.0 5G Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R) Operating Mode TX Mode 1TX 2TX 802.11a V (ANT 0 or ANT 1)- 802.11n(20MHz) - V (ANT 0 & ANT 1) 802.11n(40MHz) - V (ANT 0 & ANT 1) Neutron Engineering Inc. TEST RESULTS EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX A Mode /CH149, CH157, CH165 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 16.44 44.0555 0.017904011 Complies 16.90 48.9779 0.019904461 Complies 16.89 48.8652 0.019858681 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/TX N20 Mode /CH149, CH157, CH165-ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 16.92 49.2040 0.019996331 Complies 17.35 54.3250 0.022077521 Complies 17.51 56.3638 0.022906061 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/TX N20 Mode /CH149, CH157, CH165-ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 16.57 45.3942 0.018448051 Complies 16.93 49.3174 0.020042431 Complies 17.39 54.8277 0.022281811 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/TX N20 Mode /CH149, CH157, CH165 -ANT 0+ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 19.76 94.6237 0.038454781 Complies 20.16 103.7528 0.042164831 Complies 20.46 111.1732 0.045180431 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX N40 Mode /CH151, CH159-ANT 0 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.22 52.7230 0.021426461 Complies 16.94 49.4311 0.020088631 Complies Neutron Engineering Inc. EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX N40 Mode /CH151, CH159-ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 17.13 51.6416 0.020987001 Complies 16.75 47.3151 0.019228721 Complies EUT： 300Mbps Mini Wireless Router Model Name ： WS323 Temperature： 25 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： Band 4/ TX N40 Mode /CH151, CH159 -ANT 0+ANT 1 Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 20.19 104.4720 0.042457101 Complies 19.86 96.8278 0.039350511 Complies

Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 1 of 123 FCC Radio Test Report FCC ID: QISWS323 This report concerns (check one): Original Grant Class I Change Issued Date : Jan. 04, 2013 Project No. : 1212C062 Equipment : 1)300Mbps Mini Wireless Router; 2)300Mbps Wireless Range Extender Model Name : WS323 Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang District, Shenzhen China Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District ,Shenzhen 518129, P.R.China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Dec. 12, 2012 Date of Test: Dec. 12, 2012 ~ Jan. 02, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 2 of 123 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 3 of 123 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (9K~ 30MHZ) 25 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 26 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 39 5 . BANDWIDTH TEST 71 5.1 APPLIED PROCEDURES / LIMIT 71 5.1.1 MEASUREMENT INSTRUMENTS LIST 71 5.1.2 TEST PROCEDURE 71 5.1.3 DEVIATION FROM STANDARD 71 5.1.4 TEST SETUP 71 5.1.5 EUT OPERATION CONDITIONS 71 5.1.6 TEST RESULTS 72 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 4 of 123 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 MEASUREMENT INSTRUMENTS LIST 82 6.1.2 TEST PROCEDURE 82 6.1.3 DEVIATION FROM STANDARD 82 6.1.4 TEST SETUP 82 6.1.5 EUT OPERATION CONDITIONS 82 6.1.6 TEST RESULTS 83 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 86 7.1 APPLIED PROCEDURES / LIMIT 86 7.1.1 MEASUREMENT INSTRUMENTS LIST 86 7.1.2 TEST PROCEDURE 86 7.1.3 DEVIATION FROM STANDARD 86 7.1.4 TEST SETUP 86 7.1.5 EUT OPERATION CONDITIONS 86 7.1.6 TEST RESULTS 87 8 . POWER SPECTRAL DENSITY TEST 110 8.1 APPLIED PROCEDURES / LIMIT 110 8.1.1 MEASUREMENT INSTRUMENTS LIST 110 8.1.2 TEST PROCEDURE 110 8.1.3 DEVIATION FROM STANDARD 110 8.1.4 TEST SETUP 110 8.1.5 EUT OPERATION CONDITIONS 110 8.1.6 TEST RESULTS 111 9 . EUT TEST PHOTO 120 Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 5 of 123 1. CERTIFICATION Equipment : 1)300Mbps Mini Wireless Router; 2)300Mbps Wireless Range Extender Brand Name : HUAWEI Model Name : WS323 Applicant : Huawei Technologies Co.,Ltd. Factory : Huawei Technologies Co.,Ltd. Address : Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R.China Date of Test : Dec. 12, 2012 ~ Jan. 02, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-2-1212C062) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the 5745~5825MHz part of the product. Neutron Engineering Inc. Report No.: NEI-FCCP-2-1212C062 Page 6 of 123 2. SUMMARY OF TEST RESULTS FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (d) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.24…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1212C062 Page 1 of 154 FCC Radio Test Report FCC ID: QISWS323 This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 04, 2013 Project No. : 1212C062 Equipment : 1)300Mbps Mini Wireless Router; 2)300Mbps Wireless Range Extender Model Name : WS323 Applicant : Huawei Technologies Co.,Ltd. Address : Bantian, Longgang Distri…
