QISY221-U33WCDMA Digital Mobile Phone

1 Gett ing to know your phone Thank you for choosing the HUAWEI smartphone. First, let's take a look at a few basics. Press and hold the power button to power on your phone. After your phone is powered up, you can use the power button to turn the screen off and on. 2 Preparing your phone To insert a SIM card, the battery and a microSD card please perform the few steps shown in the following f igures. Your phone is shipped with the battery part ially charged. It is recommended that you fully charge the battery before using it for the f irst t ime. 3 Dual-Card Management Your mobile phone supports access to both WCDMA and GSM networks. Follow the onscreen instruct ions or the quick start guide to install SIM cards. 1. On the home screen, touch > . 2. Touch SIM management to activate the SIM cards. 4 Locking and unlocking the screen When you are not using your phone, press the power button to turn off the screen. After being idle for a specif ied period of t ime, your phone locks its screen automat ically. Follow the onscreen instruct ions and drag to unlock the screen or open an applicat ion. 5 Managing contacts On the home screen, touch > to open Contact. Touch the tab page to group your contacts for easier management. 6 Making a call On the home screen, touch > to open the dialer. You can dial a phone number directly. You can also touch a phone number in places like messages, email and webpages to make a call. To answer an incoming call, drag to . 7 Sending messages On the home screen, touch > to open Messaging. Adding a photo or audio clip to a text message turns it into a mult imedia message. You can also save attachments from mult imedia messages. 8 Taking a photo or video On the home screen, touch > to open Camera. Touch to take a photo. Frame the scene and touch to record a video. 9 Listening to music On the home screen, touch > to open Play Music. You can copy songs to your phone and immerse yourself with extraordinary audio experience anyt ime. You can also mark your songs to add them to the playlist. 10 Surf ing the web On the home screen, touch > to open Browser. You can start surf ing the web right away using your phone's browser and stay on ball with up-to-date news and informat ion. Your browser supports mult i-page browsing. Touch to switch between pages. 11 For more help Want to obtain the user guide? Search for and download the User Guide from http://consumer.huawei.com/en/. 12 Personal informat ion and data security The use of some funct ions or third-party applicat ions on your device could result in your personal informat ion and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and conf ident ial informat ion.
Place your device in a safe area to prevent it from unauthorized use.
Set your device screen to lock and create a password or unlock pattern to open it.
Periodically back up personal informat ion kept on your SIM/USIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal informat ion on your old device.
If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them.
If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal informat ion.
If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off.
Install or upgrade device security software and regularly scan for viruses.
Be sure to obtain third-party applicat ions from a legit imate source. Downloaded third-party applicat ions should be scanned for viruses.
Install security software or patches released by Huawei or third-party applicat ion providers. 13
Some applicat ions require and transmit locat ion informat ion. As a result, a third-party may be able to share your locat ion informat ion.
Your device may provide detect ion and diagnost ic informat ion to third-party applicat ion providers. Third party vendors use this informat ion to improve their products and services.
If you have concerns about the security of your personal informat ion and data, please contact [email protected]. For more help Please visit http://consumer.huawei.com/en/support/hotline/ for recently updated hotline and email address in your country or region. 14 Legal not ice Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. Trademarks and permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names ment ioned may be the property of their respect ive owners. Third-Party software statement Huawei does not own the intellectual property of the third-party software and applicat ions that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applicat ions. Neither will Huawei provide support to customers who use third-party software and applicat ions, nor be responsible or liable for the funct ions or performance of third-party software and applicat ions. Third-party software and applicat ions services may be interrupted or terminated at any t ime, and Huawei does not guarantee the availability of any content or service. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for 15 services provided by third-party service providers, or the interrupt ion or terminat ion of third-party con…

Text truncated - open the document above for the full version.

HUAWEI Y221-U33 WCDMA Digital Mobile Phone 文档密级 2014-7-31 华为保密信息,未经授权禁止扩散 第1页, 共1页 Letter of Agency I, an officer of HUAWEI TECHNOLOGIES CO., LTD. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under FCC Part 15 and FCC Part 22&24 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-07-024 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QIS Y221-U33 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description A bove mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-12-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E- mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

文档名称 文档密级 2014-8-1 华为保密信息,未经授权禁止扩散 第1页, 共1页 Declaration Manufacturer/Application:Huawei Technologies Co.,Ltd FCC ID:QISY221-U33 I declare that the shielded USB cable used in the test will be marketed with the EUT. Yours sincerely, Product Manager: Email: [email protected]

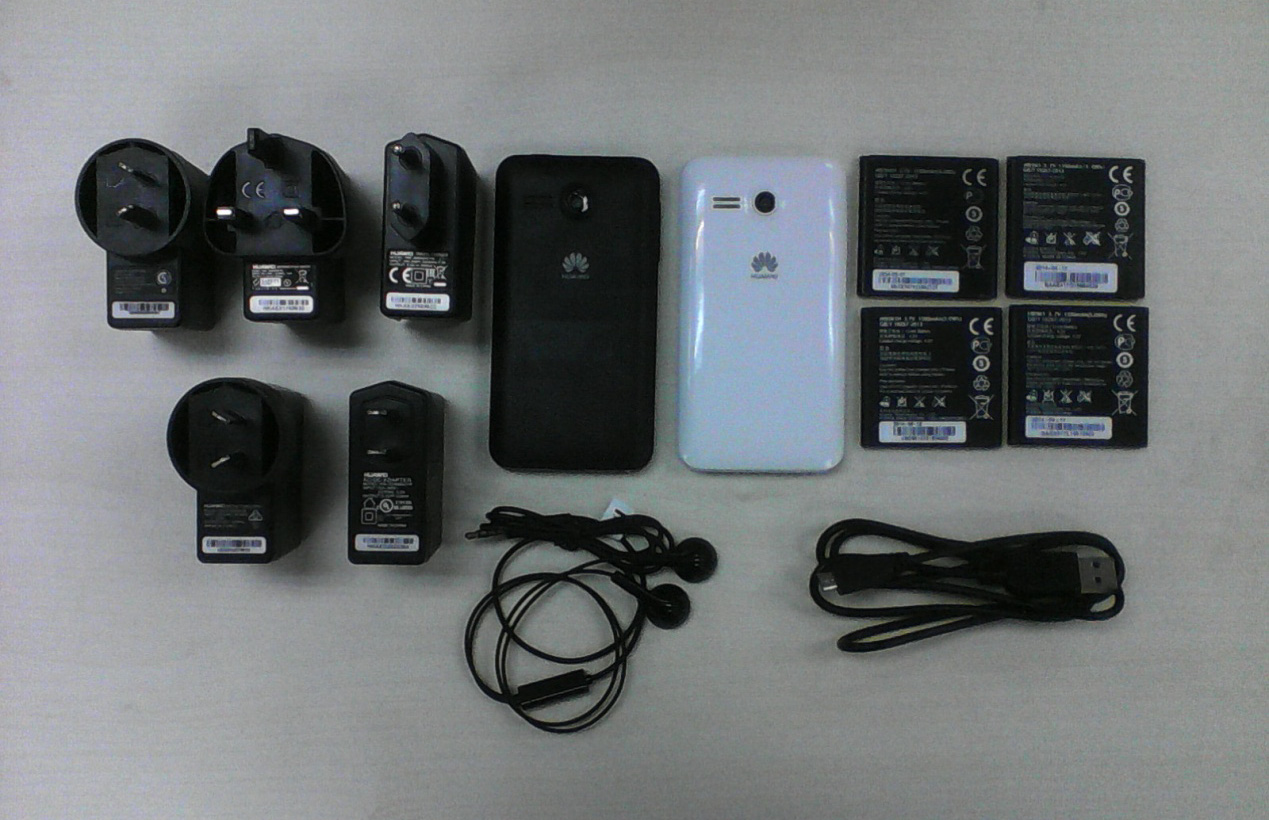

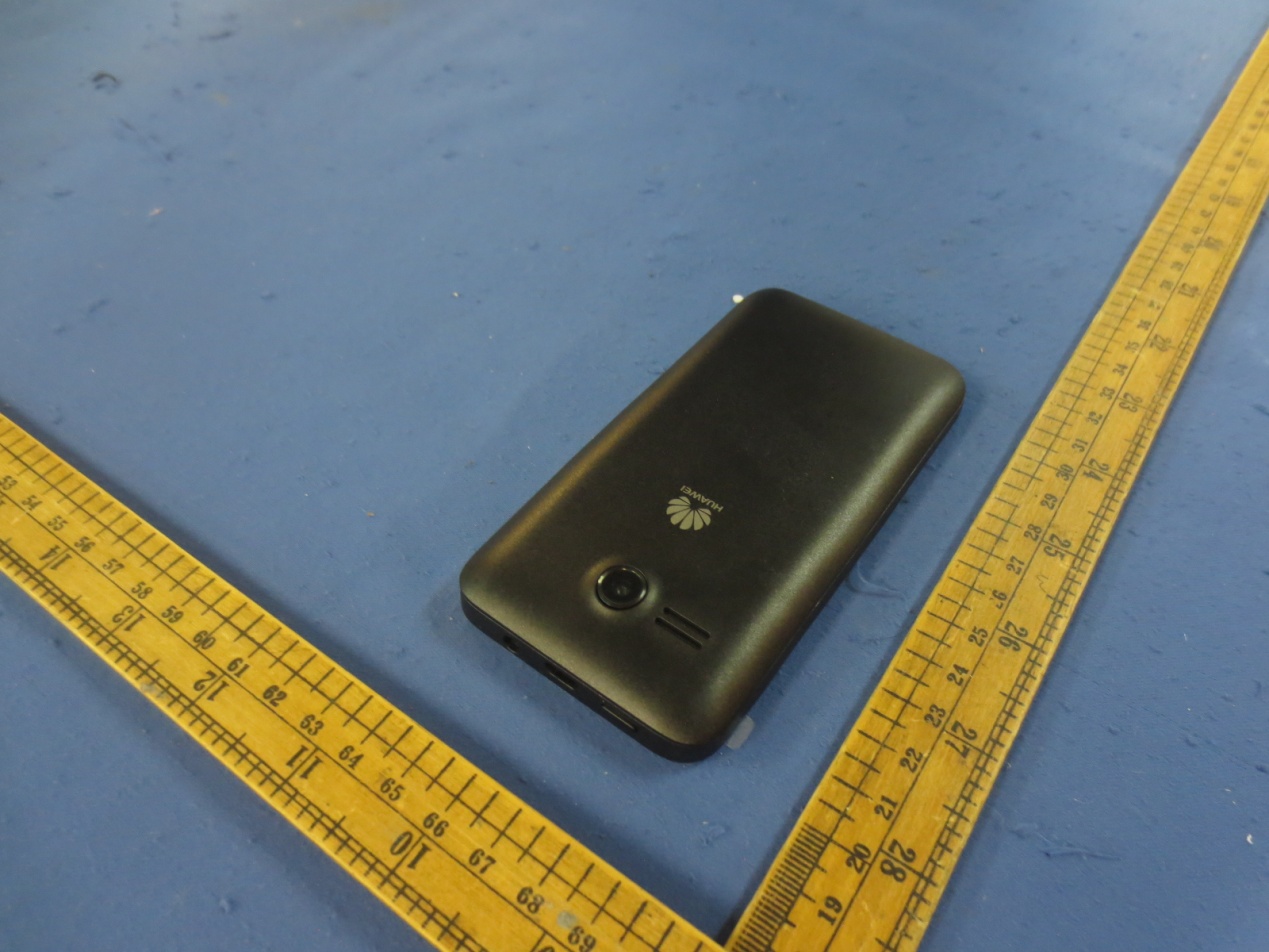

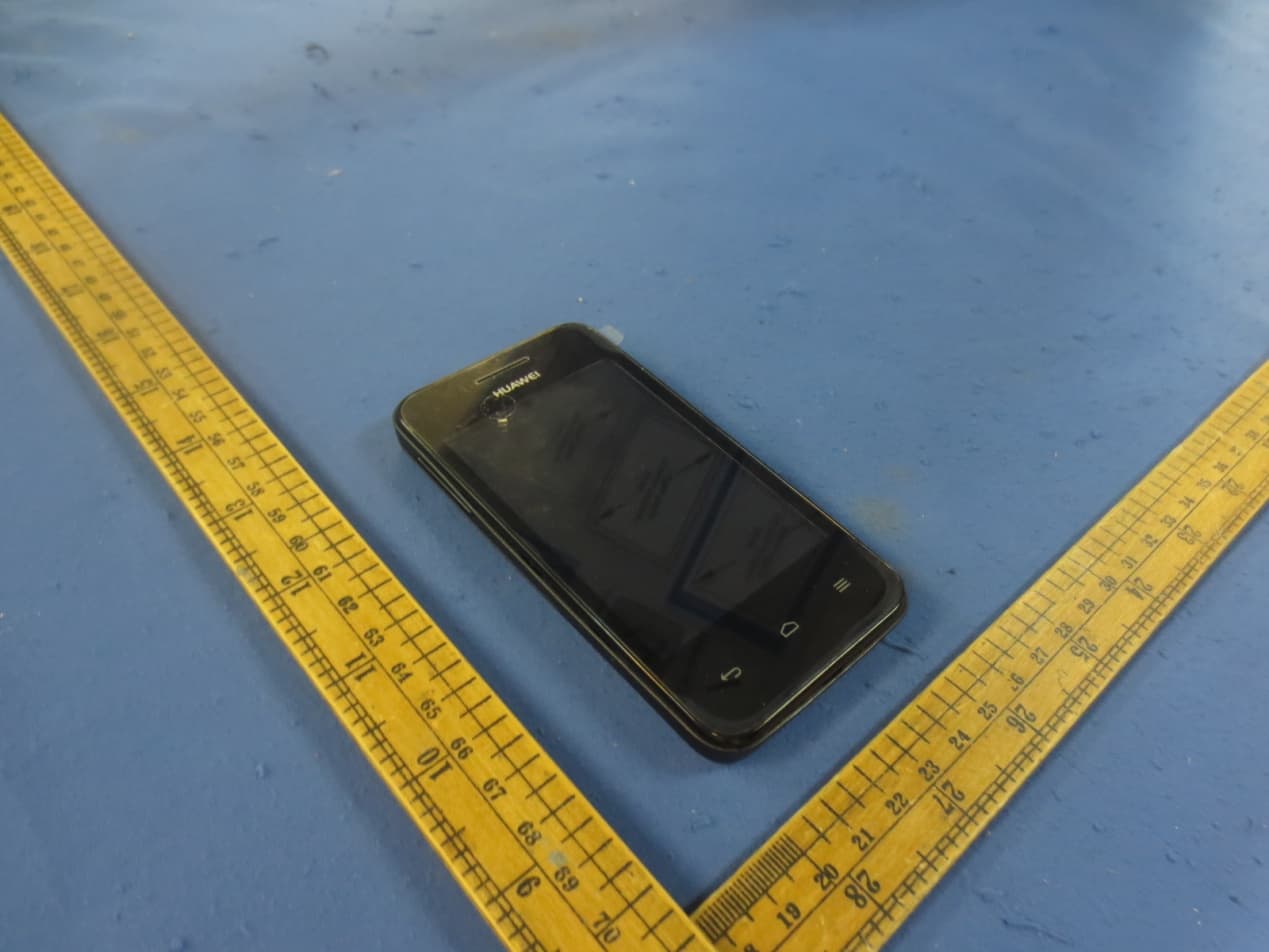

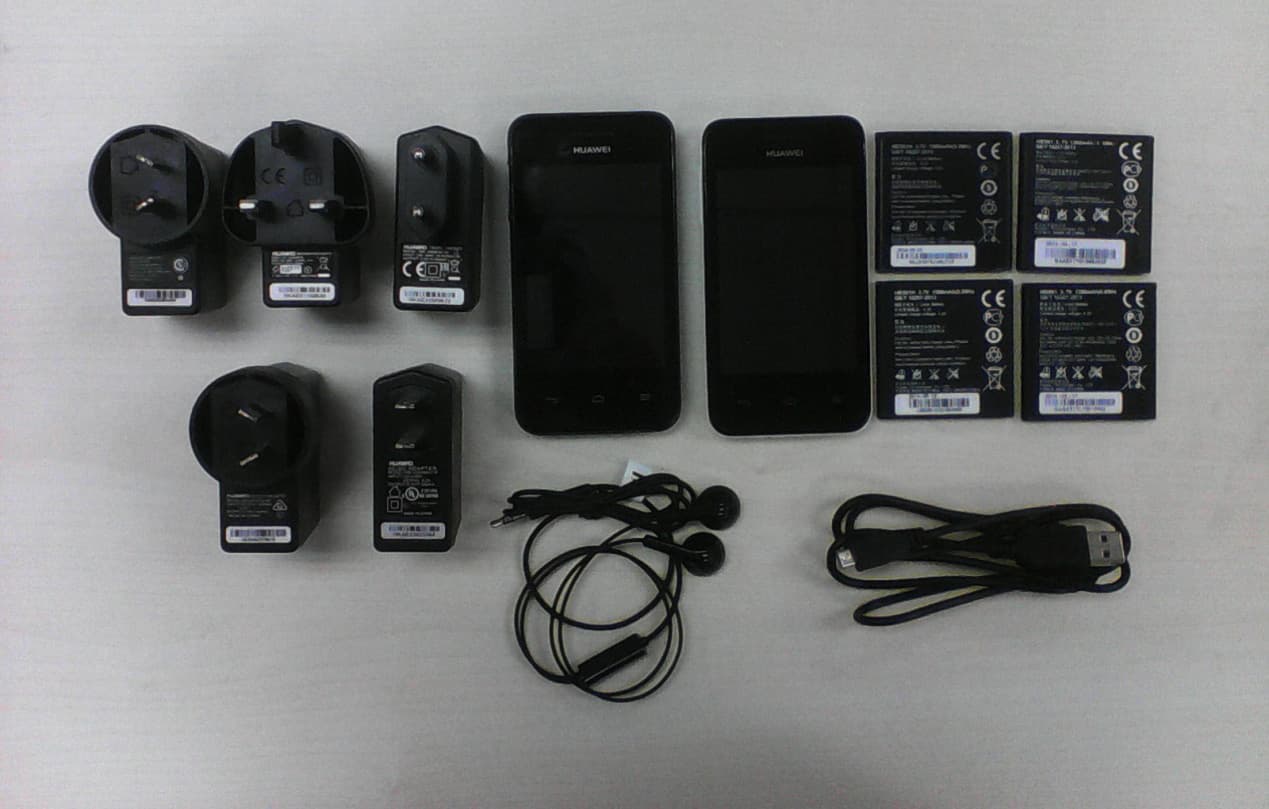

External Photos

HUAWEI Y221-U33 WCDMA Digital Mobile Phone 文档密级 2014-7-24 华为保密信息,未经授权禁止扩散 第1页, 共1页 Statement We, Huawei Technologies Co.,Ltd., states that our device, FCC ID: QISY221-U33, The label is put inside the battery compartment But the battery will not be placed in the battery compartment when delivery, the label is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E- mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

HUAWEI Y221-U33 WCDMA Digital Mobile Phone SECRET 2014-7-18 Page1, Total1 Label & Label Location：

Internal Photos

Report No.: RXA1406-0163SAR01R1 Page 1 of 220 TESTING No. L2264 SAR TEST REPORT Product Name WCDMA Digital Mobile Phone Model Name HUAWEI Y221-U33 FCC ID QISY221-U33 Applicant Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue July 30, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 2 of 220 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 Handset SAR v01r02: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D02 HSPA and 1x Advanced v02r02 SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced KDB 941225 D03 Test Reduction GSM_GPRS_EDGE v01:Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 941225 D06 Hotspot Mode SAR v01r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Weizhong Yang Director Revised by Minbao Ling SAR Manager Performed by Yi Zhang SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 3 of 220 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. EUT Antenna Locations ........................................................................................................ 9 1.7. The Maximum Reported SAR 1g .......................................................................................... 10 1.8. Test Date ............................................................................................................................ 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up .................................................................................................. 11 2.2. DASY5 E-field Probe System ............................................................................................. 12 2.2.1. EX3DV4 Probe Specification ....................................................................................... 12 2.2.2. E-field Probe Calibration .............................................................................................. 13 2.3. Other Test Equipment ......................................................................................................... 13 2.3.1. Device Holder for Transmitters .................................................................................... 13 2.3.2. Phantom ...................................................................................................................... 14 2.4. Scanning Procedure ........................................................................................................... 14 2.5. Data Storage and Evaluation .............................................................................................. 16 2.5.1. Data Storage ................................................................................................................ 16 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 16 3. Laboratory Environment ............................................................................................................. 18 4. Tissue-equivalent Liquid ............................................................................................................ 19 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 19 4.2. Tissue-equivalent Liquid Properties .................................................................................... 21 5. System Check ............................................................................................................................ 22 5.1. Description of System Check .............................................................................................. 22 5.2. System Check Results ..............................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 147 of 220 UMTS Band V Left Cheek Middle (Battery 4) Date: 2014-07-10 Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.932 S/m; ε r = 41.357; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.41, 9.41, 9.41); Calibrated: 2013-11-28; Electronics: DAE4 Sn1317; Calibrated: 2014-01-16 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Left Cheek Middle/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.611 W/kg Left Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.133 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 0.720 W/kg SAR(1 g) = 0.587 W/kg; SAR(10 g) = 0.442 W/kg Maximum value of SAR (measured) = 0.612 W/kg Figure Left Touch Cheek UMTS Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 148 of 220 UMTS Band V Back Side High (Battery 1) Date: 2014-07-09 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 1.005 S/m; ε r = 54.978; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.51, 9.51, 9.51); Calibrated: 2013-11-28; Electronics: DAE4 Sn1317; Calibrated: 2014-01-16 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Back Side High/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.636 W/kg Back Side High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.809 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.763 W/kg SAR(1 g) = 0.605 W/kg; SAR(10 g) = 0.446 W/kg Maximum value of SAR (measured) = 0.641 W/kg Figure Body, Back Side, UMTS Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 149 of 220 UMTS Band V Back Side Middle (Battery 1) Date: 2014-07-09 Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.995 S/m; ε r = 55.073; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.51, 9.51, 9.51); Calibrated: 2013-11-28; Electronics: DAE4 Sn1317; Calibrated: 2014-01-16 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Back Side Middle/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.762 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.926 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.913 W/kg SAR(1 g) = 0.724 W/kg; SAR(10 g) = 0.533 W/kg Maximum value of SAR (measured) = 0.766 W/kg Figure Body, Back Side, UMTS Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 150 of 220 UMTS Band V Back Side Low (Battery 1) Date: 2014-07-09 Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.985 S/m; ε r = 55.173; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.51, 9.51, 9.51); Calibrated: 2013-11-28; Electronics: DAE4 Sn1317; Calibrated: 2014-01-16 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Back Side Low/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.702 W/kg Back Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.825 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.850 W/kg SAR(1 g) = 0.671 W/kg; SAR(10 g) = 0.493 W/kg Maximum value of SAR (measured) = 0.711 W/kg Figure Body, Back Side, UMTS Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 151 of 220 UMTS Band V Front Side Middle (Battery 1) Date: 2014-07-09 Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.995 S/m; ε r = 55.073; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.51, 9.51, 9.51); Calibrated: 2013-11-28; Electronics: DAE4 Sn1317; Calibrated: 2014-01-16 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Front Side Middle/Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.592 W/kg Front Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.052 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.735 W/kg SAR(1 g) = 0.559 W/kg; SAR(10 g) = 0.409 W/kg Maximum value of SAR (measured) = 0.594 W/kg Figure Body, Front Side, UMTS Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0163SAR01R1 Page 152 of 220 UMTS Band V Left Edge Middle (Battery 1) Date: 2014-07-09 Communication System: WCDMA; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz…
