QISY300-0151HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth

Welcome to HUAWEI Quick Start Guide HUAWEI Ascend Y300 1 Phone at a Glance All the pictures in this guide are for your reference only. Your phone's actual display features may be different to those described here, depending on its software version. Key Functions at Your Fingertips • Press and hold to power on your mobile phone. • When your mobile phone is powered on, press and hold this button to display the options menu. You can then choose to power off the phone or perform shortcut operations. • Press to lock the screen when your mobile phone is active. Touch to open the menu on an active screen. Earpiece Volume key Headset jack Charger/ Data port Power key Back Home Menu Secondary camera Main camera 2 Installing the SIM Card There are two steps to install the SIM card: 1. Remove the battery cover. 2. Insert the SIM card. Installing the microSD Card If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. • Touch to return to the Home screen. • Touch and hold to display recently used applications. • Touch to return to the previous screen or exit the application you are running. • Touch to hide the keyboard. 3 Removing the microSD Card 1. Remove the battery cover. 2. Pull the microSD card outward. 3. Rotate your phone until the microSD card falls out. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. a b 4 If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone's battery. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Status Indicator Orange: Charging in progress (when connected to charger). Red: Battery low. Green: Fully charged (when connected to charger). Touch & holdTouchDouble touch RotateFlickDrag 5 Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. To return to the Home screen from any of its extensions, press . When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Moving an Application Icon 1. On the Home screen, touch and hold the icon you want to move. 2. Drag the icon to the desired location and release it. To move additional icons, repeat the preceding steps. Importing Contacts from a SIM Card 1. In the contacts list, touch > Manage contacts. 2. Touch Copy from SIM card. Flick your finger left or right across the Home screen. 10:23 6 3. Wait for the SIM card contents to be loaded. Touch one contact to import that contact individually to your mobile phone, or touch SELECT ALL to import all contacts to your mobile phone. 4. Touch COPY. 5. If you have more than one account on your phone, touch the account into which you want to import the contacts. Adding a Contact 1. In the contact list, touch . 2. From the screen displayed, create a contact in your mobile phone, SIM card or your account. Add a new account if you do not have one. 3. Enter the contact's name, and then add detailed information such as phone numbers and address. 4. Touch DONE to save the contact information. To save a contact from your call log, touch and hold the desired phone number to display the options menu, and then touch Add to contacts. Making a Call with the Phone Application 1. On the Home screen, touch . If the dialer is not displayed, touch . 2. Enter the phone number. 3. Touch to initiate the call. Creating and Sending a Multimedia Message You can use multimedia messages to make everyday communications very special. You can record a message and send 7 it as an audio file, for example, sing "Happy Birthday" and send it to a friend, or send a slideshow of photographs of a special event. The possibilities are enormous. 1. Enter a phone number in the To field, or touch to select a contact from People. 2. Touch the composition text box to start composing your message. 3. When you are ready to send the message, touch . Connecting Internet Get online using your phone's Wi-Fi to save your money. Turning On Wi-Fi 1. Touch Settings > All. 2. Under WIRELESS & NETWORKS, touch the button next to Wi-Fi. Basic Operations Touch to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will MMS 10:23 8 preferably select a Wi-Fi network for Internet access. Touch on the upper section of the screen, and all web pages currently open are displayed. You can: • Touch one page to enlarge it. • Touch the cross sign (×) to close that page. • Touch (+) to open a new browser window. Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. 3. As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1. Open the notification bar. 2. Touch at the top of the screen to switch data services on o…

Text truncated - open the document above for the full version.

2013-1-15 华为保密信息,未经授权禁止扩散 第1页, 共1页 Huawei Technologies Co., Ltd. Date (1/15/2013) We, Huawei Technologies Co., Ltd. declare that this EUT(FCC ID:QISY300-0151) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North American. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Zhang Xinghai For and Behalf of: Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C EMC Laboratory Manager E-mail: [email protected] Fax: 0086-0755-89650226 Tel: 0086-0755-28970299

Huawei Technologies Co.,Ltd. Federal Communications Commission 2012-12-26 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISY300-0151 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-04-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: January 16, 2013 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISY300-0151, The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

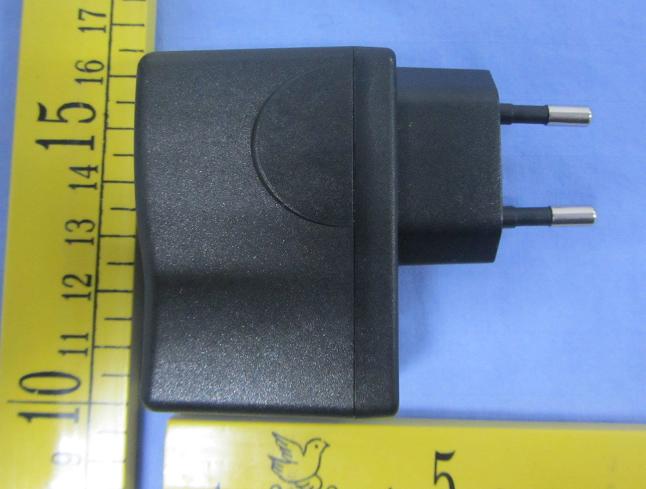

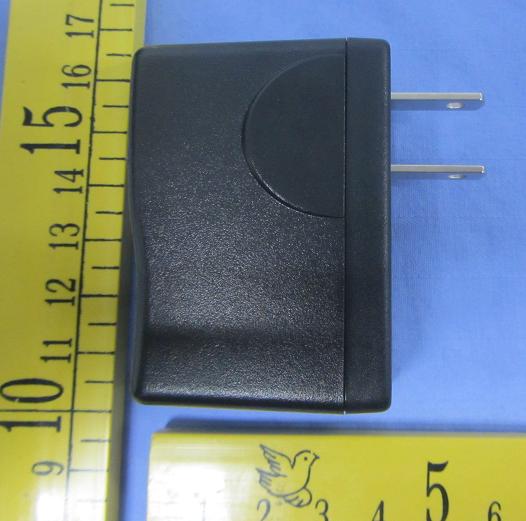

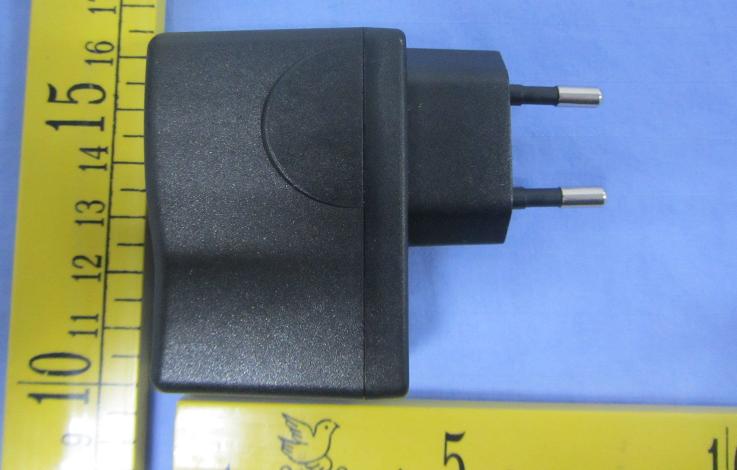

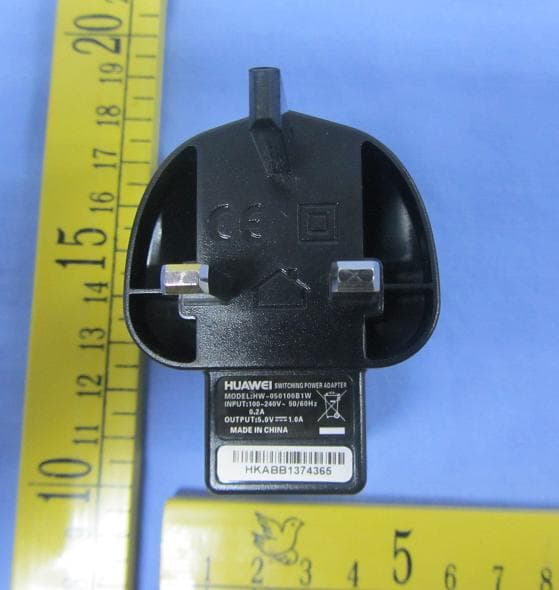

HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page1,Total 18 External Photos of HUAWEI Y300-0151, Y300-0151 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page2,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page3,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page4,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page5,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page6,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page7,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page8,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page9,Total 18 HW050055E1W HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page10,Total 18 HW-05100E1W HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page11,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page12,Total 18 HW-100U1W HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page13,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page14,Total 18 HW-05055B1W HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page15,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page16,Total 18 HW-050100B1W HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page17,Total 18 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page18,Total 18

HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page1, Total 5 Label&Label Location of HUAWEI Y300-0151, Y300-0151 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page2, Total 5 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page3, Total 5 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page4, Total 5 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page5, Total 5

HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page1,Total 14 Internal Photos of HUAWEI Y300-0151, Y300-0151 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page2,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page3,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page4,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page5,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page6,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page7,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page8,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page9,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page10,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page11,Total 14 HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page12,Total 14 1. WiFi & BT uses the same antenna and they use different chip 2. Diversity antenna effect is used to improve the acceptance of performance of the main antenna, does not have a transmitter function. HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page13,Total 14 NO Name model manufactory 1 4GB EMMC KMSJS000KM-B308000 H9DP32A4JJACGR-KEM Samsung/ Sandisk/Hynix 2 CPU MSM-8225-0-576NSP-TR-00-0-AA QUALCOMM 3 Crystal monofier FC135 12.5 20 200003-PG14 EPSON MICRO CRYSTAL 4 Crystal monofier DSA321SCA 19.2MHz ENE3192A 19.2MHz KDS NDK HUAWEI Y300-0151, Y300-0151 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 SECRET Page14,Total 14 KT3225P19200DCW28PN0 KYOCERA 5 RTR RTR6285A QUALCOMM 6 WCDMA PA ACPM-5001-TR1 ACPM-5008-TR1 AVAGO 7 RF switch RF1194ATR13HW RFMD 8 Wi-Fi AR6005 QUALCOMM 9 PM PM8029 QUALCOMM 10 GSM PA SKY77336-13 SKYWORKS 11 camera P5V04C 23060084富士康 SUNNY 富士康 12 BT FM WCN2243 QUALCOMM

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Manager) CHECKED PREPARED BY DATE 2012-01-15 2012-01-15 2012-01-15 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI Y300-0151, Y300-0151 QISY300-0151 SYBH(Z-SAR)035112012-2 HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth; HUAWEI Ascend Y300 Report No.:SYBH(Z-SAR)035112012-2 FCC ID:QISY300-0151 2013-01-15 Page 2 of 46 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 7 1.5 Testing laboratory ....................................................................................................................................................... 7 1.6 Applicant and Manufacturer ...................................................................................................................................... 7 1.7 Application details ...................................................................................................................................................... 7 1.8 Ambient Condition ..................................................................................................................................................... 7 2 SAR Measurement System ............................................................................................................................................. 8 2.1 SAR Measurement Set-up ....................................................................................................................................... 8 2.2 Test environment ........................................................................................................................................................ 9 2.3 Data Acquisition Electronics description ................................................................................................................ 9 2.4 Probe description ..................................................................................................................................................... 10 2.5 Phantom description ................................................................................................................................................ 11 2.6 Device holder description ........................................................................................................................................ 11 2.7 Test Equipment List ................................................................................................................................................. 12 3 SAR Measurement Procedure ...................................................................................................................................... 13 3.1 Scanning procedure ................................................................................................................................................. 13 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 14 3.3 Data Storage and Evaluation .................................................................................................................................. 15 4 System Verification Procedure ........................................................................................................................................ 17 4.1 Tissue Verification .................................................................................................................................................... 17 4.2 System Check ........................................................................................................................................................... 19 4.3 System check Procedure ........................................................................................................................................ 20 5 Measurement Uncertainty Evaluation .......................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 21 5.2 Measurement uncertainty evaluation for system check...............…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR) 035112012-2 FCC ID:QISY300-0151 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Head SystemPerformanceCheck-D835-ES- Body SystemPerformanceCheck-D1900-ES-Head SystemPerformanceCheck-D1900-ES-Body SystemPerformanceCheck-D2450-ES-Head SystemPerformanceCheck-D2450-ES-Body Date/Time: 2012-12- 17 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.907 mho/m; ε r = 42.258; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.35 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.810 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.52 W/kg; SAR(10 g) = 1.67 W/kg Maximum value of SAR (measured) = 2.72 W/kg 0 dB = 2.72 W/kg = 4.35 dBW/kg Date/Time: 2012-12- 15 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.989 mho/m; ε r = 55.669; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.45 W/kg Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.523 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.69 W/kg Maximum value of SAR (measured) = 2.69 W/kg 0 dB = 2.69 W/kg = 4.30 dBW/kg Date/Time: 11/29/2012 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.431 mho/m; ε r = 40.908; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(5.26, 5.26, 5.26); Calibrated: 10/2/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 7/25/2012 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.4 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.100 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 9.84 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 11.0 W/kg 0 dB = 11.0 W/kg = 10.41 dBW/kg Date/Time: 11/30/2012 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.536 mho/m; ε r = 53.62; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.86, 4.86, 4.86); Calibrated: 10/2/2012; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 7/25/2012 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.6 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.854 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 19.0 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.36 W/kg Maximum value of SAR (measured) = 11.8 W/kg 0 dB = 11.8 W/kg = 10.72 dBW/kg Date/Time: 2013-1-9 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.824 mho/m; ε r = 39.458; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.57, 4.57, 4.57); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 13.7 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.426 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 26.3 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.98 W/kg Maximum value of SAR (measured) = 14.6 W/kg 0 dB = 14.6 W/kg = 11.66 dBW/kg Date/Time: 2013-1-8 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.977 mho/m; ε r = 52.90…

Text truncated - open the document above for the full version.

Report No.:SYBH(Z-SAR) 035112012-2 FCC ID:QISY300-0151 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body UMTS Band II Head UMTS Band II Body WiFi 802.11b Head WiFi 802.11b Body Date/Time: 2012-12- 17 Test Laboratory: HUAWEI SAR/HAC Lab Y300-0151 GSM850 190CH Left hand touch cheek DUT: HUAWEI Y300-0151; Type: HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;HUAWEI Ascend Y300; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.911 mho/m; ε r = 42.255; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.684 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.969 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.825 W/kg SAR(1 g) = 0.652 W/kg; SAR(10 g) = 0.482 W/kg Maximum value of SAR (measured) = 0.689 W/kg 0 dB = 0.689 W/kg = -1.62 dBW/kg Date/Time: 2012-12- 17 Test Laboratory: HUAWEI SAR/HAC Lab Y300-0151 GSM850 190CH Left hand tilt 15 degree DUT: HUAWEI Y300-0151; Type: HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;HUAWEI Ascend Y300; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.911 mho/m; ε r = 42.255; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.432 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.729 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.538 W/kg SAR(1 g) = 0.425 W/kg; SAR(10 g) = 0.322 W/kg Maximum value of SAR (measured) = 0.446 W/kg 0 dB = 0.446 W/kg = -3.51 dBW/kg Date/Time: 2012-12- 17 Test Laboratory: HUAWEI SAR/HAC Lab Y300-0151 GSM850 190CH Right hand touch cheek DUT: HUAWEI Y300-0151; Type: HSPA/UMTS/GPRS/GSM/EDGE Mobile Phone with Bluetooth;HUAWEI Ascend Y300; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.911 mho/m; ε r = 42.255; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.28, 6.28, 6.28); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn851; Calibrated: 2012-7-25 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.3(988); SEMCAD X 14.6.7(6848) Configuration/Head/Area Scan (8x13x1): …

Text truncated - open the document above for the full version.
