QISY320-U351WCDMA Digital Mobile Phone

Quick Start Guide Y320 1 Getting to know your phone Thank you for choosing the HUAWEI smartphone. First, let's take a look at a few basics: Press and hold the power button to power on your phone. After your phone is powered up, you can use the power button to turn the screen off and on. 2 Preparing your phone To i ns ert two SIM cards, the battery and a microSD card please perform the steps shown in the following figures. Your phone is shipped with the battery partially charged. It is recommended that you fully charge the battery before using it for the first time. 3 Locking and unlocking the screen When you are not using your phone, press the power button to turn off the screen. After being idle for a specified period of time, your phone automatically locks its screen. Follow the onscreen instructions and drag to unlock the screen or open an application. 4 Making a call Touch to open the dialer. You can dial a phone number directly or touch to choose a contact. You can also touch a phone number in places like messages, email and webpages to make a call. To answer an incoming call, drag to . 5 Sending messages Touch to open Messaging. Adding a photo or audio clip to a text message turns it into a multimedia message. You can also save attachments from multimedia messages. 6 Taking a photo or video Touch to open Camera. In photo mode, focus the object. Touch to take a photo. In video mode, frame the scene and touch to record a video. 7 Listening to music Touch to open Play Music. You can copy songs to your phone and immerse yourself with extraordinary audio experience anytime. You can play songs by artist, album and more. 8 Clearing the Memory Space When receiving a memory warning popped up by the system, be sure to promptly clean up the memory to keep your mobile phone normal. If you ignore the prompt to continue using, the system will stay in the memory clean interface and some key functions will be locked until the memory space cleared to a safe range. Permanent irreversible damage of the phone will be caused if you insist on the operation. For More Help Search for and download the User Guide from visit http://consumer.huawei.com/en/. Please visit http://consumer.huawei.com/en/ for recently updated hotline and email address in your country or region. 9 Personal Information and Data Security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information.  Place your device in a safe area to prevent it from unauthorized use.  Set your device screen to lock and create a password or unlock pattern to open it.  Periodically back up personal information kept on your SIM/UIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.  If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them.  If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information.  If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off.  Install or upgrade device security software and regularly scan for viruses.  Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. 10  Install security software or patches released by Huawei or third-party application providers.  Some applications require and transmit location information. As a result, a third-party may be able to share your location information.  Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services.  If you have concerns about the security of your personal information and data, please contact [email protected]. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods.  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level.  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using…

Text truncated - open the document above for the full version.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAW EI TECHNOLOGIES CO., LTD. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C City:  ShenZhen . Country:China . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WCDMA Digital Mobile Phone Type designation: HUAWEI Y320-U351 on our behalf. Date: 2013-08-06 City: SHENZHEN Name: Zhang Xinghai (2) Function: EMC Laboratory Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-08-06 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISY320-U351 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/EMC Laboratory Manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2013-08-06 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISY320-U351 ATTESTATION FCC ID: QISY320-U351 Product: WCDMA Digital Mobile Phone Model: HUAWEI Y320-U351 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/EMC Laboratory Manager HUAW EI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD Family Certification Cover Letter Date: 2013/08/20 Please be notified that we, the undersigned, HUAWEI TECHNOLOGIES CO., LTD declares that the product Contains 2 model numbers: HUAWEI Y320-U151/ HUAWEI Y320-U351 The difference of two models: HUAWEI Y320-U151 supports dual SIM slots and HUAWEI Y320-U351 supports single SIM slots, the others are the same. Your understanding will be highly appreciated. Sincerely Zhang Xinghai/EMC Laboratory Manager HUAWEI TECHNOLOGIES CO., LTD

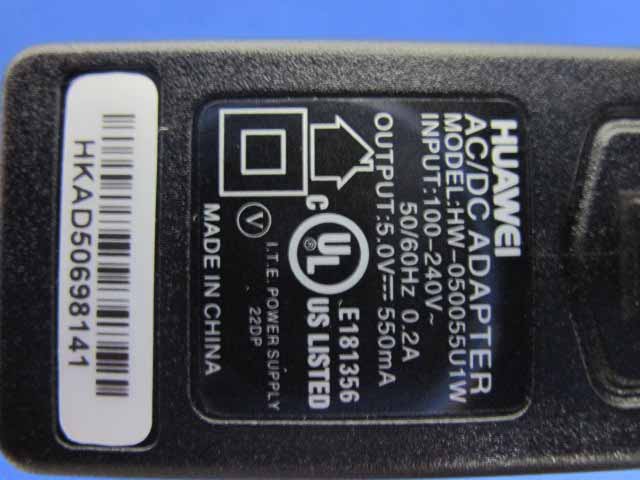

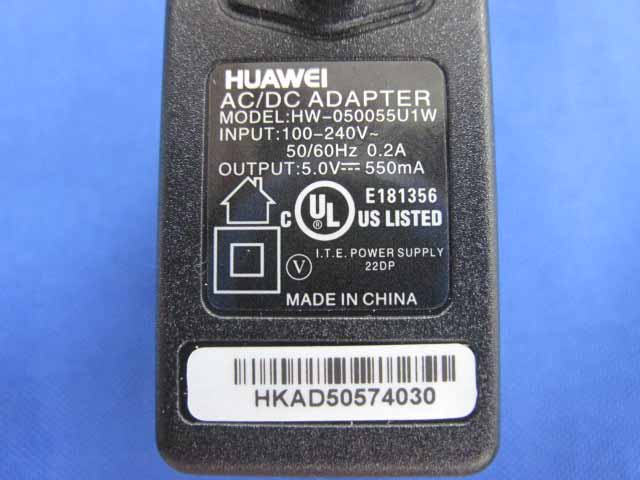

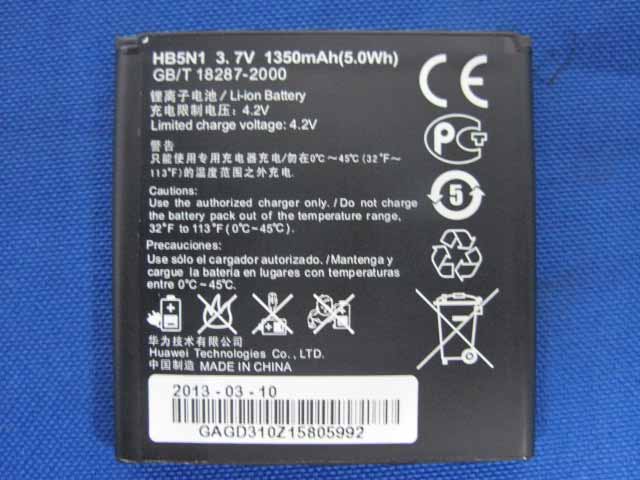

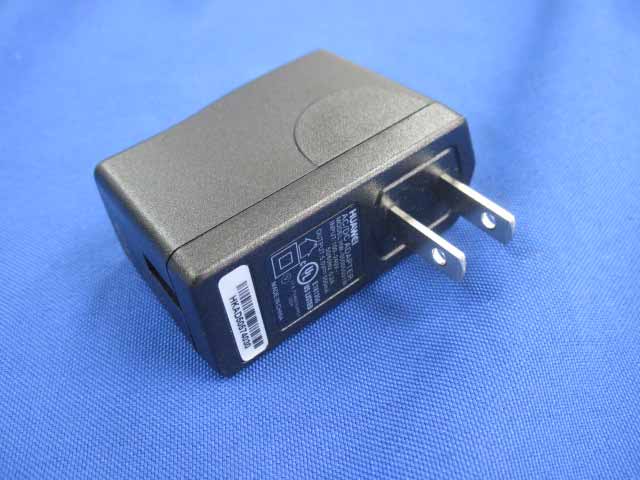

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (Battery #1) (8) EUT Photo (Battery #1) (9) EUT Photo (Battery #2) (10) EUT Photo (Battery #2) (11) EUT Photo (Adapter #1) (12) EUT Photo (Adapter #1) (13) EUT Photo (Adapter #2) (14) EUT Photo (Adapter #2) (15) EUT Photo (16) EUT Photo

(1) EUT Photo(Dual SIM Slot) (2) EUT Photo(Dual SIM Slot) (3) EUT Photo (Dual SIM Slot) (4) EUT Photo(Dual SIM Slot) (5) EUT Photo(Dual SIM Slot) (6) EUT Photo(Dual SIM Slot) (7) EUT Photo(Dual SIM Slot) (8) EUT Photo(Dual SIM Slot) (9) EUT Photo(Dual SIM Slot) (10) EUT Photo(Dual SIM Slot) (11) EUT Photo(Dual SIM Slot) (12) EUT Photo(Dual SIM Slot) (13) EUT Photo(Dual SIM Slot) (14) EUT Photo(Dual SIM Slot) (15) EUT Photo(Dual SIM Slot)

Report No.: 137S068R-HP-US-P03V01 Page: 1 of 204 SAR Test Report Product Name : WCDMA Digital Mobile Phone Model No. : HUAWEI Y320-U351 FCC ID : QISY320-U351 Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 17/07/2013 Date of Test : 24/07/2013 Issued Date : 02/08/2013 Report No. : 137S068R-HP-US-P03V01 Report Version : V1.1 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 137S068R-HP-US-P03V01 Page: 2 of 204 Test Report Certification Issued Date: 02/08/2013 Report No.: 137S068R-HP-US-P03V01 Product Name : WCDMA Digital Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : Huawei Technologies Co., Ltd Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI Y320-U351 FCC ID : QISY320-U351 Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.871 W/kg Body: 1.212 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-TechDevelopment Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 137S068R-HP-US-P03V01 Page: 3 of 204 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No.: 137S068R-HP-US-P03V01 Page: 4 of 204 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 8 1.3. EUT Antenna Locations ....................................................................................... 8 1.4. Simultaneous Transmission Configurations ......................................................... 9 1.5. SAR Test Exclusions Applied ............................................................................. 10 1.6. Power Reduction for SAR .................................................................................. 10 1.7. Guidance Documents ........................................................................................ 10 2. SAR Measurement System ...................................................................................... 11 2.1. DASY5 System Description ............................................................................... 11 2.1.1. Applications ................................................................................................... 12 2.1.2. Area Scans .................................................................................................... 12 2.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 12 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 12 2.2. DASY5 E-Field Probe ........................................................................................ 13 2.2.1. Isotropic E-Field Probe Specification ............................................................. 13 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 14 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 14 2.5. Robot ................................................................................................................. 15 2.6. Light Beam Unit ................................................................................................. 15 2.7. Device Holder .................................................................................................... 16 2.8. SAM Twin Phantom ........................................................................................... 16 3. Tissue Simulating Liquid ........................................................................................... 17 3.1. The composition of the tissue simulating liquid ................................................. 17 3.2. Tissue Calibrat…

Text truncated - open the document above for the full version.

Test Report FCC Part15 Subpart C Product Name : WCDMA Digital Mobile Phone Model No. : HUAWEI Y320-U351 FCC ID : QISY320-U351 Applicant : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt : 24/06/2013 Test Date : 24/06/2013~28/07/2013 Issued Date : 02/08/2013 Report No. : 137S068R-RF-US-P06V01 Report Version : V1.0 This report was based on Quietek report No: 136S045R The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 137S068R-RF-US-P06V01 Page: 2 of 102 Test Report Certification Issued Date : 02/08/2013 Report No. : 137S068R-RF-US-P06V01 Product Name : WCDMA Digital Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer : HUAWEI TECHNOLOGIES CO.,LTD Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Model No. : HUAWEI Y320-U351 FCC ID : QISY320-U351 EUT Voltage : DC 3.7V Brand Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009, KDB558074 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 137S068R-RF-US-P06V01 Page: 3 of 102 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan :VCCI China :CNAS Report No: 137S068R-RF-US-P06V01 Page: 4 of 102 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description ...................................................................................................... 6 1.2. Mode of Operation ................................................................................................... 9 1.3. Tested System Details ........................................................................................... 10 1.4. Configuration of Tested System ............................................................................. 11 1.5. EUT Exercise Software .......................................................................................... 12 2. Technical Test ........................................................................................................ 13 2.1. Summary of Test Result ......................................................................................... 13 2.2. Test Environment ................................................................................................... 14 3. Conducted Emission .............................................................................................. 15 3.1. Test Equipment ...................................................................................................... 15 3.2. Test Setup.............................................................................................................. 15 3.3. Limit ....................................................................................................................... 16 3.4. Test Procedure ...................................................................................................... 16 3.5. Uncertainty ............................................................................................................ 16 3.6. Test Result ............................................................................................................. 17 4. Radiated Emission ................................................................................................. 19 4.1. Test Equipment ...................................................................................................... 19 4.2. Test Setup.............................................................................................................. 20 4.3. Limit ....................................................................................................................... 21 4.4. T…

Text truncated - open the document above for the full version.

Test Setup Photograph for Part 15.247(BT/WLAN) Description: Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz Test Photograph for 22&24 Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test Test Setup Photograph for SAR Test Setup Photographs Left-Cheek Touch Left-Tilt 15° Right-Cheek Touch Right-Tilt 15° Body SAR Back 10mm Body SAR Front 10mm Body SAR Bottom 10mm for GSM/UMTS Body SAR Right Side 10mm for GSM/UMTS Body SAR Left Side 10mm for GSM/UMTS Body SAR Top 10mm for Wi-Fi Body SAR Right Side 10mm for Wi-Fi Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 – 2003
