QISY330-U07WCDMA Digital Mobile Phone

Quick Start Guide Y330 HUAWEI Your phone at a glance Thank you for choosing the Y330–U07 smartphone. Before you start, let's take a look at your new phone. Earpiece Headset jack Home Micro USB port Return Volume button Menu Power button Installation Follow the instructions in the following figures to complete the installation. Then press and hold the power button to power on your phone. 1 Open the battery cover. 2 Insert the SIM card. Insert the microSD card (optional). 3 Charge the phone. Install the battery. Install the battery cover. 4 5 6 a b Locking and unlocking the screen Your phone automatically locks its screen after being idle for a specified period of time. Alternatively, you can press the power button to manually lock the screen. You can go to and touch Display > Sleep to set the screen timeout period. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen.   Managing contacts Touch to open People. Go to the Favorites tab to mark a contact as your favorite or manage contact groups. On the People screen, touch > Import/Export to import contacts from other devices or export contacts on your phone. Create a contact Placing a call Touch and enter a phone number on the dialer. If you have existing contacts on your phone, your phone automatically displays matching results as you type. Touch a number to place a call. You can also touch a number from Contacts, Messaging, Email, or Browser to place a call. 400 Messaging Touch to open Messaging. Attaching a file to a text message converts the message into a multimedia message. You can save photos, audio clips, or videos from received multimedia messages. When you are typing, open the notification panel and touch to switch the input method. ********** Hello! Attach a file Camera Touch to open Camera. Touch to take a photo. To shoot a video, frame the scene you want to record and touch to start shooting. Switch the capture mode View your photos Editing a photo Touch to open Gallery. When browsing a photo, touch to edit it. You can then crop it, adjust its color, apply filters or frames to it, and more. When you browse through Gallery in full screen mode, flick upward on a photo or video playback screen to turn on Share simply, which lets you quickly share the photo or video with your friends. Edit the photo Listening to music Touch to open Music. Play your songs by name, artist, or album, and mark your favorite songs. Phone Manager Phone Manager supports system diagnosis and optimization at the touch of a button. You can configure your phone's power saving mode, manage application permissions, clean up your storage, and turn on do not disturb mode. Touch to open Phone Manager. Touch to scan Flick left for more functions More information Encounter any issues while using your phone? For the full user guide, go to http://consumer.huawei.com/en/ and search for Y330–U07. Want to learn more about Huawei Emotion UI? Visit http://en.ui.vmall.com/ for the latest information. Legal Notice Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. Third-Party Software Statement Huawei does not own the intellectual property of the third- party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third- party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third- party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for services provided by third-party service providers, or the interruption or termination of third-party contents or services. Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works in any form, including but not limited to texts, images, videos, or software etc. Customers shall bear the risk for any and all effects, including incompatibility between the soft…

Text truncated - open the document above for the full version.

Differences statement of Y330-U07 and Y330-U17 Page1, Total1 To whom it may concern, The differences between HUAWEI Y330-U07,Y330-U07 and HUAWEI Y330-U17, Y330-U17 are as follow: Differences Model HUAWEI Y330-U07 Y330-U07 HUAWEI Y330-U17 Y330-U17 Frequency The same The same PCB The same The same Antenna The same The same Dimensions The same The same Appearance The same The same SIM Single Double The others The same The same FCC ID QISY330-U07 QISY330-U17 Regarding testing statics, EMC: Y330-U07 and Y330-U17 both are new testing. RF: Y330-U07 and Y330-U17 are absolutely identical, except model name. SAR: Based on Y330-U17, Y330-U07 implements its testing on each frequency and Exposure’s worst position. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226 Tel: 0086-0755-28970299

Huawei Technologies Co., Ltd. Address：Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Post ZIP：518129 Page ：1/1 To: TUV Rheinland Fax : NULL From:Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2014-04-26 To whom it may concern: We the undersigned, hereby authorize TUV Rheinland to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TUV Rheinland on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-04-22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISY330-U07 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-09-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page1, Total2 External Photos of HUAWEI Y330-U07, Y330-U07 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page2, Total2

HUAWEI Y330-U07, Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-4-24 Page1, Total2 Label & Label Location： HUAWEI Y330-U07, Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-4-24 Page2, Total2

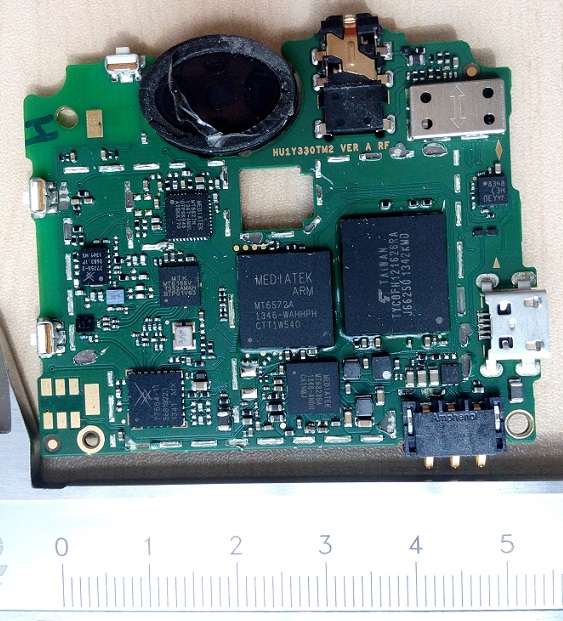

HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page1, Total9 Internal Photos of HUAWEI Y330-U07, Y330-U07 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page2, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page3, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page4, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page5, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page6, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page7, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page8, Total9 HUAWEI Y330-U07,Y330-U07 WCDMA Digital Mobile Phone SECRET 2014-05-06 Page9, Total9

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: WCDMA Digital Mobile Phone Model: HUAWEI Y330-U07, Y330-U07 Report No.: SYBH(Z-SAR)022032014-2 FCC ID: QISY330-U07 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-04-23 2014-04-23 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.:SYBH(Z-SAR)022032014-2 FCC ID:QISY330-U07 2014-04-23 Page 2 of 51 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 7 1.4 Test specification(s) ....................................................................................................................................... 8 1.5 Testing laboratory .......................................................................................................................................... 8 1.6 Applicant and Manufacturer .......................................................................................................................... 8 1.7 Application details .......................................................................................................................................... 8 1.8 Ambient Condition ........................................................................................................................................ 8 2 SAR Measurement System ................................................................................................................................. 9 2.1 SAR Measurement Set-up ........................................................................................................................... 9 2.2 Test environment ......................................................................................................................................... 10 2.3 Data Acquisition Electronics description .................................................................................................... 10 2.4 Probe description ......................................................................................................................................... 11 2.5 Phantom description .................................................................................................................................... 12 2.6 Device holder description ............................................................................................................................ 13 2.7 Test Equipment List ..................................................................................................................................... 14 3 SAR Measurement Procedure .......................................................................................................................... 15 3.1 Scanning procedure .................................................................................................................................... 15 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 16 3.3 Data Storage and Evaluation ...................................................................................................................... 17 4 System Verification Procedure ............................................................................................................................ 19 4.1 Tissue Verification ....................................................................................................................................... 19 4.2 System Check ............................................................................................................................................. 21 4.3 System check Procedure............................................................................................................................. 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability ...................................................................................................................... 23 5.2 SAR measurement uncertainty ................................................................................................................... 23 6 SAR Test Configuration ...................................................................................................................................... 24 6.1 GSM Test Configuration .............................................................................................................................. 24 6.2 UMTS Test Configuration ............................................…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1900V2 SN: 5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 53.26Ω+5.99jΩ R=-0.24Ω, X=0.19Ω Return Loss -23.7dB -25.10dB -5.91% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 50.44Ω+6.40jΩ R=2.04Ω, X=0.3Ω Return Loss -23.9dB -24.91dB -4.23% Measured Date 2011-09-26 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: WCDMA Digital Mobile Phone Model: HUAWEI Y330-U17, Y330-U17 Report No.: SYBH(Z-SAR)023032014-2 FCC ID: QISY330-U17 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-04-23 2014-04-23 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.:SYBH(Z-SAR)023032014-2 FCC ID:QISY330-U17 2014-04-23 Page 2 of 51 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 7 1.4 Test specification(s) ....................................................................................................................................... 8 1.5 Testing laboratory .......................................................................................................................................... 8 1.6 Applicant and Manufacturer .......................................................................................................................... 8 1.7 Application details .......................................................................................................................................... 8 1.8 Ambient Condition ........................................................................................................................................ 8 2 SAR Measurement System ................................................................................................................................. 9 2.1 SAR Measurement Set-up ........................................................................................................................... 9 2.2 Test environment ......................................................................................................................................... 10 2.3 Data Acquisition Electronics description .................................................................................................... 10 2.4 Probe description ......................................................................................................................................... 11 2.5 Phantom description .................................................................................................................................... 12 2.6 Device holder description ............................................................................................................................ 13 2.7 Test Equipment List ..................................................................................................................................... 14 3 SAR Measurement Procedure .......................................................................................................................... 15 3.1 Scanning procedure .................................................................................................................................... 15 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 16 3.3 Data Storage and Evaluation ...................................................................................................................... 17 4 System Verification Procedure ............................................................................................................................ 19 4.1 Tissue Verification ....................................................................................................................................... 19 4.2 System Check ............................................................................................................................................. 21 4.3 System check Procedure............................................................................................................................. 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability ...................................................................................................................... 23 5.2 SAR measurement uncertainty ................................................................................................................... 23 6 SAR Test Configuration ...................................................................................................................................... 24 6.1 GSM Test Configuration .............................................................................................................................. 24 6.2 UMTS Test Configuration ............................................…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1900V2 SN: 5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 53.26Ω+5.99jΩ R=-0.24Ω, X=0.19Ω Return Loss -23.7dB -25.10dB -5.91% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 50.44Ω+6.40jΩ R=2.04Ω, X=0.3Ω Return Loss -23.9dB -24.91dB -4.23% Measured Date 2011-09-26 2013-09-12 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

FCC RF Test Report Product Name: WCDMA Digital Mobile Phone Model Number: HUAWEI Y330-U 07, Y330-U07 Report No: SYBH(Z-RF)014032014-2001 FCC ID：QISY330-U07 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI Y330-U07, Y330-U07 FCC ID: QISY330-U07 Report No: SYBH(Z-RF)014032014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI Y330-U07, Y330-U07 FCC ID: QISY330-U07 Report No: SYBH(Z-RF)014032014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-03-28 Start Date of Test: 2014-04-01 End Date of Test: 2014-04-16 Test Result: Pass Approved by Senior Engineer: 2014-04-16 Liu Chunlin Date Name Signature Prepared by: 2014-04-16 Hexiaolin Date Name Signature RF Test Report of HUAWEI Y330-U07, Y330-U07 FCC ID: QISY330-U07 Report No: SYBH(Z-RF)014032014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of HUAWEI Y330-U07, Y330-U07 FCC ID: QISY330-U07 Report No: SYBH(Z-RF)014032014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 3 Description of the Equipment under Test (EUT) ..................................................................................................... 9 3.1 General Description ................................................................................................................................... 9 3.2 EUT Identity ............................................................................................................................................... 9 3.3 Technical Specification ............................................................................................................................ 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 Test Environment ..................................................................................................................................... 11 4.3 Test Frequency ........................................................................................................................................ 12 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 13 4.5 Test Setups ....................................................................................…

Text truncated - open the document above for the full version.
