QISY340-U081UMTS Smart Phone

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-08-12 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISY340-U081 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-11-11: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

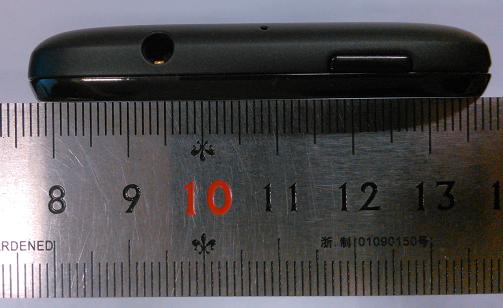

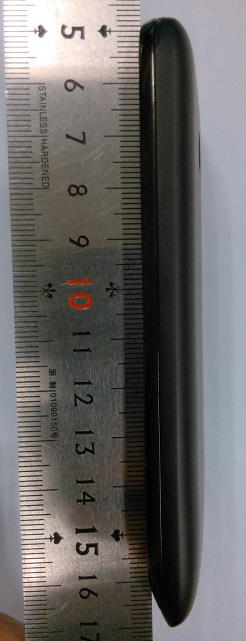

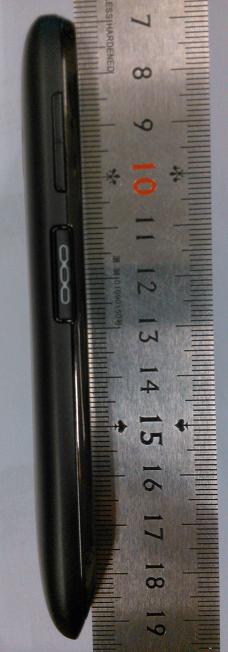

HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page1,Total 5 External Photos of HUAWEI Y340-U081, Y340-U081 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page2,Total 5 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page3,Total 5 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page4,Total 5 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page5,Total 5

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: August 16, 2013 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISY340-U081, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page1, Total 4 Label Location HUAWEI Y340-U081, Y340-U081 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page2, Total 4 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page3, Total 4 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page4, Total 4 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page5, Total 4

HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page1,Total 9 Internal Photos of HUAWEI Y340-U081, Y340-U081 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page2,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page3,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page4,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page5,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page6,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page7,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page8,Total 9 HUAWEI Y340-U081, Y340-U081 UMTS Smart Phone; SECRET Page9,Total 9

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2013-08-23 2013-08-23 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI Y340-U081, Y340-U081 SYBH(Z-SAR)039072013-2 UMTS Smart Phone QISY340-U081 Report No.: SYBH(Z-SAR)039072013-2 FCC ID:QISY340-U081 2013-08-23 Page 2 of 58 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 5 1.3 EUT Description ......................................................................................................................................................... 6 1.3.1 General Description ........................................................................................................................................... 7 1.4 Test specification(s) .................................................................................................................................................. 8 1.5 Testing laboratory ....................................................................................................................................................... 8 1.6 Applicant and Manufacturer ...................................................................................................................................... 8 1.7 Application details ...................................................................................................................................................... 8 1.8 Ambient Condition ..................................................................................................................................................... 8 2 SAR Measurement System ............................................................................................................................................. 9 2.1 SAR Measurement Set-up ....................................................................................................................................... 9 2.2 Test environment ...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description .............................................................................................................. 10 2.4 Probe description ..................................................................................................................................................... 11 2.5 Phantom description ................................................................................................................................................ 12 2.6 Device holder description ........................................................................................................................................ 12 2.7 Test Equipment List ................................................................................................................................................. 13 3 SAR Measurement Procedure ...................................................................................................................................... 14 3.1 Scanning procedure ................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 15 3.3 Data Storage and Evaluation .................................................................................................................................. 16 4 System Verification Procedure ........................................................................................................................................ 18 4.1 Tissue Verification .................................................................................................................................................... 18 4.2 System Check ........................................................................................................................................................... 21 4.3 System check Procedure ........................................................................................................................................ 22 5 Measurement Uncertainty Evaluation .......................................................................................................................... 23 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 23 5.2 Measurement uncertainty evaluation for system check....................................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)039072013-2 FCC ID: QISY340-U081 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Head SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Head SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.883 S/m; ε r = 40.728; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm, Pin=250mW/Area Scan (5x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.56 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.571 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 3.83 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.72 W/kg 0 dB = 2.72 W/kg = 4.35 dBW/kg Date: 2013-7-28 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.99 S/m; ε r = 53.721; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.58, 9.58, 9.58); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.62 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.407 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.84 W/kg SAR(1 g) = 2.57 W/kg; SAR(10 g) = 1.69 W/kg Maximum value of SAR (measured) = 2.77 W/kg 0 dB = 2.77 W/kg = 4.42 dBW/kg Date: 2013-7-31 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-EX-Head DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.418 S/m; ε r = 40.747; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(8.19, 8.19, 8.19); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 9.27 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 76.133 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 9.42 W/kg; SAR(10 g) = 4.93 W/kg Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 10.25 dBW/kg Date: 2013-8-1 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.53 S/m; ε r = 51.31; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(8.04, 8.04, 8.04); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 80.380 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 9.7 W/kg; SAR(10 g) = 5.02 W/kg Maximum value of SAR (measured) = 11.0 W/kg 0 dB = 11.0 W/kg = 10.41 dBW/kg Date: 2013-7-25 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Head DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.449 S/m; ε r = 39.753; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(7.94, 7.94, 7.94); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.326 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 21.6 W/kg SAR(1 g) = 11.1 W/kg; SAR(10 g) = 5.65 W/kg Maximum value of SAR (measured) = 12.3 W/kg 0 dB = 12.3 W/kg = 10.90 dBW/kg Date: 2013-7-29 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 190…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)039072013-2 FCC ID: QISY340-U081 6369A-U280134 Appendix B. SAR Measurement Plots Table of contents GSM850 Head GSM850 Body GSM1900 Head GSM1900 Body UMTS Band V Head UMTS Band V Body UMTS Band IV Head UMTS Band IV Body UMTS Band II Head UMTS Band II Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Left hand touch cheek DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.304 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.302 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.366 W/kg SAR(1 g) = 0.290 W/kg; SAR(10 g) = 0.215 W/kg Maximum value of SAR (measured) = 0.307 W/kg 0 dB = 0.307 W/kg = -5.13 dBW/kg Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Left hand tilt 15 degree DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.225 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.927 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.273 W/kg SAR(1 g) = 0.218 W/kg; SAR(10 g) = 0.166 W/kg Maximum value of SAR (measured) = 0.230 W/kg 0 dB = 0.230 W/kg = -6.38 dBW/kg Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Right hand touch cheek DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.263 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.424 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.321 W/kg SAR(1 g) = 0.260 W/kg; SAR(10 g) = 0.195 W/kg Maximum value of SAR (measured) = 0.272 W/kg 0 dB = 0.272 W/kg = -5.65 dBW/kg Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Right hand tilt 15 degree DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.196 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.350 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.239 W/kg SAR(1 g) = 0.191 W/kg; SAR(10 g) = 0.146 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.203 W/kg = -6.93 dBW/kg Date: 2013-7- 27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Left hand touch cheek with battery 2# DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3898; ConvF(9.7, 9.7, 9.7); Calibrated: 2013-1- 14; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.317 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.734 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.386 W/kg SAR(1 g) = 0.302 W/kg; SAR(10 g) = 0.224 W/kg Maximum value of SAR (measured) = 0.318 W/kg 0 dB = 0.318 W/kg = -4.98 dBW/kg Date: 2013-7-27 Test Laboratory: HUAWEI SAR/HAC Lab Y340-U081 GSM850 190CH Left hand touch cheek with battery 3# DUT: Y340-U081; Type: UMTS Smart Phone; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 40.521; ρ = 1000 kg/m 3 Phantom …

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D1800V2 SN: 2d184 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole1800 Head TST Target Value Measured Value Difference Impedance transformed to feed point 49.7Ω-2.3jΩ 50.08Ω-2.27jΩ R=38Ω, X=0.03Ω Return Loss -32.8dB -33.14dB -1.04% Dipole1800 Body TST Target Value Measured Value Difference Impedance transformed to feed point 45.3Ω-2.3jΩ 45.230Ω-2.36jΩ R=0.07Ω, X=-0.06Ω Return Loss -25.2dB -25.39dB -0.75% Measured Date 2011-03-08 2013-03-07 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D1900V2 SN:5d143 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.5Ω+5.8jΩ 50.8Ω+8.57jΩ R=-2.7Ω, X=2.77Ω Return Loss - 23.7dB -24.16dB -1.94% Dipole1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.4Ω+6.1jΩ 45.78Ω+3.17jΩ R=-2.62Ω, X=-2.93Ω Return Loss -23.9dB -25.3dB -5.86% Measure Data 2011-09-26 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Calibration Date 2011-03-08 Measured Date 2013-03-07 Dipole2450 Head TST Target Value Measured Value Difference Impedance transformed to feed point 54.0Ω+2.2jΩ 53.99Ω+2.33jΩ R=-0.01Ω, X=0.13Ω Return Loss -27.2dB -27.4dB -0.74% Dipole2450 Body TST Target Value Measured Value Difference Impedance transformed to feed point 49.0Ω+4.9jΩ 48.93Ω+4.96jΩ R=-0.07Ω, X=0.06Ω Return Loss - 26.0dB -26.04dB -0.15% Measured Date 2011-03-08 2013-03-07 ------- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

FCC RF Test Report Product Name: UMTS Smart Phone Product Model: HUAWEI Y340-U081, Y340-U081 Report Number: SYBH(Z-RF)024072013-2003 FCC ID: QISY340-U081 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI Y340-U081, Y340-U081 Report No: SYBH(Z-RF)024072013-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 19 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI Y340-U081, Y340-U081 Report No: SYBH(Z-RF)024072013-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 19 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Product Name: UMTS Smart Phone Product Model: HUAWEI Y340-U081, Y340-U081 Date of Receipt Sample: 2013-07-25 Start Date of Test: 2013-07-26 End Date of Test: 2013-07-31 Test Result: Pass Approved by Senior Engineer: 2013-08-05 Dai Linjun Date Name Signature Prepared by: 2013-08-05 Zhong Yaning Date Name Signature RF Test Report of HUAWEI Y340-U081, Y340-U081 Report No: SYBH(Z-RF)024072013-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 19 Modification Record No. Last Report No. Modification Description First Report RF Test Report of HUAWEI Y340-U081, Y340-U081 Report No: SYBH(Z-RF)024072013-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 19 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard ........................................................................................................................................ 6 1.2 Test Location.............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ............................................................................................................................... 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 EUT Configurations .................................................................................................................................. 12 4.3 Test Environments ................................................................................................................................... 13 4.4 Antenna requirements .............................................................................................................................. 13 4.5 Test Setups .............................................................................................................................................. 14 4.6 Test Conditions ........................................................................................................................................ 17 5 Main Test Instruments ...…
