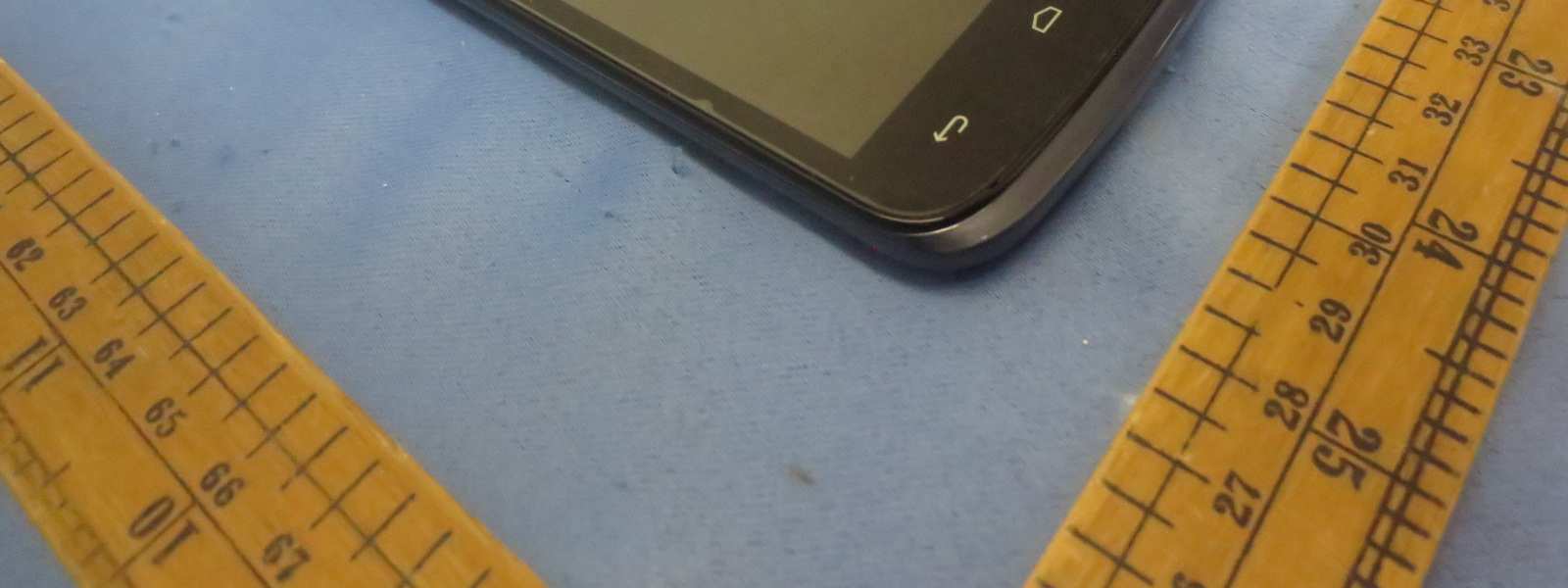

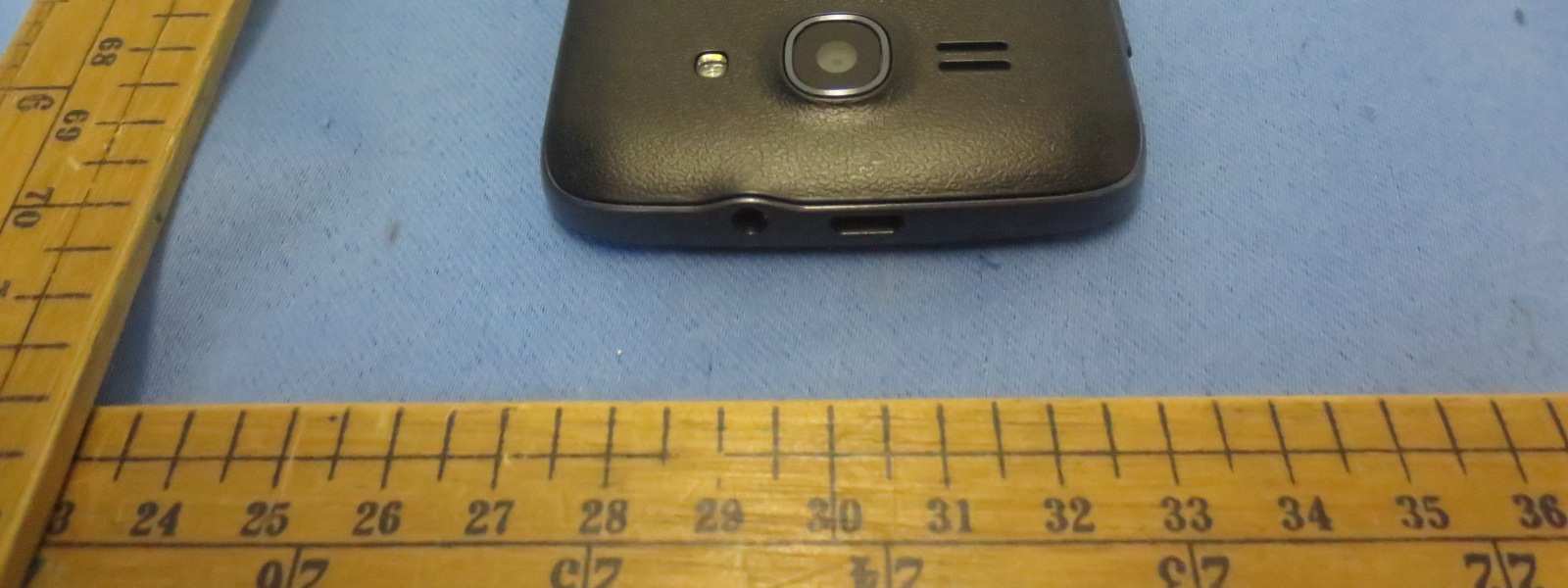

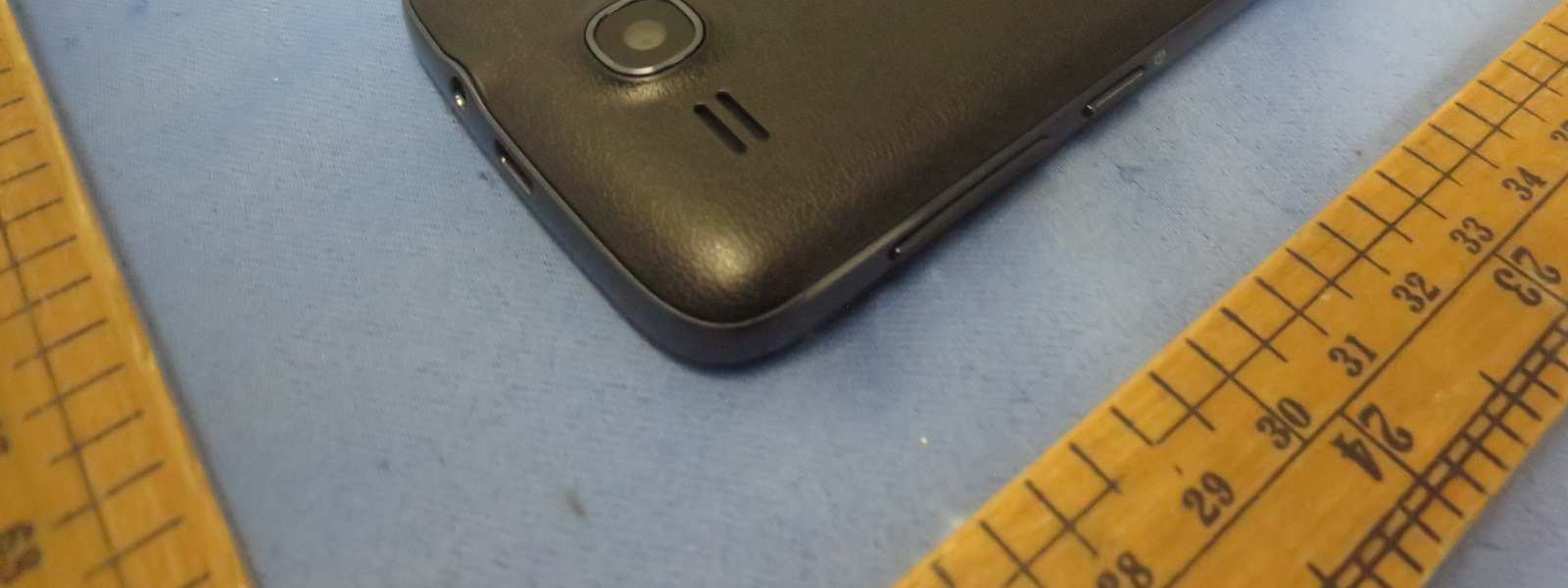

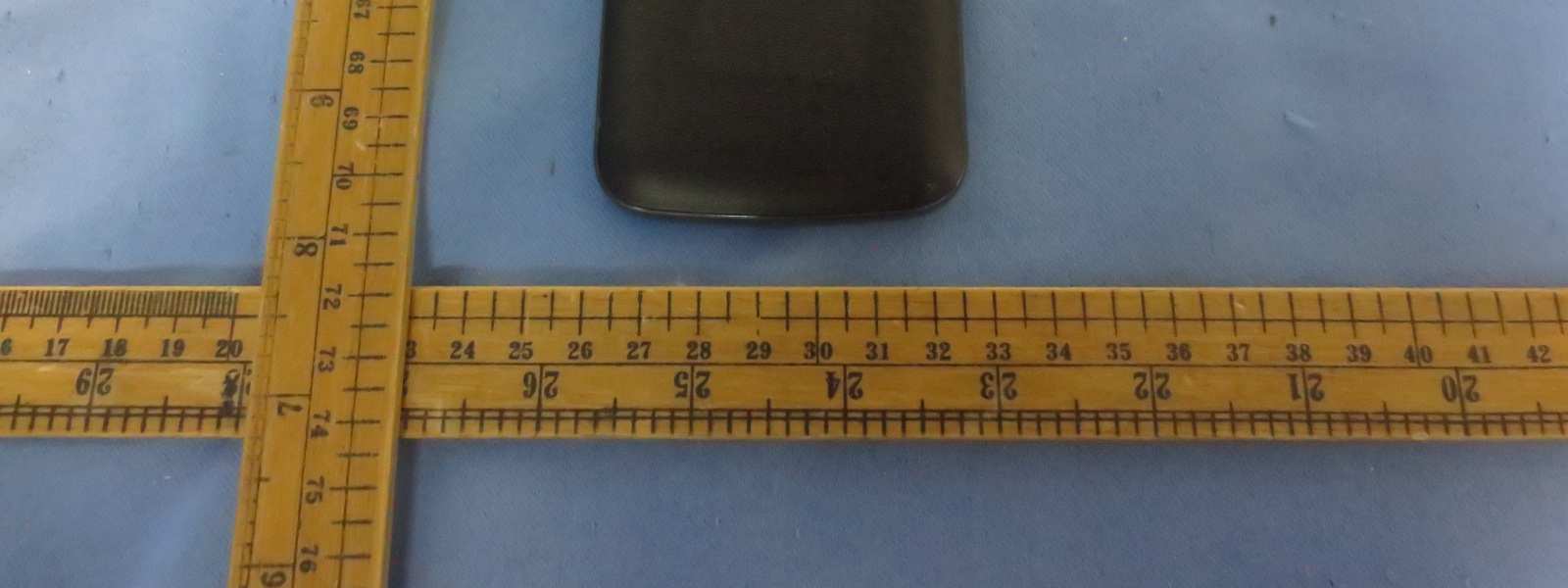

External photos

SIZE：48 (mm)* 56(mm)

HUAWEI Y-U03 WCDMA Digital Mobile Phone 文档密级 2014-11-21 华为保密信息,未经授权禁止扩散 第1页, 共1页 Statement We, Huawei Technologies Co.,Ltd., states that our device, FCC ID: QISY520-U03 A, The label is put inside the battery compartment But the battery will not be placed in the battery compartment when delivery, the label is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Internal photos

Report No.: RXA1411-0267SAR01R3 Page 1 of 300 TESTING No. L2264 SAR TEST REPORT Product Name WCDMA Digital Mobile Phone Model Name HUAWEI Y520-U03 Brand Name HUAWEI FCC ID QISY520-U03A Applicant Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue December 18, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 2 of 300 GENERAL SUMMARY Reference Standard(s) CC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 Handset SAR v01r02: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 3G SAR Procedures v03: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA, GSM,GPRS and EDGE. KDB 941225 D06 Hotspot Mode SAR v02: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Minbao Ling SAR Manager Performed by Jian Qi SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 3 of 300 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. EUT Antenna Locations ........................................................................................................ 9 1.7. The Maximum Reported SAR 1g .......................................................................................... 10 1.8. Test Date ............................................................................................................................ 11 2. SAR Measurements System Configuration ................................................................................ 12 2.1. SAR Measurement Set-up .................................................................................................. 12 2.2. DASY5 E-field Probe System ............................................................................................. 13 2.2.1. EX3DV4 Probe Specification ....................................................................................... 13 2.2.2. E-field Probe Calibration .............................................................................................. 14 2.3. Other Test Equipment ......................................................................................................... 14 2.3.1. Device Holder for Transmitters .................................................................................... 14 2.3.2. Phantom ...................................................................................................................... 15 2.4. Scanning Procedure ........................................................................................................... 15 2.5. Data Storage and Evaluation .............................................................................................. 17 2.5.1. Data Storage ................................................................................................................ 17 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 17 3. Laboratory Environment ............................................................................................................. 19 4. Tissue-equivalent Liquid ............................................................................................................ 20 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 20 4.2. Tissue-equivalent Liquid Properties .................................................................................... 22 5. Sy stem Check ............................................................................................................................ 23 5.1. Description of System Check .............................................................................................. 23 5.2. System Check Results ........................................................................................................ 25 6. Operational Conditions during Test ............................................................................................ 27 6.1. General Des…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 181 of 300 802.11b Back Side High (Battery 2) Date: 7/19/2014 Communication System: UID 0, 802.11b (0); Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.009 S/m; ε r = 52.109; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.61, 7.61, 7.61); Calibrated: 11/28/2013 Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.0881 W/kg Back Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.656 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.200 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.019 W/kg Maximum value of SAR (measured) = 0.0525 W/kg Figure 112 Body, Back Side, 802.11b Channel 11 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 182 of 300 802.11b Back Side High (Battery 3) Date: 7/19/2014 Communication System: UID 0, 802.11b (0); Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.009 S/m; ε r = 52.109; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.61, 7.61, 7.61); Calibrated: 11/28/2013 Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.138 W/kg Back Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.485 V/m; Power Drift = -0.032 dB Peak SAR (extrapolated) = 0.119 W/kg SAR(1 g) = 0.045 W/kg; SAR(10 g) = 0.020 W/kg Maximum value of SAR (measured) = 0.0580 W/kg Figure 113 Body, Back Side, 802.11b Channel 11 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 183 of 300 802.11b Back Side High (Battery 4) Date: 7/19/2014 Communication System: UID 0, 802.11b (0); Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2.009 S/m; ε r = 52.109; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.61, 7.61, 7.61); Calibrated: 11/28/2013 Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM 2; Type: SAM; Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side Middle/Area Scan (81x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.123 W/kg Back Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.368 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.111 W/kg SAR(1 g) = 0.057 W/kg; SAR(10 g) = 0.030 W/kg Maximum value of SAR (measured) = 0.0644 W/kg Figure 114 Body, Back Side, 802.11b Channel 11 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 184 of 300 ANNEX E: Plots Results(Variant Model) GSM 850 Left Cheek Middle Date: 12/4/2014 Communication System: UID 0, GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used: f = 837 MHz; σ = 0.918 S/m; ε r = 41.361; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3977; ConvF(9.62, 9.62, 9.62); Calibrated: 2/17/2014; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Left/Cheek Middle/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.666 W/kg Left/Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.182 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 0.786 W/kg SAR(1 g) = 0.641 W/kg; SAR(10 g) = 0.489 W/kg Maximum value of SAR (measured) = 0.665 W/kg Figure 115 Left Hand Touch Cheek GSM 850 Channel 190 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 185 of 300 GSM 850 Back Side High Date: 12/4/2014 Communication System: UID 0, GPRS 3TX (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.76694 Medium parameters used: f = 849 MHz; σ = 1.006 S/m; ε r = 55.736; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 – SN3977; ConvF(9.74, 9.74, 9.74); Calibrated: 2/17/2014; Electronics: DAE4 Sn1317; Calibrated: 1/16/2014 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Back Side High/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.25 W/kg Back Side High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 35.222 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.19 W/kg; SAR(10 g) = 0.902 W/kg Maximum value of SAR (measured) = 1.23 W/kg Figure 116 Body, Back Side, GSM 850 Channel 251 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1411-0267SAR01R3 Page 186 of 300 GSM 850 Back Side High (repeated SAR) Date: 12/4/2014 Communication System: UID 0, GPRS 3TX (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.76694 Medium parameters used: f = 849 MHz; σ = 1.006 S/m; ε r = 55.…
