QISY550-L01Smart Phone

Quick Start Guide Y550 Your phone at a glance Thank you for choosing the HUAWEI Ascend Y550. Before you start, let's take a look at your new phone. Press the power button to turn on or turn off the screen. Headset jack Power button Volume button Micro USB port Front camera Earpiece Return Home Menu Light sensor Status indicator Microphone Installing the SIM card Follow the instructions in the figures below to install your SIM card. Then press and hold the power button to power on your phone. 1 2 3 Open the battery cover. Insert the SIM card. Insert the microSD card (optional). 4 5 6 Install the battery. Install the battery cover. Charge the phone. a b Locking and unlocking the screen Press the power button to lock the screen. Your phone automatically locks its screen after being idle for a specified period of time. You can touch > Display > Sleep to set the screen timeout period. If the screen is off, press the power button to turn it on. Slide yo ur finger toward any direction to unlock the screen.   Calling Touch and enter a phone number on the dialer. Your phone then displays matching contacts. Touch a contact to p lace a call. Alternatively, touch and enter the initials or first few letters of a contact's name to quickly find the contact. From t he displayed matching contacts, touch the contact you want to call. You can also touch a number from Messaging, Email, or Br owser to place a call. 800 Messaging Touch to open Messaging. Attaching a file to a text message converts the message into a m ultimedia message. You can save photos, audio clips, or videos from received multimedia messages. When you are typing, flick down from the status bar to open t he notification panel, and touch to switch the input method. ********** Hello! Attach a file Camera Touch to launch Camera. Frame the scene you want to capture, and have the phone aut omatically focus itself or touch the screen to focus on a specific object. Touch to take a photo or touch to shoot a video. A Select shooting mode View your photos When the screen is locked, press the volume down button twice quickly to launch the camera and take a photo. More information For the full user guide, go to  http://consumer.huawei.com/en/ and search for HUAWEI Ascend Y550. Want to learn more about Huawei Emotion UI? Visit http://en.ui.vmall.com/ for the latest information. This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied. Legal Notice Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in t his manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. LTE is a trade mark of ETSI. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names mentioned may be th e property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. Third-Party Software Statement Huawei does not own the intellectual property of the third- party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third- party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third- party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for services provided by third-party service providers, or the interruption or termination of third-party contents or services. Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works in any form, including but not limited to texts, images, videos, or software etc. Customers shall bear the risk for any and all effects, including incompatibility between the software and this product, which result from installing software or uploading or downloading the third-party works. This product is based on the open-source Android™ platform. Huawei has made necessary changes to the platform. Therefore, this product may not support all the functions that are supported by the standard Android platform or may be incompatible with third-party software. Huawei …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Federal Communications Commission 2014/8/22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISY550-L01 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. <2014-09-10> Federal Communication Commission Equipment Authorization Devision, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Industry Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Declaration on Electrically Identical Models TO WHOM IT MAY CONCERN We, < Huawei Technologies Co., Ltd.>, declare on our sole responsibility that the new model <HUAWEI Y550-L01, Y550-L01> with FCC ID: <QISY550-L01> is identical in hardware and software to the certified model < HUAWEI Y550-L03, Y550-L03> under FCC ID: <QISY550-L03> The only differences between the new model and the original model are: - Model < HUAWEI Y550-L03, Y550-L03> FCC frequency-3G is W850/1700/1900, Model < HUAWEI Y550-L01, Y550-L01> no FCC frequency-3G, It’s disabled by hardware (Remain the PA, matching circuit component is removed) - Model < HUAWEI Y550-L03, Y550-L03> FCC frequency-4G is B2/4/7, Model < HUAWEI Y550-L01, Y550-L01> FCC frequency-4G is only B7, B2/4 was disabled by hardware (Remain the PA, matching circuit component is removed) - Model < HUAWEI Y550-L03, Y550-L03> and Model < HUAWEI Y550-L01, Y550- L01> main antenna is the same position, the shape is little different - Model < HUAWEI Y550-L03, Y550-L03> and Model < HUAWEI Y550-L01, Y550- L01> DIV antenna 1(Only RX) is the same position, the shape is little different We attest that above changing are relevant for any RF/SAR/EMC behaviour subject to regulatory items. So we have been add test about these changes. Therefore all test reports resubmit. If you have any questions, please feel free to contact us at the address shown below Sincerely Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

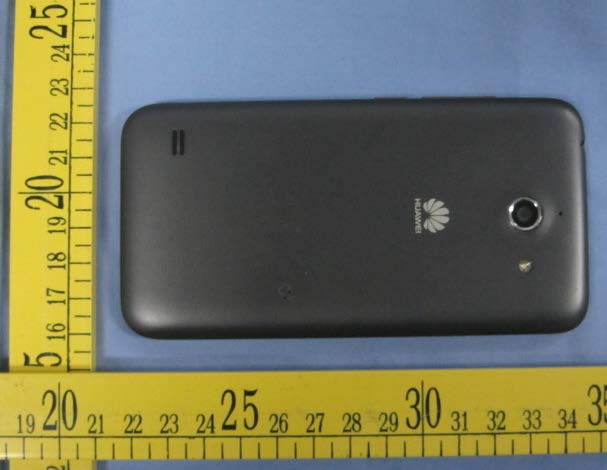

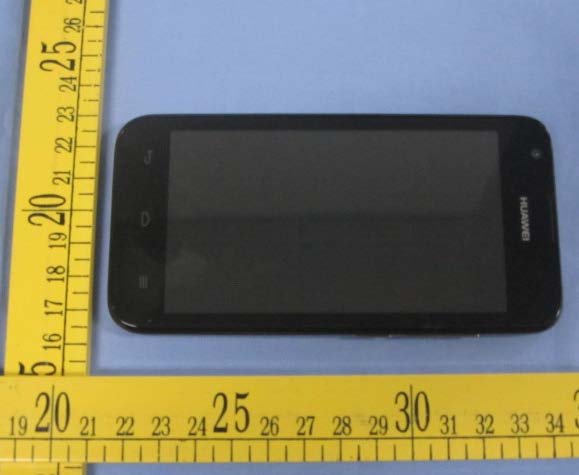

HUAWEI Y550-L01, Y550-L01 Smart Phone SECRET 8/25/2014 Page1,Total 3 External Photos of HUAWEI Y550-L01, Y550-L01 HUAWEI Y550-L01, Y550-L01 Smart Phone SECRET 8/25/2014 Page2,Total 3 HUAWEI Y550-L01, Y550-L01 Smart Phone SECRET 8/25/2014 Page3,Total 3

HUAEI Y550-L01, Y550-L01 Smart Phone SECRET 2014-8-25 Page1, Total2 Label & Label Location： HUAEI Y550-L01, Y550-L01 Smart Phone SECRET 2014-8-25 Page2, Total2

Huawei Technologies Co., Ltd. Date: August 25, 2014 Statement We, Huawei Technologies Co., Ltd, states that our device, FCC ID: QISY550-L01, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

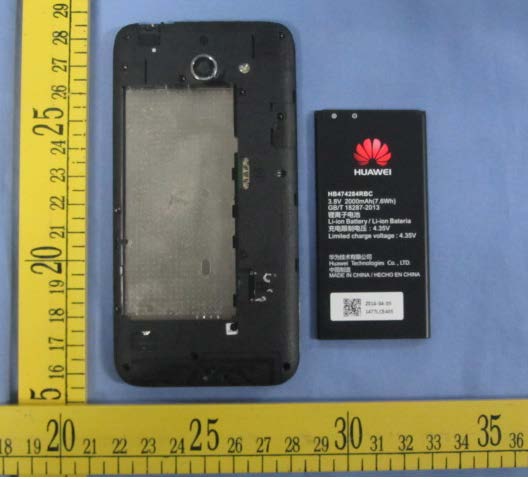

HUAWEI Y550-L01,Y550-L01 Smart Phone SECRET 2014-08-25 Page1, Total4 Internal Photos of HUAWEI Y550-L01, Y550-L01 HUAWEI Y550-L01,Y550-L01 Smart Phone SECRET 2014-08-25 Page2, Total4 HUAWEI Y550-L01,Y550-L01 Smart Phone SECRET 2014-08-25 Page3, Total4 HUAWEI Y550-L01,Y550-L01 Smart Phone SECRET 2014-08-25 Page4, Total4

FCC RF Test Report Product Name: Smart Phone Model Number: HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 FCC ID：QISY550-L03 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 20 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 20 Approved by Senior Engineer: 2014-08-13 Liu Chunlin Date Name Signature Prepared by: 2014-08-13 Zhu Mingjing Date Name Signature Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-08-04 Start Date of Test: 2014-08-04 End Date of Test: 2014-08-11 Test Result: Pass RF Test Report of HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 20 Modification Record No. Last Report No. Modification Description RF Test Report of HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 20 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 EUT Configurations .................................................................................................................................. 10 4.2 Test Environments ................................................................................................................................... 11 4.3 Antenna requirements .............................................................................................................................. 11 4.4 Description of tests................................................................................................................................... 12 4.5 Test Setups .............................................................................................................................................. 15 4.6 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 RF Test Report of HUAWEI Y550-L03,Y550-L03 Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 20 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 Test Method: FCC PUBLIC NOTICE DA 00-705 Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (Released March 30, 2000) ANSI C63.4-2003/-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10-2009, American National Standard for T…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 126 Appendix A: 20dB Emission Bandwidth (EBW) RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 126 1 Result Table EUT Conf. EBW [MHz] Verdict TM1_DH5_Ch0 0.945 Pass TM1_DH5_Ch39 0.945 Pass TM1_DH5_Ch78 0.945 Pass TM2_2DH5_Ch0 1.285 Pass TM2_2DH5_Ch39 1.284 Pass TM2_2DH5_Ch78 1.284 Pass TM3_3DH5_Ch0 1.279 Pass TM3_3DH5_Ch39 1.279 Pass TM3_3DH5_Ch78 1.278 Pass RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 126 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 126 2.2 TM1_DH5_Ch39 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 126 2.3 TM1_DH5_Ch78 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 126 2.4 TM2_2DH5_Ch0 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 126 2.5 TM2_2DH5_Ch39 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 126 2.6 TM2_2DH5_Ch78 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 126 2.7 TM3_3DH5_Ch0 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 126 2.8 TM3_3DH5_Ch39 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 126 2.9 TM3_3DH5_Ch78 RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 126 Appendix B: Carrier Frequency Separation RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 126 1 Result Table EUT Conf. Carrier Frequency Separation [MHz] Verdict TM1_DH5_Hop 1.200 Pass TM2_2DH5_Hop 0.950 Pass TM3_3DH5_Hop 1.000 Pass RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 126 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 126 2.2 TM2_2DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 126 2.3 TM3_3DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 126 Appendix C: Number of Hopping Channel RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 126 1 Result Table EUT Conf. Number of Hopping Channel Verdict TM1_DH5_Hop 79 Pass TM2_2DH5_Hop 79 Pass TM3_3DH5_Hop 79 Pass RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 126 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 126 2.2 TM2_2DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 126 2.3 TM3_3DH5_Hop RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 126 Appendix D: Time of Occupancy (Dwell Time) RF Test Report of HUAWEI Y550-L03,Y550-L03 Security Level: Public Report No: SYBH(Z-RF)022072014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 126 1 Result Table The Dwell Time = Burst Width * Total Hops. The detailed calculations are showed as follows: - The duration for dwell time calculation: 0.4 [s] * hopping number = 0.4 [s] * 79 [ch] = 31.6 [s*ch]; - The burst width [ms/hop/ch], which is directly measured, refers to the duration on one channel hop. - The hops per second for all channels: The selected EUT Conf uses a slot type of 5-Tx&1-Rx and a hopping rate of 1600 [ch*hop/s] for all channels. So the final hopping rate for all channels is 1600 / 6 = 266.67 [ch*hop/s]; - The hops…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI Y550-L03,Y550-L03 Photos of Test Setups RF Test Report of HUAWEI Y550-L03,Y550-L03 For GSM&WCDMA&LTE 1. Radiated Spurious Emissions Radiated Spurious Emission (below 3GHz) Radiated Spurious Emission (3GHz to18GHz) RF Test Report of HUAWEI Y550-L03,Y550-L03 Radiated Spurious Emission (18GHz to26.5GHz) RF Test Report of HUAWEI Y550-L03,Y550-L03 For BT & WIFI 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) RF Test Report of HUAWEI Y550-L03,Y550-L03 Radiated Spurious Emission (above 18GHz) RF Test Report of HUAWEI Y550-L03,Y550-L03 2 Conducted Emissions Conducted Emissions for AC Ports END
