QISY600-U151WCDMA Digital Mobile

Quick Start Guide Y600 1 Getting to know your phone Thank you for choosing the HUAWEI smartphone. First, let's take a look at a few basics. Press and hold the power button to power on your phone. After your phone is powered up, you can use the power button to turn the screen off and on. 2 Preparing your phone To insert a SIM card, the battery and a microSD card please perform the few steps shown in the following figures. Your phone is shipped with the battery partially charged. It is recommended that you fully charge the battery before using it for the first time. 3 Locking and unlocking the screen When you are not using your phone, press the power button to turn off the screen. After being idle for a specified period of time, your phone automatically locks its screen. Follow the onscreen instructions and drag to unlock the screen or open an application. 4 Managing contacts On the home screen, touch > to open Contact. Touch the tab page to group your contacts for easier management. 5 Making a call On the home screen, touch > to open the dialer. You can dial a phone number directly or touch to choose a contact. You can also touch a phone number in places like messages, email and webpages to make a call. To answer an incoming call, drag to . 6 Sending messages On the home screen, touch > to open Messaging. Adding a photo or audio clip to a text message turns it into a multimedia message. You can also save attachments from multimedia messages. 7 Taking a photo or video On the home screen, t ouch > to open Camera. Touch to take a photo. Frame the scene and touch to record a video. 8 Listening to music On the home screen, t ouch > to open Play Music You can play songs by Listen Now, My Library and Playlists. You can also mark your songs to add them to the playlist. 9 Surfing the web On the home screen, touch > to open Browser. You can start surfing the web right away using your phone's browser and stay on ball with up-to-date news and information. Your browser supports multi-page browsing. Touch to switch between pages. 10 For more help Want to obtain the user guide? Search for and download the User Guide from http://consumer.huawei.com/en/. 11 Personal information and data security The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Several measures are recommended to help you protect personal and confidential information.  Place your device in a safe area to prevent it from unauthorized use.  Set your device screen to lock and create a password or unlock pattern to open it.  Periodically back up personal information kept on your SIM/USIM card, memory card, or stored in your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.  If you are worried about viruses when you receive messages or emails from a stranger, you can delete them without opening them.  If you use your device to browse the Internet, avoid websites that might pose a security risk to avoid theft of your personal information.  If you use services such as Wi-Fi tether or Bluetooth, set passwords for these services to prevent unauthorized access. When these services are not in use, turn them off.  Install or upgrade device security software and regularly scan for viruses.  Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses. 12  Install security software or patches released by Huawei or third-party application providers.  Some applications require and transmit location information. As a result, a third-party may be able to share your location information.  Your device may provide detection and diagnostic information to third-party application providers. Third party vendors use this information to improve their products and services.  If you have concerns about the security of your personal information and data, please contact [email protected]. For more help Please visit http://consumer.huawei.com/en/support/hotline/ for recently updated hotline and email address in your country or region. 13 Legal notice Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. Trademarks and permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Android™ is a trademark of Google Inc. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Third-Party software statement Huawei does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third-party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications. Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate or be liable for 14 services provided by third-party service providers, or the interruption or termination of third-party contents or services. Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works in any form, including but not limited to texts, images, videos, or software etc. Customers shall bea…

Text truncated - open the document above for the full version.

Date: 1/10/2014 To whom it may concern, Label Location Justification FCC ID: QISY600-U151 Request is hereby submitted by Huawei Technologies Co., Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925 (f) of the FCC Rules. The FCC identifier for HUAWEI Y600-U151 will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: * Marketing the device without the battery installed, or * Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements. pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, For and Behalf of: HUAWEI Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

1 13/12/2013 To whom it may concern, Letter of Agency I, an officer of HUAWEI TECHNOLOGIES CO., LTD. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under FCC Part 15 and FCC Part 22&24 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Zhang Xinghai EMC Laboratory Manager

1 13/12/2013 To whom it may concern, Request for Permanent Confidentiality FCC ID: QISY600-U151 Request is hereby submitted by HUAWEI TECHNOLOGIES CO., LTD. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and HUAWEI TECHNOLOGIES CO., LTD. reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description Parts List Tune Up Procedure The rationale for request for confidentiality is as followings: This information represents intellectual property of HUAWEI TECHNOLOGIES CO., LTD. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Zhang Xinghai EMC Laboratory Manager

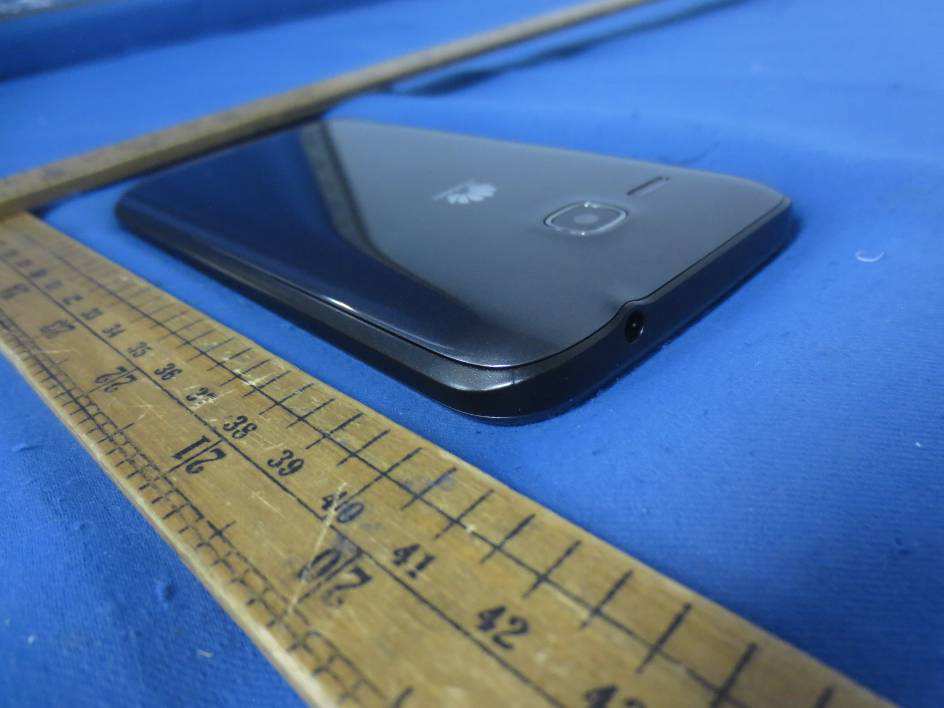

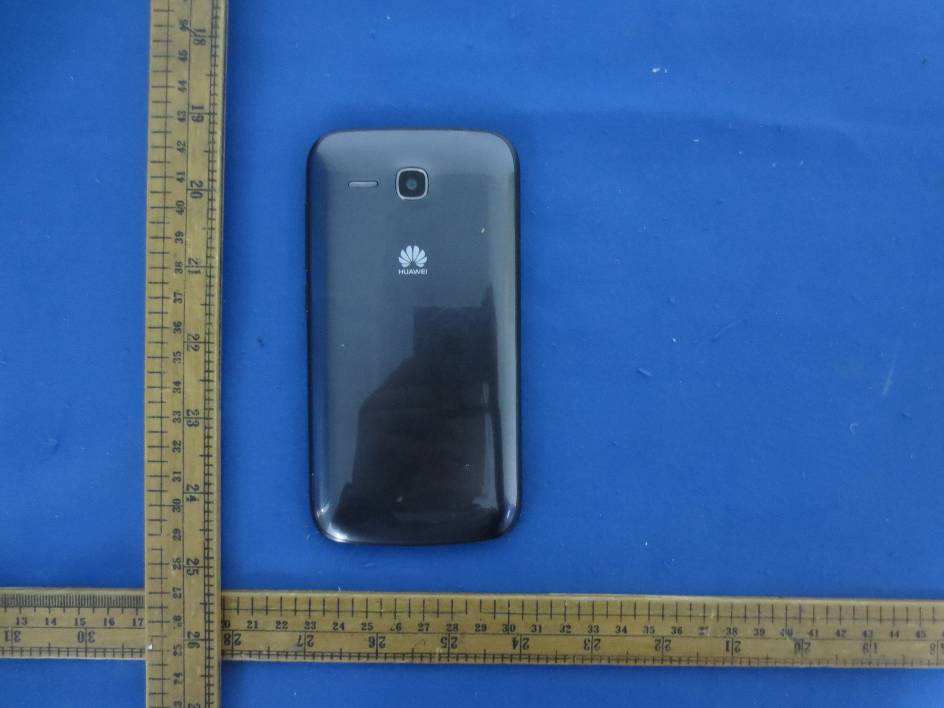

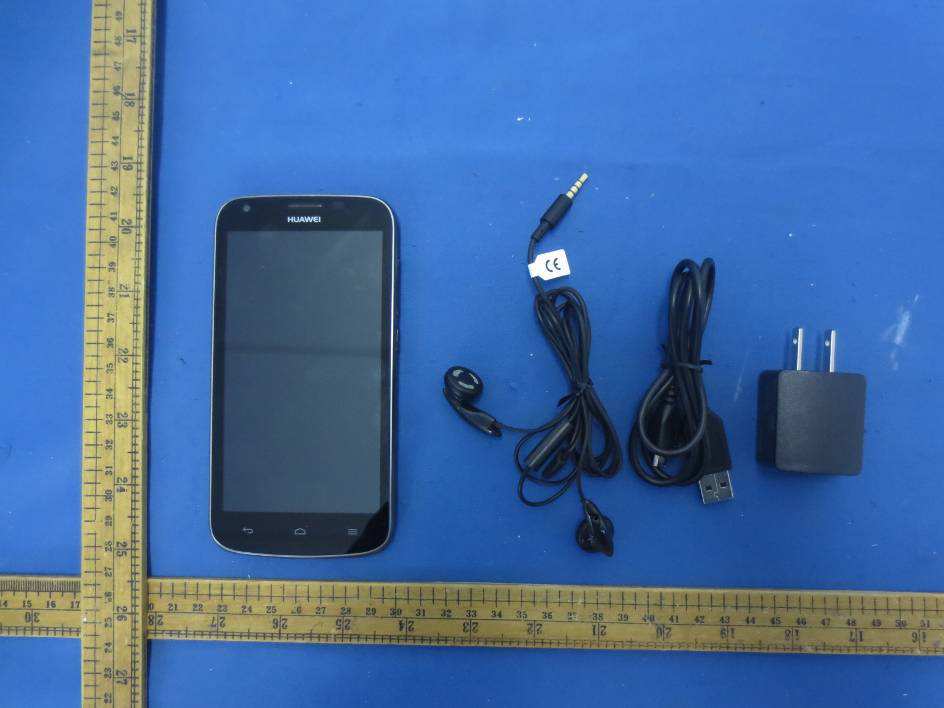

INTERTEK TESTING SERVICES External Photos: INTERTEK TESTING SERVICES

SIZE：47 (mm)* 75(mm)

INTERTEK TESTING SERVICES Internal photos INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES

Full SAR TEST REPORT No. ECIT-2013-0197-FCC-SAR For Client : Huawei Technologies Co., Ltd. Production : WCDMA Digital Mobile Phone Model Name : HUAWEI Y600-U151 Hardware Version: 3.4.5 Software Version: Y600-U151V100R001C00B007 Issued date: 2014-01-10 FCC ID: QISY600-U151 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of ECIT Shanghai. Test Laboratory: ECIT Shanghai, East China Institute of Telecommunications Add: 7F, G Area, No.668, Beijing East Road, Huangpu District, Shanghai, P. R. China Tel: (+86)-021-63843300, E-Mail: [email protected] Page 2 of 212 Revision Version Report Number Revision Date Memo ECIT-2013-0197-FCC-SAR 00 2014/01/10 Initial creation of test report ECIT-2013-0197-FCC-SAR Page 3 of 212 CONTENTS 1 Test Laboratory .......................................................................................................................... 6 1.1 Testing Location .............................................................................................................................. 6 1.2 Testing Environment ....................................................................................................................... 6 1.3 Project Data ...................................................................................................................................... 6 1.4 Signature .......................................................................................................................................... 6 2 Statement of Compliance .......................................................................................................... 7 3 Client Information ...................................................................................................................... 9 3.1 Applicant Information ..................................................................................................................... 9 3.2 Manufacturer Information ............................................................................................................... 9 4 Equipment Under Test (EUT) and Ancillary Equipment (AE) ............................................... 10 4.1 About EUT ...................................................................................................................................... 10 4.2 Internal Identification of EUT used during the test ..................................................................... 11 4.3 Internal Identification of AE used during the test ....................................................................... 11 5 TEST METHODOLOGY ............................................................................................................ 12 5.1 Applicable Limit Regulations ....................................................................................................... 12 5.2 Applicable Measurement Standards ............................................................................................ 12 6 Specific Absorption Rate (SAR) ............................................................................................. 14 6.1 Introduction.................................................................................................................................... 14 6.2 SAR Definition ............................................................................................................................... 14 7 Tissue Simulating Liquids ...................................................................................................... 15 7.1 Targets for tissue simulating liquid ............................................................................................. 15 7.2 Dielectric Performance ................................................................................................................. 15 8 System verification .................................................................................................................. 19 8.1 System Setup ................................................................................................................................. 19 8.2 System Verification ....................................................................................................................... 20 9 Measurement Procedures ....................................................................................................... 21 9.1 Tests to be performed ................................................................................................................... 21 9.2 General Measurement Procedure ................................................................................................ 22 9.3 WCDMA Measurement Procedures for SAR ............................................................................... 23 9.4 Bluetooth & Wi-Fi Measurement Procedures for SAR............................................................... 24 9.5 Power Drift ..................................................................................................................................... 25 10 Conducted Output Power ...................................................................................................... 26 ECIT-2013-0197-FCC-SAR Page 4 of 212 10.1 Manufacturing tolerance ............................................................................................................. 26 10.2 GSM Measurement result ........................................................................................................... 31 10.3 WCDMA Measurement result ..................................................................................................... 33 10.4 Wi-Fi and BT Measurement result ............................................................................................. 34 11 Simultaneous TX SAR Considerations .......................................................…

Text truncated - open the document above for the full version.

ECIT-2013-0197-FCC-SAR Page 142 of 212 ANNEX B SYSTEM VALIDATION RESULTS 835MHz-Head Date/Time: 12/4/2013 Electronics: DAE4 Sn1244 Medium: Head 835MHz Medium parameters used: f = 835 MHz; σ = 0.917 mho/m; εr = 41.04; ρ = 1000 kg/m3 Ambient Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Probe: ES3DV3 - SN3252ConvF(6.1, 6.1, 6.1); Calibrated: 8/5/2013 System Validation/Area Scan(101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 3.262 mW/g System Validation/Zoom Scan(7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.235 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 3.957 mW/g SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 3.254 mW/g ECIT-2013-0197-FCC-SAR Page 143 of 212 835MHz-Body Date/Time: 1/3/2014 Electronics: DAE4 Sn1244 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.999 mho/m; εr = 55.15; ρ = 1000 kg/m3 Ambient Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Probe: ES3DV3 - SN3252ConvF(6.14, 6.14, 6.14); Calibrated: 8/5/2013 System Validation/Area Scan(101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.849 mW/g System Validation/Zoom Scan(7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.385 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.729 mW/g SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 3.302 mW/g ECIT-2013-0197-FCC-SAR Page 144 of 212 1900MHz-Head Date/Time: 12/8/2013 Electronics: DAE4 Sn1244 Medium: Head 1900MHz Medium parameters used: f = 1900 MHz; σ = 1.385 mho/m; εr = 39.64; ρ = 1000 kg/m3 Ambient Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Probe: ES3DV3 - SN3252ConvF(5.24, 5.24, 5.24); Calibrated: 7/26/2013 System Validation/Area Scan(101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.986 mW/g System Validation/Zoom Scan(7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.425 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 17.569 mW/g SAR(1 g) = 10.39 mW/g; SAR(10 g) = 5.45mW/g Maximum value of SAR (measured) = 13.479 mW/g ECIT-2013-0197-FCC-SAR Page 145 of 212 1900MHz-Body Date/Time: 1/6/2014 Electronics: DAE4 Sn1244 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.524 mho/m; εr = 53.237; ρ = 1000 kg/m3 Ambient Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Probe: ES3DV3 - SN3252ConvF(5.03, 5.03, 5.03); Calibrated: 7/26/2013 System Validation/Area Scan(101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 9.875 mW/g System Validation/Zoom Scan(7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.043 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 18.584 mW/g SAR(1 g) = 10.26 mW/g; SAR(10 g) = 5.49 mW/g Maximum value of SAR (measured) = 14.687 mW/g ECIT-2013-0197-FCC-SAR Page 146 of 212 2450MHz-Head Date/Time: 1/2/2014 Electronics: DAE4 Sn1244 Medium: Head 2450MHz Medium parameters used: f = 2450 MHz; σ = 1.824 mho/m; εr = 38.87; ρ = 1000 kg/m3 Ambien Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3754ConvF(7.09, 7.09, 7.09); Calibrated: 7/20/2013 System Validation/ Area Scan (101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.68 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.463 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 16.473 mW/g SAR(1 g) = 12.64 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 13.563 mW/g ECIT-2013-0197-FCC-SAR Page 147 of 212 2450MHz-Body Date/Time: 1/2/2014 Electronics: DAE4 Sn1244 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.918 mho/m; εr = 53.946; ρ = 1000 kg/m3 Ambien Temperature:22.5°C Liquid Temperature:22.5°C Communication System: CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3754ConvF(6.66, 6.66, 6.66); Calibrated: 7/22/2013 System Validation/ Area Scan (101x101x1):Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.962 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.274 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 26.396 mW/g SAR(1 g) = 12.04 mW/g; SAR(10 g) = 5.66 mW/g Maximum value of SAR (measured) = 19.808 mW/g ECIT-2013-0197-FCC-SAR Page 148 of 212 ANNEX C SAR Measurement Setup C.1 Measurement Set-up The DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1 SAR Lab Test Measurement Set-up  A standard high precision 6-axis robot (Stäubli TX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE).  An isotropic field probe optimized and calibrated for the targeted measurement.  A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC.  The Electro-optical converter (EOC) performs the conversion from optical to electrical signals for the digital communication to the DAE. To use optical surface detection, a special version of the EOC is required. The EOC signal is transmitted to the measurement server.  The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts.  The Light Beam used is for probe alignment. This improves the (absolute) accuracy …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES GSM 850 (99% bandwidth) GPRS 850 (99% bandwidth) INTERTEK TESTING SERVICES EGPRS 850 (99% bandwidth) GSM 1900 (99% bandwidth) INTERTEK TESTING SERVICES GPRS 1900 (99% bandwidth) EGPRS 1900 (99% bandwidth) INTERTEK TESTING SERVICES WCDMA 850 (99% bandwidth) HSDPA 850 (99% bandwidth) INTERTEK TESTING SERVICES HSUPA 850 (99% bandwidth) WCDMA 1900 (99% bandwidth) INTERTEK TESTING SERVICES HSDPA 1900 (99% bandwidth) HSUPA 1900 (99% bandwidth) INTERTEK TESTING SERVICES GSM 850 (26dB bandwidth) GPRS 850 (26dB bandwidth) INTERTEK TESTING SERVICES EGPRS 850 (26dB bandwidth) GSM 1900 (26dB bandwidth) INTERTEK TESTING SERVICES GPRS 1900 (26dB bandwidth) EGPRS 1900 (26dB bandwidth) INTERTEK TESTING SERVICES WCDMA 850 (26dB bandwidth) HSDPA 850 (26dB bandwidth) INTERTEK TESTING SERVICES HSUPA 850 (26dB bandwidth) WCDMA 1900 (26dB bandwidth) INTERTEK TESTING SERVICES HSDPA 1900 (26dB bandwidth) HSUPA 1900 (26dB bandwidth)

INTERTEK TESTING SERVICES GSM 850 INTERTEK TESTING SERVICES GPRS 850 INTERTEK TESTING SERVICES EGPRS 850 INTERTEK TESTING SERVICES GSM 1900 INTERTEK TESTING SERVICES GPRS 1900 INTERTEK TESTING SERVICES EGPRS 1900 INTERTEK TESTING SERVICES WCDMA 850 INTERTEK TESTING SERVICES HSDPA 850 INTERTEK TESTING SERVICES HSUPA 850 INTERTEK TESTING SERVICES WCDMA 1900 INTERTEK TESTING SERVICES HSDPA 1900 INTERTEK TESTING SERVICES HSUPA 1900

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 22H&24E_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com TEST REPORT Report Number: 131112042SZN-003 Application for Original Grant of 47 CFR Part 22 and Part 24 Certification WCDMA Digital Mobile Phone FCC ID: QISY600-U151 Prepared and Checked by: Approved by: Billy Li Leung Wai Leung, Tommy Supervisor Deputy General Manager January 14, 2014 INTERTEK TESTING SERVICES TRF: FCC 22H&24E_b Test Report Number: 131112042SZN-003 FCC ID: QISY600-U151 GENERAL INFORMATION Applicant Name: Huawei Technologies Co.,Ltd Applicant Address: Bantian, Longgang District, Shenzhen, China FCC Specification Standard: FCC Part 22: 2012 FCC Part 24: 2012 FCC ID: QISY600-U151 FCC Model(s): HUAWEI Y600-U151 Type of EUT: WCDMA/HSUPA/HSDPA/GSM/GPRS /EDGE Digital Mobile Phone with Bluetooth and WiFi Description of EUT: WCDMA Digital Mobile Phone Serial Number: N/A Sample Receipt Date: November 12, 2013 Date of Test: December 10, 2013 Report Date: January 14, 2014 Environmental Conditions: Temperature: 25 ± 10°C Humidity: 10 to 90% INTERTEK TESTING SERVICES TRF: FCC 22H&24E_b Test Report Number: 131112042SZN-003 FCC ID: QISY600-U151 List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Spurious Emissions cspurious.pdf Test Report Bandedge Plot be.pdf RF Exposure Info SAR Report sar report. pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Cover Letter Label Location Justification justification.pdf Block Diagrams Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Part List/Tune Up Info Tune Up Procedure tuneup.pdf Part List/Tune Up Info Part List partlist.pdf Cover Letter Letter of Agency letter of agency.pdf Cover Letter Confidentiality Request request.pdf INTERTEK TESTING SERVICES TRF: FCC 22H&24E_b Test Report Number: 131112042SZN-003 FCC ID: QISY600-U151 Table of Contents 1.0 Summary of Test Results.................................................................................................................................. 1 1.1 Statement of Compliance................................................................................................................................ 1 2.0 General Description............................................................................................................................................ 2 2.1 Product Description........................................................................................................................................... 2 2.2 Test Methodology.............................................................................................................................................. 3 2.3 Test Facility........................................................................................................................................................ 3 3.0 System Test Configuration................................................................................................................................ 4 3.1 Justification.........................................................................................................................................................4 3.2 Details of EUT and Description of Accessories.............................................................................................. 6 3.3 Measurement Uncertainty................................................................................................................................. 6 3.4 Equipment Modification..................................................................................................................................... 6 4.0 Test Results.......................................................................................................................................................... 7 4.1 Channels for Cellular Service and Broadband PCS Services (FCC Part 22.905, Part 24.229)................ 7 4.2 RF Power Output (FCC Part 2.1046, 22.913 & 24.232)................................................................................ 9 4.3 Occupied Bandwidth (FCC Part 2.1049)....................................................................................................... 11 4.4 Spurious Emissions at Antenna Terminals (FCC Part 2.1051, 2.1057, 22.917, 24.238)......................... 12 4.5 Power …

Text truncated - open the document above for the full version.

Picture1：Head Left Cheek Mode Picture2：Head Left Tilt Mode Picture3：Head Right Cheek Mode Picture4：Head Right Tilt Mode Picture5：Body Phantom Mode Picture6：Body Ground Mode Picture7：Body Left Mode Picture8：Body Right Mode Picture9：Body Bottom Mode Picture10：Body Top Mode
