QNP-433GBWireless Glass Break Detector

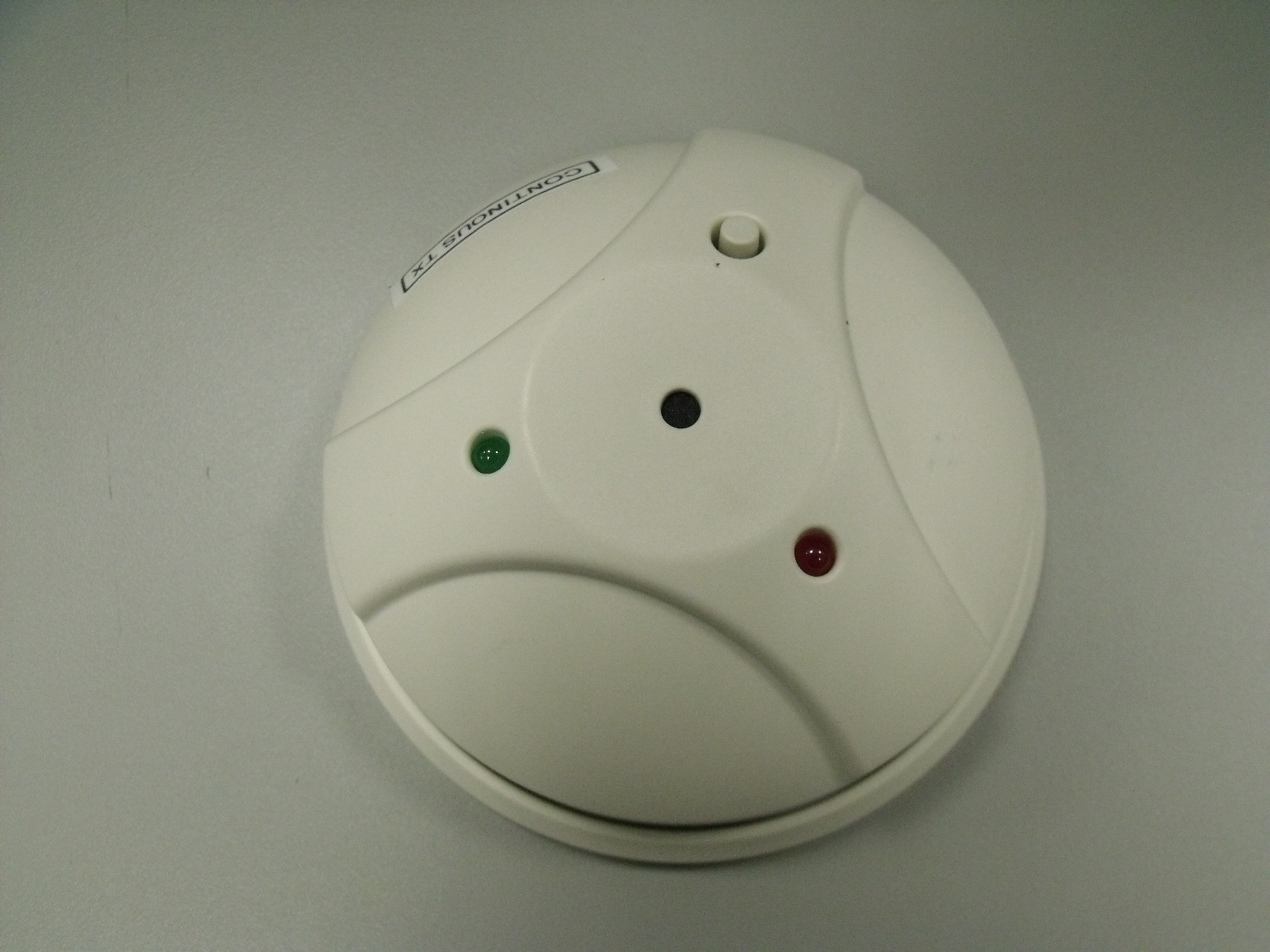

Figure 2 AT&T Model SW-ATT-GB, Glass Break Detector Description The AT&T model number SW-ATT-GB Glass Break Detector is a fully supervised, tamper protected ceiling -or wall-mounted unit with a fifteen (15) foot maximum detection range, 360° maximum horizontal sensing angle, and dual-stage glass break detection. Installation/Mounting & Programming Guidelines To setup the glass break detector: 1. Hold the Glass Break Detector unit upside down and twist the base counter clockwise to remove the detector from the base. 2. Install the two CR123A batteries supplied with the unit paying careful attention to observe the correct battery polarity 3. Wait five (5) seconds for the power up delay. 4. Enter the programming mode on the Digital Life Controller (Information to be supplied by AT&T) 5. Enroll the Glass Break Detector by pressing and holding the tamper switch for a minimum of 2 seconds (See Figure 4) or per information supplied by AT&T. Mounting the Glass Break Detector 1. Place the Glass Break Detector base on the opposite wall or adjacent wall to the window being protected. 2. You may also mount the Glass Break Detector base on the ceiling. 3. Use the base as a template for locating the three mounting holes (See Figure 2) 4. Affix the base to the desired location utilizing the 3 long mounting screws and anchors supplied with the unit. NOTE: for wall mounting the test button should be oriented down nearest the floor (See Figure 1) 5. When attaching the detector to the base, match the alignment marks and twist clockwise. If batteries are not installed, the detector cannot be installed to its base. (See Figure 3) Figure 1 Figure 4 Figure 3 (CAUTION: make sure that the distance from the glass to be protected and the glass break detector does not exceed fifteen (15) feet.) Testing Walk Test 1. Push and hold the test button for two (2) seconds and then release it. The red LED will light while the button is pressed. The green LED will blink once to indicate that the unit is in auto test mode for the next 90 seconds (See Figure 1). 2. Activate a glass break simulator in the area of the window or windows that you are attempting to protect with the glass break detector. The Glass Break Detector should first acknowledge the detection of a thud sound by illuminating the green LED and then illuminate the red LED when the unit detects the crash portion of the glass breaking sound (See Figure 1). RF Test 1. Push and hold the test button for five (5) seconds and then release it. The red LED will light while the button is pressed. The green LED will blink twice to indicate that the unit is in RF test mode for the next 90 seconds (See Figure 1). Glass Type/Thickness Minimum size for all glass types is 11” x 11” (28 cm x 28 cm) square. Glass must be framed, in a wall of the room or mounted in a barrier of 36” (91 cm) minimum width. Glass Type Minimum to Maximum Thickness Plate 1/8 in. to 1/4 in. (3.2 mm to 6.4 mm) Tempered 1/8 in. to 1/4 in. (3.2 mm to 6.4 mm) Sealed, Insulating 1/8 in. to 1/4 in. (3.2 mm to 6.4 mm) Case Tamper Detection Removing the SW-ATT-GB sensor from its base will cause the integral transmitter to send a case tamper report to the Digital Life Controller. This tamper condition will remain on the system until the glass break sensor is reinstalled and the integral transmitter sends a tamper restore to the Digital Life Controller. Battery Installation and Replacement The SW-ATT-GB sensor includes low battery detection capability. When the battery voltage reaches a pre-determined level the glass break detector will send a low battery report to the Digital Life Controller. When the system indicates that the sensor batteries are low, replace them immediately. Use the recommended replacement batteries (See specification) or contact AT&T technical support for more information. To install the battery, do the following: 1. Carefully remove the Glassbreak detector from its base by twisting counterclockwise. 2. Remove the depleted batteries and dispose of them as required by local laws. 3. Insert the replacement batteries paying careful attention to the batteries polarity. 6. Re-attach the glass break detector to its base. Match the alignment marks and twist clockwise. If batteries are not installed, the detector cannot be installed to its base. General Specifications Operating Temperature: 32° to 120° F (0° to 49° C) Operating Rel. Humidity: 5 to 95%, non-condensing Operating Frequency: 433.92 MHz Battery Type: CR-123A, or equivalent Lithium batteries, two required Installation Kit: three (3) Philips head screws, three plastic wall anchors Sensor Type: Single microphone, dual stage—thud and crash Approved Glass Break Simulator: Intellisense Model FG-701 IMPORTANT INFORMATION ABOUT RADIO DEVICES 1. AT&T radio controls provide a reliable communications link and fill an important need in portable wireless signaling. However, there are some limitations which must be observed. 2. For US installations only: the radios are required to comply with FCC rules and regulations including FCC part 15 devices. As such, they have limited transmitter power and therefore limited range. 3. A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies regardless of code settings. 4. Changes or modifications to the device may void FCC compliance 5. Infrequently used radio links should be tested regularly to protect against undetected interference or fault. 6. RF signals can be affected by metal objects including metal doors or large mirrors. Care should be taken to avoid these objects during installation as they can interfere with proper operation. FCC compliance statement This device complies with FCC Rules and Regulations as Part 15 devices as well as Industry Canada Rules and Regulations. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept an…

Text truncated - open the document above for the full version.

LABEL,FCC,ID,5016-04 187-1195 REV B :N/P RAEN I L GNITNIRP DAP RO LEBAL DETNIRP :SSECORP .GFM D E KCA B E V ISEHDA ,DET A OC E TIHW .BL 06 : LA I R ETAM LEB AL KCAL B TNE N AMRE P : K N I LEB A L 200-733312 N/P RAENIL ,KCALB :KNI GNIT N IRP DAP 1- 1 : E LACS ARTWORK DRAWING PAD PRINTING DRAWING (REFERENCE ONLY) LABEL ADHESIVE DRAWING (REFERENCE ONLY) .750” .500” Model: SW-ATT-GB FCC ID: QNP-433GB IC: 4676A-433GB Made in China er i W e r u c eS sselcnI . Model: SW-ATT-GB FCC ID: QNP-433GB IC: 4676A-433GB Made in China eriW e r u c eS sselcnI. Model: SW-ATT-GB FCC ID: QNP-433GB IC: 4676A-433GB Made in China eriW e r u c eS sselcnI.

Antenna Specification SW-ATT-GB Rev 1 The SW-ATT-GB transmitter uses and internal -15 dBi printed wire loop antenna which is not replaceable by the user.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Wireless Glass Break Detector MODEL NUMBER: SW-ATT-GB FCC ID: QNP-433GB IC: 4676A-433GB REPORT NUMBER: SR8481734-T001 ISSUE DATE: 2012-03-13 Prepared for SECURE WIRELESS, INC 5817 DRYDEN PLACE, SUITE D CARLSBAD CA, 92008, USA Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: SR8481734-T001 DATE: 2012-03-13 FCC ID: QNP-433GB IC: 4676A-433GB Page 2 of 33 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 2012- 03-13 Initial Issue B. DeLisi REPORT NO: SR8481734-T001 DATE: 2012-03-13 FCC ID: QNP-433GB IC: 4676A-433GB Page 3 of 33 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. ANTENNA PORT TEST RESULTS ...................................................................................11 6.1. 20 dB AND 99% BW ...................................................................................................11 6.2. DUTY CYCLE .............................................................................................................15 6.3. TRANSMISSION TIME ...............................................................................................20 7. RADIATED EMISSION TEST RESULTS...........................................................................21 7.1. TX RADIATED SPURIOUS EMISSION ......................................................................21 8. SETUP PHOTOS ...............................................................................................................28 REPORT NO: SR8481734-T001 DATE: 2012-03-13 FCC ID: QNP-433GB IC: 4676A-433GB Page 4 of 33 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Secure Wireless, Inc 5817 Dryden Place, Suite D Carlsbad, CA 92008, USA EUT DESCRIPTION: Wireless Glass Break Detector MODEL: SW-ATT-GB SERIAL NUMBER: Non-serialized production unit DATE TESTED: 2012-02-22 through 2012-03-05 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation, as described by the referenced documents. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL By: Tested By: Joseph Danisi Bob DeLisi Lead Engineering Associate Sr. Staff Engineer UL LLC UL LLC REPORT NO: SR8481734-T001 DATE: 2012-03-13 FCC ID: QNP-433GB IC: 4676A-433GB Page 5 of 33 UL LLC. FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2, FCC CFR 47 Part 15, RSS-GEN Issue 3, and RSS-210 Issue 8. 3. FACILITIES AND ACCREDIT…
