QNP915RPTDEVICE CONTROLLER

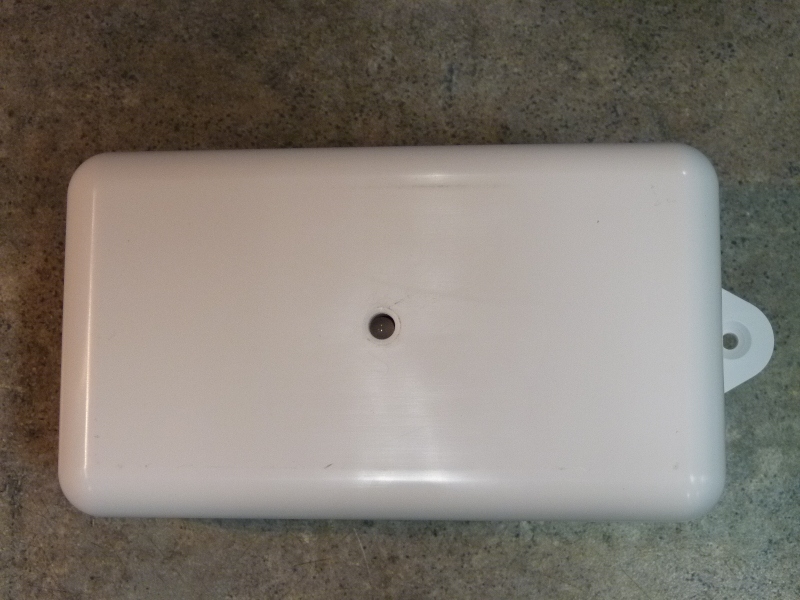

Product Description The AT&T model number SW-ATT-RPTR9 is a proprietary 915MHz wireless repeater. Once it is installed and discovered, it will perform the repeating function automatically by determining which 915MHz transmissions are not being received by the DLC and will automatically repeat those 915MHz transmissions. The 915MHz Repeater is a fully supervised peripheral device that communicates with the DLC through a two-way proprietary 915MHz short range radio interface. The 915MHz Repeater receives and recognizes messages from other 915MHz devices (including the keypad, siren and DLC) and automatically repeats those messages from devices that are not being received by the DLC to extend the range of these devices. Installing/Replacing Batteries The 915MHz Repeater has two (2) non-rechargeable 3V CR123 batteries that provide twenty-four (24) hour battery backup. The batteries can be replaced by opening the battery compartment located on the rear of the unit. Installing the 915MHz Repeater Install the 915MHz Repeater by plugging the grounded plug into a single socket on a wall AC outlet. Then install the retaining screw into the plastic tab located at the top of the unit to secure the unit to the AC outlet. Discovering and Registering the 915MHz Repeater Follow these steps to discover and register the 915MHz repeater: 1. Place the DLC into Discovery Mode in DLD. 2. Make the 915MHz repeater discoverable by pressing the learn button. 3. Confi rm that the 915MHz repeater has been discovered in DLD. 4. Label the 915MHz repeater in DLD. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. exploitation est autorisée aux deux conditions suivantes: (1) appareil ne doit pas produire de brouillage, et (2) utilisateur de appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible en compromettre le fonctionnement. Copyright © 2013 Linear LLC. 234732X1 FCC Compliance Statement This device complies with FCC Rules and Regulations as Part 15 devices as well as Industry Canada license exempt RSS Rules and Regulations. Operation is subject to the following two (2) conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. LISTED SW-ATT-RPTR9 RTL 41809 Installation Instructions

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QNP915RPT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram RPTR9_BlockDiagram.pdf Theory of Operation RPTR9_Theory of Operation_X1.pdf Schematic and BOM Schem_RPTR9.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer

LABEL, FCC/DOC, SW-ATT-RPTR9 LINEAR P/N: 233969 X4 MANUFACTURING PROCESS: LABEL, SILKSCREEN, OR PADPRINT LABEL INK: PERMANENT BLACK LABEL MATERIAL: CLEAR ACETATE, ADHESIVE BACKED THICKNESS: .0015" PAD PRINTING INK: BLACK, LINEAR P/N: 213337-002 SCALE: 1-1 2.300" 1.000" MADE IN CHINA 233969 X4 SECURE WIRELESS, INC. MODEL SW-ATT-RPTR9 FCC ID: QNP915RPT I.C.:4676A-915RPT This device complies with Part 15 of the FCC and Industry Canada license exempt RSS Standard Rules and Regulations. Operation subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d ́Industrie Canada applicables aux appareils radio exempts de licence. L ́exploitation est autorisée aux deus conditions suivantes: (1) l ́appareil ne doit pas produire de brouillage, et (2) l ́utilisateur de l ́appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d ́en compromettre le fonctionnement. For installation instructions refer to Manual Number 234732 supplied with this product. INPUT: 120V 60 Hz 3 Watts

LABEL, FCC/DOC, SW-ATT-RPTR9 LINEAR P/N: 233969 X4 MANUFACTURING PROCESS: LABEL, SILKSCREEN, OR PADPRINT LABEL INK: PERMANENT BLACK LABEL MATERIAL: CLEAR ACETATE, ADHESIVE BACKED THICKNESS: .0015" PAD PRINTING INK: BLACK, LINEAR P/N: 213337-002 SCALE: 1-1 2.300" 1.000" MADE IN CHINA 233969 X4 SECURE WIRELESS, INC. MODEL SW-ATT-RPTR9 FCC ID: QNP915RPT I.C.:4676A-915RPT This device complies with Part 15 of the FCC and Industry Canada license exempt RSS Standard Rules and Regulations. Operation subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d ́Industrie Canada applicables aux appareils radio exempts de licence. L ́exploitation est autorisée aux deus conditions suivantes: (1) l ́appareil ne doit pas produire de brouillage, et (2) l ́utilisateur de l ́appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d ́en compromettre le fonctionnement. For installation instructions refer to Manual Number 234732 supplied with this product. INPUT: 120V 60 Hz 3 Watts

Nemko USA, Inc. 2210 Faraday Avenue, Suite 150 Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC Part 15 Subpart C, 15.249 : 19 December 2012 CERTIFICATION TEST REPORT Report Number: 2012 10221060 EMC Project Number: 10231106 Nex Number: 221060 Applicant: L INEAR LLC 1950 CAMINO VIDA ROBLE Carlsbad, CA 92008 Equipment Under Test (EUT): REPEATER Model: SW-ATT-RPTR9 FCC ID: QNP915RPT IC: 4676A-915RPT In Accordance With: FCC Part 15 Subpart C, 15.249 IC RSS-210 Issue 8 December 2010 IC RSS-Gen Issue 3 December 2010 Tested By: Nemko USA Inc. 2210 Faraday Avenue, Suite 150 Carlsbad, CA 92008 Authorized By: Alan Laudani, EMC/RF Test Engineer Date: O CTOBER 5, 2012 Total Number of Pages: 26 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: QNP915RPT Report Number: 2012 10221060 EMC IC: 4676A-915RPT Specification: FCC Part 15 Subpart C, 15.249 Page 2 of 26 1 Applicant Affirmation John Kuivinen representing Linear LLC hereby affirms: a) That he/she has reviewed and concurs that the test shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That all changes (in hardware and software/firmware) to the subject device will be reviewed. d) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving (certifying) the subject equipment. John Kuivinen Printed name of official Signature of official 1950 Camino Vida Roble October 5, 2012 Address Date 760-438-7138 [email protected] Telephone number Email address of official NOTE—This affirmation must be signed by the responsible party before it is submitted to a regulatory body for approval. Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: QNP915RPT Report Number: 2012 10221060 EMC IC: 4676A-915RPT Specification: FCC Part 15 Subpart C, 15.249 Page 3 of 26 Section1: Summary of Test Results General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15; Subpart C and IC RSS-210. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made in a 10m semi-anechoic chamber. A description of the test facility is on file with the FCC and IC. The assessment summary is as follows: Apparatus Assessed: Repeater Model: SW-ATT-RPTR9 Specification: FCC Part 15 Subpart C, 15.249 IC RSS-210 Issue 8 December 2010 Date Received in Laboratory: September 24, 2011 Compliance Status: Complies Exclusions: None Non-compliances: None Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: QNP915RPT Report Number: 2012 10221060 EMC IC: 4676A-915RPT Specification: FCC Part 15 Subpart C, 15.249 Page 4 of 26 1.1 Report Release History REVISION DATE COMMENTS - October 5, 2012 Prepared By: Mark Phillips - October 5, 2012 Initial Release: Alan Laudani Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. TESTED BY: Date: October 5, 2012 Mark Phillips, EMC Test Engineer Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: QNP915RPT Report Number: 2012 10221060 EMC IC: 4676A-915RPT Specification: FCC Part 15 Subpart C, 15.249 Page 5 of 26 TABLE OF CONTENTS 1 Applicant Affirmation ......................................................................................... 2 Section1: Summary of Test Results ............................................................................ 3 1.1 Report Release History ..................................................................................... 4 Section 2: Equipment Under Test ................................................................................ 6 2.1 Product Identification ........................................................................................ 6 2.2 Samples Submitted for Assessment ................................................................. 6 2.3 Theory of Operation .......................................................................................... 7 2.4 Technical Specifications of the EUT ................................................................. 7 Section 3: Test Conditions ........................................................................................... 8 3.1 Specifications .................................................................................................... 8 3.2 Deviations From Laboratory Test Procedures ................................................... 8 3.3 Test Environment .............................................................................................. 8 3.4 Test Equipment ................................................................................................. 9 Section 4: Observations ............................................................................................. 10 4.1 Modifications Performed During Assessment ................................................. 10 4.2 Record Of Techni…
