QNP-433TILTWireless Garage Door Sensor/Tilt

Description The AT&T model number SW-ATT-TILT Garage Door Sensor is a fully supervised tamper protected sensor that will monitor the opening and closing of a garage door installed in the Digital Life System. It is designed to be mounted on the top section of a sectional garage door. Once the garage door is opened to a minimum angle of 45 degrees the sensor will initiate an alarm (or garage door open) condition. System programming will determine what actions this condition will provide on the system. The sensor will also send a restore (or garage door closed) condition when the tamper switch is returned to a position where the angle is less than 45 degrees. If the case of the SW- ATT-TILT is removed for any reason, the radio transmitter will send a tamper alert to the Digital Life Controller. Should the battery voltage drop below a prescribed level, the SW-ATT-TILT will send a low battery report indicating that the battery requires changing. (Consult the “installing the battery” section for information about changing the battery.) Installing the Battery When the system indicates the sensor battery is low, replace it immediately. Use the recommended replacement batteries (See specification) or contact AT&T technical support for more information. To replace the battery, do the following: 1. To remove the sensor cover from the base, press a flathead screwdriver into the slot on the bottom of the sensor (Figure 1) and turn the screwdriver 90 degrees. 2. Place a small flathead screwdriver in the slot between the metal clip and the battery and twist the screwdriver slightly while holding back one of the black plastic edges holding the battery. Dispose of the battery as required by local laws. 3. Insert the replacement battery with the + sign facing up. 4. Verify programming and RF communication with the Digital Life Controller. 5. Replace the sensor cover on the base. Align the tamper switch with the plastic tamper tap (See Figure 1) and snap the cover down on the base. Locating the Transmitter 1. For Sectional Door Installation: The transmitter should be mounted near the top of the top panel of the garage door. 2. Make sure that the tamper switch points to the floor. 3. Avoid mounting the sensor in areas where it will be exposed to moisture or where the sensor will be exposed to temperatures outside its operating range of 0 to 120° F (0 to 49° C). 4. Avoid mounting the sensor in areas with a large quantity of metal or electrical wiring. Mounting the Transmitter 1. To remove the sensor cover from the base, press a flathead screwdriver into the slot on the bottom of the sensor (Figure 1) and turn the screwdriver 90 degrees. 2. Use the base of the sensor as a template and mark the mounting holes with a pencil. 3. Drill the holes for the screws 4. Mount the base with the screws provided. 5. Replace the sensor cover on the base by aligning the tamper switch with the plastic tamper tab (Figure 1) and snap the cover down on the base. Note: Attaching the transmitter with Double-stick tape is not allowed in UL installations. Enrolling the Transmitter (Per AT&T requirements) Verifying the programming and RF communications (Per AT&T requirements) Case Tamper Detection Removing the cover of the SW-ATT-TILT will cause the integral transmitter to send a case tamper report to the Digital Life Controller. This tamper condition will remain on the system until the case cover is reinstalled and the integral transmitter sends a tamper restore to the Digital Life Controller. IMPORTANT INFORMATION ABOUT RADIO DEVICES 1. AT&T radio controls provide a reliable communications link and fill an important need in portable wireless signaling. However, there are some limitations which must be observed. 2. For US installations only: the radios are required to comply with FCC rules and regulations including FCC part 15 devices. As such, they have limited transmitter power and therefore limited range. 3. A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies regardless of code settings. 4. Changes or modifications to the device may void FCC compliance 5. Infrequently used radio links should be tested regularly to protect against undetected interference or fault. 6. RF signals can be affected by metal objects including metal doors or large mirrors. Care should be taken to avoid these objects during installation as they can interfere with proper operation. FCC compliance statement This device complies with FCC Rules and Regulations as Part 15 devices as well as Industry Canada Rules and Regulations. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Conformité Réglementaire Ce dispositif est conforme à la réglementation de la IC et (Partie 15) de la FCC. Son fonctionnement est soumis à deux conditions : (1) ce dispositif ne doit pas causer d’interférences nuisibles, et (2) ce dispositif doit accepter toute interférence reçue, y compris les interférences pouvant entraîner des conditions de fonctionnement indésirables. WARNING: The battery may explode if mistreated. Do not discharge, disassemble or dispose of in fire. Notice to users in California—CR Coin Cell Lithium Battery information: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply See www.dtsc.ca.gov.harardouswaste/perchlorate. General Specifications Battery CR2032, 3 VDC, 255 mAh, Lithium Coin Cell Typical battery life 5 to 8 years Operating Temperature: 32° to 120° F (0° to 49° C) Operating Rel. Humidity: 5 to 95%, non-condensing Operating Frequency: 433.92 MHz Tilt Switch Angle: 45 degrees

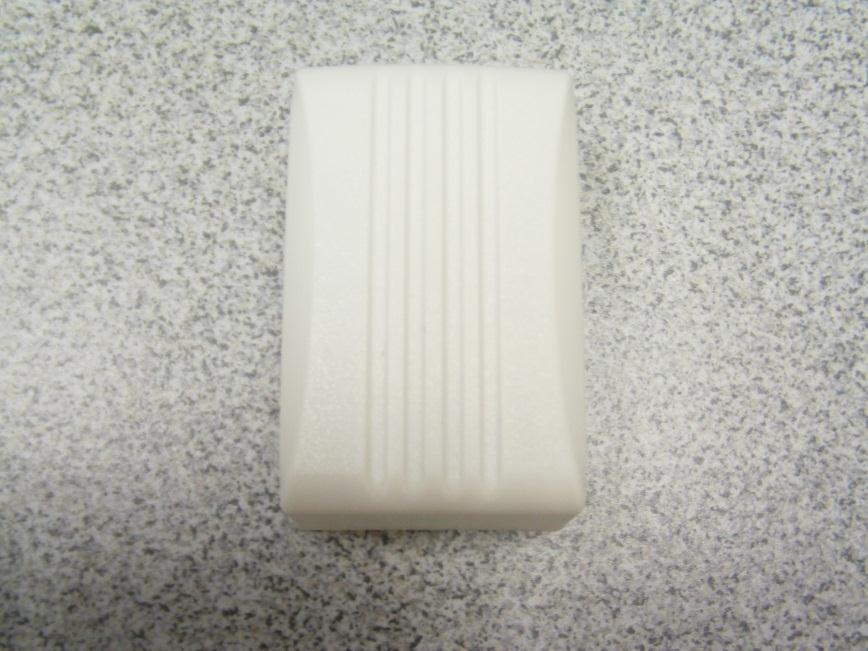

SW-ATT-TILT External & Internal Pictures

LABEL,FCC,ID,SW-ATT-TILT 187-1377 REV B :N/P RAEN I L GNITNIRP DAP RO LEBAL DETNIRP :SSECORP .GFM D E KCA B E V ISEHDA ,DET A OC E TIHW .BL 06 : LA I R ETAM LEB AL KCAL B TNE N AMRE P : K N I LEB A L 200-733312 N/P RAENIL ,KCALB :KNI GNIT N IRP DAP 1- 1 : E LACS ARTWORK DRAWING PAD PRINTING DRAWING (REFERENCE ONLY) LABEL ADHESIVE DRAWING (REFERENCE ONLY) .750” .500” Model: SW-ATT-TILT FCC ID: QNP-433TILT IC: 4676A-433TILT Made in China Secure Wireless Inc. Mod el: SW- ATT-TI LT FCC ID: QNP -433TILT IC: 4676A- 433TILT Made in Chi na Secure Wire less Inc . Mod el: SW- ATT-TI LT FCC ID: QNP -433TILT IC: 4676A-433TI LT Made in Chi na Secure Wire less Inc .

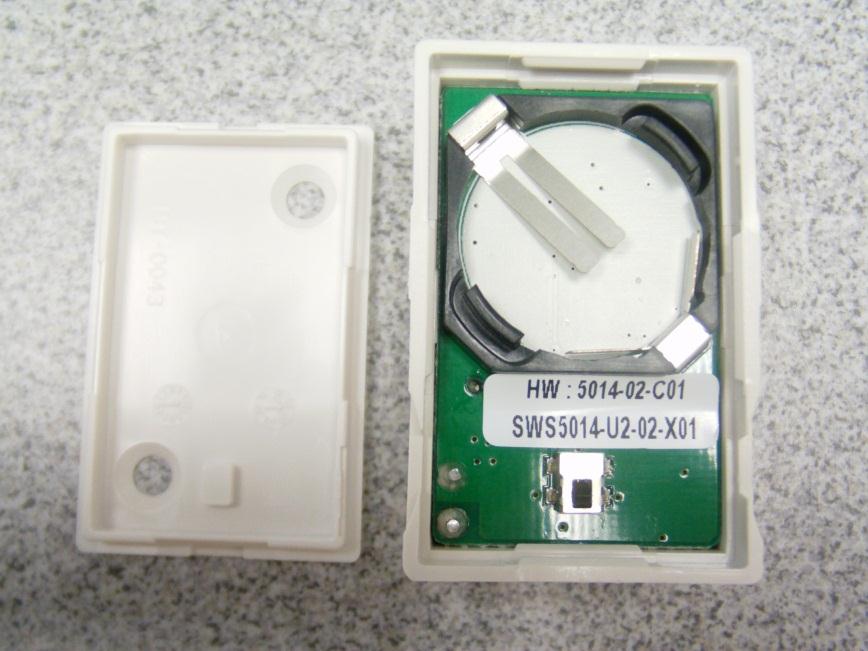

SW-ATT-TILT External & Internal Pictures

Antenna Specification SW-ATT-TILT Rev 1 The SW-ATT-TILT transmitter uses and internal -15 dBi wire loop antenna which is not replaceable by the user.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR WIRELESS GARAGE DOOR SENSOR/ TILT MODEL NUMBER*: SW-ATT-TILT, 4676A-433TILT FCC ID: QNP-433TILT IC ID: 4676A-433TILT REPORT NUMBER: 12U14298-1, Revision A ISSUE DATE: APRIL 17, 2012 Prepared for SECURE WIRELESS 5817 Dryden Place, Suite D Carlsbad, CA 92008, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 model *SW-ATT-TILT is the USA model; 4676A-433TILT is the Canadian REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 2 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/09/12 Initial Issue F. Ibrahim A 04/17/12 Revised sections 7.2 and 8.1 F. Ibrahim REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 3 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.3. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 6 5.5. MODIFICATIONS ........................................................................................................... 7 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 8 7. ANTENNA PORT TEST RESULTS ...................................................................................... 9 7.1. 20 dB AND 99% BW ....................................................................................................... 9 7.2. DUTY CYCLE ............................................................................................................... 11 7.3. TRANSMISSION TIME ................................................................................................. 16 8. RADIATED EMISSION TEST RESULTS ............................................................................ 17 8.1. TX RADIATED SPURIOUS EMISSION........................................................................ 17 8.2. RX RADIATED SPURIOUS EMISSION ....................................................................... 22 9. SETUP PHOTOS ................................................................................................................. 23 REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 4 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS 5817 Dryden Place, Suite D Carlsbad, CA 92008, U.S.A. EUT DESCRIPTION: WIRELESS GARAGE DOOR SENSOR/ TILT MODEL*: SW-ATT-TILT, 4676A-433TLIT *SW-ATT-TILT is the USA model; 4676A-433TILT is the Canadian SERIAL NUMBER: 00015A (Continuous TX) and 000121 (Test Firmware) DATE TESTED: APRIL 02, 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any governme…

Text truncated - open the document above for the full version.

REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 23 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 9. SETUP PHOTOS ANTENNA PORT ANTENNA PORT REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 24 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – X ORIENTATION WORST POSITION X ORIENTATION X ORIENTATION_CLOSE UP REPORT NO: 12U14298-1A DATE: APRIL 17, 2012 FCC ID: QNP-433TILT IC: 4676A-433TILT Page 25 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION FOR PORTABLE CONFIGURATION – Y ORIENTATION END OF REPORT Y ORIENTATION Z ORIENTATION
