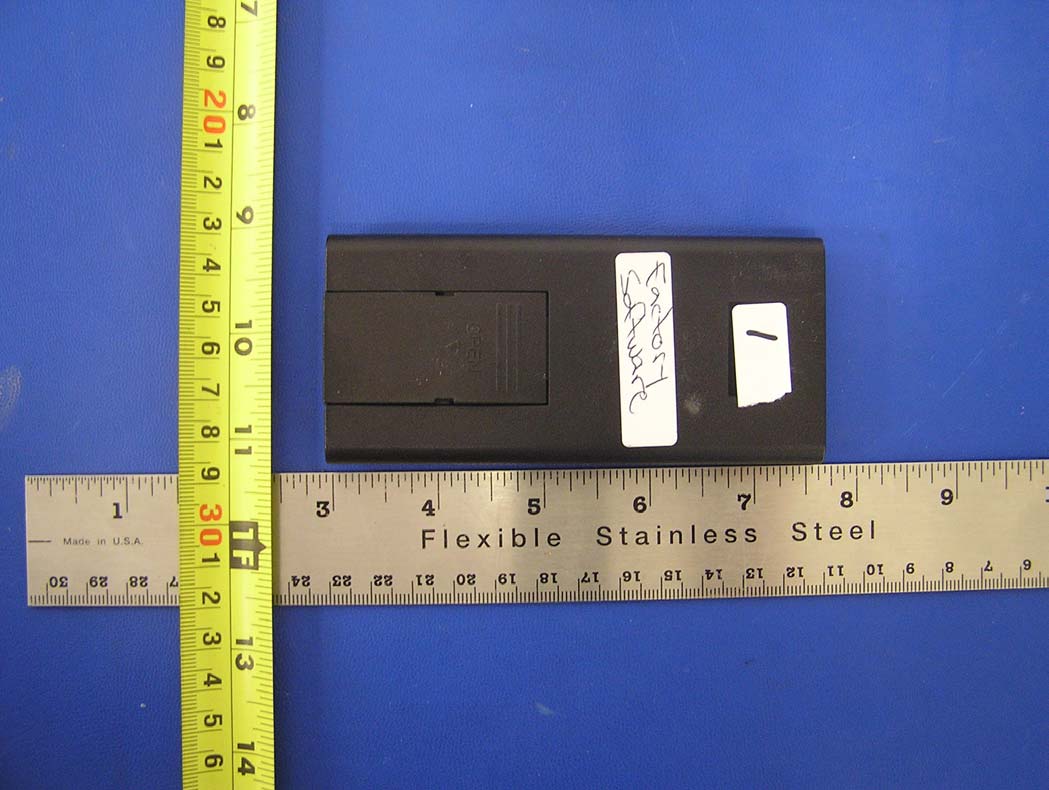

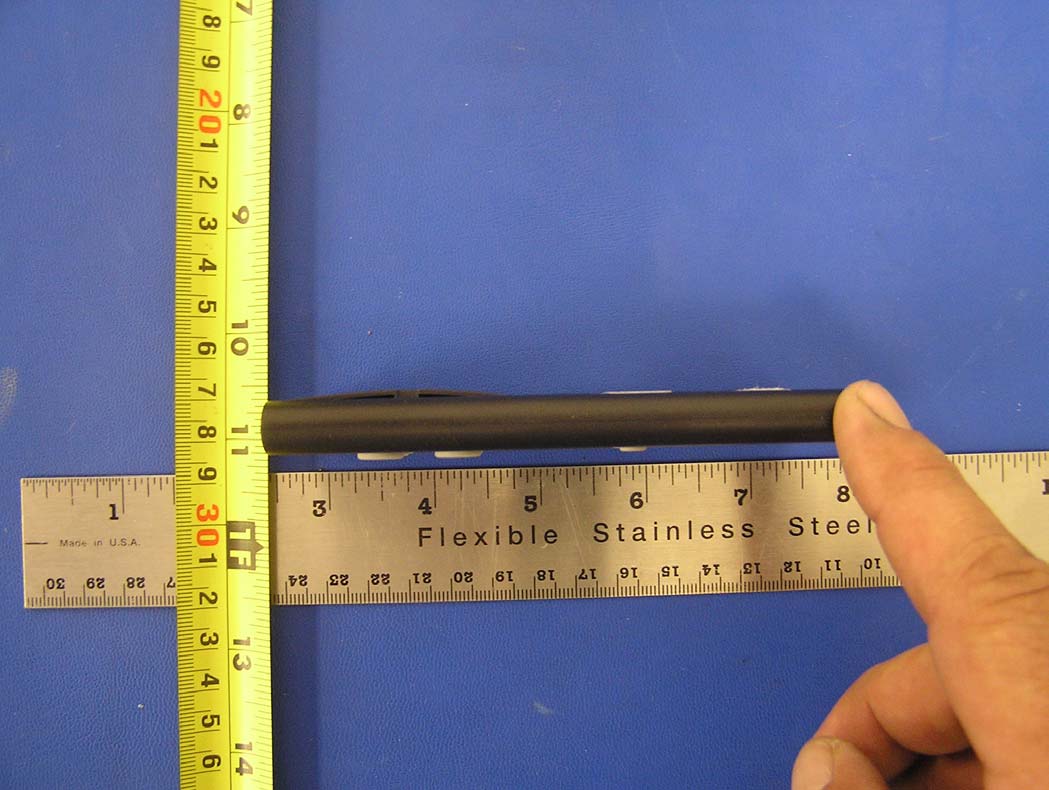

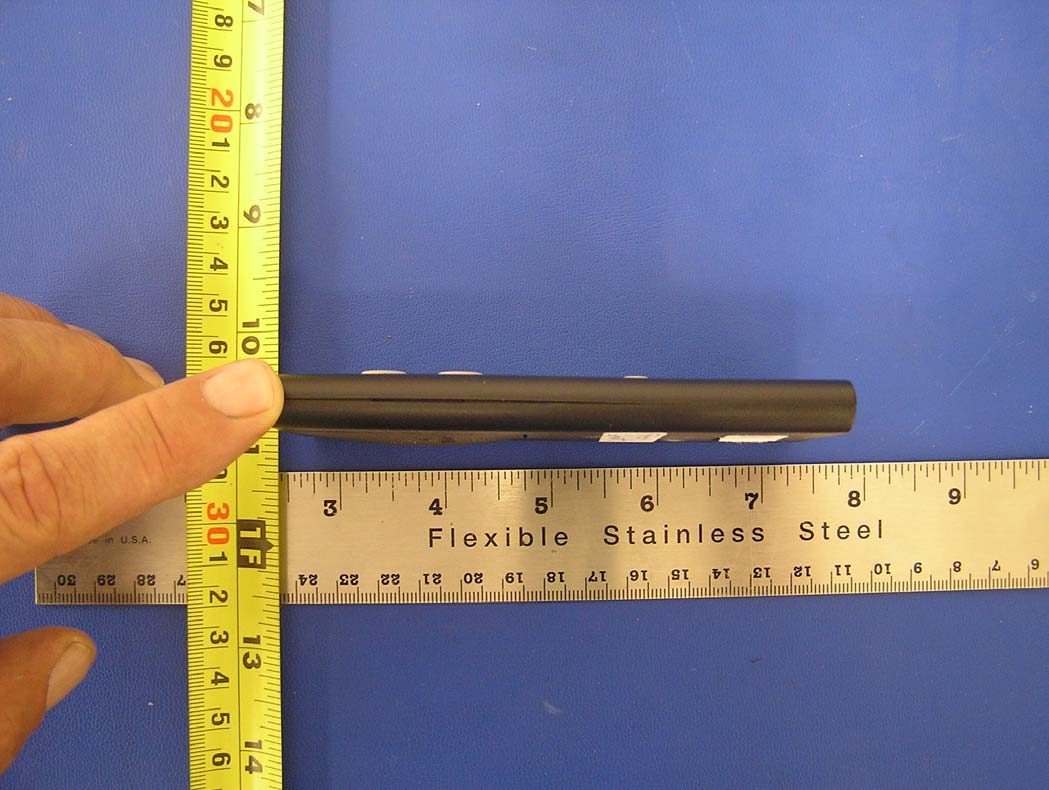

QNP-DLARMElan RF Remote Control

LIMITED WARRANTY ATON* warrants to the purchaser/end user (“you”) that the DLA2RKT/DLA4RKT/DLA6RKT is to be free from defects in materials and workmanship for a period of one (1) year from date of purchase (the “Warranty Period”). This warranty is transferable to subsequent owners of the product as long as the original proof of purchase is retained. If you discover a defect in material or workmanship within the Warranty Period, you can obtain warranty service by contacting ATON during the Warranty Period at (859)-422-7137 or [email protected]. If ATON determines that the product is in fact defective, ATON shall, at its option, repair or replace the product free of charge to you. This warranty shall not apply to equipment (a) not manufactured by ATON, (b) to equipment which was improperly installed, (c) which was repaired or altered by persons other than ATON or its authorized repre- sentatives or subject to unauthorized tampering, alteration or modification, (d) damaged due to misuse, negligence, accident, acts of God (including, but not limited to, excess moisture, insects, lightning, flood, electrical surge, tornado, earthquake, or other catastrophic events beyond ATON’s control), or (e) subject to improper operation, maintenance or storage or unreasonable use. The foregoing warranties do not cover reimbursement for labor, transportation, removal, installation or other expenses which may be incurred in connection with repair or replacement. The foregoing remedies shall be your exclusive remedies for any breach of warranty. Further, the foregoing warranty does not extend to equipment sold, but not manufactured by, ATON (“Third Party Products”). With respect to any Third Party Products, the warranty for such product shall be as pro- vided by the manufacturer of such product, who will also be responsible for warranty service, and ATON will pass through to you any transferable warranty actually extended to ATON by the manufacturer. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES. ATON EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. Notwithstanding the above, where applicable, if you qualify as a “consumer” under the Magnuson- Moss Warranty Act, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Some states do not allow limitations on how long an implied Limited Warranty lasts, so the above limitation may not apply to you. ATTENTION: TO OUR VALUED CONSUMERS Valid proof of purchase is required for all warranty services. Warranty service requests made without proof of date of purchase will be denied. Please keep the original sales receipt for your records and send a copy to request warranty service. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. * ATON is a division of ELAN Home Systems, LLC. ROOM 1 ROOM 1ROOM 1 ROOM 2 ROOM 2ROOM 2 ROOM 3ROOM 3ROOM 4ROOM 4 ROOM 5ROOM 6 ALL ON ALL ON ALL ON ALL OFF ALL OFF ALL OFF SCENESCENESCENE MUTEMUTEMUTE VOL + VOL + VOL + VOL _ VOL _ VOL _ Place included Room labels here ATON PORT PATENT PENDING PWR IN 12VDC / 2.1A AMPLIFIER INPUT IR EMITTER OUTPUTS RF Receiver DLA2RF Rear View Mounting Holes RJ-11 Plug X X Mounting Bracket Tabs Mounting Bracket Button Function Room 1-6Selects Rooms for Adjustment All OnTurns All Rooms On All OffTurns All Rooms Off ScenePlaces Rooms into Scene Preset Mode Mute (Toggle)Press to Reduce Volume of Selected Room to 0, Press Again to Increase Volume to Previous Level Vol +Increases Volume of Selected Room by One Step Vol -Decreases Volume of Selected Room by One Step DLA 2 / 4 / 6 Room RF Remote w/ Receiver 1 Mount RF Receiver at the DLA selector equipment location using included mounting bracket. Secure mounting bracket using (2) phillips screws (included) and slide RF Receiever mounting holes onto the mounting tabs of the bracket. Note: ATON recommends mounting RF receiver as high as possible for best reception. Connect RF Receiver RJ-11 plug into ATON Port. Plug power supply into DLA Selector and then into wall AC power outlet. Test remote by selecting a room and then ramping Volume Up and Down, Muting, etc. RF Remotes 2 3 4 Make sure RF receiver is plugged into the DLA ATON Port and that the DLA Selector is powered On (power supply is plugged in). Remove the access cover from the bottom of the RF receiver. Press and release the Program button - Program LED will turn solid. Within 10 seconds press and release the “Scene” button on the additional remote you wish to program into the receiver. If the remote is programmed into the receiver correctly, the program LED will immediately turn off. Repeat steps 3-5 for additional remotes (up to seven remotes can be programmed into one receiver). NOTE: Only ONE RF receiver can be used per DLA Selector. Program all ad- ditional remotes into the original RF receiver. The remote that is included with the original RF receiver is pre-programmed to the receiver and will function without additional programming. For Installations Requiring Multiple RF Remotes 1 2 3 4 5 6 D4 S1 JP1 JP2 JP3 JP4 D4 S1 JP1 JP2 JP3 JP4 Access Cover RF Receiver Program Button Program LED For Installations Using Only One RF Remote P/N DLARKTIS REV:A 2 Room 4 Room6 Room www.atonhome.com NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment …

Text truncated - open the document above for the full version.

LIMITED WARRANTY ATON* warrants to the purchaser/end user (“you”) that the DLA2RM/DLA4RM/DLA6RM is to be free from defects in materials and workmanship for a period of one (1) year from date of purchase (the “Warranty Period”). This warranty is transferable to subsequent owners of the product as long as the original proof of purchase is retained. If you discover a defect in material or workmanship within the Warranty Period, you can obtain warranty service by contacting ATON during the Warranty Period at (859)-422-7137 or [email protected]. If ATON determines that the product is in fact defective, ATON shall, at its option, repair or replace the product free of charge to you. This warranty shall not apply to equipment (a) not manufactured by ATON, (b) to equipment which was improperly installed, (c) which was repaired or altered by persons other than ATON or its authorized repre- sentatives or subject to unauthorized tampering, alteration or modification, (d) damaged due to misuse, negligence, accident, acts of God (including, but not limited to, excess moisture, insects, lightning, flood, electrical surge, tornado, earthquake, or other catastrophic events beyond ATON’s control), or (e) subject to improper operation, maintenance or storage or unreasonable use. The foregoing warranties do not cover reimbursement for labor, transportation, removal, installation or other expenses which may be incurred in connection with repair or replacement. The foregoing remedies shall be your exclusive remedies for any breach of warranty. Further, the foregoing warranty does not extend to equipment sold, but not manufactured by, ATON (“Third Party Products”). With respect to any Third Party Products, the warranty for such product shall be as provided by the manufacturer of such product, who will also be responsible for warranty service, and ATON will pass through to you any transferable warranty actually extended to ATON by the manufacturer. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES. ATON EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. Notwithstanding the above, where applicable, if you qualify as a “consumer” under the Magnuson-Moss Warranty Act, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Some states do not allow limitations on how long an implied Limited Warranty lasts, so the above limitation may not apply to you. ATTENTION: TO OUR VALUED CONSUMERS Valid proof of purchase is required for all warranty services. Warranty service requests made without proof of date of purchase will be denied. Please keep the original sales receipt for your records and send a copy to request warranty service. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. * ATON is a division of ELAN Home Systems, LLC. ROOM 1 ROOM 1ROOM 1 ROOM 2 ROOM 2ROOM 2 ROOM 3ROOM 3ROOM 4ROOM 4 ROOM 5ROOM 6 ALL ON ALL ON ALL ON ALL OFF ALL OFF ALL OFF SCENESCENESCENE MUTEMUTEMUTE VOL + VOL + VOL + VOL _ VOL _ VOL _ Place included Room labels here ATON PORT PATENT PENDING PWR IN 12VDC / 2.1A AMPLIFIER INPUT IR EMITTER OUTPUTS RF Receiver DLA2/4/6 or DLA2RF RJ-11 Plug Button Function Room 1-6Selects Rooms for Adjustment All OnTurns All Rooms On All OffTurns All Rooms Off ScenePlaces Rooms into Scene Preset Mode Mute (Toggle)Press to Reduce Volume of Selected Room to 0, Press Again to Increase Volume to Previous Level Vol +Increases Volume of Selected Room by One Step Vol -Decreases Volume of Selected Room by One Step DLA2RM/DLA4RM/DLA6RM RF Remote The DLA2RM, DLA4RM and DLA6RM RF Remotes are accessory remote con- trols designed to work with ATON models DLA2RKT, DLA4RKT and DLA6RKT RF Remote/Receiver Kits. These remotes will function as additional control- lers when added to existing RF Receiver installations or as replacement units. Note: These remotes will not function without an installed RF receiver. RF Remotes Make sure RF receiver is plugged into the DLA ATON Port and that the DLA Selector is powered On (power supply is plugged in). Remove the access cover from the bottom of the RF receiver. Press and release the Program button - Program LED will turn solid. Within 10 seconds press and release the “Scene” button on the remote you wish to program into the receiver. If the remote is programmed into the receiver correctly, the program LED will immediately turn off. Repeat steps 3-5 for additional remotes (up to seven remotes can be programmed into one receiver). NOTE: Only ONE RF receiver can be used per DLA Selector. Program all ad- ditional remotes into the original RF receiver. The remote that is included with the original RF Remote/Receiver Kit is pre-programmed to the receiver and will function without additional programming. Programming the RF Remote to function with the RF Receiver 1 2 3 4 5 6 D4 S1 JP1 JP2 JP3 JP4 D4 S1 JP1 JP2 JP3 JP4 Access Cover RF Receiver Program Button Program LED P/N DLARMINS REV:A DLA2RM-2 RoomDLA4RM-4 RoomDLA6RM-6 Room www.atonhome.com NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient …

Text truncated - open the document above for the full version.

ID Label and Location

FCC CFR47 PART 15 SUBPART C IC RSS-210 CERTIFICATION TEST REPORT FOR ELAN RF REMOTE CONTROL MODEL NUMBER: DLA2RM, DLA4RM, DLA6RM FCC ID: QNP-DLARM IC: 4676A-DLARM REPORT NUMBER: 07U11142-1, REVISION B ISSUE DATE: AUGUST 28, 2007 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11142-1B DATE: AUGUST 28, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 2 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 08/14/07 Initial Issue T. Chan B 08/28/07 Revised Test Standard Issue T. Hong REPORT NO: 07U11142-1B DATE: AUGUST 28, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 13 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 18 7.4. RADIATED EMISSIONS.............................................................................................................20 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 20 7.4.2. RECEIVER SPURIOUS EMISSIONS LIMIT................................................................... 23 8. SETUP PHOTOS................................................................................................................................ 24 REPORT NO: 07U11142-1B DATE: AUGUST 28, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA EUT DESCRIPTION: ELAN RF REMOTE CONTROL MODEL: DLA2RM, DLA4RM, DLA6RM SERIAL NUMBER: 01996 DATE TESTED: JUNE 21-27, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED IC RSS-210 ISSUE 7 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN THANH NGUYEN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11142-1B DATE: AUGUST 28, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 5 of 26 COMPLIANCE CERTIFICAT…

Text truncated - open the document above for the full version.

REPORT NO: 07U11142-1 DATE: AUGUST 14, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 24 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 07U11142-1 DATE: AUGUST 14, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 25 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 07U11142-1 DATE: AUGUST 14, 2007 EUT : ELAN RF REMOTE CONTROL FCC ID: QNP-DLARM IC: 4676A-DLARM Page 26 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
