QNP-DWV2Wireless Recess Door/Window Sensor

Secure Wireless Model SW-xxx-V2, VANISHING 2, DOOR/WINDOW DEVICE Description The Secure Wireless model number SW-xxx-V2 Vanishing 2 device is a fully supervised, tamper-protected door/window transmitter that works with the xxx receiver. It is designed to be installed with its integral magnet on most doors or windows and includes a radio transmitter that sends information to the receiver. Opening the door or window will cause the radio transmitter to send an alarm report. Closing the door or window will cause the radio transmitter to send a restore code that indicates that the door or window is closed. If the case of the SW-xxx-V2 is removed for any reason, the radio transmitter will send a tamper alert to the receiver. Should the battery voltage drop below a prescribed level the SW-xxx-V2 will send a low battery report indicating that the devices battery requires changing. (Consult the “installing the battery” section for information about changing the battery.) Locating the Transmitter For Door Installation: Select the location where the SW-xxx-V2 is to be mounted. The transmitter should be located vertically on the door jam or more than six inches of the top of the door. The integral magnet should be mounted on the door, within ½ inch of the transmitter with the notch on the magnet aligned with the middle notch on the transmitter as shown on Figure C. For Window Installation: Select the location where the SW-xxx- V2 is to be located. Mount the transmitter on the window jam near the top of the section of the window to be protected. The integral magnet should be mounted on the window, within ½ inch of the transmitter with the notch on the magnet aligned with the middle notch on the transmitter as shown on Figure C. Mounting the Transmitter 1. Use the base of the sensor as a template and mark the mounting holes with a pencil. 2. Drill the holes for the screws, 5/16” drill size 3. Mount the base to the door jam with the screws provided. To remove cover, insert Screwdriver here, and gently twist Figure A a. For doors that open on the left hand side, the round battery cavity in the base should be at top when the base is mounted to the door jam. b. For doors that open on the right hand side, the round battery cavity in the base should be at the bottom when the base is mounted to the door jam. 4. Carefully replace the sensor on the base by aligning the tamper switch with the plastic tamper tab (Figure 1) and snap the cover down on the base. The accessory package also includes self adhesive tape. The use of this tape is not allowed in UL listed installations. For non-UL listed systems, once the proper location for the SW-xxx-V2 has been determined it can be permanently mounted using the supplied adhesive. Using Adhesive Tape Make sure that the surface is clean and dry. Apply the supplied tape to the back of the SW-xxx-V2, press and hold firmly in the desired location for approximately 10 to 15 seconds. Note that it may take up to 24 hours for the tape to reach its maximum bonding strength. Note: Attaching the transmitter with Double-stick tape is not allowed in UL installations. Installing or Changing the Battery The SW-xxx-V2 requires one CR2032 lithium battery. To install the battery, remove the cover as indicated in Figure A. Once cover is removed, insert the battery with the positive (+) side up as indicated in Figure B. Enrolling the Transmitter (Per customer requirements) Figure B Circuit Board Tamper Switch To remove battery, insert screwdriver here and twist + Battery (+ side up) Verifying the programming and RF communications (Per customer requirements) Case Tamper Detection Removing the cover of the SW-xxx-V2 will cause the integral transmitter to send a case tamper report to the receiver. This tamper condition will remain on the system until the case cover is reinstalled and the integral transmitter sends a tamper restore to the receiver. General Specifications Operating Temperature: 32° to 120° F (0° to 49° C) Operating Rel. Humidity: 5 to 95%, non-condensing Operating Frequency: 433.92 MHz Battery Type: 3-Volt CR2032 Lithium Battery IMPORTANT INFORMATION ABOUT RADIO DEVICES 1. This device provides a reliable communications link and fills an important need in portable wireless signaling. However, there are some limitations which must be observed. 2. For US installations only: the radios are required to comply with FCC rules and regulations including FCC part 15 devices. As such, they have limited transmitter power and therefore limited range. 3. A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies regardless of code settings. 4. Changes or modifications to the device may void FCC compliance 5. Infrequently used radio links should be tested regularly to protect against undetected interference or fault. 6. RF signals can be affected by metal objects including metal doors or large mirrors. Care should be taken to avoid these objects during installation as they can interfere with proper operation. FCC compliance statement This device complies with FCC Rules and Regulations as Part 15 devices as well as Industry Canada Rules and Regulations. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Conformité Réglementaire Ce dispositif est conforme à la réglementation de la IC et (Partie 15) de la FCC. Son fonctionnement est soumis à deux conditions : (1) ce dispositif ne doit pas causer d’interférences nuisibles, et (2) ce dispositif doit accepter toute interférence reçue, y compris les interférences pouvant entraîner des conditions de fonctionnement indésirables. WARNING: The polarity of the battery must be observed. Improper handling of lithium batteries may result in heat generation, explosion or fire which may lead to per…

Text truncated - open the document above for the full version.

LALABEL,FCC,ID,5050-01 187-1212 REV B :N/P RAEN I L GNITNIRP DAP RO LEBAL DETNIRP :SSECORP .GFM D E KCA B E V ISEHDA ,DET A OC E TIHW .BL 06 : LA I R ETAM LEB AL KCAL B TNE N AMRE P : K N I LEB A L 200-733312 N/P RAENIL ,KCALB :KNI GNIT N IRP DAP 1- 1 : E LACS ARTWORK DRAWING PAD PRINTING DRAWING (REFERENCE ONLY) LABEL ADHESIVE DRAWING (REFERENCE ONLY) .750” .500” Made in China e r i W e r u c e S ssel c nI. Model: SW-ATT-V2 FCC ID: QNP-DWV2 IC: 4676A-EVDWV2 Made in China Model: SW-ATT-V2 FCC ID: QNP-DWV2 IC: 4676A-EVDWV2 Made in China Model: SW-ATT-V2 FCC ID: QNP-DWV2 IC: 4676A-EVDWV2 e r i W e r u c e S s s e l c n I. e r i W e r u c e S s s e lc n I .

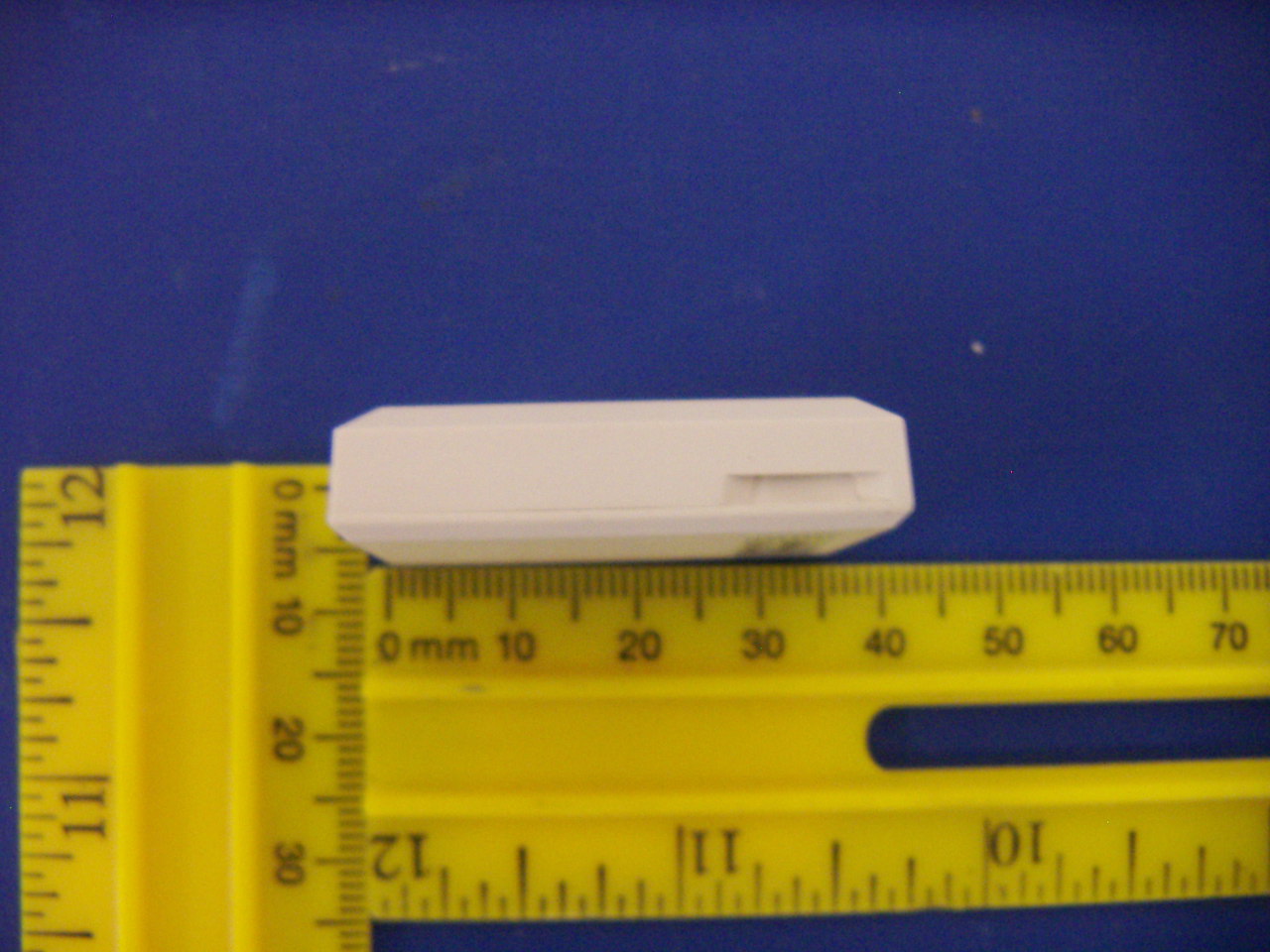

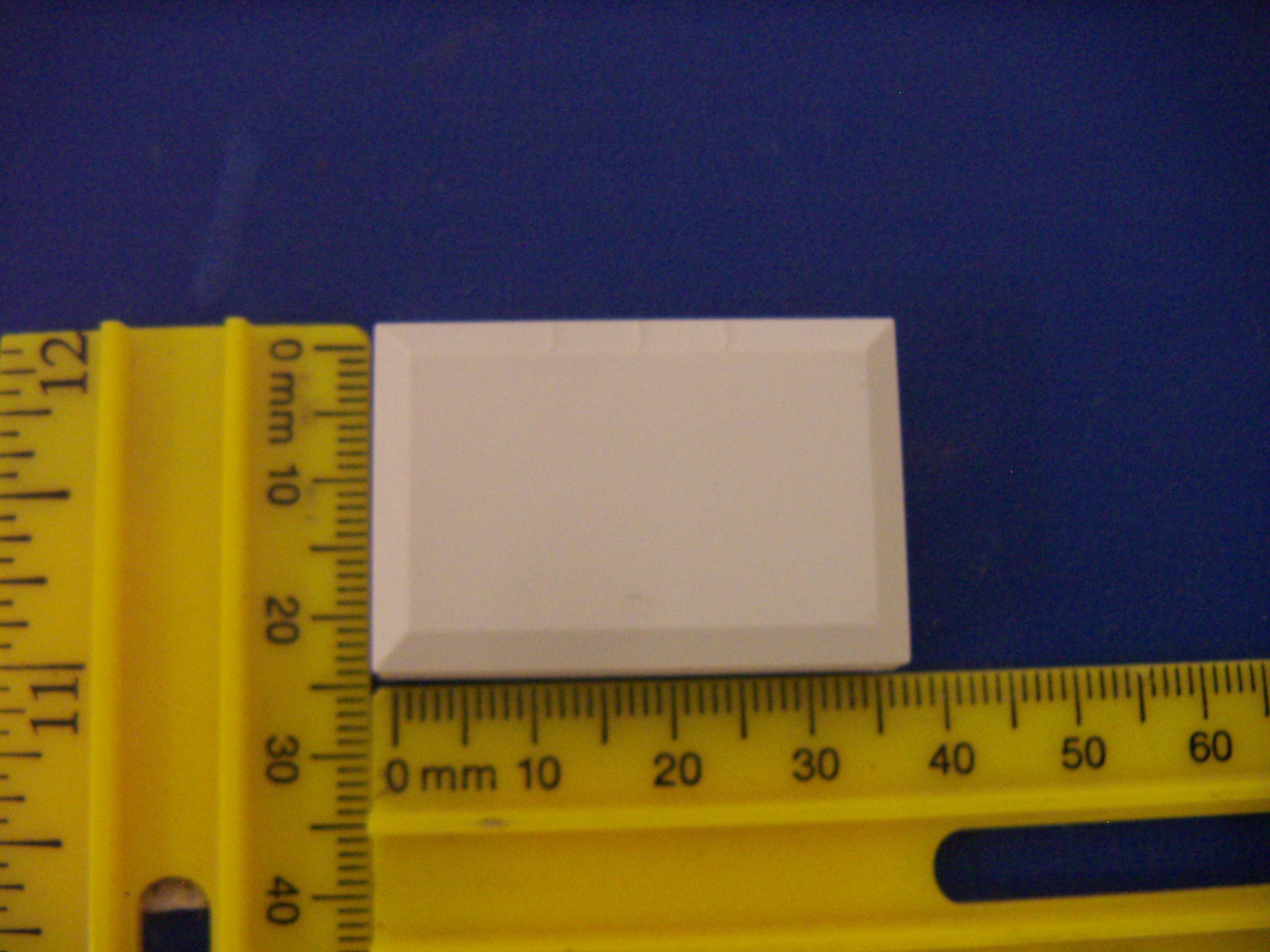

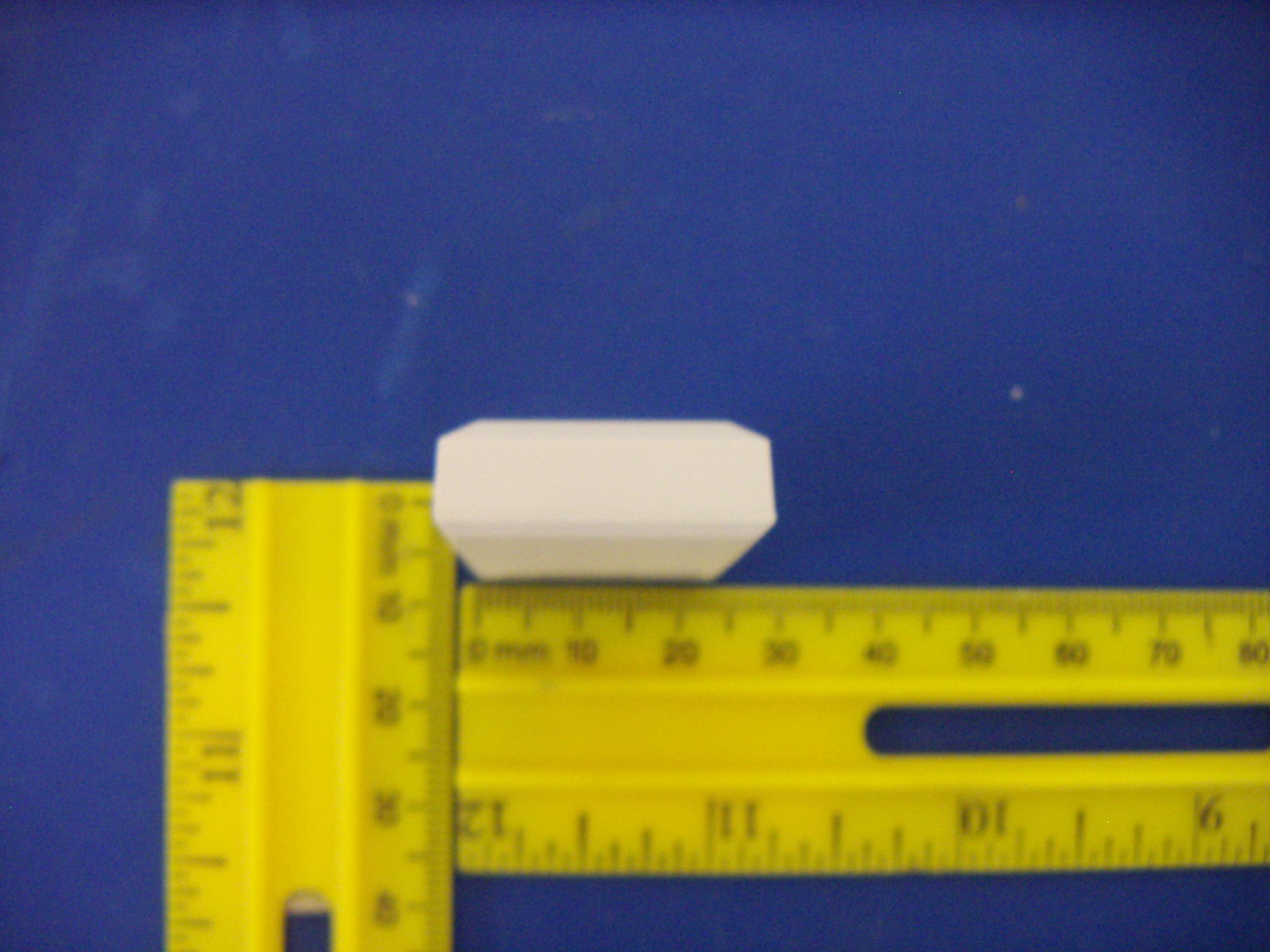

SW‐ATT‐V2 EUT Pics

Antenna Specification SW-ATT-V2 Rev 1 The SW-ATT-V2 transmitter uses and internal -15 dBi printed PCB loop antenna which is not replaceable by the user.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR WIRELESS RECESS DOOR/WINDOW SENSOR MODEL NUMBER: SW-ATT-V2 FCC ID: QNP-DWV2 IC ID: 4676A-433V2 REPORT NUMBER: 12U14267-1, Revision B ISSUE DATE: JANUARY 16, 2013 Prepared for SECURE WIRELESS 5817 Dryden Place, Suite D Carlsbad, CA 92008 Prepared by UL CCS 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12U14267-1B DATE: JANUARY 16, 2013 FCC ID: QNP-DWV2 IC: 4676A-433V2 Page 2 of 25 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 02/14/12 Initial Issue F. Ibrahim A 05/16/12 Updated IC ID A. Zaffar B 01/16/13 Revised EUT photos and data T. Nguyen REPORT NO: 12U14267-1B DATE: JANUARY 16, 2013 FCC ID: QNP-DWV2 IC: 4676A-433V2 Page 3 of 25 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 8 7. ANTENNA PORT TEST RESULTS .................................................................................... 9 7.1. 20 dB AND 99% BW .................................................................................................... 9 7.2. DUTY CYCLE .............................................................................................................13 7.3. TRANSMISSION TIME ...............................................................................................15 8. RADIATED EMISSION TEST RESULTS...........................................................................16 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................16 8.2. RX RADIATED SPURIOUS EMISSION ......................................................................21 9. SETUP PHOTOS ...............................................................................................................22 REPORT NO: 12U14267-1B DATE: JANUARY 16, 2013 FCC ID: QNP-DWV2 IC: 4676A-433V2 Page 4 of 25 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS 5817 Dryden Place, Suite D Carlsbad, CA 92008 EUT DESCRIPTION: WIRELESS RECESS DOOR/WINDOW SENSOR MODEL: SW-ATT-V2 SERIAL NUMBER: 0002D9 and 0002C0 DATE TESTED: NOVEMBER 6, 2012 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL CCS tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL CCS By: Tested By: FRANK IBRAHIM THANH NGUYEN WiSE PROJECT LEADER EMC ENGINEER UL CCS UL CCS REPORT NO: 12U14267-1B DATE: JANUARY 16, 2013 FCC ID: QNP-DWV2 IC: 4676A-433V2 Page 5 of 25 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in…
