QNP-EVREC1Wireless Home Security Interface

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:- (1) This device may not cause harmful interference. (2) This device must accept any interference received : including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio of TV interference caused by unauthorized modification to this equipment. Such modification could void the user’ authority to operate the equipment.

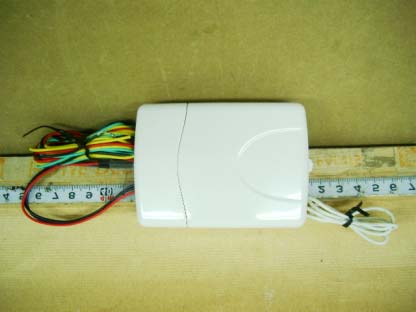

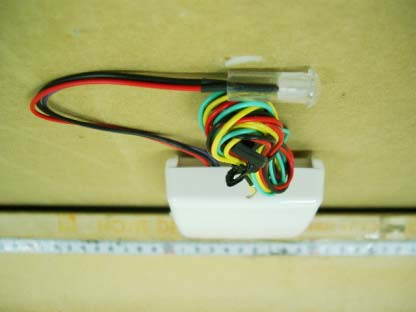

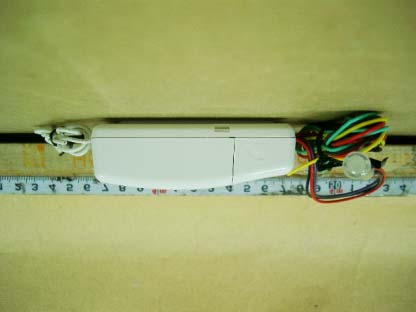

Report Number: 03E1032-D June 27, 2003 Page 10 Rev. 00 External of EUT Report Number: 03E1032-D June 27, 2003 Page 11 Rev. 00 Report Number: 03E1032-D June 27, 2003 Page 12 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: Secure Wireless, Inc. FCC ID: QNP-EVREC1 FCC ID: QNP-EVREC1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Report Number: 03E1032-D June 27, 2003 Page 13 Rev. 00 Internal of EUT Report Number: 03E1032-D June 27, 2003 Page 14 Rev. 00

EV-REC1 Receiver Operational Description The EV-REC1 RF Receiver is a low powered, receive data signal from hand held unit for remote controlling relay output or DATA bus transmission features. See the function descriptions in attached. The receiver is powered by a 12 volt power supply. It is designed to operated on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. This receiver decode circuit is using RF(RF1) and integrated circuit which receives the digital control signals and will modulate the carrier signal(ASK). After decoding, data will be transferred for function display (U1). The carrier signal is generated by a crystal (X1) circuit comprised of a 433.92MHz. The modulated output of the RF stage is coupled to the external antenna. The external antenna is attached on PCB around 160mm. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received: including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio of TV interference caused by unauthorized modification to this equipment. Such modification could void the user’ authority to operate the equipment.

HOME SW V3.DSN 3 SCURE WIRELESS HOME ALARM Custom 11 Thursday, February 13, 2003 TitleSize Document Number Rev Date: Sheet of VCC VCC 12VP VCC VCC 12VP VCC 12VP VCC 12VP VCC VCC VCC VCC VCC VCC GREEN GND +12V YELLOW +12VGNDGREENYELLOW RB1RB3RB2RA5 RA4 CH-1 COMCH-1 NO CH-1 NC RB6RB7 RA5RB6RB7 SCLK CSSKDIO SDAT RFIN RB5 RB0 RB4 RA3 R1 22 D227V 12 C2100UF/50V + 12 JP4HEADER 4 1234 D1SM4002 1 2 C310UF + 12 R1020K U416F628 RA3 2 RA4 3 RA2 1 RA5 4 VSS 5 RB0 6 RB1 7 RB2 8 RB3 9 RB4 10 RB5 11 RB6 12 RB7 13 VDD 14 OSC2 15 OSC1 16 RA0 17 RA1 18 R172.2K Q5 MMST2222 2 31 R510K 12 Q1MMST2222 2 31 R4100K Q6MMST2222 2 31 R124.7K Q3MMST2222 2 31 Q4MMST2907 2 31 R204.7K R14270 12 R8 10K R1510K 12 R620K 1 2 R184.7K R74.7K 12 R9100K S1LEARN 1 2 JP2 JUMPER 1 2 K1RELAY 4 3 2 1 5 Q2MMST2222 2 31 JP1 3 PIN SCREW TERMINAL 123 D3 DAN202K 21 R112.2K JP33PIN MOLEX 123 X14MHZ 12 3 R131K 1 2 R161K 1 2 R211K 1 2 D4TRI-COLOR 1 2 3 R191K 1 2 P1POGRAM PADS 12345 C7104 12 C41UF 12 X2 4MHZ 12 3 R2247K 1 2 C1104 12 U5 93C66 CS 1 SK 2 DI 3 DO 4 GND 5 ORG 6 NC 7 VCC 8 C6 .1uF 12 C5104 1 2 RF1RF VCC 2 OUT 1 GND 3 ANT 4 U1 78L05 IN 8 GND 2 OUT 1 R3 100K 1 2 C9104 12 R210K 1 2 U6 PIC 16C58 RTCC 3 MCLR 4 OSC2 15 OSC1 16 RB7 13 RB6 12 RB5 11 RB4 10 RB3 9 RB2 8 RB1 7 RB0 6 RA0 17 RA1 18 RA2 1 RA3 2 GND 5 VCC 14 C8104 1 2 RV1 VARISTOR D618V 12 RV218V D5RLS4148 1 2 R234.7K 1 2 Q7MMST2222 2 31 +12VGND YELLOW GREEN

Report Number: 03E1032-D June 27, 2003 Page 1 of 15 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR of Wireless home security interface FCC ID Number : QNP-EVREC1 Trade Name : Evolution Model Number : EV-REC1 Agency Series : N/A Report Number : 03E1032-D Date : June 27, 2003 Prepared for Secure Wireless, Inc. 1185 Park Center Dr Suite A/B Vista, CA 92083, United States Prepared by C&C LABORATORY CO., LTD. No. 163-1, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory Co., Ltd. Lab. Code: 200617-0 Report Number: 03E1032-D June 27, 2003 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE............................................................ 3 2. PRODUCT DESCRIPTION ............................................................................. 4 3. TEST FACILITY................................................................................................ 4 4. MEASUREMENT EQUIPMENT USED ....................................................... 4 5. TEST CONFIGURATION................................................................................ 5 6. TESTS CONDUCTED....................................................................................... 5 7. RADIATED EMISSION TEST PROCEDURE............................................. 5 8. COHERENT TESTS.......................................................................................... 6 9. EQUIPMENT MODIFICATIONS .................................................................. 6 APPENDIX 1 TEST CONFIGURATION PHOTOS............................................... 7 APPENDIX 2 PHOTOGRAPHS OF EUT .................................................................9 APPENDIX 3 TEST DATA ..........................................................................................15 Report Number: 03E1032-D June 27, 2003 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Secure Wireless, Inc. 1185 Park Center Dr Suite A/B Vista, CA 92083, United States CONTACT PERSON : Michael Lamb / Jeff Christensen TELEPHONE NO. : 866-966 9473 EUT DESCRIPTION : Wireless home security interface MODEL NAME/NUMBER : EV-REC1 FCC ID : QNP-EVREC1 DATE TESTED : May 16, 2003 REPORT NUMBER : 03E1032 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Wireless home security interface MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by C&C Laboratory Co., Ltd. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Engineering Services, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by C&C Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Vince Chiang / Supervisor C&C Laboratory Co., Ltd. Report Number: 03E1032-D June 27, 2003 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Secure Wireless, Inc., model no: EV-REC1 is the receiving portion of a multi-purpose security device. The associated transmitter is manufactured by Secure Wireless, Inc., model no: EVREM, FCC ID: QNP-EVREM. 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 163-1, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date SCHAFFNER SCR3501 MEASURE RECEIVER 06/16/04 ADVANTEST R3132 SPECTRUM ANALYZER 09/17/03 SCHAFFNER CBL 6112B ANTENNA 10/02/03 BELDEN 9913 CABLE 10/13/03 SCHAFFNER CPA9231A PRE-AMPLIFIER 10/30/03 Report Number: 03E1032-D June 27, 2003 Page 5 Rev. 00 5. TEST CONFIGURATION Set frequency generator to 433.92 MHz. EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6. TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS 7. RADIATED EMISSION TEST PROCEDURE The EUT and all other support equipment are placed on a wooden table 80 cm above the ground screen. Antenna to EUT distance is 3 meters. During the test, the table is rotated 360 degrees to maximize emissions and the antenna is positioned from 1 to 4 meters above the ground screen to further maximize emissions. The antenna is polarized in both vertical and horizontal positions. Monitor the frequency range of interest at a fixed antenna height and EUT azimuth. Frequency span should be small enough to easily differentiate between broadcast stations and intermittent ambients. Rotate EUT 360 degrees to maximize emissions received from EUT. If emission increases by more than 1 dB, or if another emission appears that is greater by 1 dB, return to azimuth where maximum occurred and perform additional cable manipulation to further maximize received emission. Move antenna up and down to further maximize suspected highest amplitude signal. If emission increased by 1 dB or more, or if another emission appears that is greater by 1dB or more, return to antenna height whe…

Text truncated - open the document above for the full version.

Measurement Result Operation Mode: Receiver Mode Test Configuration: EUT/TX Fundamental Frequency: 433.92 MHz Test Date: May 16, 2003 Temperature: 25 Test By: Jimmy Chen Humidity: 62% Pol: Vertical Note: No other emissions were found within 20dB below the limits from 30-2000MHz. Measurement Result Operation Mode: Receiver Mode Test Configuration: EUT/TX Fundamental Frequency: 433.92 MHz Test Date: May 16, 2003 Temperature: 25 Test By: Jimmy Chen Humidity: 62 % Pol: Horizontal Note: No other emissions were found within 20dB below the limits from 30-2000MHz.

Report Number: 03E1032-D June 27, 2003 Page 8 Rev. 00 RADIATED EMISSION TEST
