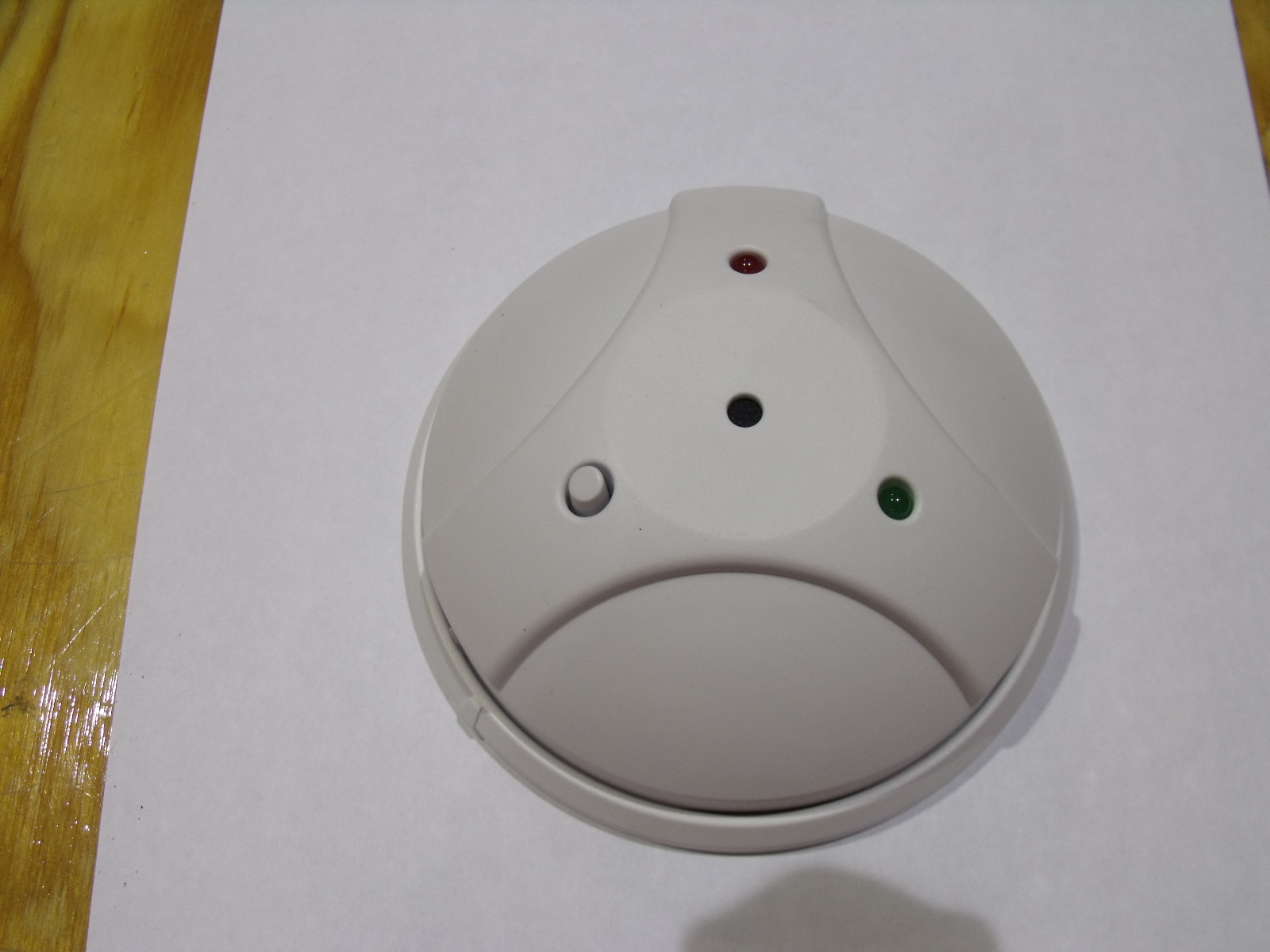

QNP-GB319Wireless Glass Break

SW-NAP-GB Glass Break NAPCO COMPATIBLE INSTALLATION MANUAL TECHNICAL SUPPORT Secure Wireless 866-908-Tech www.mysecurewireless.com GLASS BREAK ENROLLMENT PROGRAMMING For a detail programming guide, the instruction manual should be consulted for that panel. The below guide should only be used as a reference and not as a replacement for using the programming instructions. 1.ENTER Panel Programming 2.SELECT Zone # 3.ENTER 6 Digit Id Number ( located on back of unit) 4.ENTER Check sum (0-9 ; A-F) (located on back on unit. Digit that follows “:” on the Serial ID 5.ENTER Point “3” – for Glass Break 6.Push On/Off to Save Alpha Chart A - *0 C - *2 E - *4 B - *1 D- * 3 F - * 5 Glass Type and Thickness Plate 1/8 in to ¼ in Tempered 1/8 in to ¼ in Sealed Insulating 1/8 to ¼ in REPLACING THE BATTERY Remove the detector from the base by turning counterclockwise. Replace with 2 CR123A batteries. Observe the polarity when replacing the batteries FCC Compliance This device complies with Part 15 FCC Rules. Operation complies with the following 2 conditions (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. MODEL SW-NAP-GB FCC ID QNP-GB319 FREQUENCY 319.5 MHz WARRANTY Limited Life Time BATTERY (2) CR123A Panasonic MANUAL PART # 200-10008 Rev C MOUNTING INSTRUCTIONS 1.Place the Glass Break Detector base on the opposite wall or adjacent wall to the window being protected (Distance 15 Ft maximum) 2.Attach to the wall using the supplied screws. The test button should be facing the floor 3.When attaching the detector to the base, match up to the alignment mark and turn clockwise FUNCTIONAL TEST: Push the test button for 2 seconds and then release. The red LED will light while the button is pressed. The green LED will blink once to indicate that the unit is in auto test mode for 90 seconds. 1.Use a glass break simulator to test the unit. LED will flash green first then will flash LED to indicate the glass breaking. WIRELESS RANGE TEST: Push and hold the test button for 5 seconds and release, The LED will flash while the button is pressed. The green LED will blink twice to indicate that the unit is in RF test mode for 90 seconds.

LABEL,FCC ID,EV-GB319N 187-0931 A ARTWORK DRA WIN G Mo del # SW-NA P-G B FCC ID: QNP-GB319 IC: 4676A-GB319 Mad e in China Secure Wire less Inc . .750” .50 0 ” PAD PR INTING D RAWING (REFERENCE ONL Y) LABEL ADH ESI VE DRA WIN G (R EFERENCE ONL Y) Mo del # SW-NA P-G B FCC ID: QNP-GB319 IC: 4676A-GB319 Mad e in China Secure Wire less Inc . Mo del # SW-NAP-G B FCC ID: QNP-GB319 IC: 4676A-GB319 Mad e in China Secure Wire less Inc .

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 11U13793 Project Number: SR7635490-T001 Date: 2011-05-09 Model: SW-NAP-GB / 4676A-GB319 FCC ID: QNP-GB319 IC Number: 4676A-GB319 Electromagnetic Compatibility Test Report For Secure Wireless, Inc Copyright  2010 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job Number: 11U13793 Page 2 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: Secure Wireless, Inc 5817 Dryden Place, Suite D Carlsbad, CA 92008 Applicant Contact: Greg Hancock Phone: (866) 966-9473 E-mail: [email protected] Test Report Date: 2011-05-09 Product Type: Wireless Glass Break Product standards FCC Part 15, Subpart C, 15.231 Model Number: US Model: SW-NAP-GB; Canada Model: 4676A-GB319 Sample Serial Number: Non-serialized Production Unit EUT Category: Periodic Low Power Transmitter Testing Start Date: 2011-04-29 Date Testing Complete: 2011-05-09 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job Number: 11U13793 Page 3 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Equipment Marking Plate ...............................................................................................................................4 1.3 Device Configuration During Test ..................................................................................................................5 1.3.1 Equipment Used During Test: ....................................................................................................................5 1.3.2 Input/Output Ports: .....................................................................................................................................5 1.3.3 EUT Internal Operating Frequencies: ........................................................................................................6 1.3.4 Power Interface: .........................................................................................................................................6 1.4 Block Diagram: ...............................................................................................................................................7 1.5 EUT Configurations ........................................................................................................................................8 1.6 EUT Operation Modes ....................................................................................................................................8 2.0 Summary ............................................................................................................................................................9 2.1 Deviations from standard test methods ..........................................................................................................9 2.2 Device Modifications Necessary for Compliance ...........................................................................................9 2.3 Reference Standards .................................................................................................................................. 10 2.4 Results Summary ........................................................................................................................................ 10 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 11 4.0 EMISSIONS TEST RESULTS ......................................................................................................................... 11 4.1 Test Conditions and Results – Occupied Bandwidth .................................................................................. 12 4.2 Test Conditions and Results – Cease Operation ................................................…

Text truncated - open the document above for the full version.

Job Number: 11U13793 Page 13 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 1 Test Setup for Occupied Bandwidth Job Number: 11U13793 Page 16 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 3 Test Setup for Cease Operation Job Number: 11U13793 Page 19 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 5 Test Setup for Pulse Train Job Number: 11U13793 Page 25 of 31 Model Number: SW-NAP-GB / 4676A-GB319 Client Name: Secure Wireless, Inc FCC ID: QNP-GB319 IC Number: 4676A-GB319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 7 Test setup for Radiated Emissions
