CONGRATULATIONS ON YOUR PURCHASE OF THE iJET WIRELESS RF REMOTE CONTROL The iJet was designed to provide maximum control of your iPod from anywhere you choose to place it regardless of whether it is in your backpack or over a hundred feet away in a different room connected to your home stereo. Operation iPod RF receiver setup: (FIG 1) Plug the iJet into the dock connector located on bottom of your iPod. Please WAIT 30 seconds for the automatic self- diagnostic to run. Plug in your earbuds, speakers or connect to your home stereo through a set of RCA jacks (supplied in some iJet kits). To sync or charge the iPod, simply plug your USB/Firewire or charging device into the bottom of the iJet while it’s connected to the iPod. Advanced Low Power Mode (ALPM): The iJet uses an advanced power down mode which minimizes current draw on your iPod battery if you are not connected to a constant power source. After 20 minutes of sensing no music playing or no remote commands being sent, the iJet goes into a battery saving mode. The iJet receiver will automatically re-power itself when it detects music playing or a remote button being pressed for more than 0.6 seconds. Remote Control Functions Features • Pass-through 30-pin connector allows charge/sync. • Thin profile (only 0.55”). • Up to 150 ft range. • Supports iPod with dock connector from 3 rd Gen forward. Optional iJet Accessories iJet Remote: Pair up to 10 iJet remotes with any iJet receiver. Place an iJet remote in each bedroom, out by pool or anywhere you choose to control your music. Pairing instructions : 1) Unplug iJet receiver from your iPod. 2) Make sure your iPod is sufficiently charged. 3) Plug the iJet receiver into the iPod dock connector. 4) Within 30 seconds of step 3, press and hold all four buttons simultaneously on the new remote for three seconds (Vol. +, Vol. -, FF, RW), release after three seconds. 5) The new remote has been paired. Technical Specifications Operating Range: Up to 150 ft. Transmission Method: Radio frequency Operating Frequency: 433.92 MHz Remote Power: (2) CR2025 3V Receiver Power: Powered from iPod with Advanced Low Power Mode (ALPM) Remote Dimensions/Weight: 2.2” x 1.3” x 0.43” / 0.7 oz Receiver Dimensions/Weight: 4.3” x 0.79” (w/o connector height) x 0.55” / 0.5 oz Contact ABT Advanced Bridging Technologies Toll Free 888-869-4737 5817 Dryden Place Ste. 104 Carlsbad, CA 92008 iPod is a registered trademark of Apple Computer, Inc. All rights reserved. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Rewind: Press and release this button to move track BACKWARDS. Press and HOLD this button to rewind through the track Volume Down: Press and HOLD this button to scroll volume down. Forward: Press and release this button to move track FORWARD. Press and HOLD this button to forward through the track. Volume Up: Press and HOLD this button to scroll volume up . Play/Pause/Sleep: Press and release to toggle between Pause and Play.* Press and HOLD for 2 full seconds to put the iPod into sleep mode. If you press and hold this button for longer than 1 second but less than 2 seconds, the iJet will ignore your request.

iBaseTX Burton Biock Ddiagram TX SW1-SW5 MCUTransmitter LED

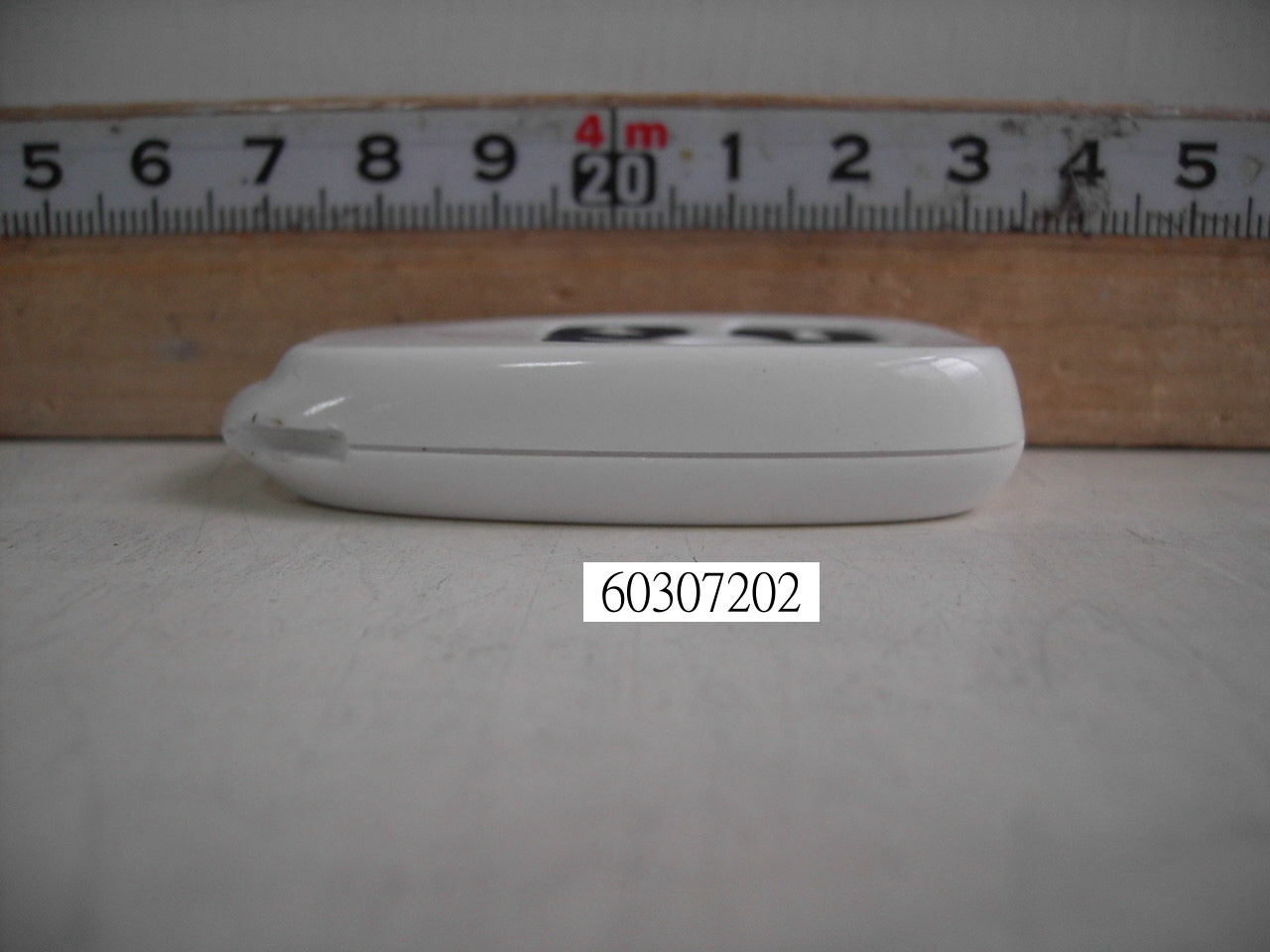

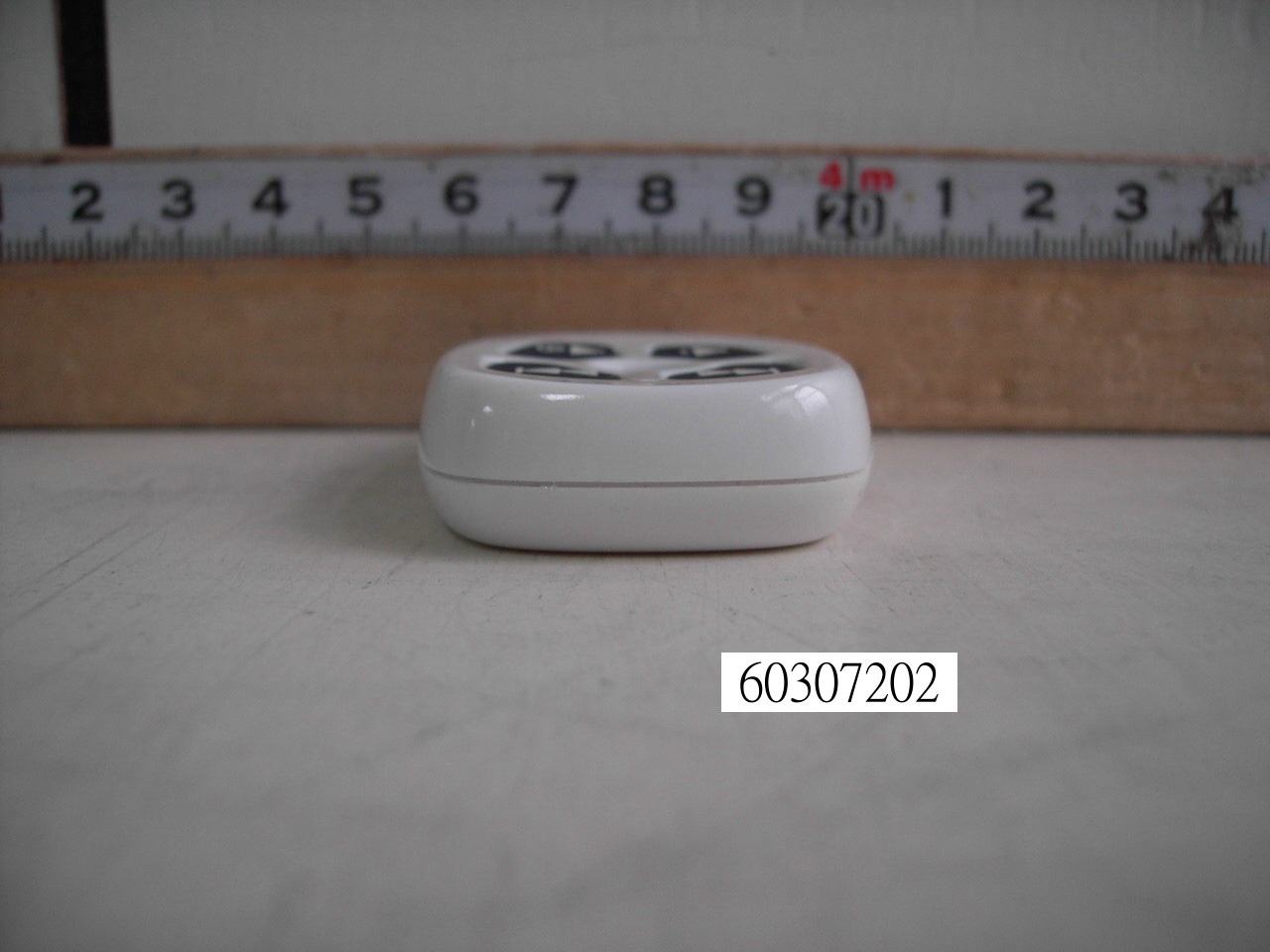

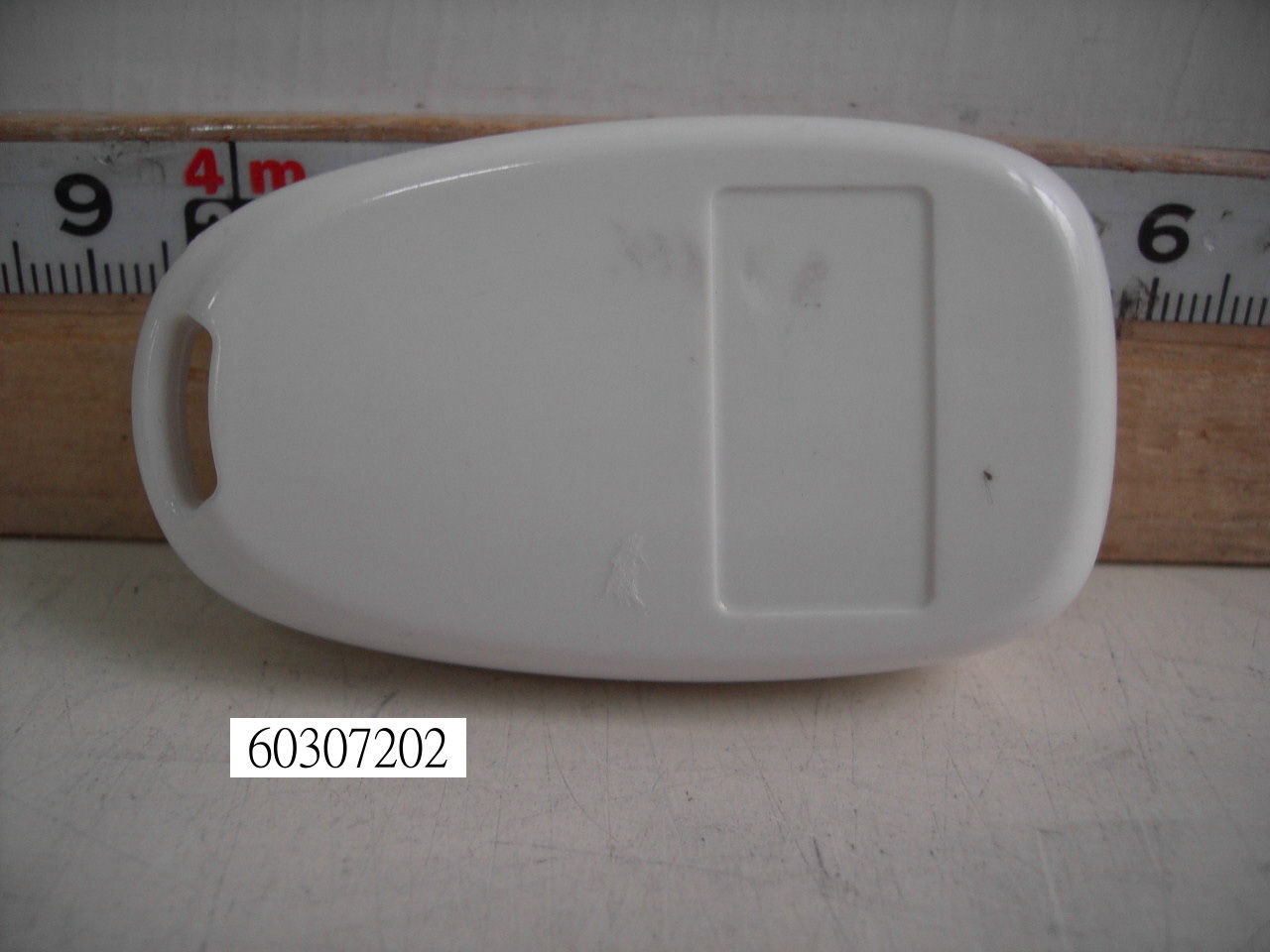

Compliance Certification Services Inc. Report No.: 60307202 Date of Issue: March 23, 2006 Page 1 Total Page: 5 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60307202 Date of Issue: March 23, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60307202 Date of Issue: March 23, 2006 Page 3 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Secure Wireless, Inc. FCC ID: QNP-IJETV2 FCC ID: QNP-IJETV2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60307202 Date of Issue: March 23, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 60307202 Date of Issue: March 23, 2006 Page 5 Rev. 00

Operational Description The iJetV2 is a low powered, which is installed in micro controller integrated with transmitter function for wireless play iPod . See the function descriptions in attached. The transmitter is powered by a 3 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 5 switches trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a I C oscillator/amplifier circuit comprised of a 433.92 MHz SAW(X1) . The modulated output of the RF stage is coupled to the loop antenna. The antenna is on-board track, around 80mm. The iJet is operated by the triggered momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacturer and there are no adjustments can be made by users.

iBase 1.0 iBase TX VISION A 11Thursday , March 02, 2006 Tit le SizeDocument NumberRev Date:Sheet of VCC VCC VCC VCC VCC VCC VCC R12 1K 12 BT1 2025*2 1 2 R5 100K 12 R4 100K 12 D1 DAP202K 2 1 3 SW4 SW ITCH 12 C10 0.1uF 12 D2 RED LED 12 SW3 SW ITCH 12 SW1 SW ITCH 12 Q1 3356 2 3 1 L3 68nH 1 2 C1 1 18P 1 2 X1 433.92MHZ/75kHZ 1 2 R7 15K 12 C3 103 1 2 C9 N. C. 1 2 C8 2p 1 2 R2 10 R 12 SW2 SW ITCH 12 J1 Prog Pads 123 45 U1 PIC 16C505 VDD 1 RB5/OSC1 2 RB4/OSC2 3 RB3/MCLR 4 RC5/T0CK1 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RB2 11 RB1 12 RB0 13 VSS 14 C6 N.C 1 2 C7 180nH 1 2 L1 56nH 1 2 C1 N.C 12 C4 100p 1 2 L2 5p 1 2 C2 NC 12 R3 300R 12 R1 300R 12 R11 1k 12 R9 300R 1 2 R10 300R 12 SW5 SWITCH 12 R8 300R 1 2 R6 100K 1 2 C5 62P 12

Compliance Certification Services Inc. Report No.: 60307202-RP1 FCC ID: QNP-IJETV2 Date of Issue: March 23, 2006 Page 1 of 31 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of iJET WIRELESS RF REMOTE CONTROL FCC ID Number : QNP-IJETV2 Trade Name : Evolution Model Number : iBaseTX Agency Series : N/A Report Number : 60307202-RP1 Date : March 23, 2006 Issued to Secure Wireless, Inc. 1185 PARK CENTER DRIVE SUITE, A AND B, VISTA, CALIFORNIA, 92083 U.S.A. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 60307202-RP1 FCC ID: QNP-IJETV2 Date of Issue: March 23, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 7 11. EQUIPMENT MODIFICATIONS...................................................................... 8 12. TEST RESULT ....................................................................................................... 9 12.1. MAXIMUM MODULATION PERCENTAGE (M%)................................. 9 12.2. THE EMISSIONS BANDWIDTH ................................................................... 9 APPENDIX I TEST DATA ........................................................................................ 10 Compliance Certification Services Inc. Report No.: 60307202-RP1 FCC ID: QNP-IJETV2 Date of Issue: March 23, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Secure Wireless, Inc. 1185 PARK CENTER DRIVE SUITE, A AND B, VISTA, CALIFORNIA, 92083 U.S.A. CONTACT PERSON : Jeff Christsten TELEPHONE NO. : 760-727-0601 EUT DESCRIPTION : iJET WIRELESS RF REMOTE CONTROL MODEL NAME/NUMBER : iBaseTX FCC ID : QNP-IJETV2 DATE TESTED : March 08, 2006 ~ March 20, 2006 REPORT NUMBER : 60307202-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz iJET WIRELESS RF REMOTE CONTROL MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60307202-RP1 FCC ID: QNP-IJETV2 Date of Issue: March 23, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: iBaseRX (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 60307202-RP1 FCC ID: QNP-IJETV2 Date of Issue: March 23, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # K Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS K Site N/A 10/01/2006 MEASURE RECEIVER R&S ESVS30 828488/004 09/26/2006 SPECTRUM ANALYZER ADVANTEST R3132 120900029 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2846 05/27/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3639 10/08/2006 CABLE SUHNER RG 214 N-TYPE #K2 02/17/2007 THERMO- HYGRO METER TFA N/A NO.4 02/08/2007 EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 00022256 01/12/2007 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/06/2007 CABLE (1-18GHz) JYEBAO LL1…
