QNP-IPRFHiJet Wireless RF Remote Control

IPRFH HOME WIRELESS RF REMOTE KIT FOR iPod 3 RD /4 TH GEN/iPod Mini/iPod PHOTO If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2005 SCOSCHE INDUSTRIES, INC. SI 8/05-IPRFH (300IPRFH 8/05) RF RECEIVER SETUP PARTS LIST iPod® RF Receiver Set-up: (FIG. 1)Plug the RF receiver into the top of your iPod. SeeFig. 1. A self diagnostic will automatically be run andyour wireless remote will be ready for operationwithin 30 seconds. Plug in the Male end of the3.5MM-to-RCA cable for home use, or your personalEar Buds for portable use. See Fig.1. NOTE: Theconnection of a 3.5MM cable to the receiver willprovide optimum performance as it uses this wire asan antenna for maximum range (Patent pending).The receiver is powered by your iPod.Advanced Low Power Mode:Your Scosche iPod RF receiver uses an advancedpower down mode which minimizes current draw onyour iPod battery if you are not connected to aconstant power source. After 20 minutes of sensingno music playing or no remote commands, the unitwill go into an advanced battery save mode. Thereceiver will automatically re-power itself when itdetects music playing, (If there was none before) or itsees a remote button being pressed for more than0.6 seconds. 7 BUTTON RF REMOTE CONTROL Track Back:Press and release this button tomove track BACKWARDS. Pressand HOLD this b utton to rewind through the trackPause/Play/Sleep:Press and release to togglebetween Pause and Play. Pressand HOLD for 2 full seconds to putthe iPod into sleep mode. If youpress and hold this button forlonger than 1 second but less than2 seconds the receiver will ignoreyour request. Track Forward:Press and release this button tomove track FORWARD. Press andHOLD this button to forward throughthe track Shuffle Play:Press this button to randomlyplay the songs on your iPod. Volume Up:Press and HOLD this button toincrease the volume. Play List Song Select:First press the play list button,then with-in 5 sec. press eitherTrack Forward or the Track Backbutton to select a song from yourplay list. Volume Down:Press and HOLD this reduce thevolume This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device maynot cause interference, and (2) this device must accept any interference that may be received, including interferencethat may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused byunauthorized modification to this equipment. Such modification could void the user's authority to operate theequipment. iPod is a registered trademark of Apple Computer, Inc. All rights reserved. Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This systemprovides you with maximum control of your iPod from over 100 feet away.• 7 Button RF Remote• Universal 3.5MM Headphone to RCA Audio Cable • RF Receiver (Designed for iPod 3 rd /4 th Gen & Mini) IPRFH HOME WIRELESS RF REMOTE KIT FOR iPod 3 RD /4 TH GEN/iPod Mini/iPod PHOTO If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2005 SCOSCHE INDUSTRIES, INC. SI 8/05-IPRFH (300IPRFH 8/05) RF RECEIVER SETUP PARTS LIST iPod® RF Receiver Set-up: (FIG. 1)Plug the RF receiver into the top of your iPod. SeeFig. 1. A self diagnostic will automatically be run andyour wireless remote will be ready for operationwithin 30 seconds. Plug in the Male end of the3.5MM-to-RCA cable for home use, or your personalEar Buds for portable use. See Fig.1. NOTE: Theconnection of a 3.5MM cable to the receiver willprovide optimum performance as it uses this wire asan antenna for maximum range (Patent pending).The receiver is powered by your iPod.Advanced Low Power Mode:Your Scosche iPod RF receiver uses an advancedpower down mode which minimizes current draw onyour iPod battery if you are not connected to aconstant power source. After 20 minutes of sensingno music playing or no remote commands, the unitwill go into an advanced battery save mode. Thereceiver will automatically re-power itself when itdetects music playing, (If there was none before) or itsees a remote button being pressed for more than0.6 seconds. 7 BUTTON RF REMOTE CONTROL Track Back:Press and release this button tomove track BACKWARDS. Pressand HOLD this button to rewind through the trackPause/Play/Sleep:Press and release to togglebetween Pause and Play. Pressand HOLD for 2 full seconds to putthe iPod into sleep mode. If youpress and hold this button forlonger than 1 second but less than2 seconds the receiver will ignoreyour request. Track Forward:Press and release this button tomove track FORWARD. Press andHOLD this button to forward throughthe track Shuffle Play:Press this button to randomlyplay the songs on your iPod. Volume Up:Press and HOLD this button toincrease the volume. Play List Song Select:First press the play list button,then with-in 5 sec. press eitherTrack Forward or the Track Backbutton to select a song from yourplay list. Volume Down:Press and HOLD this reduce thevolume This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device maynot cause interference, and (2) this device must accept any interference that may be received, including interferencethat may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused byunauthorized modification to this equipment. Such modification could void the user's authority to operate theequipment. iPod is a registered trademark of Apple Computer, Inc. All rights reserved. Congratulations on your choice of a SCOSCHE wireless RF iPod remote control home kit! This systemprovides you with maximum control of your iPod from over 100 feet away.• 7 Button RF Remote• Universal 3.5MM Headphone to RCA Audio Cable • RF Receiver (Designed for iPod 3 rd /4 th Gen & Mini)

Date:Sept.06,2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jessica Chang/office manager Secure Wireless Taiwan REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

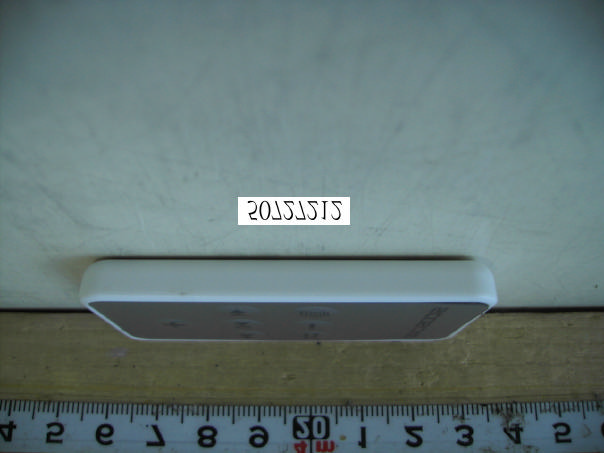

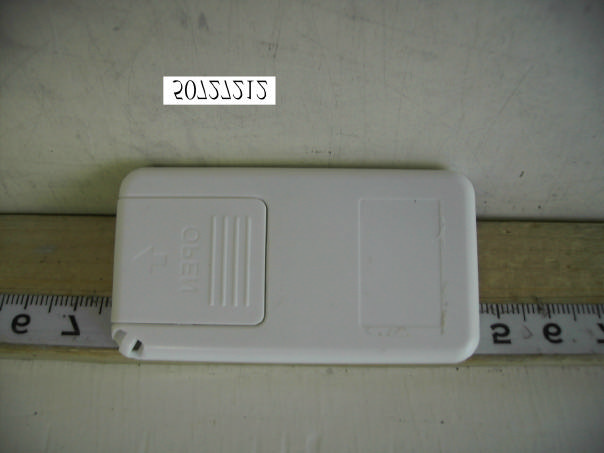

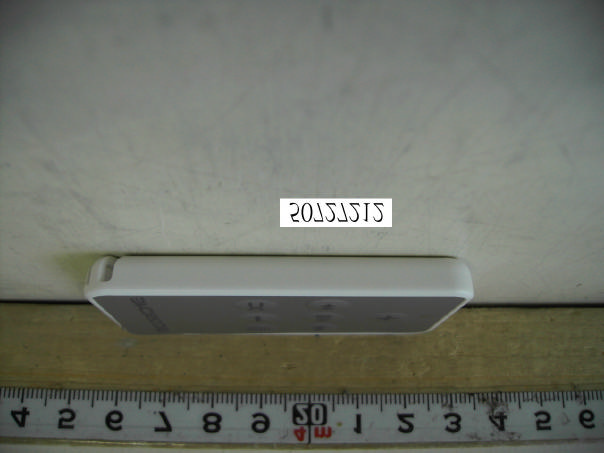

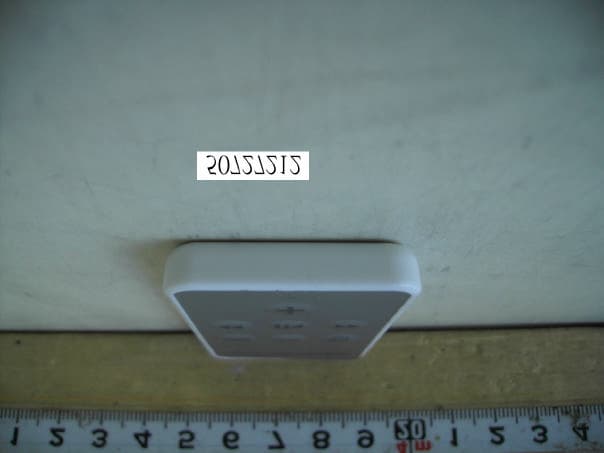

Compliance Certification Services Inc. Report No.: 50921206 Refer No.: 50727212 Date of Issue: September 27, 2005 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 50921206 Refer No.: 50727212 Date of Issue: September 27, 2005 Page Compliance Certification Services Inc. Report No.: 50921206 Refer No.: 50727212 Date of Issue: September 27, 2005 Page

FCC ID LABEL FORMAT AND LOCATION Applicant: Secure Wireless, Inc. FCC ID: QNP-IPRFH FCC ID: QNP-IPRFH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50921206 Refer No.: 50727212 Date of Issue: September 27, 2005 Page Compliance Certification Services Inc. Report No.: 50921206 Refer No.: 50727212 Date of Issue: September 27, 2005 Page

IPRFH Operational Description The iJet is a low powered, which is installed in micro controller integrated with transmitter function for wireless play iPod . See the function descriptions in attached. The transmitter is powered by a 3 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 7 switches trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a I C oscillator/amplifier circuit comprised of a 433.92 MHz SAW(X1) . The modulated output of the RF stage is coupled to the loop antenna. The antenna is on-board track, around 67.5mm. The iJet is operated by the triggered momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacturer and there are no adjustments can be made by users.

Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 1 of 39 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of iJET WIRELESS RF REMOTE CONTROL FCC ID Number : QNP-IPRFH Trade Name : Evolution Model Number : IPRFH Agency Series : N/A Report Number : 50921206-RP1 Date : September 27, 2005 Prepared to Secure Wireless, Inc. 5817 Dryden P1 #104, Carlsbad, CA 92008, U.S.A. Prepared by Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei Hsien, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE................................................3 2. PRODUCT DESCRIPTION.................................................................4 3. TEST FACILITY...................................................................................4 4. MEASUREMENT STANDARDS.........................................................4 5. TEST METHODOLOGY.....................................................................4 6. MEASUREMENT EQUIPMENT USED.............................................5 7. POWERLINE RFI LIMIT....................................................................5 8. RADIATED EMISSION LIMITS.........................................................6 9. SYSTEM TEST CONFIGURATION...................................................6 10. TEST PROCEDURE..........................................................................7 11. Equipment Modifications.....................................................................8 12. TEST RESULT....................................................................................9 12.1 Maximum Modulation Percentage (M%)..........................................9 12.2 The Emissions Bandwidth.................................................................9 APPENDIX I............................................................................................10 Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Secure Wireless, Inc. 5817 Dryden P1 #104, Carlsbad, CA 92008, U.S.A. CONTACT PERSON : Jessica Chang TELEPHONE NO. : (760) 727-0601 EUT DESCRIPTION : iJET WIRELESS RF REMOTE CONTROL MODEL NAME/NUMBER : IPRFH FCC ID : QNP-IPRFH DATE TESTED : September 13, 2005 ~ September 19, 2005 REPORT NUMBER : 50921206-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE iJET WIRELESS RF REMOTE CONTROL MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver iJet mini RX (DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # K Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS K Site N/A 09/02/2006 MEASURE RECEIVER R&S ESVS30 828488/004 09/24/2005 SPECTRUM ANALYZER ADVANTEST R3132 120900029 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2846 05/27/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3639 10/08/2005 CABLE SUHNER RG 214 N-TYPE #K2 02/18/2006 THERMO- HYGRO METER TFA N/A NO.4 02/17/2006 Above 1GHz Used EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 5761 01/17/2006 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1&2 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#C1 04/28/2006 Remark: Each piece of equipment is scheduled for calibration once a year. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50921206-RP1 Refer No. 50727212 FCC ID: QNP-IPRFH Date of Issue: September 27, 2005 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
