CONGRATULATIONS ON YOUR PURCHASE OF ABT POWERLYNX WIRELESS RF REMOTE CONTROL Remote Control Functions Technical Specifications Operating Range: Up to 150 ft. Transmission Method: Radio frequency Operating Frequency: 433.92 MHz Remote Power: (1) CR2032 3V Remote Dimensions/Weight: 1.5” x 1” x 0.25” / 0.3 oz FCC Compliance Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contact ABT Advanced Bridging Technologies Toll Free 888-869-4737 5817 Dryden Place Ste. 104 Carlsbad, CA 92008 PwrLynx 1.0 ON: Press and release this button to turn on the receiver. LED: Light acknowledgement for button being pressed. OFF: Press and release this button to turn off the receiver. BATTERY REPLACEMENT: Open the battery cover with a coin or screw driver. CR2032 can be replaced once low. BATTERY COVER: Use a coin or a small screw driver to pry open the battery cover.

1 Lucy Tsai 寄件者: September Radecki 寄件日期: 2007年9月11日星期二 下午 1:25 收件者: Lucy Tsai 副本: Thu Chan 主旨: RE: Secure Wireless, Inc., FCC ID: QNP-MINI-2TX, Assessment NO.: AN07T7170, Notice#1 mini-tx9-11-07.pdf (70 KB) Hi Lucy, Below are the replies to your questions on the above application. Q#1: User manual indicates that the remove control will detect low battery every 12 hours for 3 consecutive wake ups and it will take a minimum of 36 hours before it will transmit. According to 15.231(a), periodic transmissions at regular predetermined intervals are not permitted. Please confirm it won't transmit at regular predetermined intervals. Otherwise, it should also comply with 15.231(e) requirement as below: Devices operated under the provisions of this paragraph shall be provided with a means for automatically limiting operation so that the duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Please explain and provide necessary technical documents to show the compliance. <CCS ANSWER:> The client has confirmed that the "low battery detect" information is usually for security devices and it should not have listed on the user manual. He has also confirmed that the device will not transmit at regular predetermined intervals. The client has removed the low power battery detection information from the manual. The revised user manual is attached. Q#2: Operational description is talking about how the Power-Lynx wireless pump works but less information regarding how the remote control transmits. Please provide the operation regarding this remote control. <CCS ANSWER:> The client also does not have detailed operation description of the remote control. It is basically a straight forward kind of device, on and off buttons to the Power-Lynx. The Power-Lynx incorporates a built in wireless RF receiver that allows a user to control the water feature from up to 100 feet. Please advise if you need anything further. Best regards, September -----Original Message----- From: Lucy Tsai Sent: Friday, September 07, 2007 10:20 AM To: Thu Chan; September Radecki Subject: FW: Secure Wireless, Inc., FCC ID: QNP-MINI-2TX, Assessment NO.: AN07T7170, Notice#1 Hi Thu, Please address the following issues. Q#1: User manual indicates that the remove control will detect low battery every 12 hours for 3 consecutive wake ups and it will take a minimum of 36 hours before it will transmit. According to 15.231(a), periodic transmissions at regular predetermined intervals are not permitted. Please confirm it won't transmit at regular predetermined intervals. Otherwise, it should also comply with 15.231(e) requirement as below: Devices operated under the provisions of this paragraph shall be provided with a means for automatically limiting operation so that the duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Please explain and provide necessary technical documents to show the compliance. Q#2: Operational description is talking about how the Power-Lynx wireless pump works but less information regarding how the remote control transmits. Please provide the operation regarding this remote control. Best Regards, 2 Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 2-BUTTON REMOTE CONTROL MODEL NUMBER: MINI-2TX FCC ID: QNP-MINI-2TX REPORT NUMBER: 07U11265-1 ISSUE DATE: AUGUST 23, 2007 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 2 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 08/23/07 Initial Issue T. Chan REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 17 7.4. RADIATED EMISSIONS.............................................................................................................19 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 19 8. SETUP PHOTOS................................................................................................................................ 24 REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA EUT DESCRIPTION: 2-BUTTON REMOTE CONTROL MODEL: MINI-2TX SERIAL NUMBER: QNP-MINI-2TX DATE TESTED: AUGUST 23, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN WILLIAM ZHUANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 5 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facili…

Text truncated - open the document above for the full version.

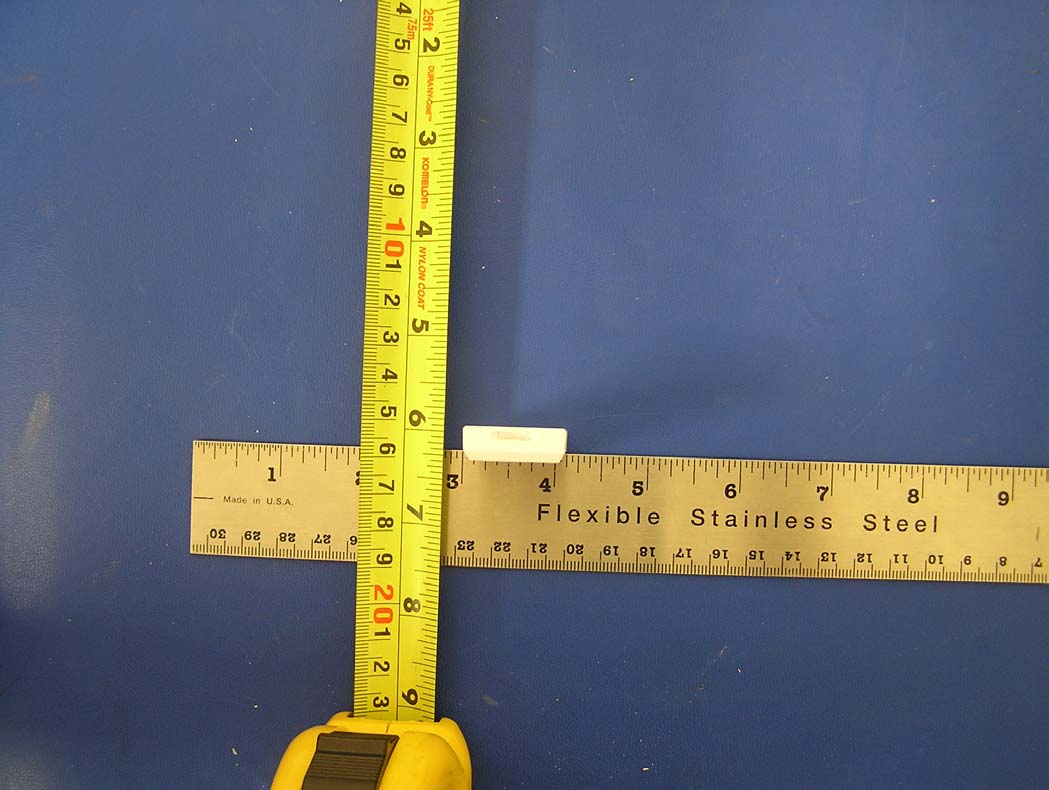

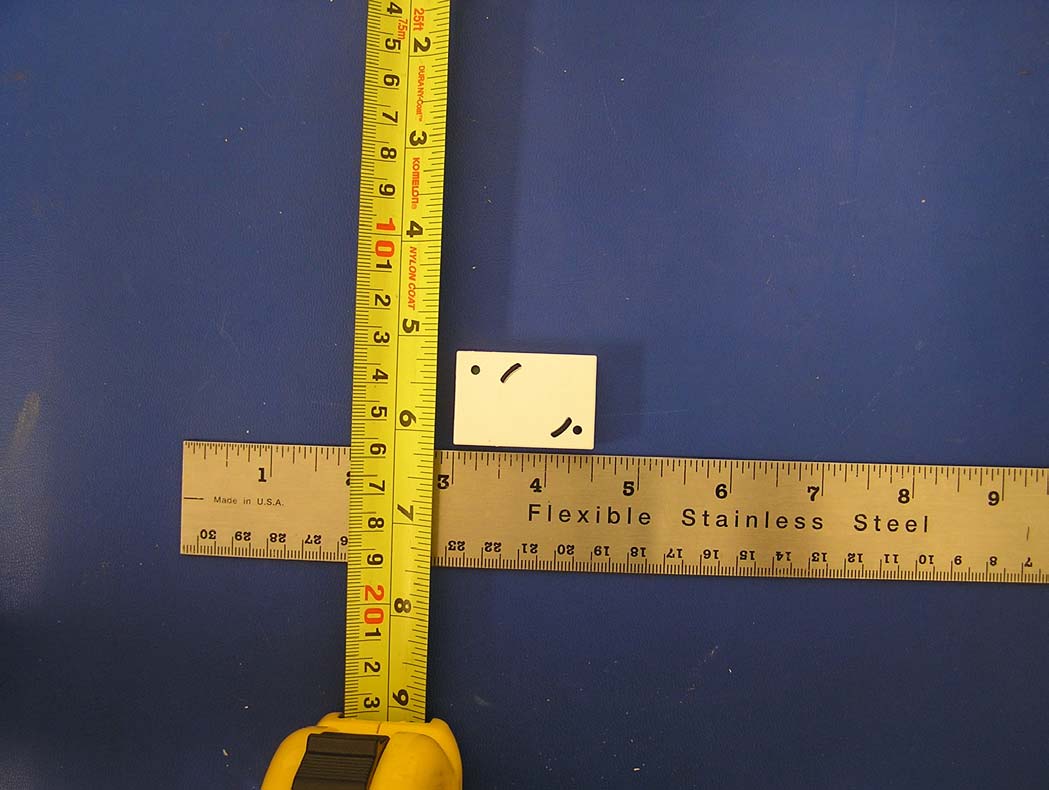

REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 24 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 25 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 07U11265-1 DATE: AUGUST 23, 2007 EUT: 2-BUTTON REMOTE CONTROL FCC ID: QNP-MINI-2TX Page 26 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
