QNP-SDW319Door Window Sensor

SW-NAP-SDW Slim Door Window Sensor NAPCO COMPATIBLE INSTALLATION MANUAL TECHNICAL SUPPORT Secure Wireless 866-908-Tech www.mysecurewireless.com SLIM DOOR WINDOW SENSOR ENROLLMENT / PROGRAMMING The SW-NAP-SDW Door Window is equipped with an internal reed switch as well as the ability to use as external magnet . For a detail programming guide, the instruction manual should be consulted for that panel. The below guide should only be used as a reference and not as a replacement for using the programming instructions. 1.Pull Battery Tab 2.ENTER PANEL PROGRAMMING 3.ENTER Zone 4.ENTER Serial ID ( Auto-learn or Manual) To Auto-Learn Hit “Bypass” Fault and Restore the device or the tamper switch can be used. To Manual Learn Enter serial Id listed on back) Enter Checksum ( digit after the “:” on Serial ID) 5.ENTER POINT (1 for Internal Reed or 2 for External ) 6.Push ON/OFF to Save REPLACING THE BATTERIES Pop open the case using a coin. Replace with new batteries. ( + ) or positive polarity should be facing up Replace Cover FCC Compliance This device complies with Part 15 FCC Rules. Operation complies with the following 2 conditions (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation ODEL SW-NAP-SDW FCC ID QNP-SDW319 FREQUENCY 319.5 MHz WARRANTY Limited Life time BATTERY (2) CR2032 Replace with Panasonic MANUAL PART # 200-10003 Rev A Alpha Chart A - *0 B - *1 C -*2 D - *3 E - *4 F - *5 DOOR WINDOW MOUTING / USAGE The SW-NAP-SDW Door Window is equipped with an internal reed switch as well as the ability to use an external magnet. Mounting Double Sided Tape is included for easy installation. Reed Switch (Use Point 1 when Programming ) Align the Arrow on magnet with the 3 lines on the side of the sensor case Mount the magnet no more than ¼ in from the sensor. External (Use Point 2 when programming Wire run to the External Magnet can be no longer than 12 Ft in length.

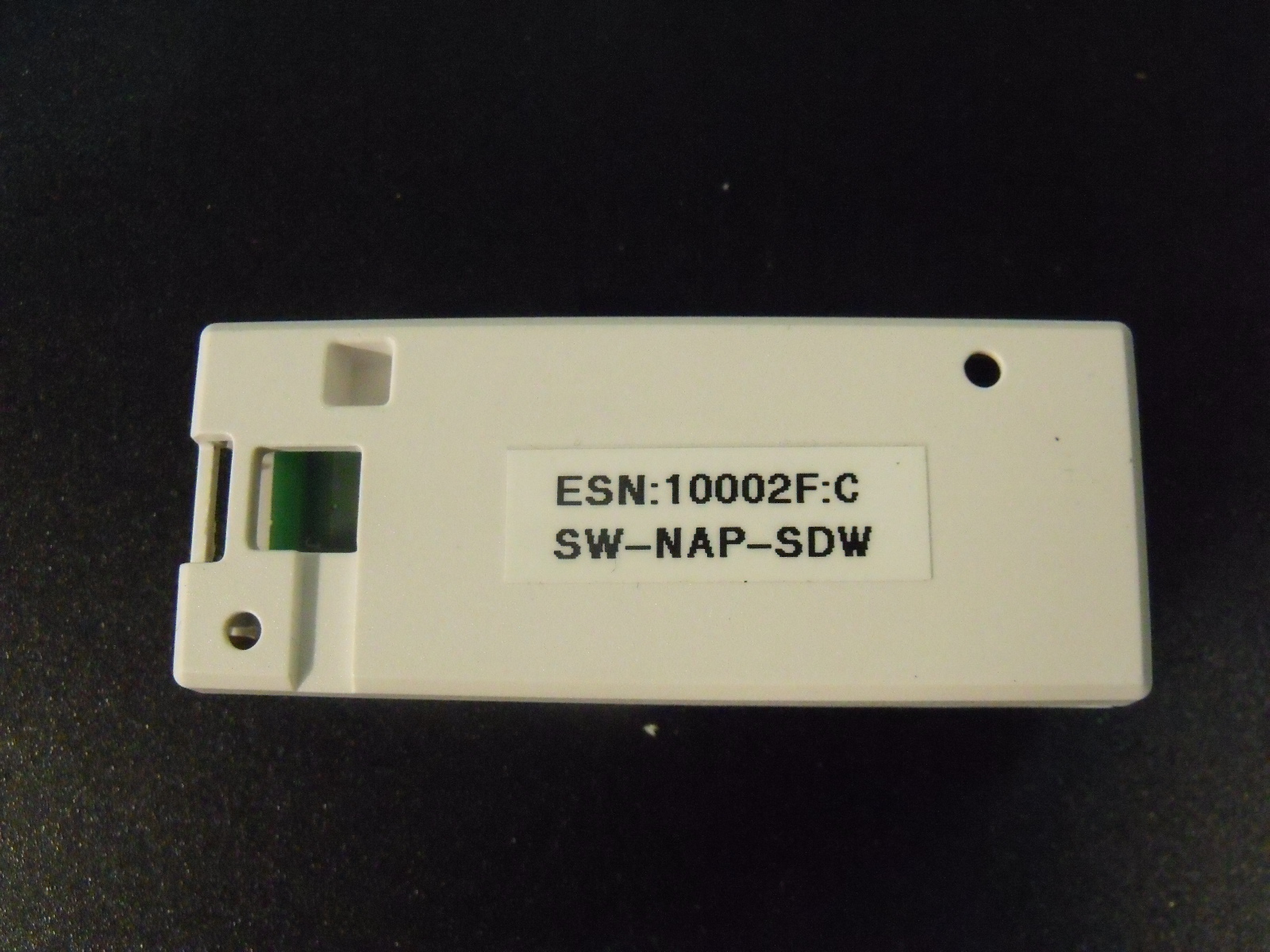

Secure Wireless Inc. Model # SW-NAP-SDW FCC ID: QNP-SDW319 IC: 4676A-SDW319 Made in China

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 11U13641 Project Number: SR7342936-T001 Date: 2011-02-17 Revision Date: 2011-04-18 Model: SW-NAP-SDW FCC ID: QNP-SDW319 Electromagnetic Compatibility Test Report For Secure Wireless, Inc Copyright  2010 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job Number: 11U13641 Page 2 of 30 Model Number: SW-NAP-SDW Client Name: Secure Wireless, Inc FCC ID: QNP-SDW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: Secure Wireless, Inc 5817 Dryden Place, Suite D Carlsbad, CA 92008 Applicant Contact: Jay Stone Phone: (866) 966-9473 E-mail: [email protected] Test Report Date: 2011-02-17 Test Report Revision Date: 2011-04-18 Product Type: Door Window Sensor Product standards FCC Part 15, Subpart C, 15.231, RSS-GEN, Issue 3, RSS-210, Issue 8 Model Number: SW-NAP-SDW Sample Serial Number: Non-serialized production unit EUT Category: Periodic Low Power Transmitter Testing Start Date: 2011-02-05 Date Testing Complete: 2011-02-15 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job Number: 11U13641 Page 3 of 30 Model Number: SW-NAP-SDW Client Name: Secure Wireless, Inc FCC ID: QNP-SDW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Report Directory 1.0 G E N E R A L - Product Description ..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Equipment Marking Plate ...............................................................................................................................4 1.3 Device Configuration During Test ..................................................................................................................5 1.3.1 Equipment Used During Test: ....................................................................................................................5 1.3.2 Input/Output Ports: .....................................................................................................................................5 1.3.3 EUT Internal Operating Frequencies: ........................................................................................................6 1.3.4 Power Interface: .........................................................................................................................................6 1.4 Block Diagram: ...............................................................................................................................................6 1.5 EUT Configurations ........................................................................................................................................7 1.6 EUT Operation Modes ....................................................................................................................................7 2.0 Summary ............................................................................................................................................................8 2.1 Deviations from standard test methods ..........................................................................................................8 2.2 Device Modifications Necessary for Compliance ...........................................................................................8 2.3 Reference Standards .....................................................................................................................................9 2.4 Results Summary ...........................................................................................................................................9 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 10 4.0 EMISSIONS TEST RESULTS ......................................................................................................................... 10 4.1 Test Conditions and Results – Occupied Bandwidth .................................................................................. 11 4.2 Test Conditions and Results – Cease Operation ........................................................................................ 14 4…

Text truncated - open the document above for the full version.

Job Number: 11U13641 Page 12 of 30 Model Number: SW-NAP-SDW Client Name: Secure Wireless, Inc FCC ID: QNP-SDW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 1 Test Setup for Occupied Bandwidth Job Number: 11U13641 Page 25 of 30 Model Number: SW-NAP-SDW Client Name: Secure Wireless, Inc FCC ID: QNP-SDW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 7 Test setup for Radiated Emissions
