QNP-V2DW319Door Window Sensor

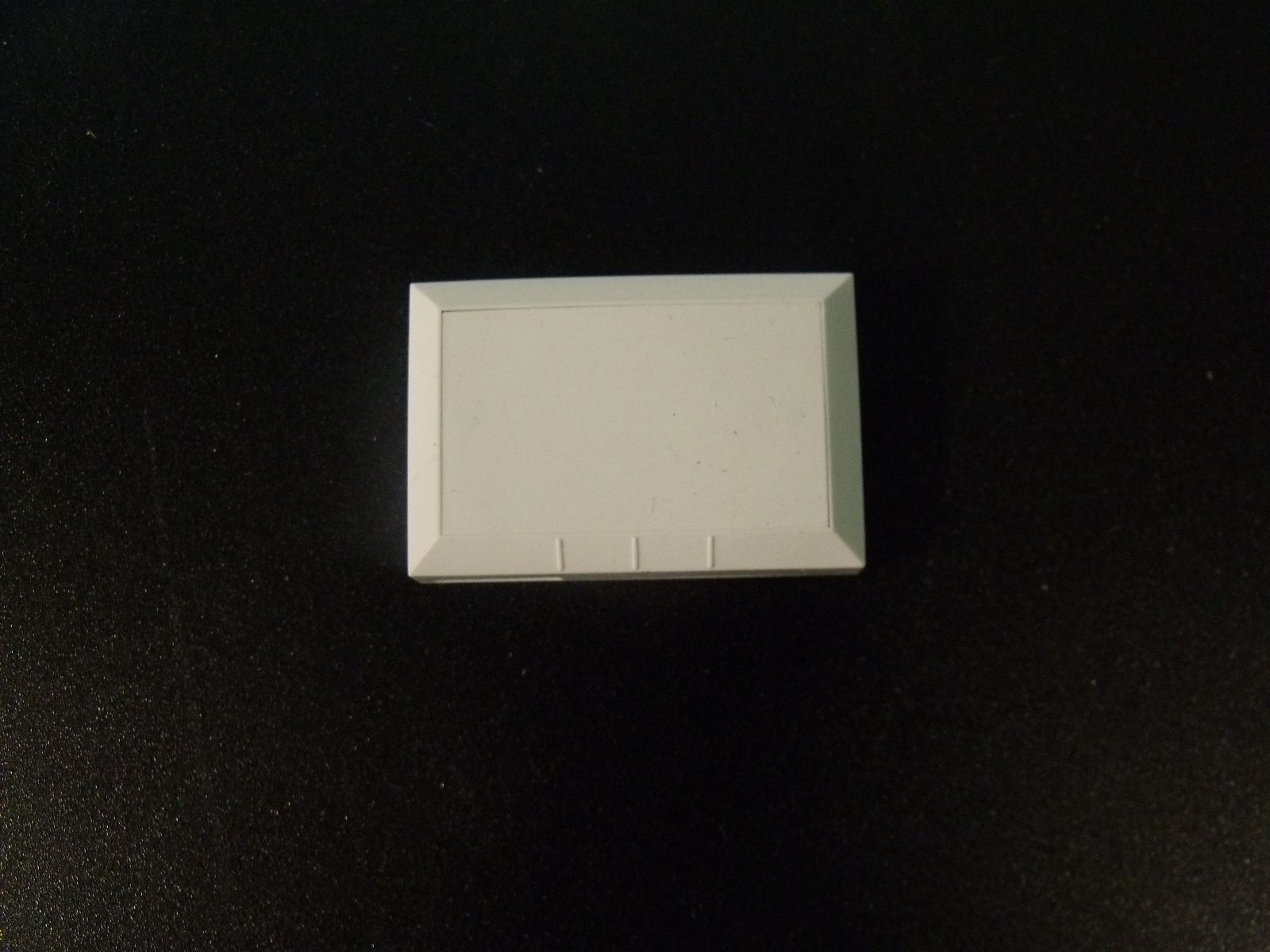

SW-NAP-V2DW Door Window Sensor NAPCO COMPATIBLE INSTALLATION MANUAL TECHNICAL SUPPORT Secure Wireless 866-908-Tech www.mysecurewireless.com SLIM DOOR WINDOW SENSOR ENROLLMENT / PROGRAMMING The SW -NAP-V2DW Door Window is equipped with an internal reed switch as well as the ability to use as external magnet . For a detail programming guide, the instruction manual should be consulted for that panel. The below guide should only be used as a reference and not as a replacement for using the programming instructions. 1. Pull Battery Tab 2. ENTER PANEL PROGRAMMING 3. ENTER Zone 4. ENTER Serial ID ( Auto-learn or Manual) To Auto-Learn REPLACING THE BATTERIES Pop open the case using a coin. Replace with a new battery ( + ) or positive polarity should be facing up Replace Cover FCC Compliance This device complies with Part 15 FCC Rules. Operation complies with the following 2 conditions (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation MODEL SW-NAP-V2DW FCC ID QNP-V2DW319 FREQUENCY 319.5 MHz WARRANTY Limited Life Time BATTERY CR2032 Replace with Panasonic MANUAL PART # 200-10005 Rev A Alpha Chart A - *0 B - *1 C -*2 D - *3 E - *4 F- *5 DOOR WINDOW MOUTING / USAGE The SW-NAP-V2DW Door Window is equipped with an internal reed switch as well as the ability to use an external magnet. Mounting Double Sided Tape is included for easy installation. Reed Switch (Use Point 1 when Programming ) Align the Arrow on magnet with the 3 lines on the side of the sensor case Mount the magnet no more than ¼ in from the sensor.

Secure Wireless Inc. Model # SW-NAP-V2DW FCC ID: QNP-V2DW319 IC: 4676A-V2DW319 Made in China

LABEL,FCC ID,SW-NAP-V2DW 187-1157 A ARTWORK DRAW ING Mo del # SW-NA P-V2DW FCC ID: QNP-V2DW319 IC: 4676A-V2DW319 Mad e in China Secure Wire less Inc . .750” .500 ” Model # SW-NAP-V2DW FCC ID: QNP-V2DW319 IC: 4676A-V2DW319 Made in China Secure Wireless Inc. Model # SW-NAP-V2DW FCC ID: QNP-V2DW319 IC: 4676A-V2DW319 Made in China Secure Wireless Inc.

Antenna Specification SW-NAP-V2DW Rev 1 The SW-NAP-V2DW transmitter uses and internal -15 dBi printed PCB loop antenna which is not replaceable by the user.

Job Number: 11U13642 Page 12 of 29 Model Number: SW-NAP-V2DW Client Name: Secure Wireless, Inc FCC ID: QNP-V2DW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 1 Test Setup for Occupied Bandwidth Job Number: 11U13642 Page 23 of 29 Model Number: SW-NAP-V2DW Client Name: Secure Wireless, Inc FCC ID: QNP-V2DW319 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2010-87-EM-F0042 Figure 7 Test setup for Radiated Emissions
