QNPEV-290Remote Control

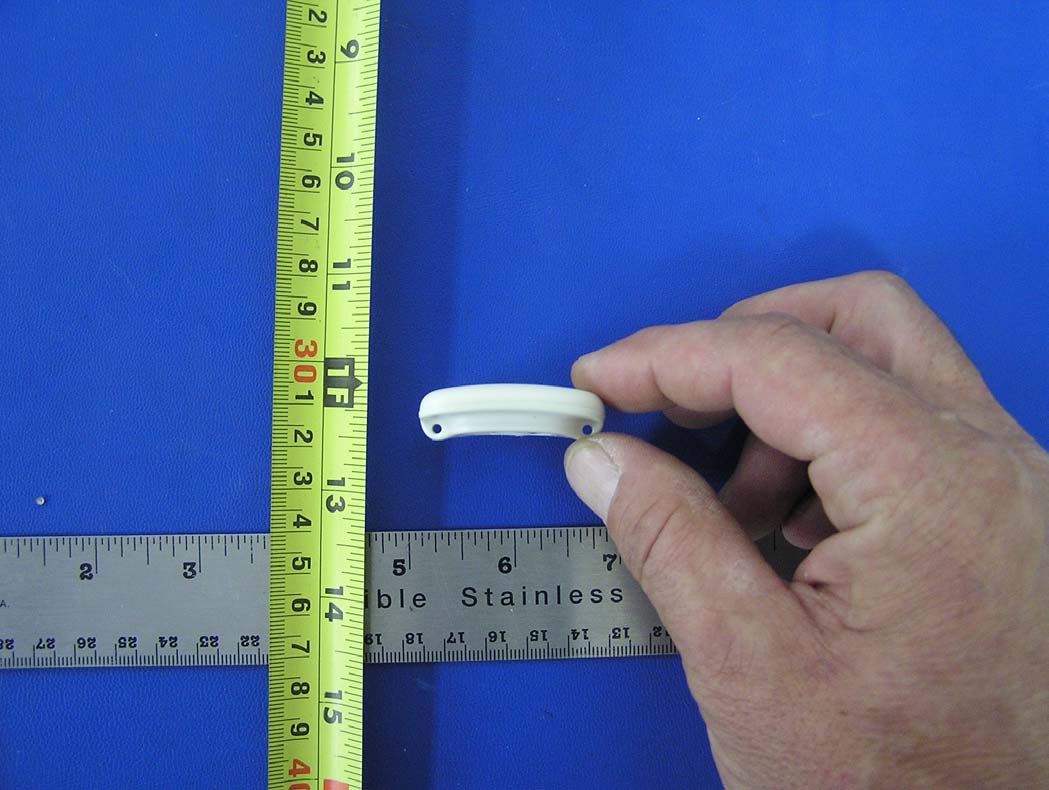

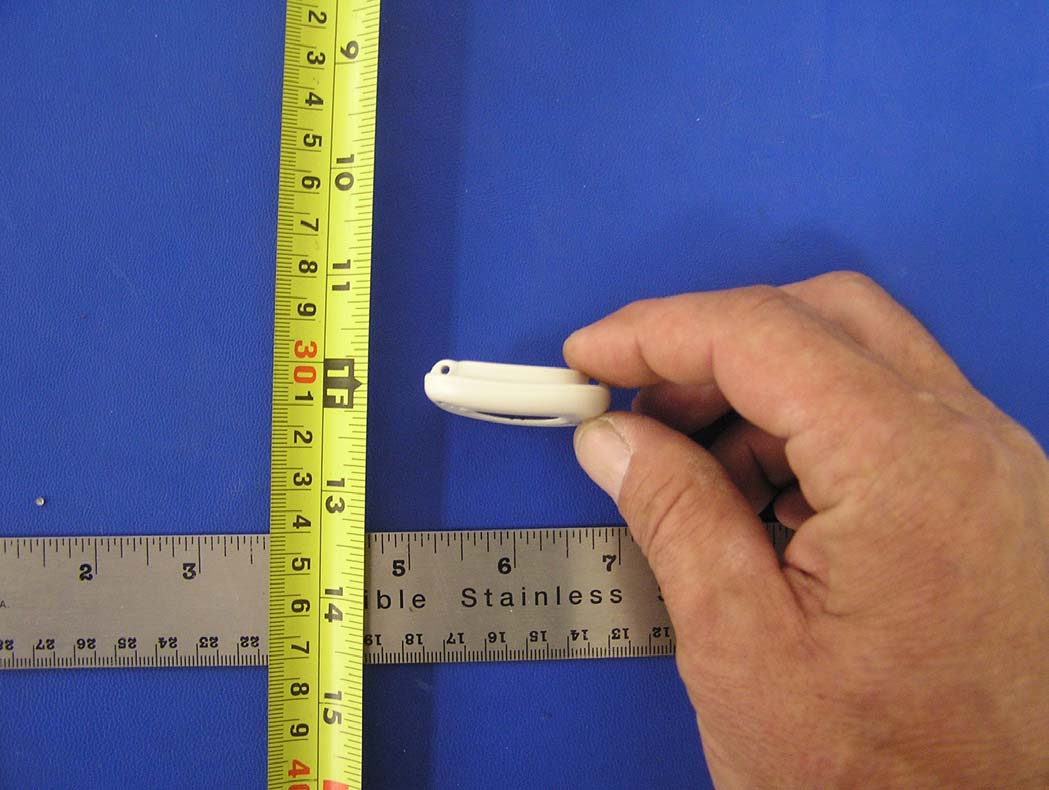

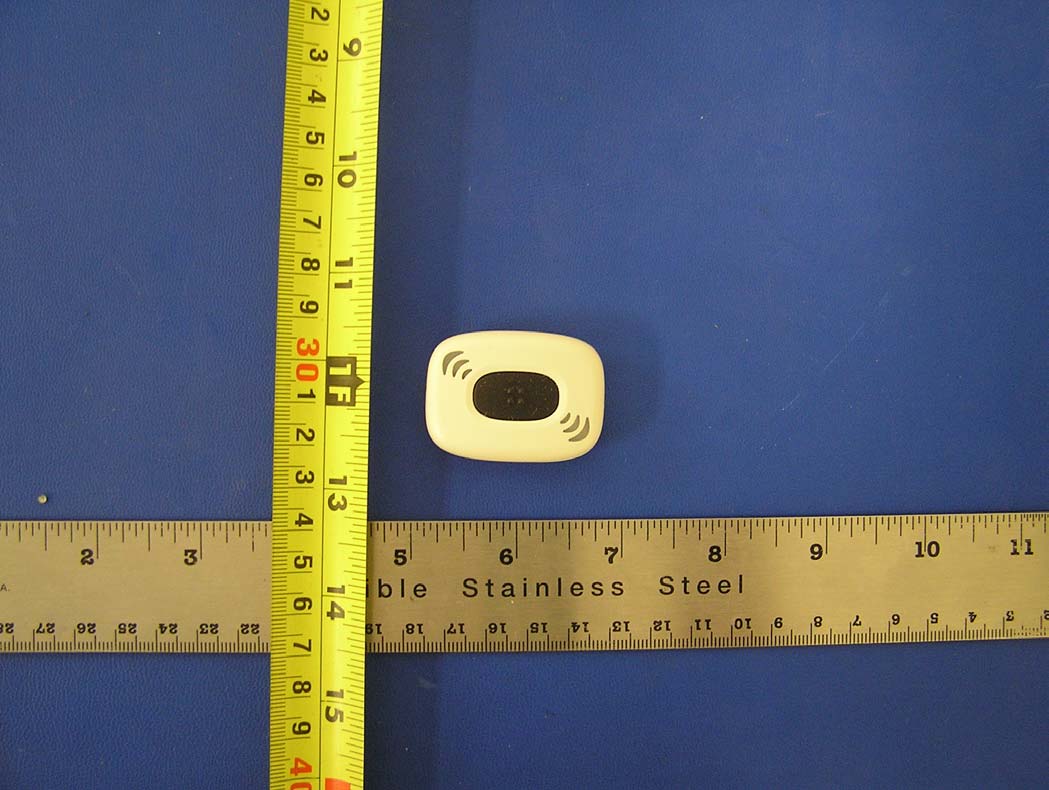

EV-290 Transmitter Overview: The Secure Wireless sample transmitter for AMAC has two tact switches on the printed circuit board (PCB) that allow flexibility in operation and programming. When in standard AMAC mode pressing anywhere on the top of the button will ensure that either or both of the PCB tact switches will be depressed. If any tact switch is pressed, the unit will send its transmission immediately. Programming: In programming you can choose to change the serial number OR change the operation of the transmitter from supervised to supervised with polling. To change the serial number: 1) Press and HOLD both buttons on the AMAC sample transmitter. You will need to press both the upper right and upper left corners of the one button to make sure that you are pressing both buttons simultaneously.* 2) Continue holding the buttons, The LED will turn OFF after it is done transmitting (approximately 3 seconds) and will turn back ON after approximately 5 additional seconds, RELEASE both buttons. 3) Use the left tact switch for a ‘0’ and the right for a ‘1’. Example; if the AMAC code that you desire is 28 then you will enter the data as follows; 0 0 1 0 1 0 0 0 _ _ _ _ _ _ _ _ 4) You will also need to add a 0001 for a regular AMAC remote or a 1110 for a silent panic type key. This encoding may be different from what you have done in the past but this is the right format for Hex to Binary encoding. 5) Once all 12 digits have been entered the LED will flash rapidly. * I have supplied a two button rubber insert for programming if you feel it is easier during the programming sequences. To change from Supervised to Supervised with Polling: 1) Press and HOLD both buttons on the AMAC sample transmitter. You will need to press both the upper right and upper left corners of the one button to make sure that you are pressing both buttons simultaneously.* 2) Continue holding the buttons, The LED will turn OFF after it is done transmitting (approximately 3 seconds) and will turn back ON after approximately 5 additional seconds, WAIT until the LED begins to flash (approximately 5 seconds). The total hold time is approximately 13 seconds. Once the LED is flashing, Release buttons. 3) Press Button # 1 (left) for Standard AMAC supervised unit. LED will confirm choice with 1 flash OR Press button # 2 (right) for Supervised with polling, LED will confirm choice with 2 flashes. 4) For testing purposes this unit will supervise itself every 10 seconds and will send a supervisory heartbeat if programmed for supervised with polling. * I have supplied a two button rubber insert for programming if you feel it is easier during the programming sequences. Battery Information: Battery statistics are as follows: 4.8uA Standby Current 1.8uA Wake up time .001uA Supervisory .17uA 1 Button press per day 6.771uA Total battery draw Battery is a CR2025 with 160mA power Calculation is as follows: (160,000/6.771)/8760= 2.6975 years on average This is actual field usage since you do not activate the battery until it is ready for use. Supervisory with Polling Transmission: When the Polling is enabled, the heartbeat transmission is sent every 6 hours. It sends the 12.5 mS long data packet 5 times as a means to insure system integrity. Default Programming: The AMAC unit will be pre-programmed at the factory with a standard code and defaulted as a standard supervised device without any polling transmissions. Low Battery Trigger: Currently we check for a low battery every 12 hours for 3 consecutive wake ups. That means that when a low battery is detected we must see it on three consecutive occasions before we will lock and transmit low battery. When the AMAC remote detects low battery it will take a minimum of 36 hours before it will transmit. FCC Compliance Statement: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1 Chris Harvey From: September Radecki [[email protected]] Sent: Tuesday, August 28, 2007 4:54 PM To: Chris Harvey Cc: September Radecki Subject: RE: Secure Wireless, Inc., FCC ID: QNPEV-290, Assessment NO.: AN07T7135, Notice#1 Attachments: EV-290_Revised Manual.pdf EV-290_Revised Manual.pdf (107... hi Chris, Below are the replies to your questions on the above application. The application exhibits appear to document compliance with FCC 15.231(a), but the application Form seems to document an application for 15.231(e). Please determine which Rule part is being used and ensure that the documentation/exhibits are consistent with that Rule Part. <CCS Answer:> The correct rule part is 15.231(a) The Users Manual indicates that this device can be setup to perform Polling with user selectable rate. Please explain how this operation complies with the requirements of: FCC 15.231(a)(3) Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitters used in security or safety applications are allowed if the total duration of transmissions does not exceed more than two seconds per hour for each transmitter. There is no limit on the number of individual transmissions, provided the total transmission time does not exceed two seconds per hour. <CCS Answer:> Please see attached revised user manual. Best regards, September Kindest regards, September _____________________________________ September Radecki Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Phone: 510.771-1000 Fax: 510.661-0888 e-mail: [email protected] -----Original Message----- From: Chris Harvey Sent: Sunday, August 26, 2007 5:26 AM To: Thu Chan Cc: Chris Harvey; September Radecki Subject: Secure Wireless, Inc., FCC ID: QNPEV-290, Assessment NO.: AN07T7135, Notice#1 Dear Thu Chan, 2 You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: The application exhibits appear to document compliance with FCC 15.231(a), but the application Form seems to document an application for 15.231(e). Please determine which Rule part is being used and ensure that the documentation/exhibits are consistent with that Rule Part. The Users Manual indicates that this device can be setup to perform Polling with user selectable rate. Please explain how this operation complies with the requirements of: FCC 15.231(a)(3) Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitters used in security or safety applications are allowed if the total duration of transmissions does not exceed more than two seconds per hour for each transmitter. There is no limit on the number of individual transmissions, provided the total transmission time does not exceed two seconds per hour. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected]

Antenna Specification EV-290 Rev 1 The EV-290 transmitter uses and internal -15 dBi printed PCB antenna which not accessible or replaceable by the user.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR REMOTE CONTROL MODEL NUMBER: EV-290 FCC ID: QNPEV-290 REPORT NUMBER: 07U11237-1 ISSUE DATE: AUGUST 13, 2007 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11237-1 DATE: AUGUST 13, 2007 EUT: REMOTE CONTROL FCC ID: QNPEV-290 Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By --- 08/13/07 Initial Issue T. Chan REPORT NO: 07U11237-1 DATE: AUGUST 13, 2007 EUT: REMOTE CONTROL FCC ID: QNPEV-290 Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 18 7.4. RADIATED EMISSIONS.............................................................................................................20 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 20 8. SETUP PHOTOS................................................................................................................................ 25 REPORT NO: 07U11237-1 DATE: AUGUST 13, 2007 EUT: REMOTE CONTROL FCC ID: QNPEV-290 Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA EUT DESCRIPTION: REMOTE CONTROL MODEL: EV-290 SERIAL NUMBER: 01998 DATE TESTED: AUGUST 10, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN WILLIAM ZHUANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11237-1 DATE: AUGUST 13, 2007 EUT: REMOTE CONTROL FCC ID: QNPEV-290 Page 5 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 47173 Benicia Street, Fremont, Californ…
