QNPEV-AMACRemote Control Transmitter

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.

Mike Kuo To: [email protected] Subject: RE: Secure Wireless, Inc., FCC ID:QNPEV-AMAC 6/4/2004 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, June 04, 2004 1:09 AM To: [email protected] Subject: RE: Secure Wireless, Inc., FCC ID:QNPEV-AMAC Importance: High Best Regards Joy Hsiao Hi Joy : FCC ID number HNB2YI200 was granted by FCC on 03/24/1989 as transmitter not a receiver. Please verify the information provided by the applicant before reply to TCB. M.Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Sunday, May 16, 2004 10:18 PM To: [email protected] Subject: FW: Secure Wireless, Inc., FCC ID:QNPEV-AMAC Importance: High Question #1: The FCC ID number for the associated receiver is HNB2YI500B which is designed to be used for Personal Emergency Response System Receiver and this device has marketing restriction of "The manufacture and/or importation of this device must cease on June 23, 1999". The product description listed on TCB application form is for car alarm transmitter which does not agree with the function that described in the associated receiver. Please explain. --->After confirming by our customer, they revised the product name and the associated Receiver to ,Wireless Remote Communicate With Personal Emergency, and HNB2YI200. Attached please find C40324402-RP_Vision EV-AMAC_.pdf. Mike Kuo <[email protected]> 2004/05/18 08:12 AM "'[email protected]'" <[email protected]> Question #2: In the user manual, the transmitter is equipped with reset and help buttons but in the external photo, there is only one button showed. Please explain. In the functional block diagram, there are two push switch shown, please explain . --->Please refer to the attached revised manul. Sorry for the inconvenience that brought you. There is exactly only one button. And also please refer to attached internal photo that can tell you why there are two switch push in the function block. Best Regards Joy Hsiao 6/4/2004

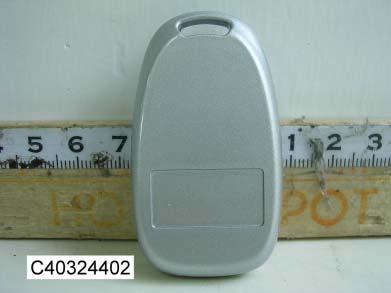

Report Number: C40324402-RP April 26, 2004 Page 11 Rev. 00 External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Secure Wireless, Inc. FCC ID: QNPEV-AMAC FCC ID: QNPEV-AMAC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

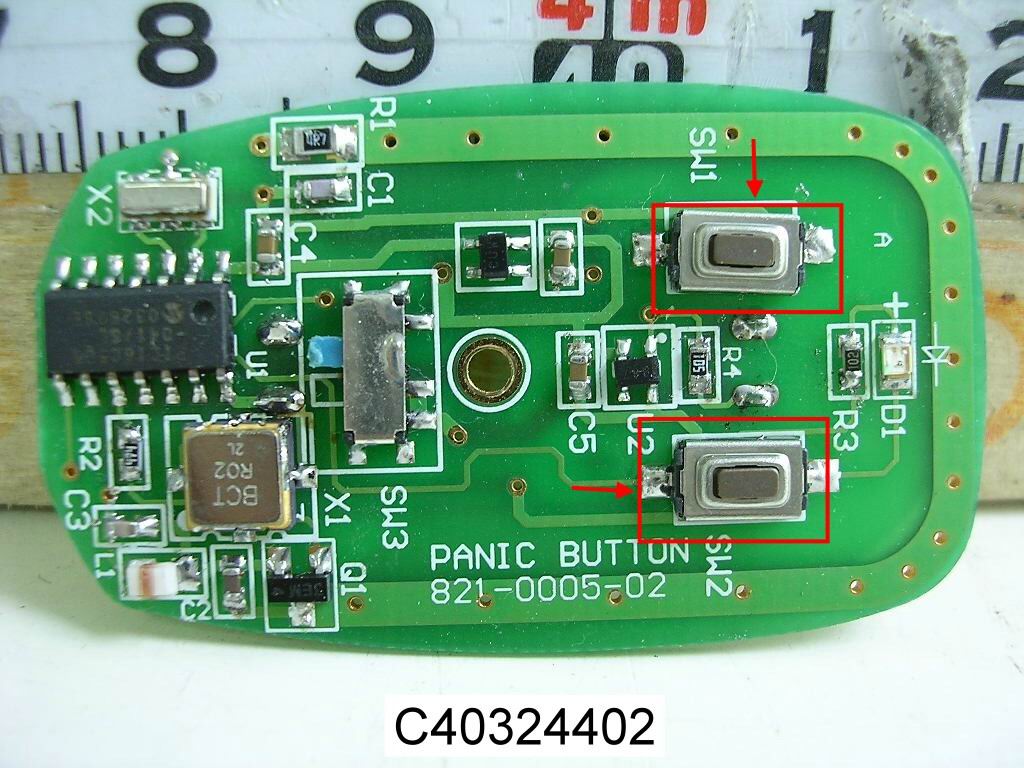

Report Number: C40324402-RP April 26, 2004 Page 12 Rev. 00 Internal of EUT Report Number: C40324402-RP April 26, 2004 Page 13 Rev. 00

A.M.A.C. transmitter Operational Description The AMAC Transmitter is a low powered, hand held unit for remote controlling the home security panic and other features. See the function descriptions in attached. The transmitter is powered by a 6 volt battery. It is designed to operated on a single fixed frequency at 303.875 MHz. See the attached block diagram and schematic. There is 1 button trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal(ASK). The carrier signal is generated by a L C oscillator/amplifier circuit comprised of a 303.875 MHz crystal (X1) and npn transmitter (Q1). The modulated output of the RF stage is coupled to the strip antenna. The strip antenna is attached on PCB around 30mm. The transmitter is manually operated by the buttons pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

821-0005-01 1.0 EV-AMAC SW A 11 Thursday, March 25, 2004 M:\PCB&DSN\42421-PANIC BUTTON\EV-AMAC FCC.DSN TitleSize Document Number Rev Date: Sheet of VCC +V +V VCC +6V VCC ANT CH-2CH-1 +V SW1SW ITCH 1 2 R41M 1 2 R31K 1 2 U2S-808-46CNNB-B87 VI 2 NC 3 GND 4 OUT 1 X1 303.875MHZ 12 Q1H10 2 31 C315P 12 R2470K 1 2 C1680P 12 R1100 1 2 C25P 12 L168nH 12 D1LED 1 2 SW2SW ITCH 1 2 U1PIC 16C505 VDD 1 RB5/OSC1 2 RB4/OSC2 3 RB3/MCLR 4 RC5/T0CK1 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RB2 11 RB1 12 RB0 13 VSS 14 X24MHZ 12 3 C40.1uF 1 2 SW3ASLIDE SW 2 13 C60.1uF 12 BT12025*2 12 C50.1uF 12 U3 S-817A33ANB-CUW VI 2 NC 4 GND 1 VOUT 3

Report Number: C40324402-RP April 26, 2004 Page 1 of 14 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of Wireless Remote Communicate With Personal Emergency Response System FCC ID Number : QNPEV-AMAC Trade Name : Evolution Model Number : EV-AMAC Agency Series : N/A Report Number : C40324402-RP Date : April 26, 2004 Prepared for Secure Wireless, Inc. 1185 Park Center Dr Suite A/B Vista, CA 92083 Prepared by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Report Number: C40324402-RP April 26, 2004 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ..............................................................3 2. PRODUCT DESCRIPTION................................................................................4 3. TEST FACILITY..................................................................................................4 4. MEASUREMENT STANDARDS ......................................................................4 5. TEST METHODLOGY .......................................................................................4 6. MEASUREMENT EQUIPMENT USED ..........................................................5 7. POWERLINE RFI LIMIT ..................................................................................5 8. RADIATED EMISSION LIMITS ......................................................................6 9. SYSTEM TEST CONFIGURATION ................................................................6 10. TEST PROCEDURE ............................................................................................7 11. EQUIPMENT MODIFICATIONS.....................................................................8 12. TEST RESULT .....................................................................................................9 12.1. MAXIMUM MODULATION PERCENTAGE (M%) ................................9 12.2. THE EMISSIONS BANDWIDTH ..................................................................9 APPENDIX 1 PHOTOGRAPHS OF EUT .............................................................10 APPENDIX 2 TEST DATA ......................................................................................14 Report Number: C40324402-RP April 26, 2004 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : Secure Wireless, Inc. 1185 Park Center Dr Suite A/B Vista, CA 92083 CONTACT PERSON : Michael Lamb / Jeff Christensen TELEPHONE NO. : 866-966-9473 EUT DESCRIPTION : Wireless Remote Communicate With Personal Emergency Response System MODEL NAME/NUMBER : EV-AMAC FCC ID : QNPEV-AMAC DATE TESTED : March 25, 2004 REPORT NUMBER : C40324402-RP TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 303.875 MHz Wireless Remote Communicate With Personal Emergency Response System MEASUREMENT PROCEDURE ANSI 63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Report Number: C40324402-RP April 26, 2004 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 303.875 MHz Power Source 6V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: 800 / Brand: Pers (FCC DoC) 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165 & No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: C40324402-RP April 26, 2004 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date ADVANTEST R3261A SPECTRUM ANALYZER 04/11/04 R&S ESVS30 MEASURE RECEIVER 09/30/04 SCHWARZBECK VULB 9160 ANTENNA 05/09/04 BELDEN 9913 CABLE 01/01/05 H.P. 8447D B PRE- AMPLIFIER 05/03/04 CCS N/A Site NSA 10/30/04 EMCO 3115 ANTENNA (1-18GHz) 02/02/05 HP 8449B AMPLIFIER (1-26.5GHz) 02/15/05 JYEBAO LL143 CABLE (1-18GHz) 02/15/05 JYEBAO LL142 CABLE (1-18GHz) 02/15/05 HP 8566B EMC ANALYZER (100Hz-22GHz) 06/25/04 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: C40324402-RP April 26, 2004 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONF…

Text truncated - open the document above for the full version.

Report Number: C40324402-RP April 26, 2004 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
