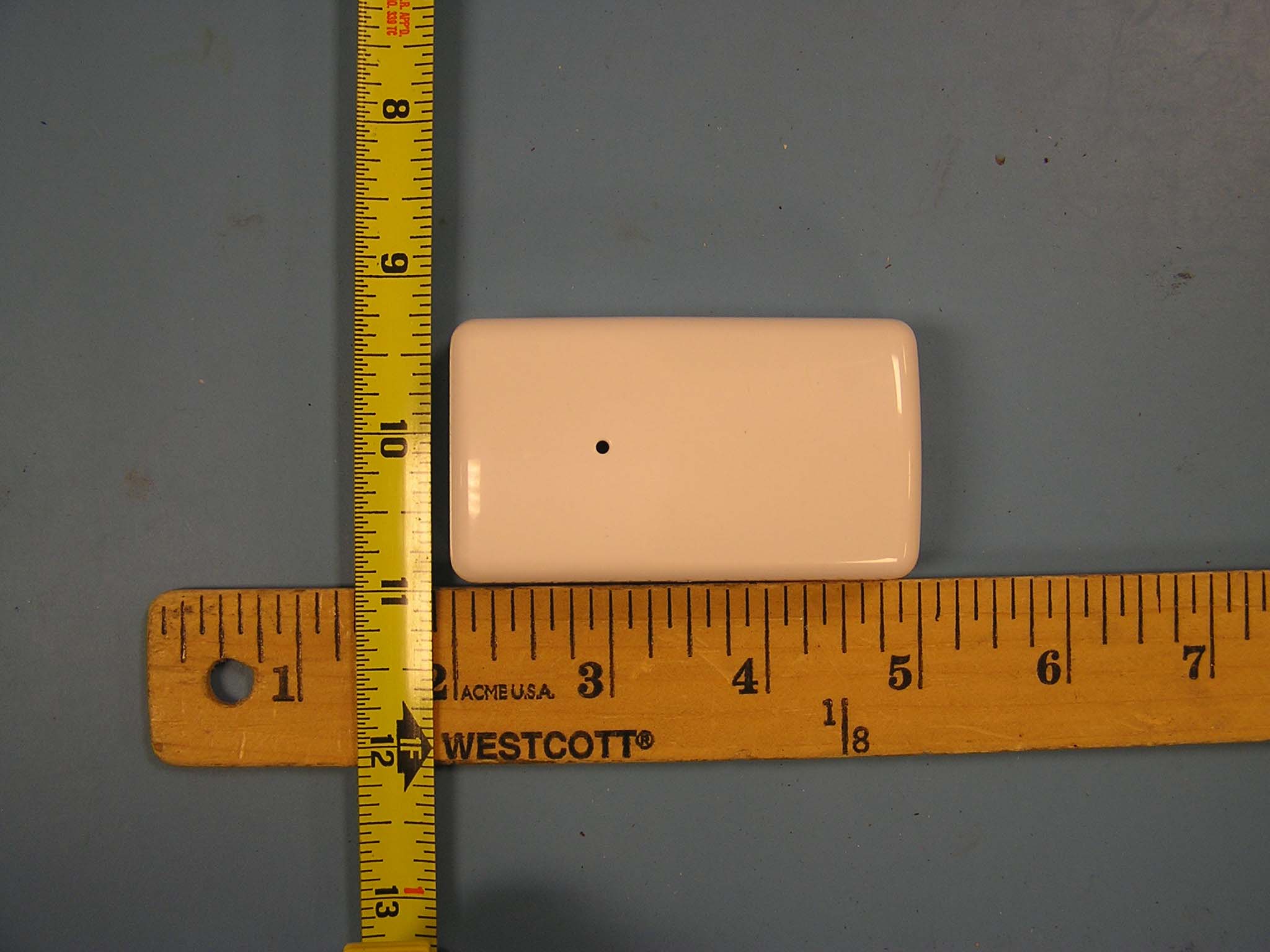

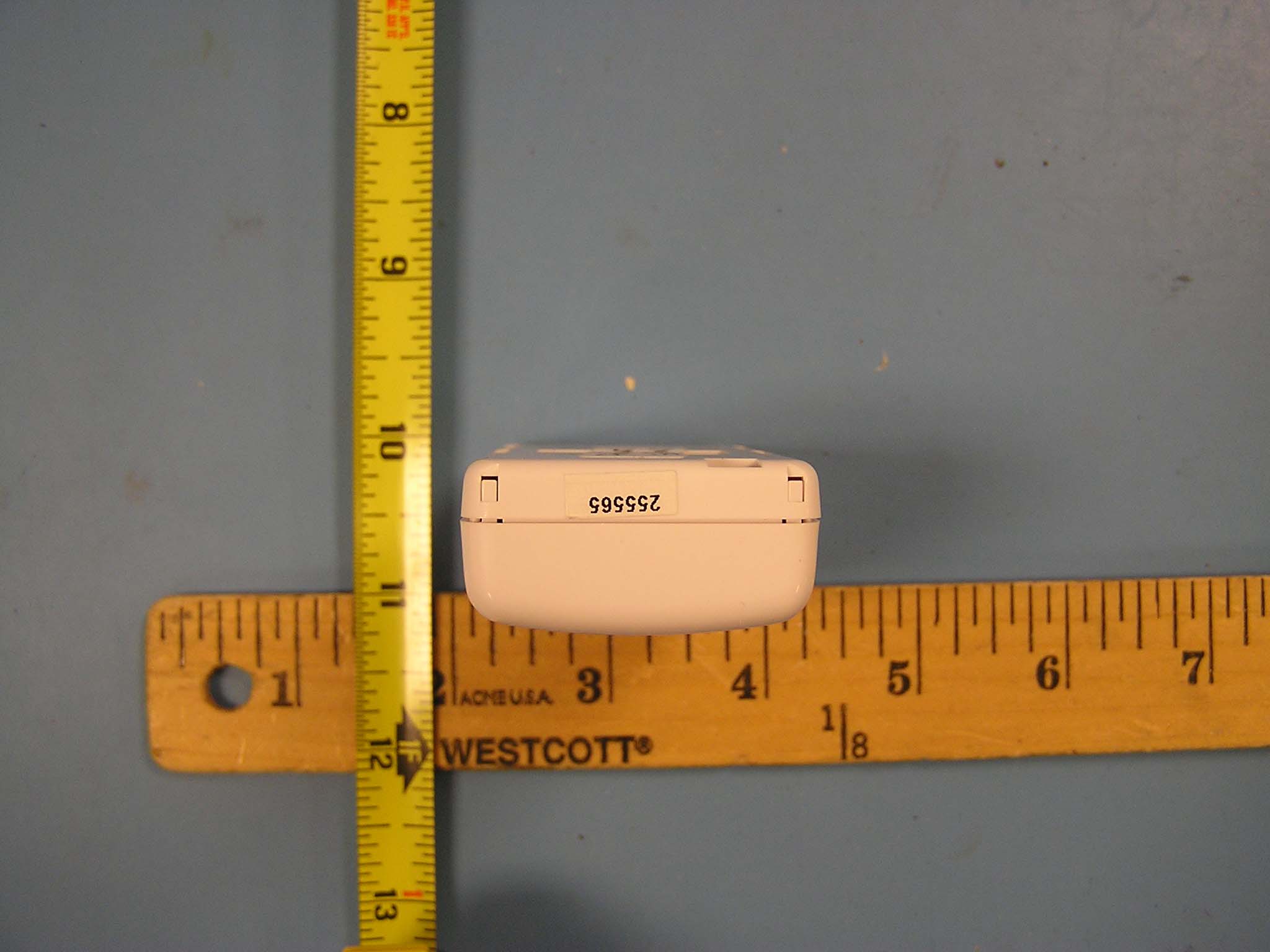

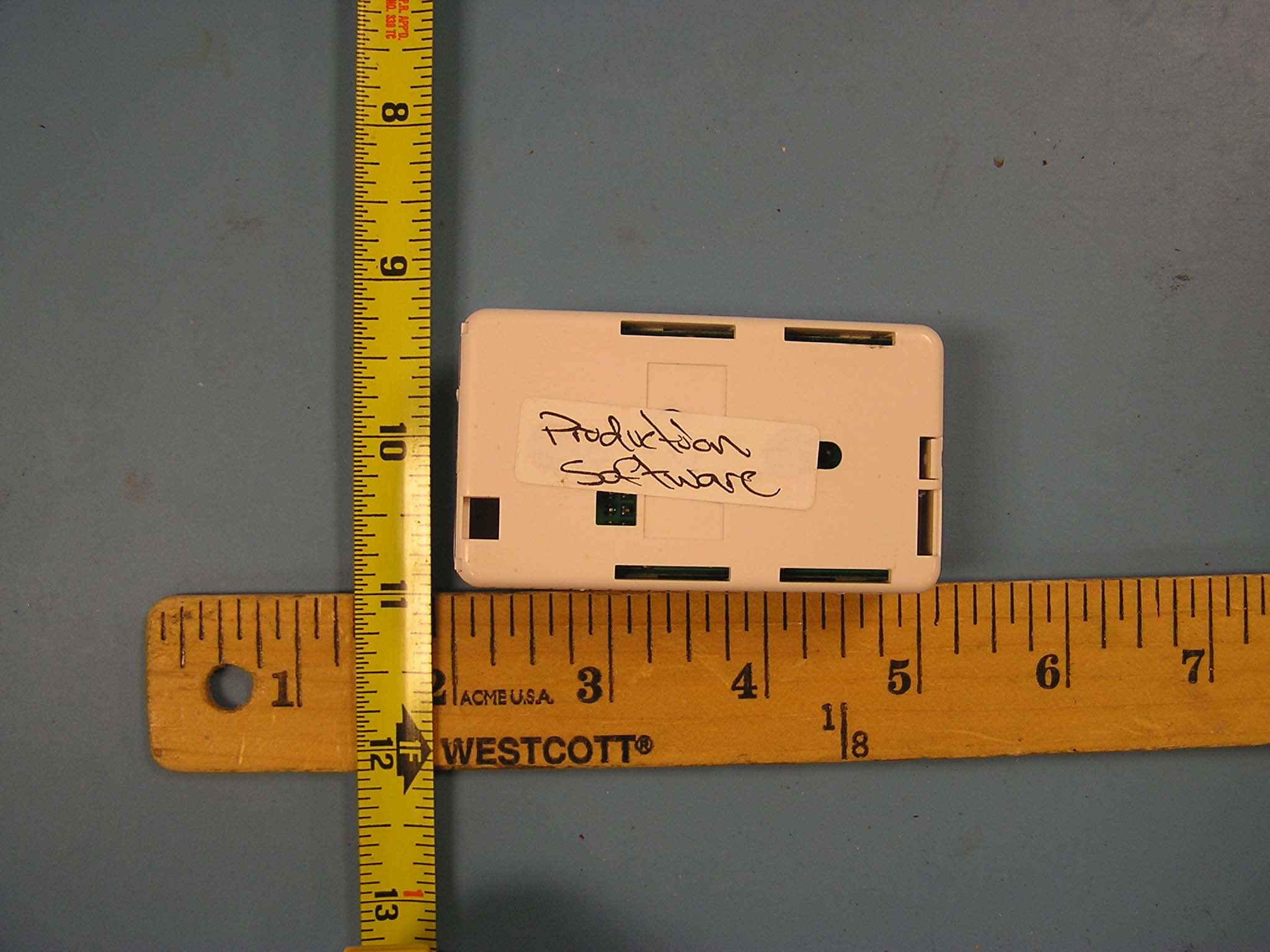

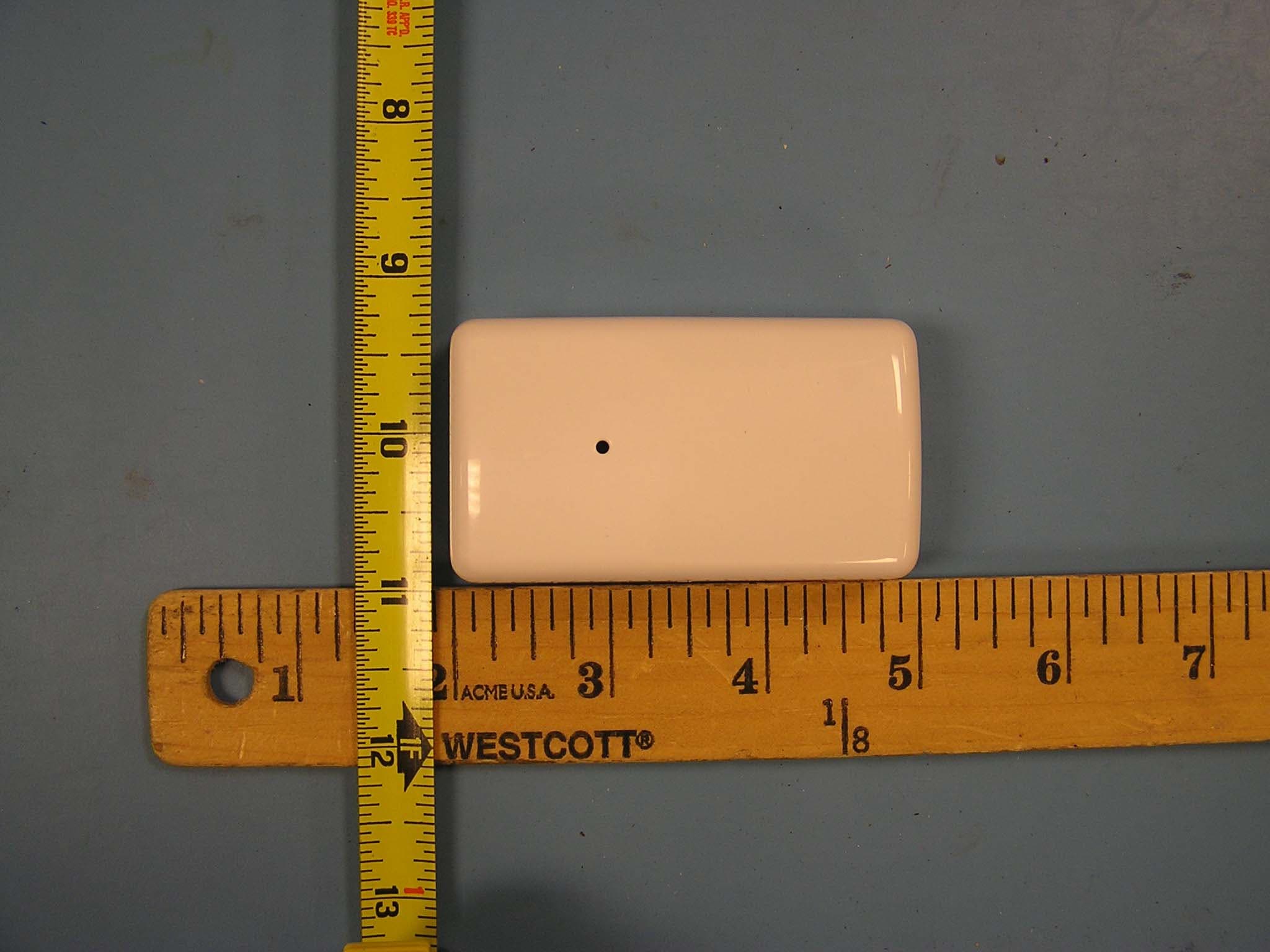

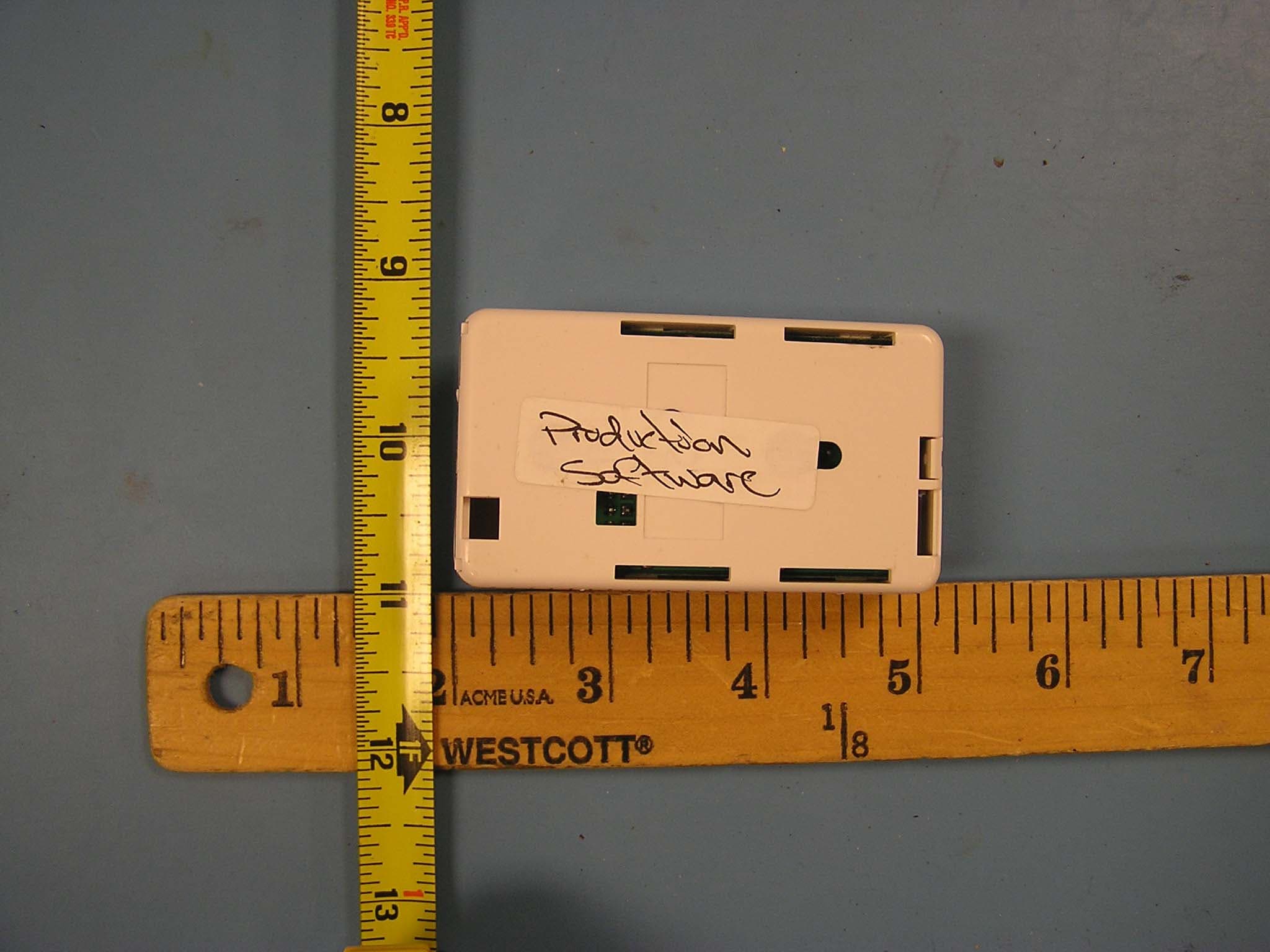

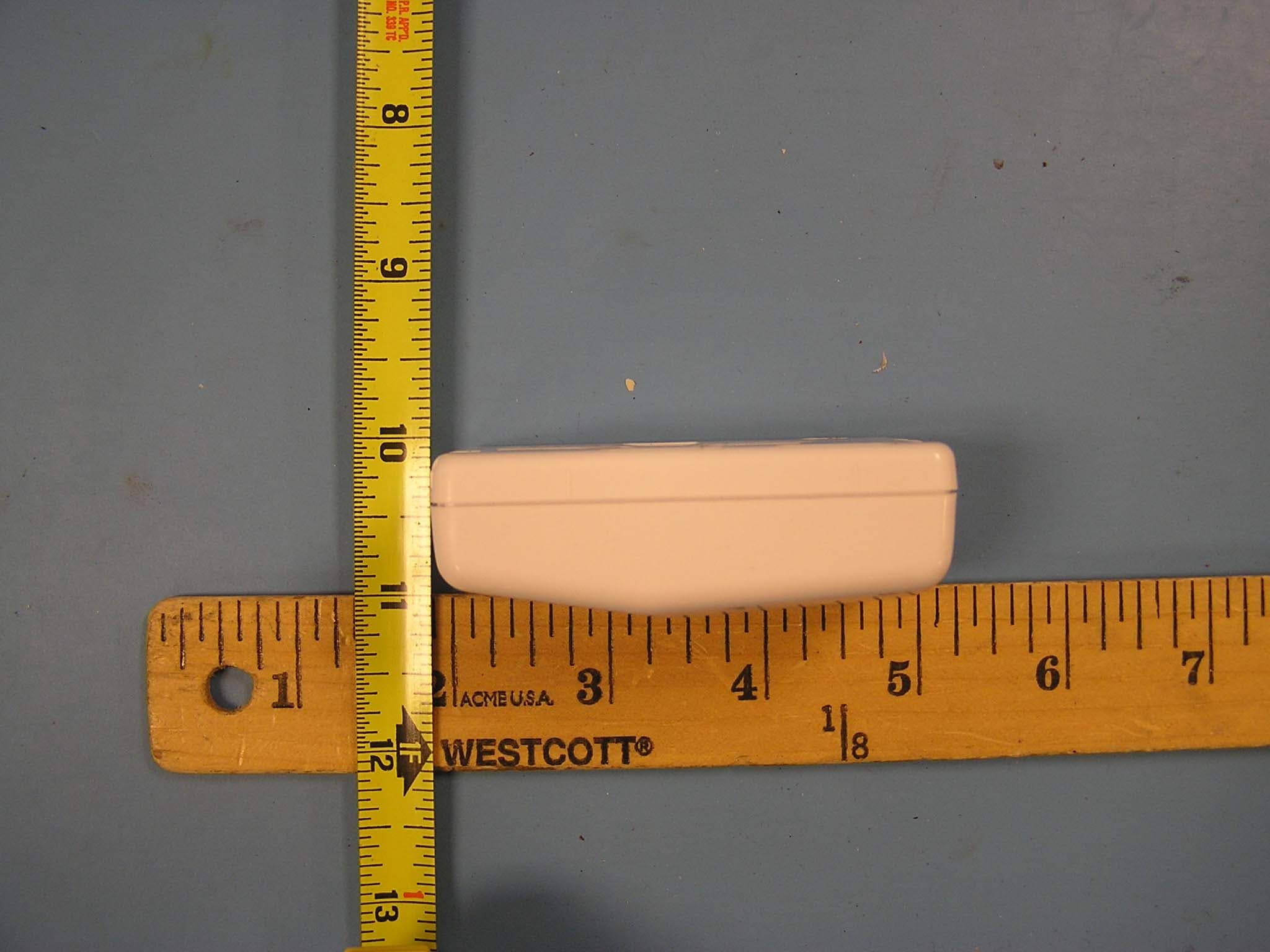

EV-DW4927 Dual Function Shock/Reed SensorIntroductionThe EV-EV-DW4927 is the industries most flexible supervised multi function shock sensor with integrated reed switch. The EV-DW4927 includes the industries first pre-warn detection system to help thwart potential thievesby audibly warning them of the alarm systems presence before serious damage can occur. It alsoincludes a reed switch so it can act as a pre-warn system, shock sensor and door/window contact.Installation1) Assess the best placement for the EV-DW4927 based on what your protection goals are and using the supplied double stick tape or mounting bracket, mount the unit. 2) Install Battery: Use care when installing the battery and observe the correct polarity. Use only Panasonic CR123A lithium batteries. 3) Test Pre-warn and shock sensitivity by removing Jumper #1 (If no pre-warn detection needed see “Pre-Warn Detection Disable”). a) A quick beep and red light will flash when the unit detects a pre-warn threshold and will flash green with a long beep for a shock trigger to fault the panel b) While being careful not to break the window or damage any walls, test the sensitivity by banging using gentle hits with the palm of your hand and gradually increase the pressure until you get the desired response. Adjust the sensitivity to the desired level. c) Replace Jumper #1 EnrollingRefer to your installation manual for enrolling wireless devices into a DSC control panel.For the shock sensor the serial number is printed on the back of the case. The serial number for theREED switch is the serial number printed on the back of the EV-DW4927 plus ‘1’. Example: If the serial number printed on the back of the case is 21124C, that is for the shock sensor. Simply add ‘1’ to the serial number (21124D) for the REED and program that serial number. Pre-Warn Detection DisableIf you wish to DISABLE the pre warn beeps simply follow the steps below:1) Open case2) Locate and remove jumper #2. NA and EU Receiver VersionsThis product supports both NA and EU versions of DSC receivers. The default setting (jumper ON) isfor NA type receiver. To change the format to support EU versions complete the following steps:1) Open Case2) Locate and remove Jumper #3 FCC COMPLIANCE STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation. IC: The term ‘IC:’ before the radio certification number only signifies that Industry Canada technical specifications were met. Technical Support: (866) 908-TECH (8324) ©2006 Secure Wireless EV-DW4927 Dual Function Shock/Reed SensorIntroductionThe EV-EV-DW4927 is the industries most flexible supervised multi function shock sensor with integrated reed switch. The EV-DW4927 includes the industries first pre-warn detection system to help thwart potential thievesby audibly warning them of the alarm systems presence before serious damage can occur. It alsoincludes a reed switch so it can act as a pre-warn system, shock sensor and door/window contact.Installation1) Assess the best placement for the EV-DW4927 based on what your protection goals are and using the supplied double stick tape or mounting bracket, mount the unit. 2) Install Battery: Use care when installing the battery and observe the correct polarity. Use only Panasonic CR123A lithium batteries. 3) Test Pre-warn and shock sensitivity by removing Jumper #1 (If no pre-warn detection needed see “Pre-Warn Detection Disable”). a) A quick beep and red light will flash when the unit detects a pre-warn threshold and will flash green with a long beep for a shock trigger to fault the panel b) While being careful not to break the window or damage any walls, test the sensitivity by banging using gentle hits with the palm of your hand and gradually increase the pressure until you get the desired response. Adjust the sensitivity to the desired level. c) Replace Jumper #1 EnrollingRefer to your installation manual for enrolling wireless devices into a DSC control panel.For the shock sensor the serial number is printed on the back of the case. The serial number for theREED switch is the serial number printed on the back of the EV-DW4927 plus ‘1’. Example: If the serial number printed on the back of the case is 21124C, that is for the shock sensor. Simply add ‘1’ to the serial number (21124D) for the REED and program that serial number. Pre-Warn Detection DisableIf you wish to DISABLE the pre warn beeps simply follow the steps below:1) Open case2) Locate and remove jumper #2. NA and EU Receiver VersionsThis product supports both NA and EU versions of DSC receivers. The default setting (jumper ON) isfor NA type receiver. To change the format to support EU versions complete the following steps:1) Open Case2) Locate and remove Jumper #3 FCC COMPLIANCE STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation. IC: The term ‘IC:’ before the radio certification number only signifies that Industry Canada technical specifications were met. Technical Support: (866) 908-TECH (8324) ©2006 Secure Wireless

02/22/ 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken.

Secure Wireless, Inc. 5817 Dryden Place, Suite D Carlsbad, CA 92008 (866) 966-947 7/6/06 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID Number QNPEV-DW4927, and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . These documents contain detailed system and equipment description and related information about the product that Secure Wireless considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Secure Wireless considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, ___________________________ Jeff Christensen V.P. of Operations Secure wireless, Inc.

PROPOSED FCC ID LABEL AND LOCATION Secure Wireless, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QNPEV-DW4927 FCC ID LABEL

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR SHOCK SENSOR MODEL NUMBER: EV-DW4927 FCC ID: QNPEV-DW4927 REPORT NUMBER: 06U10377-1 ISSUE DATE: JULY 17, 2006 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 2 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 7/17/06 Initial Issue REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M%) .................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 17 7.4. RADIATED EMISSIONS.............................................................................................................19 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 19 8. SETUP PHOTOS................................................................................................................................ 24 REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, U.S.A EUT DESCRIPTION: SHOCK SENSOR MODEL: EV-DW4927 SERIAL NUMBER: 01762 DATE TESTED: JUNE 13 & 23, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN THANH NGUYEN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 5 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 561F Monterey Road, Morgan Hill, Californ…

Text truncated - open the document above for the full version.

REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 24 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 25 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 06U10377-1 DATE: JULY 17, 2006 EUT: SHOCK SENSOR FCC ID: QNPEV-DW4927 Page 26 of 26 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
