QNPEV-F319Wireless Remote Control Transmitter

LOW BATTERY INDICATION LED will flash to indicate that Low Battery Supervisionhas been sent and the battery should be replaced. W ARRANTY Secure Wireless offers a Lifetime Warranty on this product. Secure Wireless agrees to repair or replace thisproduct at no cost to the user. For return authorizationplease contact: Secure Wireless 1185 Park Center Drive, Suite A/B Vista, CA 92083 (760) 727-0601 This device complies with part 15 of the FCC Rules. Operation is subject tothe following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. 4 Button Wireless Transmitter For use with Part #s: EV-F319/EV- F345/EV-F433 USER MANUAL Button 1Button 3 Button 2Button 4 6658-SW-Evol Manual 10/7/02 10:05 PM Page 1 I . Programming the Remote into the Alarm System Refer to the programming guide that came with youralarm system for programming a wireless device (KEYFOB) into the security system.II. Changing Panic Operation to Delay Mode or Instant Mode Note: To use this feature you must have programmed button 4 into the alarm panel as “PANIC”. The 3 seconddelay is the factory default. SETTING PANIC BUTTON FOR DELAY TRANSMISSION MODE (By selecting this feature, the user must hold down panic button for 3 seconds before transmission is sent.) 1. Press all 4 button at the same time until the LED begins to flash. (This will take approximately 3 seconds before LED flashes.) 2. Release all 4 buttons 3. Press Button 2 (TOP RIGHT BUTTON) 4. LED should stop flashing SETTING PANIC BUTTON INTO INSTANCE TRANSMISSION MODE 1. Press all 4 button at the same time until the LED begins to flash. (This will take approximately 3 seconds before LED flashes.) 2. Release all 4 buttons 3. Press Button 1 (TOP LEFT BUTTON) 4. LED should stop flashing 6658-SW-Evol Manual 10/7/02 10:05 PM Page 2

PROPOSED FCC ID LABEL AND LOCATION Secure Wireless, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QNPEV-F319 FCC ID LABEL

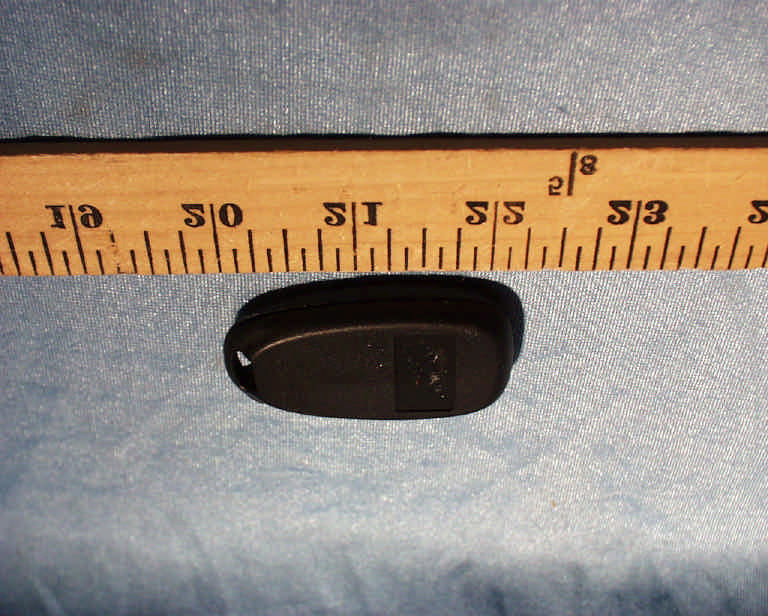

EV-F319 transmitter Operational Description The EV-F319 transmitter is a low powered, hand held unit for remote controlling the home security and other features. See the function descriptions in attached. The transmitter is powered by a 6 volt battery. It is designed to operate on a single fixed frequency at 319.5 MHz. See the attached block diagram and schematic. There are 4 buttons trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a S.A.W oscillator/amplifier circuit comprised of a 319.5 MHz crystal (X1) and npn transmitter (Q1). The modulated output of the RF stage is coupled to the strip antenna. The strip antenna is attached on PCB around 60mm. The transmitter is manually operated by the buttons pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

4BOTTON(505) SW(FCC).DSN 1.0 4 BUTTON UNIVERSAL REMOTE SW A 11Tuesday, November 12, 2002 Title SizeDocument NumberRev Date:Sheetof VCC VCC +6V VCC VCC VCC VCC CH-2 CH-3 CH-4 CH-1 SW1 SW ITCH 12 R10 1M 12 R8 1K 12 U2 S-808-45ANNP-EJQ VI 2 NC 3 GND 4 OUT 1 X1 319.5MHZ 1 2 Q1 H10 2 3 1 L1 ANT 1 2 C4 23P 1 2 R5 22K 12 C1 390P 1 2 R2 4.7 12 C3 5P 1 2 L2 47nH 1 2 D3 LED 12 C6 0.1uF 1 2 SW2 SW ITCH 12 BT1 2025*2 1 2 R6 100K 12 SW4 SWITCH 12 R7 100K 12 SW3 SWITCH 12 U1 PIC 16C505 VDD 1 RB5/OSC1 2 RB4/OSC2 3 RB3/MCLR 4 RC5/T0CK1 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RB2 11 RB1 12 RB0 13 VSS 14 X2 4MHZ 1 2 3 C5 0.1uF 1 2 D1 DAP202K 2 1 3

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR 319 MHz WIRELESS REMOTE CONTROL DEVICE (TX) MODEL NAME: EV-F319 FCC ID: QNPEV-F319 REPORT NO.: 02T1599-1 DATE ISSUED: OCTOBER 25, 2002 Prepared for SECURE WIRELESS, INC 1185 PARK CENTER DRIVE VISTA, CA 92083 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02T1599-1 DATE: October 25, 2002 EUT: 319 MHz WIRELESS REMOTE CONTROL DEVICE (Tx) FCC ID: QNPEV-F319 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE........................................................................................3 2. PRODUCT DESCRIPTION........................................................................................................3 3. TEST FACILITY.........................................................................................................................4 4. MEASUREMENT STANDARDS..............................................................................................4 5. TEST METHODOLOGY............................................................................................................4 6. MEASUREMENT EQUIPMENT USED....................................................................................4 7. POWERLINE RFI LIMIT...........................................................................................................5 8. RADIATED EMISSION LIMITS...............................................................................................5 9. SYSTEM TEST CONFIGURATION.........................................................................................6 10. TEST PROCEDURE.................................................................................................................7 11. EQUIPMENT MODIFICATIONS............................................................................................8 12. TEST RESULT..........................................................................................................................9 12.1 MAXIMUM MODULATION PERCENTAGE (M%)...........................................................9 12.2 THE EMISSIONS BANDWIDTH..........................................................................................9 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 02T1599-1 DATE: October 25, 2002 EUT: 319 MHz WIRELESS REMOTE CONTROL DEVICE (Tx) FCC ID: QNPEV-F319 Page 3 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME: Secure Wireless inc. 1185 Park Center Drive Vista, CA 92083 United States MODEL NAME/NUMBER: EV-F319 DATE TESTED: 10-25-2002 REPORT NUMBER: 02T1599-1 TYPE OF EQUIPMENT HANDS FREE CAR KIT EQUIPMENT TYPE 319 MHz Remote Control MEASUREMENT PROCEDURE ANSI C63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: CHIN PANG EMC TECNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02T1599-1 DATE: October 25, 2002 EUT: 319 MHz WIRELESS REMOTE CONTROL DEVICE (Tx) FCC ID: QNPEV-F319 Page 4 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 319 MHz Power Source CR2025 3V (X2) Transmitting Time Periodic < 5 seconds Associated Receiver NA 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest funda…

Text truncated - open the document above for the full version.

REPORT NO: 02T1599-1 DATE: October 25, 2002 EUT: 319 MHz WIRELESS REMOTE CONTROL DEVICE (Tx) FCC ID: QNPEV-F319 Page 6 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Y-Axis X-Axis Z-Axis
