QNPEV-F319WRecessed Door/Window Sensor

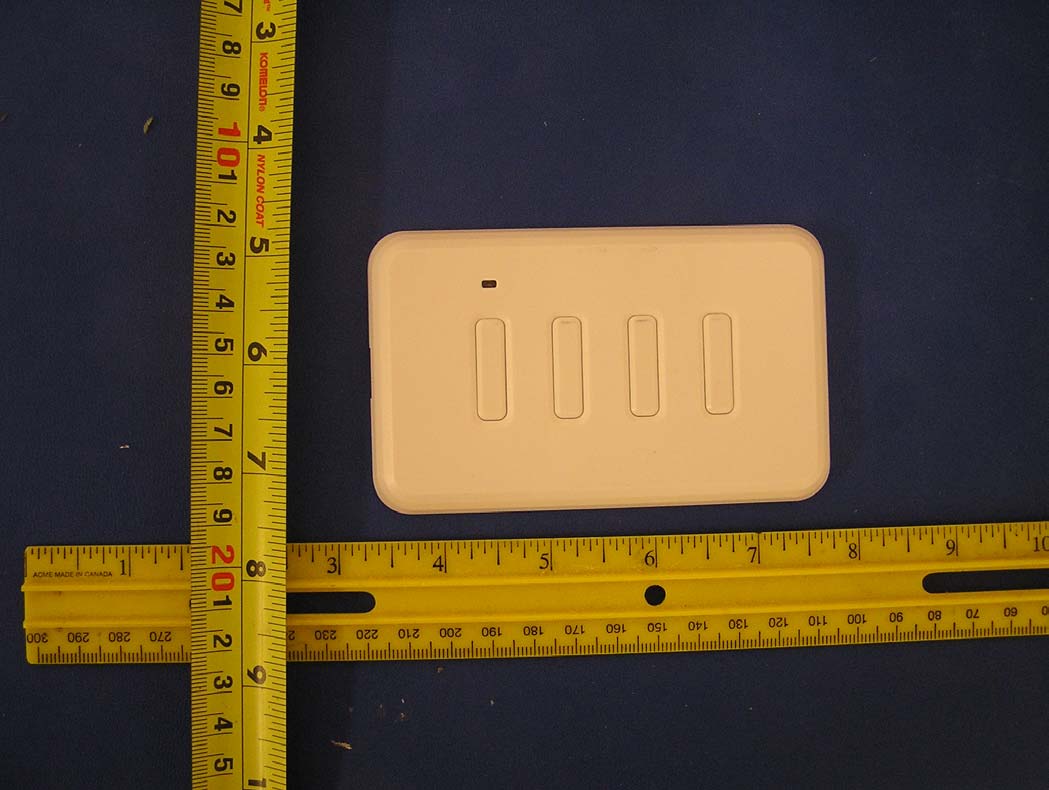

Double Button Panic: Many states have begun to outlaw the single button panic in an attempt to eliminate false alarms. The EV-F319W can accommodate a TWO button panic by simply pressing Buttons 1 and 2 simultaneously. This is indicated by the two RED dots printed on Button 1 and Button 2. Pr ogramming: The EV-F319W is field programmable to allow some installer customization. T o Enter Programming: Step 1) Press and HOLD all four buttons on the EV-F319W simultaneously until the LED begins to flash (Approximately 3 seconds), release buttons. Step 2) Press Button #1 (top button): Instant or .5 second delay transmission on button push (instant is default)* EV-F319W: GE Compatible Wireless Key USER MANUAL Congratulations, you have purchased a GE compatible wireless key! The EV-F319W was designed as an upgraded version of those wireless keys and is feature rich and user friendly to operate. Compatibility: The EV-F319W is compatible with all GE wireless security systems including Simon, Concord, Concord Express and Caddx panels. Enrolling the EV-F319W: The EV-F319W Wireless Wall Key enrolls the same as any other GE wireless remote. Please refer to your GE security installation manual for information on how to enroll wireless remotes. Technical Support (866) 908-TECH To Enter Programming (Step 2 continued): Press Button #2 Instant or 3 second delay on button #4 (Instant is default)* Press Button #3: Activates or Deactivates the disarm button (Button #2) See Deactivating Disarm Section * * These are toggle features to change from one state to the other, you must re-enter programming and press the desired button to toggle the feature. Activate or De-activate the Disar m Button (Button #2): Because the EV-F319W may be mounted in a location where it is easily accessible, the homeowner may choose to use it as an arming station only. To Disable the Disarm button (Button #2) from sending a signal, enter programming as described in the “enter programming” section and press button #3. To verify the disarm is disabled, press button #2. The LED will pulsate to indicate that the Disarm button (Button #2) is not functional. Additional Featur es: ❏Press Button #1 Once for AWAY arming. Press Button #1 Twice for STAY arming. ❏LED Visual indication: Red LED • Flash Once - Transmission Sent • Flash repeatedly - NO Transmission Sent ❏Tactile feedback: When any button on the EV-F319W wireless key is pressed a ‘click’ can be felt. This tactile feedback coupled with the visual LED gives absolute confirmation that the signal was sent. ❏Long Life Lithium Batteries: The EV-F319W Wireless Key is equipped with CR2025 long life lithium batteries. The average life is 7-10 years under normal conditions before it reports low battery. ✔ ✔ Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Version_D ✔ ✔ Panic Double Button Panic: Many states have begun to outlaw the single button panic in an attempt to eliminate false alarms. The EV-F319W can accommodate a TWO button panic by simply pressing Buttons 1 and 2 simultaneously. This is indicated by the two RED dots printed on Button 1 and Button 2. Pr ogramming: The EV-F319W is field programmable to allow some installer customization. T o Enter Programming: Step 1) Press and HOLD all four buttons on the EV-F319W simultaneously until the LED begins to flash (Approximately 3 seconds), release buttons. Step 2) Press Button #1 (top button): Instant or .5 second delay transmission on button push (instant is default)* EV-F319W: GE Compatible Wireless Key USER MANUAL Congratulations, you have purchased a GE compatible wireless key! The EV-F319W was designed as an upgraded version of those wireless keys and is feature rich and user friendly to operate. Compatibility: The EV-F319W is compatible with all GE wireless security systems including Simon, Concord, Concord Express and Caddx panels. Enr olling the EV-F319W: The EV-F319W Wireless Wall Key enrolls the same as any other GE wireless remote. Please refer to your GE security installation manual for information on how to enroll wireless remotes. Technical Support (866) 908-TECH To Enter Programming (Step 2 continued): Press Button #2 Instant or 3 second delay on button #4 (Instant is default)* Press Button #3: Activates or Deactivates the disarm button (Button #2) See Deactivating Disarm Section * * These are toggle features to change from one state to the other, you must re-enter programming and press the desired button to toggle the feature. Activate or De-activate the Disar m Button (Button #2): Because the EV-F319W may be mounted in a location where it is easily accessible, the homeowner may choose to use it as an arming station only. To Disable the Disarm button (Button #2) from sending a signal, enter programming as described in the “enter programming” section and press button #3. To verify the disarm is disabled, press button #2. The LED will pulsate to indicate that the Disarm button (Button #2) is not functional. Additional Featur es: ❏Press Button #1 Once for AWAY arming. Press Button #1 Twice for STAY arming. ❏LED Visual indication: Red LED • Flash Once - Transmission Sent • Flash repeatedly - NO Transmission Sent ❏Tactile feedback: When any button on the EV-F319W wireless key is pressed a ‘click’ can be felt. This tactile feedback coupled with the visual LED gives absolute confirmation that the signal was sent. ❏Long Life Lithium Batteries: The EV-F319W Wireless Key is equipped with CR2025 long life lithium batteries. The average life is 7-10 years under normal conditions before it reports low battery. ✔ ✔ Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:…

Text truncated - open the document above for the full version.

Antenna Specification EV-F319W Rev 1 The EV-DWR319 transmitter uses and internal -12 dBi printed PCB antenna which not replaceable by the user.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR RECESSED DOOR / WINDOW SENSOR MODEL NUMBER: EV-F319W FCC ID: QNPEV-F319W REPORT NUMBER: 07U10983-1 ISSUE DATE: APRIL 10, 2007 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/10/07 Initial Issue T. Chan REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. MODIFICATIONS ........................................................................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M %) ................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 18 7.4. RADIATED EMISSIONS.............................................................................................................20 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 20 8. SETUP PHOTOS................................................................................................................................ 25 REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA EUT DESCRIPTION: RECESSED DOOR / WINDOW SENSOR MODEL: EV-F319W SERIAL NUMBER: CCS #1903 & 1904 DATE TESTED: APRIL 03-04, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN VIEN TRAN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 5 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test si…

Text truncated - open the document above for the full version.

REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 25 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 26 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 07U10983-1 DATE: APRIL 10, 2007 EUT: RECESSED DOOR / WINDOW SENSOR FCC ID: QNPEV-F319W Page 27 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
