QNPEV-F433PRemote Control Transmitter

Example: If the serial number on the back of the remote is 65382A and you program the ‘ZONE’ function, then the serial number you will program into the panel will be 25382A. If youuse the ‘ZONE’ function you must program the unit into Zone 1-32, it will not operate at 41-56 ifyou are using the ‘ZONE’ function. Note 1: Delay features requires that the remote button be held for 3 continuous seconds before it will transmit to eliminate any false activations.Note 2: When the button is pressed on a WS****-433 it will transmit the same code as a DSC button #4 wireless key. 2.3 Programming for Two Button Panic1. Press and HOLD both buttons on the remote. The LED will pulse ON/OFF, continue to HOLD until the LED begins to flash (approximately 5 seconds) then release. 2. Press button #2 to indicate dual button function. The LED will flash faster.3. Press button # 1 for Instant Transmission OR Button #2 for .5 second delay transmission. LED will flash faster. 4. Press Button #1 for dual button panic mode. LED will flash faster.5. Press button #1 for Remote function or Press #2 for Zone function. LED will turn OFF to indicate unit has exited programming.If you choose to use the ‘ZONE’ function you must make sure to substitute a ‘2’ in the first digit of the serial number when programming into the panel. Example: If the serial number on the back of the remote is 65382A and you program the ‘ZONE’ function, then the serial number you will program into the panel will be 25382A.If you use the ‘ZONE’ function you must program the unit into Zone 1-32, it will not operate at41-56 if you are using the ‘ZONE’ function. Note 1: When both buttons are pressed on a WS****-433 it will transmit the same code as a DSC button #4 wireless key. 2.4 Programming for Three Button Remote1. Press and HOLD both buttons on the remote. The LED will pulse ON/OFF, continue to HOLD until the LED begins to flash (approximately 5 seconds) then release. 2. Press button #2 to indicate dual button function. The LED will flash faster.3. Press button # 1 for Instant Transmission OR Button #2 for .5 second delay transmission. LED will flash faster. 4. Press Button #2 for three button mode. LED will turn off to indicate unit has exited programming. NOTE: When button #1 is pressed on a WS****-433 it will transmit the same code as a DSC button #2 wireless key. When button #2 is pressed on a WS****-433 it will transmit the samecode as a DSC button #3 wireless key. When both buttons are pressed on a WS****-433 it willtransmit the same code as a DSC button #4 wireless key.Section 3: Additional NotesThe WS****-433 Wireless Key requires TWO CR2025 lithium batteries. Replacing batteries1) Open the case by inserting a coin or a flat head screw driver at the base and carefully twist the screwdriver to separate the top and bottom plastic. 2) Using a #1 Phillips screw driver, remove the screw that holds the circuit board to the back of the case. The screw is in the center of the circuit board. 3) Insert a small flat head screwdriver at the base of the board and carefully lift it up.4) Note the polarity of the battery as etched into the bottom side of the case. Improper handling of lithium batteries may result in heat generation, explosion or fire, which may lead to personal injuries. WARNING: Danger of explosion if batteries are installed incorrectly, Replace ONLY with Panasonic or Toshiba CR2025 Batteries. Keep away from small children. If batteries are swallowed, promptly see a doctor. Do not try to recharge batteries. Disposal of used batteriesmust be made in accordance with waste recovery and recycling regulations in your area. WS****-433NA v 1.0 Installation ManualSection 1: IntroductionThe WS****-433 is the industries most flexible wireless key. It is field programmable to be a single button panic, a two button panic or a three button remote which can be used to arm and disarm a panel as well as any other desired wireless key function. 1.1 Specifications and Features • Programmable as a 1, 2 or 3 button non-supervised remote• Programmable instant or delay function• Water resistant for baths or shower use• Frequency: 433 MHz• Lithium batteries to ensure long life• Includes under desk/counter or wall mount for police or medical panics• Includes belt clip for portable mounting including car visor.• Includes neck strap 1.2 Compatible ReceiversPlease refer to the installation sheets of the following receivers for more information.The WS****-433 is compatible with the following receivers: • PC5132-433 • PC5102WKK1 (2) • PC4164-433 • LCD 5501Z32-433 • Envoy Systems CAN BE PROGRAMMED AS A REMOTE OR A ZONE WARNING This manual contains information regarding product use and information on the limitations as to liability of the manufacturer. 1.3 BatteriesThe WS**** uses two CR2025 lithium batteries and are designed to last at least 5 years undernormal usage. To replace batteries see section 3.Section 2: WS****-433 ProgrammingThis section describes how to set up and program your remote.NOTE: For programming you will need the 2 button rubber insert installed. If you plan to use the WS****-433 as a one button panic you can change the insert after programming is complete.2.1 Description:1 Button Remote: Single button operation to activate Police or Medical panic.2 Button Remote: Dual button operation (Press buttons 1 and 2 together) to activate Police or Medical panic. 3 Button Remote: Button 1 and button 2 plus both buttons pressed simultaneously give a 3rd channel transmitter function. 2.2 Programming for single button operation.1. Press and HOLD both buttons on the remote. The LED will pulse ON/OFF, continue to HOLD until the LED begins to flash (approximately 5 seconds) then release. 2. Press button #1 to indicate single button function. The LED will flash faster.3. Press button # 1 for Instant Transmission OR Button #2 for three second delay transmission. LED will flash faster. 4. Press button #1 for Remote function or Press #2 for Zone function. LED wil…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Helen Zhao Sent: June042004Friday 12:37 PM To: Mike Kuo Cc: Thu Chan; Claire Hoque Subject: RE: Secure Wireless, Inc., FCC ID: QNPEV-F433P, Assessment NO.: AN04T3895 Hello Mike, Question #1: What is the approval status of associated receiver that will be used with this transmitter ? If it is complied with FCC DoC procedure, please provide the model name and brand name. If it is complied with FCC equipment authorization procedures, please provide FCC ID number. Answer: The transmitter is compatible with the following receivers: PC5132-433, PC5102WKK1 (2), PC4164-433, LCD 5501Z32-433 and Envoy Systems. Receiver PC5132-433 is already certified. FCC ID is F53005132. Best Regards Helen

PROPOSED FCC ID LABEL AND LOCATION Secure Wireless, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QNPEV-F433P FCC ID LABEL

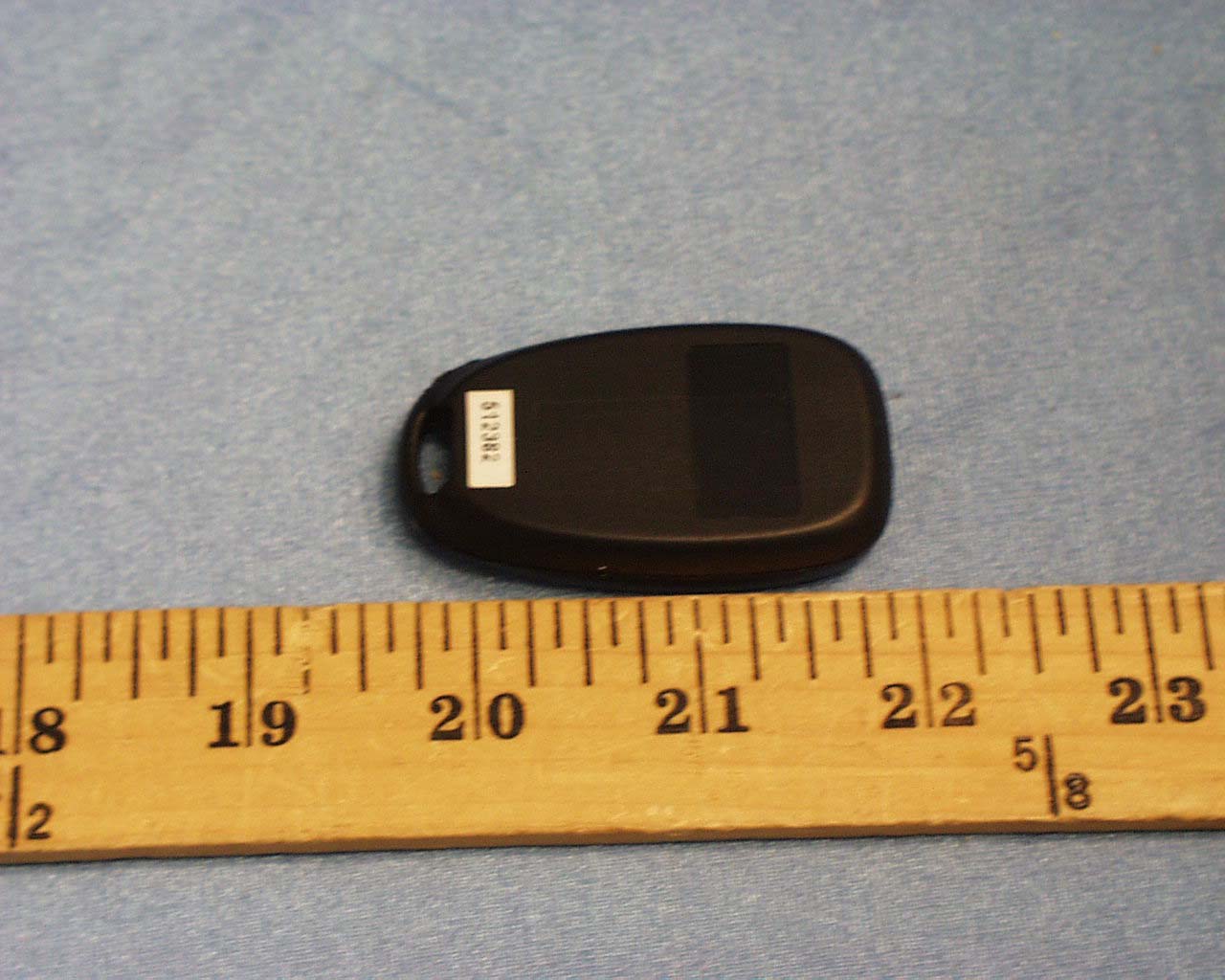

EV-F433P transmitter Operational Description The EV-F433P transmitter is a low powered, hand held unit for remote controlling the home security and other features. See the function descriptions in attached. The transmitter is powered by a 6 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 4 buttons trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a S.A.W oscillator/amplifier circuit comprised of a 433.92 MHz crystal (X1) and npn transmitter (Q1). The modulated output of the RF stage is coupled to the strip antenna. The strip antenna is attached on PCB around 60mm. The transmitter is manually operated by the buttons pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR 433 MHz WIRELESS REMOTE CONTROL DEVICE MODEL: EV-F433P FCC ID NO: QNPEV-F433P REPORT NO: 04U2637-1 ISSUE DATE: APRIL 8, 2004 Prepared for SECURE WIRELESS, INC. 1185 PARK CENTER DRIVE VISTA, CA. 92083 U.S.A Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..................................3 3. TEST FACILITY...............................................4 4. MEASUREMENT STANDARD.....................................4 5. TEST METHODOLOGY..........................................4 6. MEASUREMENT EQUIPMENT USED................................4 7. POWERLINE RFI LIMIT..........................................5 8. RADIATED EMISSION LIMITS.....................................5 9. SYSTEM TEST CONFIGURATION...................................6 10. TEST PROCEDURE............................................7 11. EQUIPMENT MODIFICATIONS....................................8 12. TEST RESULT................................................9 12.1 MAXIMUM MODULATION PERCENTAGE (M%).......................9 12.2 EMISSION BANDWIDTH.......................................9 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 3 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : SECURE WIRELES SYSTEMS INC. 1185 PARK CENTER DRIVE VISTA, CA. 92083, USA EUT DESCRIPTION : 433 MHz WIRELESS REMOTE CONTROL DEVICE MODEL NO : EV-F433P FCC ID : QNPEV-F433P DATE TESTED : April 8, 2004 REPORT NUMBER : 04U2637-1 TYPE OF EQUIPMENT WIRELESS REMOTE CONTROL EQUIPMENT TYPE 433.92MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: THANH NGUYEN EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 4 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 6V Battery Transmitting Time Periodic < 5 seconds Associated Receiver NA Manufacturer Secure Wireless, Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date EMI Receiver, 9 kHz ~ 2.9 GHzHP8542E3942A0028611/21/2004 RF Filter SectionHP85420E3705A0025611/21/2004 Bilog AntennaSunol SciencesJB1 AntennaA12100312/22/2004 Amplifier 1-26GHzMITEQNSP2600-SP9243414/25/2004 Spectrum Analyzer, 26.5 GHzHP8593EM3710A0020510/1/2004 Antenna, Horn 1 ~ 18 GHzEMCO31172931012/26/2004 Spectrum Analyzer AgilentE4446AMY433601121/13/2005 REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 5 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(4…

Text truncated - open the document above for the full version.

REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 6 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 19 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EUT PHOTOGRAPHS REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 20 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 21 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 04U2637-1 DATE: APRIL 8, 2004 EUT: 433 MHz WIRELESS REMOTE CONTROL DEVICE FCC ID: QNPEV-F433P Page 22 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT
