QNPEV-F433PSSecurity Remote Transmitter

Belt Clip Assembly and Mounting (Screws not included) Limited WarrantyDigital Security Controls Ltd. warrants that for a period of 12 months from the date of purchase,the product shall be free of defects in materials and workmanship under normal use and that infulfillment of any breach of such warranty, Digital Security Controls Ltd. shall, at its option, repairor replace the defective equipment upon return of the equipment to its repair depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to causes beyond the control of Digital Security ControlsLtd. such as lightning, excessive voltage, mechanical shock, water damage, or damage arisingout of abuse, alteration or improper application of the equipment. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of anyand all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Digital Security Controls Ltd. Digital Security Controls Ltd. neither assumesresponsibility for, nor authorizes any other person purporting to act on its behalf to modify or tochange this warranty, nor to assume for it any other warranty or liability concerning this product. In no event shall Digital Security Controls Ltd. be liable for any direct, indirect or consequentialdamages, loss of anticipated profits, loss of time or any other losses incurred by the buyer inconnection with the purchase, installation or operation or failure of this product. Warning: Digital Security Controls Ltd. recommends that the entire system be completely tested on aregular basis. However, despite frequent testing, and due to, but not limited to, criminal tamperingor electrical disruption, it is possible for this product to fail to perform as expected.Important Information: Changes or modifications not expressly approved by Digital SecurityControls Ltd. could void the user’s authority to operate this equipment.FCC COMPLIANCE STATEMENTCAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd.could void your authority to use this equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.IC: 160A-WS4938 The term ‘IC:’ before the radio certification number only signifies that IndustryCanada technical specifications were met.©2003 Digital Security Controls Ltd., Toronto, Canada Technical Support: 1-800-387-3630 • www.dsc.comPrinted in Canada 29034684 Rev 001 Direct all comments concerning this publication to [email protected] WS4938 Wireless Panic ButtonOperating InstructionsCongratulations on your purchase of the WS4938, DSC’s wirelesspanic button. This unit was designed to transmit an emergency signalfrom any location within the range of the alarm system. Signals from the button will be transmitted whether the system is armed or disarmed.The button is small and lightweight enough to be placed in a shirtpocket or tucked away inside purse. It can also be used with the supplied neck strap or multi-functional clip, which can connect to your belt, car visor or permanently mounted to a convenient location.To activate, press and hold the key for approximately 2 seconds. The LED located on the top of the unit will light up to confirm a signal has been set.Note: Signals will not be received if the key is not within range of the wireless receiver.Activating, Enrolling and ProgrammingTo conserve battery power the unit comes deactivated. To activate simply remove the cover andslide the switch to the ON position (to the left).Enroll the WS4938 using the 6-digit number located on the device. This device is supervised. If the unit is removed from the coverage range a trouble will beindicated on the system. If this is not desired the supervisory bit for this zone must be disabled on the receiver. Please refer to your receiver instruction manual for details on enrolling wirelessdevices and disabling supervision.CompatibilityThe WS4938 is compatible with the following receivers;PC4164-433, PC5132-433, RF5108-433, RF5501-433, NT9005 and NT9010Replacing the BatteriesUnder normal conditions the batteries can last up to 2 years. If the battery is low the trouble light on the controls panel’s keypadwill turn ON.To replace the battery, remove the top cover by inserting a coininto the slot located on the bottom right corner and twist. Removethe screw at he center of the board to expose the batteries.Replace both batteries with Panasonic CR-2025 lithium batteries (see diagram).NOTE: The polarity of the battery must be observed, as shown in the diagram above. Improper handling of lithium batteries may result in heat generation, explosion or fire, which may lead to personal injuries.WARNING: DANGER OF EXPLOSION IF BATTERIES ARE INSTALLED INCORRECTLY.REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THEMANUFACTURER.Keep away from small children. If Batteries are swallowed, promptly see a doctor. Do not try torecharge these batteries. Disposal of used batteries must be made in accordance with the wasterecovery and recycling regulations in your area.

1 Mike Kuo From: Claire Hoque Sent: May122004Wednesday 12:16 PM To: Mike Kuo Cc: Kathy Yao Subject: FW: Secure Wireless, Inc., FCC ID:QNPEV-F433PS, AN04T3879 Hi Mike, I sent all the answers on 5/4, however, we have not received the grant yet. Pls kindly advise when we will get the grant. Thanks, Claire -----Original Message----- From: Claire Hoque Sent:Tuesday, May 04, 2004 8:13 AM To:Mike Kuo Cc:Helen Zhao; Thu Chan; Kathy Yao Subject:RE: Secure Wireless, Inc., FCC ID:QNPEV-F433PS, AN04T3879 Hi Mike, Here are the answer. Question #1: Section 12 of test report indicates that this device is subject to 15.231(e) requirement which does not agree rest of test report. Please explain. <Thu>It's typo, it should be 15.231(b) (Please see updated the report). 04U2638-1 FCC Report(revised).... Question #2: The highest fundamental field strength measured is 48.04dBuV/m at Y position but the spurious emission/ harmonics measured are higher than fundamental. Based upon section 15.215(b) of FCC rules, unwanted emission can not be higher than the fundamental emission filed strength. Please address this non-compliance issue. <Thu>The fundamental reading is based on average reading (Peak reading - duty cycle), you should compare to the average reading of spurious harmonic(but we already updated the report any way). Question #3: What is the associated receiver will be used with this transmitter ? Is the associated receiver subject to FCC DoC or FCC certification ? <Kathy&Helen>The user manual indicates: "The WS4938(EV-F433PS) is compatible with the following receivers; PC4164-433, PC5132-433, RF5108-433, RF5501-433, NT9005 and NT9010". Receiver PC5132-433 is already certified. FCC ID is F53005132. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION Secure Wireless, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QNPEV-F433PS FCC ID LABEL

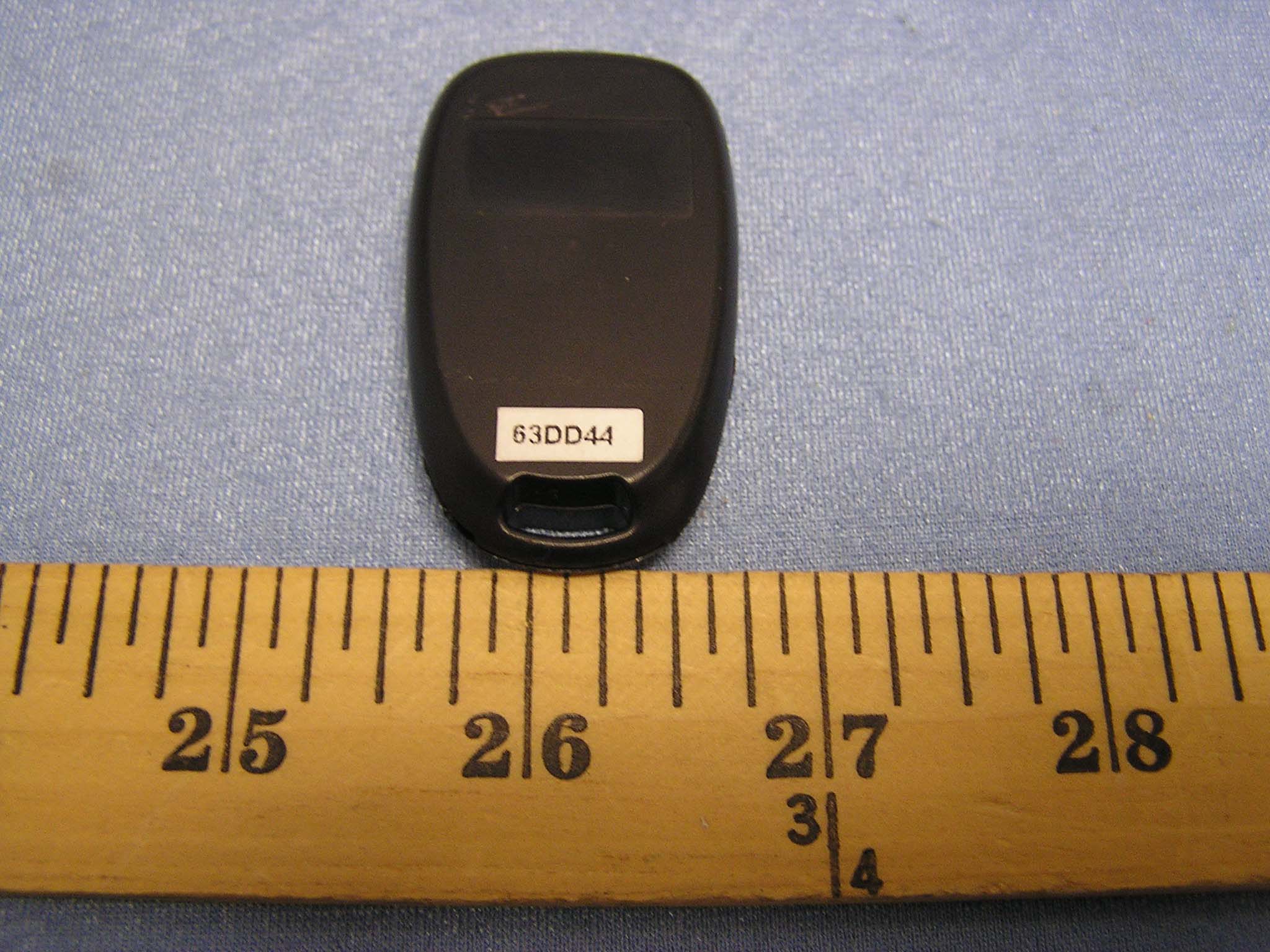

EV-F433PS transmitter Operational Description The EV-F433PS transmitter is a low powered, hand held unit for remote controlling the home security and other features. See the function descriptions in attached. The transmitter is powered by a 6 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 2 buttons trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal (ASK). The carrier signal is generated by a S.A.W oscillator/amplifier circuit comprised of a 433.92 MHz crystal (X1) and npn transmitter (Q1). The modulated output of the RF stage is coupled to the strip antenna. The strip antenna is attached on PCB around 60mm. The transmitter is manually operated by the buttons pushed momentarily within 0.2 second and will automatically deactivate send signal to receiver. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by user.

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR 433.92 MHz SECURITY REMOTE CONTROL MODEL: EV-F433PS FCC ID NO: QNPEV-F433PS REPORT NO: 04U2638-1 ISSUE DATE: APRIL 8, 2004 Prepared for SECURE WIRELESS, INC. 1185 PARK CENTER DRIVE VISTA, CA. 92083 U.S.A Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2638-1 DATE: APRIL 8, 2004 EUT: 433.92 MHz SECURITY REMOTE CONTROL FCC ID: QNPEV-F433PS COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE....................................3 3. TEST FACILITY..................................................4 4. MEASUREMENT STANDARD........................................4 5. TEST METHODOLOGY............................................4 6. MEASUREMENT EQUIPMENT USED..................................4 7. POWERLINE RFI LIMIT............................................5 8. RADIATED EMISSION LIMITS.......................................5 9. SYSTEM TEST CONFIGURATION.....................................6 10. TEST PROCEDURE...............................................7 11. EQUIPMENT MODIFICATIONS......................................8 12. TEST RESULT..................................................9 12.1 MAXIMUM MODULATION PERCENTAGE (M%)........................9 12.2 EMISSION BANDWIDTH..........................................9 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 04U2638-1 DATE: APRIL 8, 2004 EUT: 433.92 MHz SECURITY REMOTE CONTROL FCC ID: QNPEV-F433PS Page 3 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : SECURE WIRELES SYSTEMS INC. 1185 PARK CENTER DRIVE VISTA, CA. 92083 U.S.A. EUT DESCRIPTION : 433.92 MHz SECURITY REMOTE CONTROL MODEL NO : EV-F433PS FCC ID : QNPEV-F433PS DATE TESTED : 4-8-2004 REPORT NUMBER : 04U2638-1 TYPE OF EQUIPMENT SECURITY REMOTE CONTROL EQUIPMENT TYPE 433.92MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: BEN DU EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2638-1 DATE: APRIL 8, 2004 EUT: 433.92 MHz SECURITY REMOTE CONTROL FCC ID: QNPEV-F433PS Page 4 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3V Battery Transmitting Time Periodic < 5 seconds Associated Receiver NA Manufacturer Secure Wireless, Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date EMI Receiver, 9 kHz ~ 2.9 GHzHP8542E3942A0028611/21/2004 RF Filter SectionHP85420E3705A0025611/21/2004 Bilog AntennaSunol SciencesJB1 AntennaA12100312/22/2004 Amplifier 1-26GHzMITEQNSP2600-SP9243414/25/2004 Spectrum Analyzer, 26.5 GHzHP8593EM3710A0020510/1/2004 Antenna, Horn 1 ~ 18 GHzEMCO31172931012/26/2004 Spectrum Analyzer AgilentE4446AMY433601121/13/2005 REPORT NO: 04U2638-1 DATE: APRIL 8, 2004 EUT: 433.92 MHz SECURITY REMOTE CONTROL FCC ID: QNPEV-F433PS Page 5 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TE…

Text truncated - open the document above for the full version.

REPORT NO: 04U2638-1 DATE: APRIL 8, 2004 EUT: 433.92 MHz SECURITY REMOTE CONTROL FCC ID: QNPEV-F433PS Page 6 of 22 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis
