WS4969 Wireless KeyOperating InstructionsThe WS4969 is a four-button wireless key. This key allows you to arm, dis-arm and also offers other functions with the convenience of wireless porta-bility. Together with your installer, you can decide which functions you wishto have accessible from your portable key.To activate, press and hold the appropriate button for approximately 1 sec-ond*. The LED located between buttons 1 and 2 will confirm that a signalhas been sent to the control panel receiver.*False Alarm PreventionBy default, the key is a panic key. It will require the user to press and hold for approximately 3 seconds. This was designed to reduce the possibil-ity of a false alarm.NOTE: Signals will not be received if the key is not within the range of the wireless receiver. The default functions are as follows: Stay ArmingPress this button to arm your system in the Stay mode. All perimeter zoneswill be armed, such as all window and door contacts, but the interior zoneswill remain inactive, allowing you to stay on the premises without setting offan alarm.Away ArmingPress this button to arm your system in the Away mode. Both the interiorand exterior zones will be armed, allowing you to exit the premises.DisarmPress this button to disarm your system. You do not have to enter youraccess code when you use the key to disarm the system.PanicPress this button to notify your central monitoring station of a situationrequiring the police, such as a break-in.FlashlightPress and hold the centre button to activate the flashlight. Other options are available. Please discuss all WS4969 options with your installer in order toprogram the best possible combination to suit your needs. Replacing the BatteriesBattery life depends on use of the flashlight feature. The batteryshould last 3 to 6 years with normal operation and usage. Duringeach button press the key will send the status of its battery to the control panel receiver. If the battery is low the trouble light on thecontrols panel's keypad will turn ON.To replace the battery, remove the screw located on the back of the unit. Replace both bat-teries with Panasonic CR-2032 lithium batteries (see diagram).NOTE: The polarity of the battery must be observed, as shown in the diagram above. Improperhandling of lithium batteries may result in heat generation, explosion or fire, which may lead to personal injuries. WARNING: DANGER OF EXPLOSION IF BA TTERIES ARE INSTALLED INCORRECTLY. REPLACE ONLY WITH THE SAME OR E QUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. Keep away from small children . If batteries are swallowed, promptly see a doctor. Disposal of used batteries must be made in accordance with the waste recovery and recy-cling regulations in your area. Do not try to recharge these batteries. Panasonic CR2032 3V + Note to InstallerRemoving the 3-Second Delay on the Panic ( ) Key Changing the programming will affect operation. This should be done by the installer. • Press and hold all 4 buttons simultaneously until the LED begins to flash. • Press the Away key ( ). • These are toggle features, to return to default, repeat the steps above. CompatibilityThe WS4969 is compatible with the following receivers: PC4164-433, PC5102-433, PC5132-433, RF5108-433, RF5501-433, NT9005 and the NT9010. How to Enroll the WS4969This section describes how to set up and program your remote, this should be done by theinstaller. The following outlines the basic steps for programming and enrolling this deviceon PowerSeries receivers. For additional options, or for other receivers, please refer to thespecific receiver Installation Manual.Step 1 - Program Electronic Serial Number (ESN)Section [804] , subsections [41] - [56] Enter the 6 digit ESN located on the back of the unit. Step 2 - Program Function ButtonsSection [804] , subsections [59]-[60] Section [804] , subsections [61]-[68] (RF5501-433 v5.0 Receiver) * [59] Partition 1 Wireless Key Options *[61] Partition 1 Wireless Key Options (RF5501-433) Specifications• 32 o to 120 o F (0-49 o C) • 5-93% RH• Water Resistant This manual shall be used in conjunction with the Installation Manual of the alarm control panel.FCC COMPLIANCE STATEMENTCAUTION: Changes or modifications not expressly approved by Di gital Security Controls could void your authority to use this equipment. This device complies with Part 15 of the FCC Rules. Op eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer-ence that may cause undesired operation. IC: 160A-WS4969 The term ‘IC:’ before the radio certification number onl y signifies that Industry Canada technical specifi- cations were met. [41] Key #1 |____|____|____|____|____|____| ... [56] Key #16 |____|____|____|____|____|____| 0 3 Button 1 Stay Armin g 0 3 Button 1 Stay Arming 0 4 Button 2 Away Armin g 0 4 Button 2 Away Arming 2 7 Button 3 Disarm 2 7 Button 3 Disarm 3 0 Button 4 Panic 3 0 Button 4 Panic ©2005 Digital Security Controls, Toronto, Canada Technical Support: 1-800-387-3630 • www.dsc.com Printed in Taiwan 29007172R001 LED

433.920 MHz SAW Oscillator PIC 16C505 uController 433.92MHz Loop ANTENNA 6 VDC BATTERY CR2032 x 2 Low Battery Detect WS4969 Torch Remote Block Diagram Operation LED Bright LED 5 User Buttons (Tac Switches) Rev 2, 11/3/05

PROPOSED FCC ID LABEL AND LOCATION Secure Wireless, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QNPWS4969 FCC ID LABEL

WS4969 Theory of operation Rev 2, 10/3/05 Jay Stone, Secure Wireless Inc. The WS4969 is a low power hand held RF remote control transmitter for controlling a home security system by transmission of ASK / OOK control signals. The device operates at a single fixed frequency of 433.92 MHz, and is powered by a pair of CR2032 batteries which are connected in series for a nominal operating voltage of 6 volts DC. For the following description, please refer to the WS4969 schematic and block diagram. Transmission is activated by pressing one of the four buttons which will close SW1, SW2, SW3 or SW4. These switches are read by the processor, U1, which will initiate transmission. If the delay mode has been disabled, transmission will begin almost immediately when SW1, SW2 or SW3 is pressed. If the delay feature has not been disabled, SW1, SW2 or SW3 must be held for approximately 1 second before transmission will begin. The “panic button”, SW4 must always be held down for approximately 3 seconds before transmission will begin. The center button, SW5, operates the ultra-bright LED flashlight feature. No RF transmission is sent when this button is pressed. When switches are closed and read by U1, U1 will enable the Red LED, Ultra Bright LED, or the RF oscillator as required. To transmit RF at 433.92 MHz, the processor will switch the data output pin high. This will bias the RF SAW oscillator on and produce RF transmission at 433.92 MHz until the data output pin goes low, which will cause oscillation to stop. By switching this data output high and low, ASK / OOK data is transmitted at 433.92 MHz. RF is radiated from a strip antenna connected to the collector of Q1. All tuning and testing of this device are performed at the factory. There are no adjustments accessible to the user.

821-0010-01 2.0 WS4969 A 11 Monday, May 02, 2005 D:\WORK\CLPAN-NEW\4 CHANNEL WITH LIGHT\4 BUTTON LIGHT.DSN TitleSize Document Number Rev Date: Sheet of VCC VCC VCC VCC VCC VCCVCC VCC ANT TX CH-2 CH-3CH-4 CH-1 GREEN CH-5 SAW WHITE SW1SW ITCH 1 2 R62.7M 1 2 U2S-808-46CNNB-B87 VI 2 NC 3 GND 4 OUT 1 X1 433.92MHZ/±40KHz 12 Q13356 2 31 C318P 12 R222K 1 2 C1390P 12 R122 1 2 C2NC 12 L1 6.8nH/5% 12 SW2SW ITCH 1 2 BT12025*2 12 R3100K 1 2 SW4SWITCH 1 2 R4100K 1 2 SW3SWITCH 1 2 U1PIC 16C505 VDD 1 RB5/OSC1 2 RB4/OSC2 3 RB3/MCLR 4 RC5/T0CK1 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RB2 11 RB1 12 RB0 13 VSS 14 X24MHZ 12 3 C50.1uF 12 D1DAP202K 2 1 3 C40.1uF 1 2 R71K 1 2 R8 100K 1 2 SW5SWITCH 1 2 D31SS400 1 2 D3LED 1 2 D4 BRIGHT LED 1 2 R575 1 2

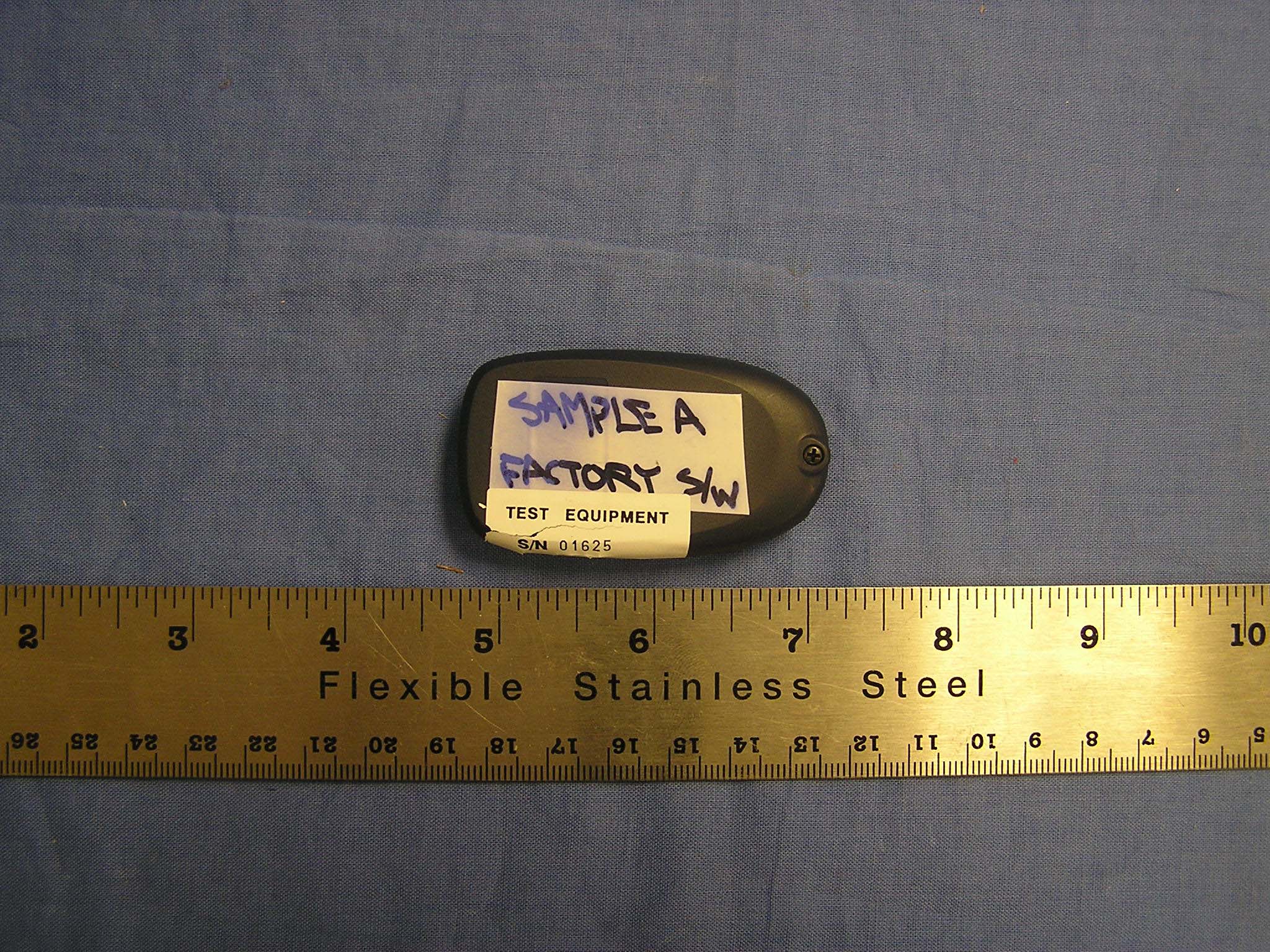

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR RF REMOTE CONTROL FOR SECURITY SYSTEM MODEL NUMBER: WS4969 FCC ID: QNPWS4969 REPORT NUMBER: 05U3805-1 ISSUE DATE: NOVEMBER 05, 2005 Prepared for SECURE WIRELESS, INC. 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 2 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 11/05/05 Initial Issue Thu Chan REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 3 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................................ 4 2. TEST METHODOLOGY..................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .............................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST .............................................................................................................. 6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.3. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.4. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT .................................................................................... 9 7. LIMITS AND RESULTS ................................................................................................................... 10 7.1. 20dB BANDWIDTH .................................................................................................................... 10 7.2. MAXIMUM MODULATION PERCENTAGE (M%) .................................................................. 12 7.3. LESS THAN 5 SECONDS PLOT ................................................................................................ 18 7.4. RADIATED EMISSIONS.............................................................................................................20 7.4.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 20 8. SETUP PHOTOS................................................................................................................................ 25 REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 4 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SECURE WIRELES SYSTEMS INC 5817 DRYDEN PLACE, SUITE D CARLSBAD, CA 92008, U.S.A EUT DESCRIPTION: RF REMOTE CONTROL FOR SECURITY SYSTEM MODEL: WS4969 SERIAL NUMBER: 01625 DATE TESTED: NOVEMBER 1, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN WILLIAM ZHUANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 5 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 561F Monterey Road, Morga…

Text truncated - open the document above for the full version.

REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 25 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 26 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS REPORT NO: 05U3805-1 DATE: NOVEMBER 05, 2005 EUT: RF REMOTE CONTROL FOR SECURITY SYSTEM FCC ID: QNPWS4969 Page 27 of 27 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT Z-AXIS
