R33AVM16A11Multi Channel Amplifier AVM-16A1-B

Disclaimer Control4 ® makes no representations or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Control4 reserves the right to revise this publication and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes. Control4 makes no representations or warranties with respect to any Control4 software, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Control4 reserves the right to make changes to any and all parts of Control4 software and hardware, at any time, without any obligation to notify any person or entity of such changes. Trademarks Control4 and the Control4 logo are registered trademarks of Control4 Corporation. Other product and company names mentioned in this document may be the trademarks or registered trademarks of their respective owners. Legal Notice Gracenote. Music recognition technology and related data are provided by Gracenote. Gracenote is the industry standard in music recognition technology and related content delivery. For more information visit www.gracenote.com. Copyright Copyright © 2004-2005 Control4. All rights reserved. No part of this publication may be reproduced, photocopied, stored on a retrieval system, or transmitted without the express written consent of the publisher. Contact Us Control4 Corporation 11734 S. Election Road, Suite 200 Salt Lake City, UT 84020 USA http://www.control4.com Multi Channel Amplifier - 16 Installation and User Guide Part Number: 21-0150 Rev A Draft 3 Hardware Model Number: AVM-16A1-B i Contents PrefaceAbout This Guide........................................... 1 Notes, Tips, Cautions, and Warnings .... 1 Additional Resources ............................. 2 Chapter 1Introduction to Multi Channel Amplifier - 16... 3 Features and Benefits............................ 3 Home Network Requirements................ 4 What’s in the Box ................................... 4 About the Multi Channel Amplifier ......... 4 Front View......................................... 4 Back View ......................................... 5 Chapter 2Install the Multi Channel Amplifier ................. 7 Plan Your Physical Layout ..................... 7 Connect Physical Components.............. 9 Set Up Logical Connections .................. 9 Chapter 3Use Multi Channel Amplifier ........................ 11 View Output Assignments.................... 11 Manage Amplifier Output Zones .......... 12 View System Status Screen ........... 12 Use Master Volume ........................ 12 Configure Output Settings .............. 13 View Network Settings ......................... 14 Set Display Preferences ...................... 15 Chapter 4Warranty and FCC Information.................... 17 Warranty .............................................. 17 Limited Hardware Warranty ............ 17 Hardware Warranty Terms ............. 18 Software Agreement ....................... 21 Regulatory Compliance ....................... 22 ii FCC Interference Statement........... 22 FCC Caution ................................... 23 Canadian EMC Statement .............. 23 1 PREFACE About This Guide Notes, Tips, Cautions, and Warnings Audio Matrix Switch Installation and User Guide Note, Tip, Caution, and Warning paragraphs draw your attention to safe practices and additional information which may help you avoid losing data or time. NOTE: These contain notes on related information about the current topic. TIP: These provide tips that may save you time or effort. CAUTION! These provide specific cautions about improper use of equipment or failure to follow safety instructions that may cause bodily injury. DO NOT IGNORE A CAUTION! WARNING! These provide specific warnings about improper use of equipment or failure to follow safety instructions that may cause data loss or equipment damage. DO NOT IGNORE A WARNING! 2 Additional Resources The following resources are available to provide you with additional support. `Your authorized Control4 representative or reseller. ` Control4 Web Site: http://www.Control4.com/ 3 CHAPTER 1Introduction to Multi Channel Amplifier - 16 Multi Channel Amplifier - 16 can operate independently or as a device you can control with your Control4 system. It is used when the installation requires remote placement of amplifiers and/or special power requirements. This Multi Channel Amplifier is intended for use in a Control4 system and is typically used in conjunction with the Audio Matrix Switch or a controller. This chapter introduces the Control4 Multi Channel Amplifier - 16 and its features. Features and Benefits `Receives up to 16 mono or 8 stereo inputs. `Outputs 16 mono or 8 stereo class D amplified channels at 100 watts per channel. `Front display for adjusting zone settings and routing sources (includes an LCD, supporting buttons, and a selection dial) `Adjustable gain, treble, and bass for each zone. `Master Volume Control for all outputs. `Control4 EZ ID ™ LEDs for every I/O to make connections easy to identify. `Device chassis is three standard rack spaces and rack mountable configuring to EIA 19” rack standards (its dimensions are 5.25” x 17.34” x 14”). `Communicates via Ethernet 10/100 port and ZigBee mesh networking (802.11.15). `Backlighting feature turns on with any button push or Select Dial push and stays lit for a preset time (default is 30 seconds). 4 Home Network Requirements Ensure that your home network wiring is in place before starting your system setup. Multi Channel Amplifier requires an Ethernet connection in order to be managed and controlled from the Control4 user interfaces. What’s in the Box The following hardware and software is required and included in your Control4 Multi Channel Amplifier box. `Control4 Multi Channel Amplifier - 16 `IEC power cord `This manual …

Text truncated - open the document above for the full version.

Audio Amplifier Module Class D (digital) 8 channels 100 Watts per channel Full cross point switch Ethernet 25.0000 MHz crystal 10/100baseT Main CPU 14.7456 Mhzcrystal 32.768 KHz crystal AVM-16A1-B 16 channel Amplifier Functional Blocks Front Panel 8.0000 MHz crystal 32.768 MHz crystal Graphical LCD module Buttons, Encoder Radio 16.0000 MHz crystal 2.4 GHz 802.15.4 power supply 48V 800 Watts 115 or 230 VAC 50-60 Hz Audio Amplifier Module Class D (digital) 8 channels 100 Watts per channel Full cross point switch SRAM Switching Regulators 12 Volts, 5 Volts, 3.3 Volts

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 To: Federal Communications Commission Date: 4/11/05 445 12 th Street, SW Washington, DC 20554 Re: Non disclosure Request for FCC ID: R33AVM16A11 We are requesting that the following documents be held and treated as confidential and proprietary information. These materials contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.459 (3), (4) and (5). 1) All AVM-16A1-B Schematic diagrams Steve Coffin Senior Electrical Engineer Control4 Corporation

Front View of the EUT Back View of the EUT

Internal View of the EUT Component Side of the Radio Card Trace Side of the Radio Card

11734 South Election Drive Suite 200 Draper, Utah 84020 (801) 523-3100 AVM-16A1-B 16 Channel Amplifier Functional Description The AVM-16A1-B 16 Channel Amplifier is a microprocessor controlled 16 channel class D audio amplifier intended for use in home audio applications. The device is housed in a 3 RU 17 inch metal, rack mountable, chassis and is powered by a universal (90-250 VAC 50/60Hz) power supply. There are 16 analog line level inputs and 16 class D amplified outputs rated at 100 watts per channel. An integrated full cross point audio switch allow any of the 16 inputs to be routed to any or all of the outputs. The AVM-16A1-B also has 10/100 BaseT Ethernet and 802.15.4 Zigbee network communications capabilities. All of the amplifiers settings are controllable through the network connections making this amplifier useful in full home automation installations. Full control over channel volume, tone control, and input to output routing are controlled over either or both zigbee (802.15.4) or TCP/IP over Ethernet communications. Users may also control the amplifier via the LCD graphic front panel, soft buttons and an encoder wheel. The AVM- 16A1-B has audio sensing circuits on all inputs making it possible to trigger home automation sequences when audio sources begin to play.

1 MPE Calculations R33AVM16A11 2 1.0 SCOPE_________________________________________________________3 2.0 REVISION LEVEL_______________________________________________4 3.0 REFERENCE DOCUMENTS______________________________________4 4.0 CALCULATIONS________________________________________________5 5.0 CONCLUSION___________________________________________________6 3 1.0 SCOPE: This Report Demonstrates Evaluation and Compliance for Human Exposure to Radiofrequency Electromagnetic Fields as Outlined by the Federal Communications Commission Office of Engineering and Technology Bulletin 65. 2.0 REVISION LEVEL: DATE COMMENTS REVISION 4/12/2005 Created. 1.0 3.0 REFERANCE DOCUMENTS: (A) Limits for Maximum Permissible Exposure (MPE). Code of Federal Regulations Title 47, Volume 1, Section 1.1310. (B) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. OET Bulletin 67 Edition 97-01. 4.0 CALCULATIONS: The AVM-16A1-B utilizes a low power 2.4 GHz radio located approx 1 cm behind the front panel plastic. The following worst case emissions are based on a PPt (Peak Power Total) measurement of 12.8 dBm. And the worst case antenna gain on axis is found to be 3.64 dBi. Total radiated power at the Transmitter: A) Pt = 12.8 dBm + 3.64 dBi = 16.4 dBm EIRP 16.4 dBm EIRP = .0441 Watts. (44.1mW) Power density at a distance of 10cm from the antenna is: B) S = EIRP/4π∙r 2 Where S is Power density in units of mW/cm2 and EIRP is Equivalent Isotropic Radiated Power in units of mW and r is distance to the center of radiation of the antenna in units of cm S = 44.1mW/(4 π (10cm) 2 ) = .00351mW/cm 2 4 5.0 CONCLUSION: Based on the FCC Limits for Maximum Permissible Exposure (MPE) given in Table 1 of reference document (A) this device falls under the required limits.

COMMUNICATION CERTIFICATION LABORATORY 1940 West Alexander Street Salt Lake City, UT 84119 801-972-6146 Certification Test Report TEST OF: AVM-16A1-B FCC ID: R33AVM16A11 To FCC PART 15, Subpart C (15.203, 15.207, 15.247) Test Report Serial No: 73-8072 Applicant: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Date of Test: March 17 & 21, 2005 Issue Date: March 29, 2005 Equipment Receipt Date: March 17, 2005 Accredited Testing Laboratory By: NVLAPLabCode100272-0 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 2 of 50 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to document compliance of the device described below with the requirements of Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.203, 15.207, and 15.247. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: Control4 - Manufacturer: Control4 - Brand Name: Control4 - Model Number: AVM-16A1-B - FCC ID Number: R33AVM16A11 On this 29 th day of March 2005, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, this report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. COMMUNICATION CERTIFICATION LABORATORY Tested by: Norman P. Hansen EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 3 of 50 TABLE OF CONTENTS PAGE SECTION 1.0 CLIENT INFORMATION .................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) ..........................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ...........9 SECTION 4.0 OPERATION OF EUT DURING TESTING ...................15 SECTION 5.0 SUMMARY OF TEST RESULTS ...........................17 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .....18 APPENDIX 1 TEST PROCEDURES AND TEST EQUIPMENT ..................34 APPENDIX 2 PHOTOGRAPHS .........................................42 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 4 of 50 SECTION 1.0 CLIENT INFORMATION 1.1 Applicant: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Steve Coffin Title: Senior Hardware Engineer 1.2 Manufacturer: Company Name: Control4 11734 S. Election Drive, Suite 200 Draper, UT 84020 Contact Name: Steve Coffin Title: Senior Hardware Engineer COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 5 of 50 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Brand Name: Control4 Model Name or Number: AVM-16A1-B Serial Number: None Options Fitted: N/A Country of Manufacture: U.S.A. 2.2 Description of EUT: The AVM-16A1-B is a 16 channel, 100 watt per channel, audio amplifier. 16 RCA type inputs are provided with 16 banana jack outputs. An Ethernet port is provided for connection to the Internet or network. An 802.15.4 Zigbee transceiver is incorporated in the AVM-16A1-B for communication. This report covers the 802.15.4 Zigbee radio subject to FCC Subpart C, §15.247. The digital circuitry subject to FCC Subpart B is to be covered in separate testing and CCL report #73-8066. The 802.15.4 transceiver uses 15 channels in the 2400 to 2483.5 MHz band. The individual channels are shown in the following plots. dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 73-8072 Control4 Trace A Start: 2.402500 GHzStop: 2.427500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 03/17/2005 3:57:50 PMHP8566B Trace ALower 5 channels 1 1 2.405075 GHz 3.0000 dBm 2 2 2.410175 GHz 1.3000 dBm 3 3 2.415200 GHz 1.3000 dBm 4 4 2.420200 GHz 1.3000 dBm 5 5 2.425300 GHz 1.6000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 6 of 50 dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 73-8072 Control4 Trace A Start: 2.427500 GHzStop: 2.452500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 03/17/2005 3:56:10 PMHP8566B Trace AMiddle 5 channels 1 1 2.430075 GHz 2.8000 dBm 2 2 2.435225 GHz 2.0000 dBm 3 3 2.440325 GHz 1.6000 dBm 4 4 2.445350 GHz 2.6000 dBm 5 5 2.450525 GHz 1.7000 dBm dBm 11 1 -9 -19 -29 -39 -49 -59 -69 -79 -89 73-8072 Control4 Trace A Start: 2.452500 GHzStop: 2.477500 GHz Res BW: 100 kHzVid BW: 300 kHzSweep: 20 ms 03/17/2005 3:54:04 PMHP8566B Trace AUpper 5 channels 1 1 2.455150 GHz 2.5000 dBm 2 2 2.460300 GHz 2.3000 dBm 3 3 2.465400 GHz 1.3000 dBm 4 4 2.470550 GHz 2.6000 dBm 5 5 2.475675 GHz 2.1000 dBm COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 7 of 50 2.3 EUT and Support Equipment: The FCC ID numbers for all the EUT and support equipment used during the test (including inserted cards) are listed below: Brand Name Model Number Serial No. FCC ID Number Description Name of Interface Ports / Interface Cables BN: Control4 MN: AVM-16A1-B (Note 1) R33AVM16A11 16 See Section 2.4 BN: TRENDnet MN: TE100-S8P SN: 0243C3A16540 (Note 3) Verification 8 port LAN hub Ethernet 1-8/Cat 5 cable w/RJ45 connectors (Note 2) Note: (1) EUT (2) Interface port connected to EUT (See Section 2.4) (3) Located below the turntable The support equipment listed above was not modified in order to chieve compliance with this standard. a 2.4 Interface Ports on EUT: Name of Ports No. of Ports Fitted to EUT Cable Descriptions/Length Ethernet 1 Cat5 cable with RJ45 connectors/8 meters Input 1 - 16 16 Audio cable with RCA type connectors/1 meter Output 1 - 16 16 Audio cable with banana plugs/1 meter COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8072 FCC ID#: R33AVM16A11 Page 8 of 50 2.5 Modific…

Text truncated - open the document above for the full version.

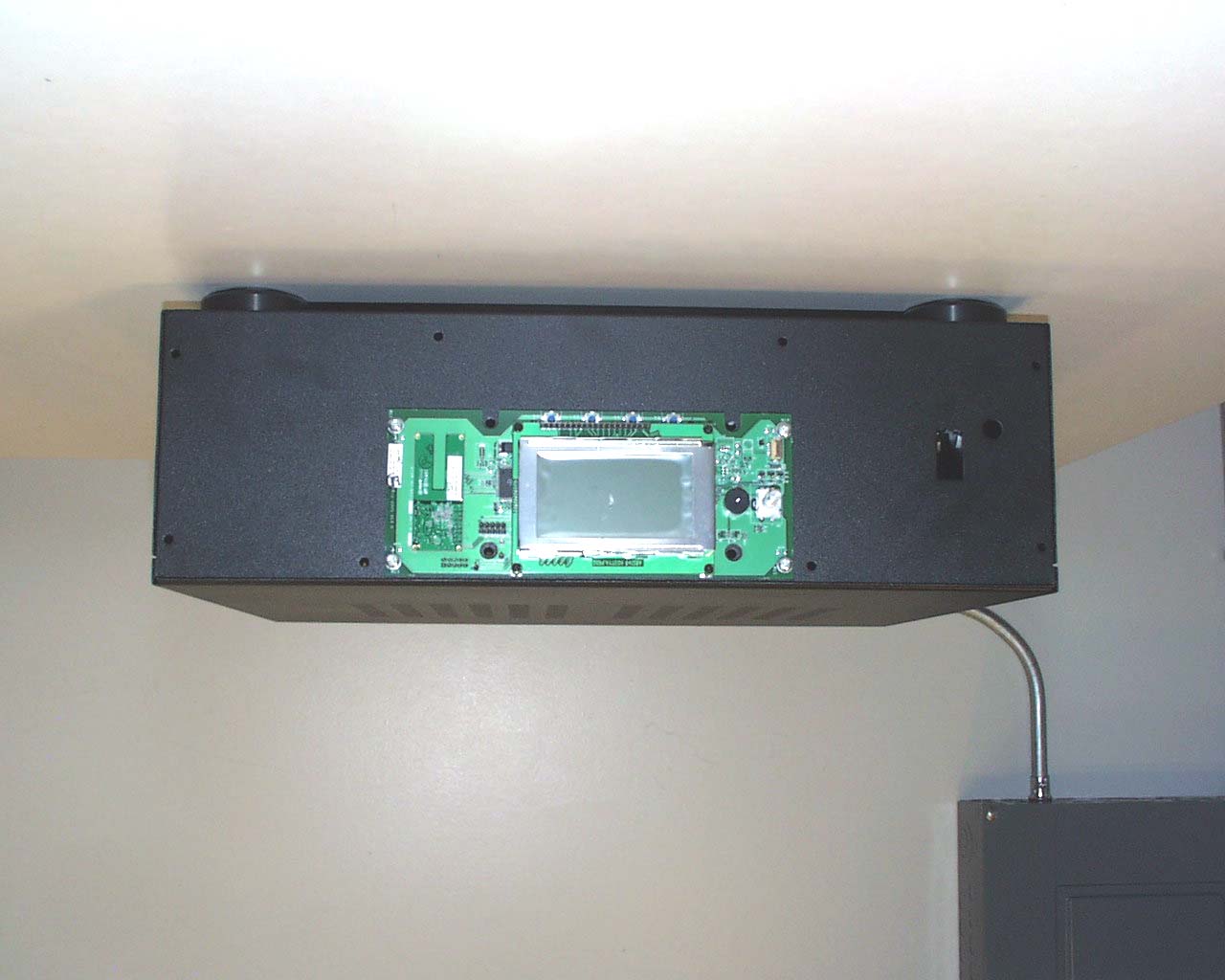

Front View Radiated Disturbance Worst Case Configuration Back View Radiated Disturbance Worst Case Configuration Front View Conducted Disturbance Worst Case Configuration Back View Conducted Disturbance Worst Case Configuration
